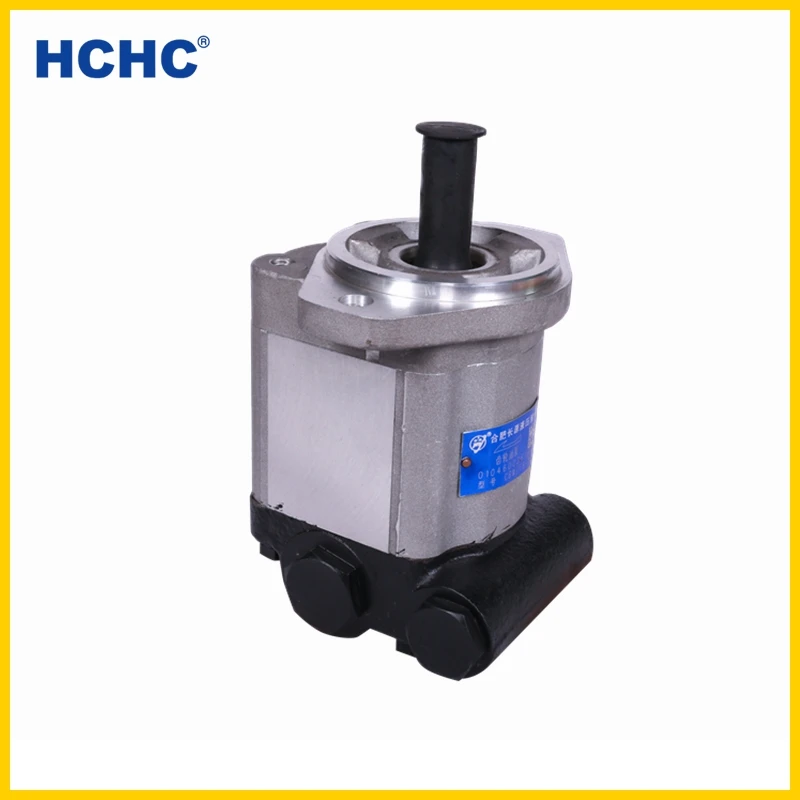

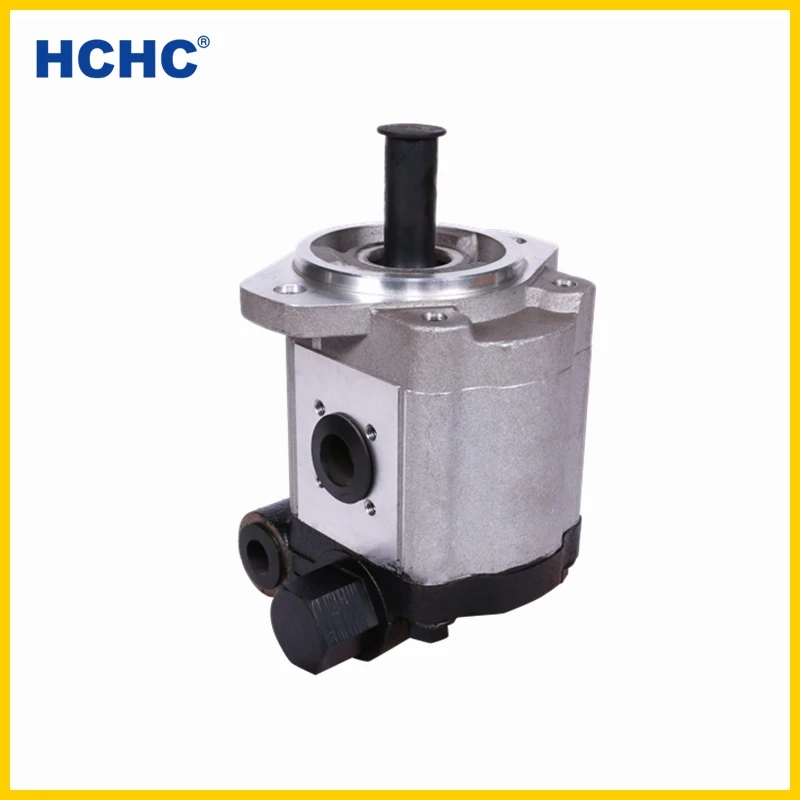

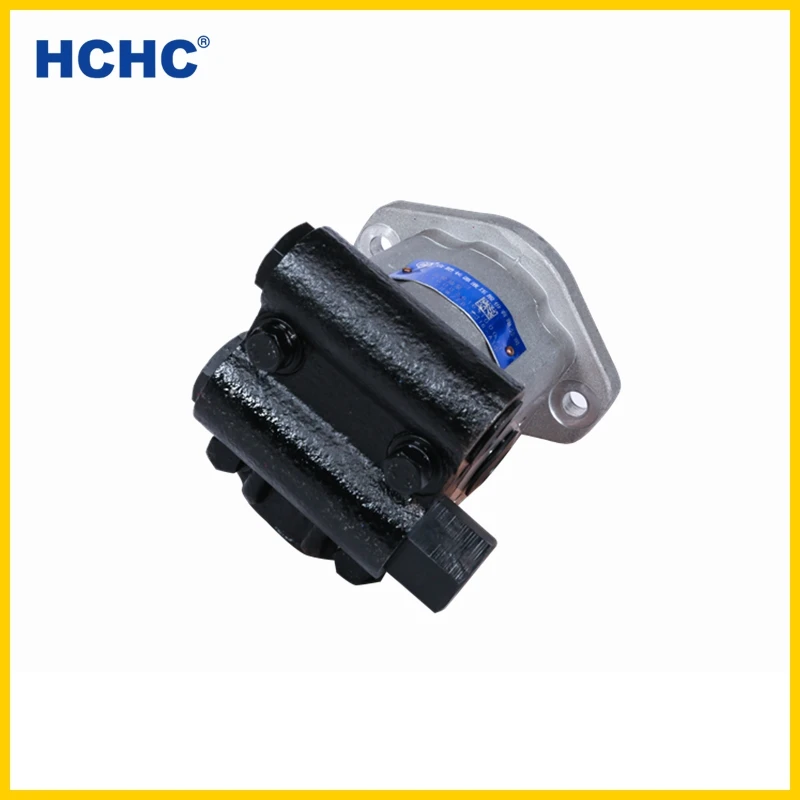

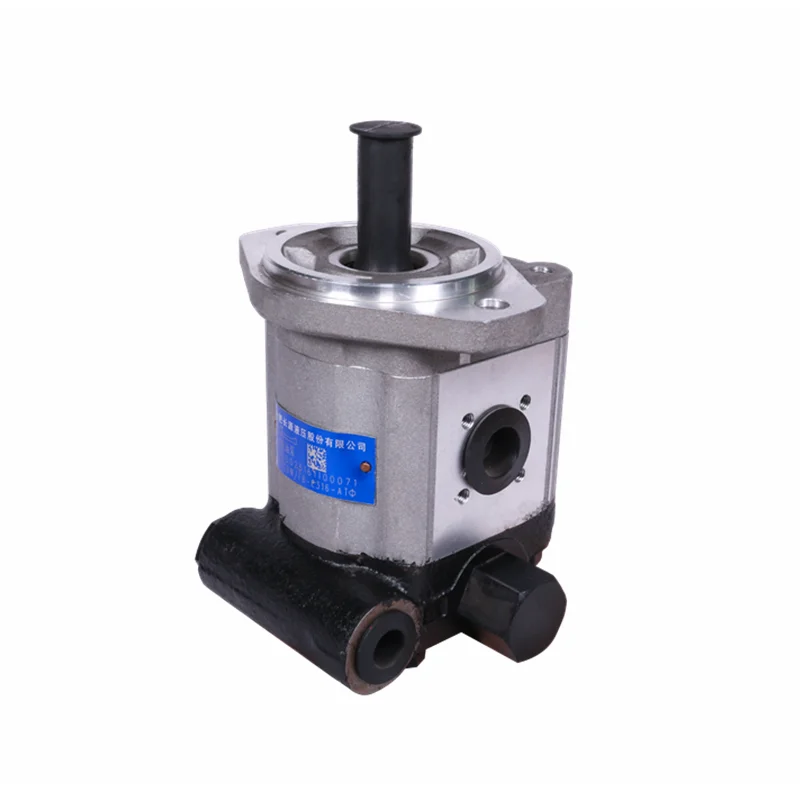

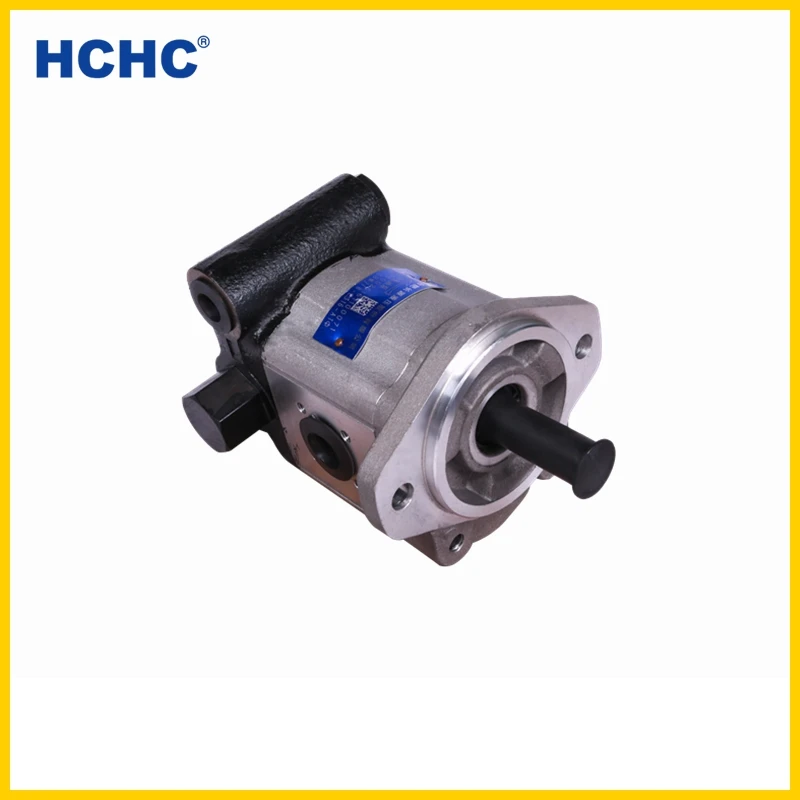

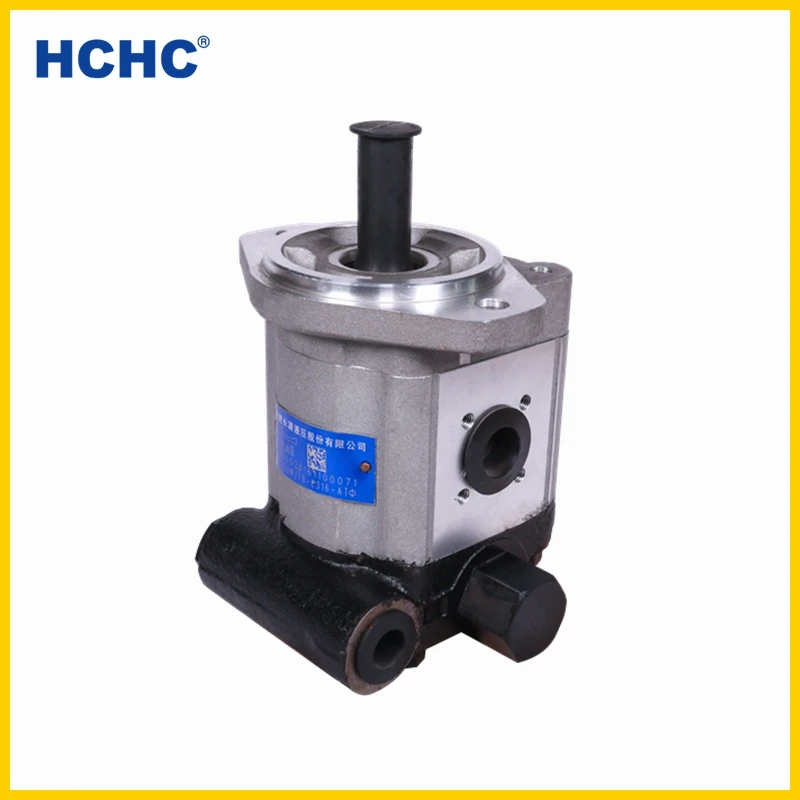

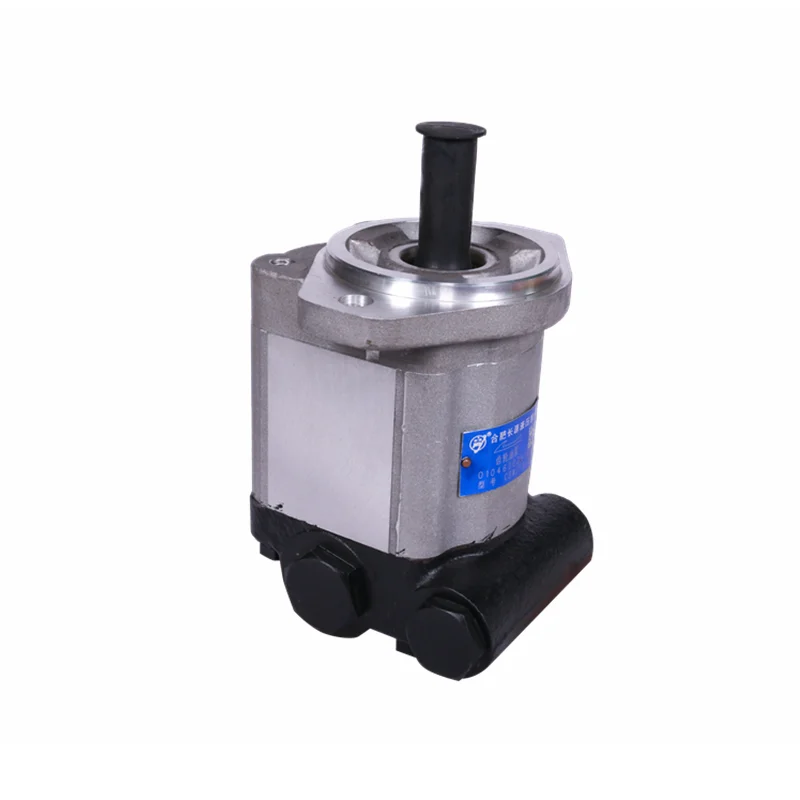

China factory 16MPa pressure hydraulic gear pump CBWFB with hydraulic valve
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60739938530):
Product Overview
Description
China factory 16MPa pressure hydraulic gear pump CBWFB with hydraulic valve
Performance Characteristics:
★ The joint of pump and valve with compact structure and small volume.
★ Constant flow outlet and wide speed range.
★ The connection form of input shaft includes SAE spline and metric system involute spline.

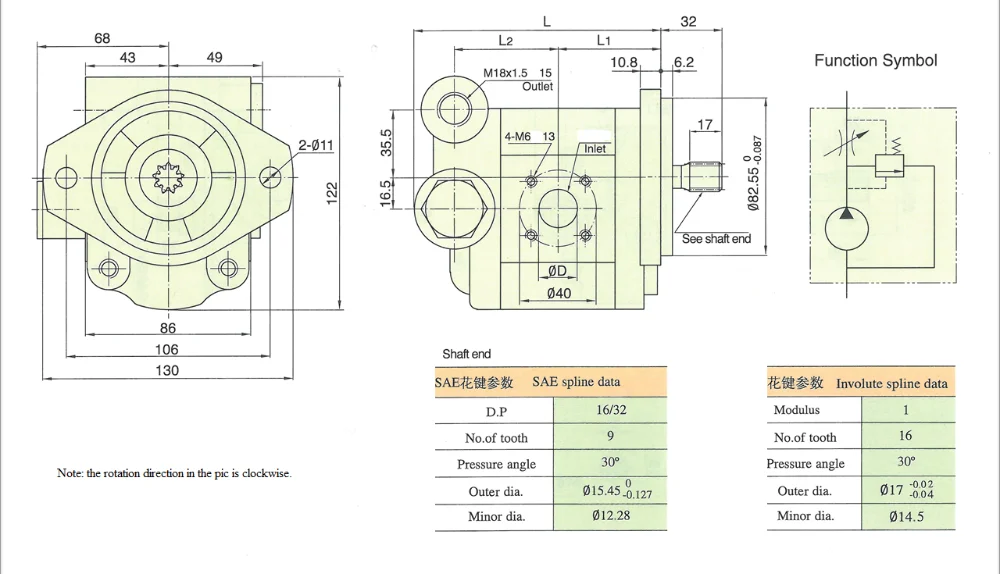

Specification
CBW/FB - E 316 - A T Φ
① ②③④ ⑤ ⑥ ⑦
Model Code
CBW/FB - E 316 - A T Φ
① ②③④ ⑤ ⑥ ⑦
①Product code
②Pressure grade: E=160bar
③Gear modulus: 3
④Nominal displacement(mL/r)
⑤Mounting type: A=rhombic flange
⑥Joining port type: T=special connection
⑦Shaft extension type:φ=SAE spline
⑧Rotation: R=clockwise (omitted)
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Stable flow A (L/min) | ||||||
Rated | Max. | Min. | Rated | Max. | ||||||
CBW/FB-E316-ATΦ | 16 | 16 | 20 | 1350 | 2000 | 2500 | 18.9~24.2 | |||
