Product Overview
Description
Gypsum Board Equipment Manufacturing/Plaster Board Equipment
Wellcome to Lvjoe!
1. high quality,farely light in weight,but strong
2. less investment,stable performance
3. more workingplants & ready machines & experienced experts
Performance texting is okay!
Texting time: 24 hours
Workers from China,Egypt,Qatar and Pakistan

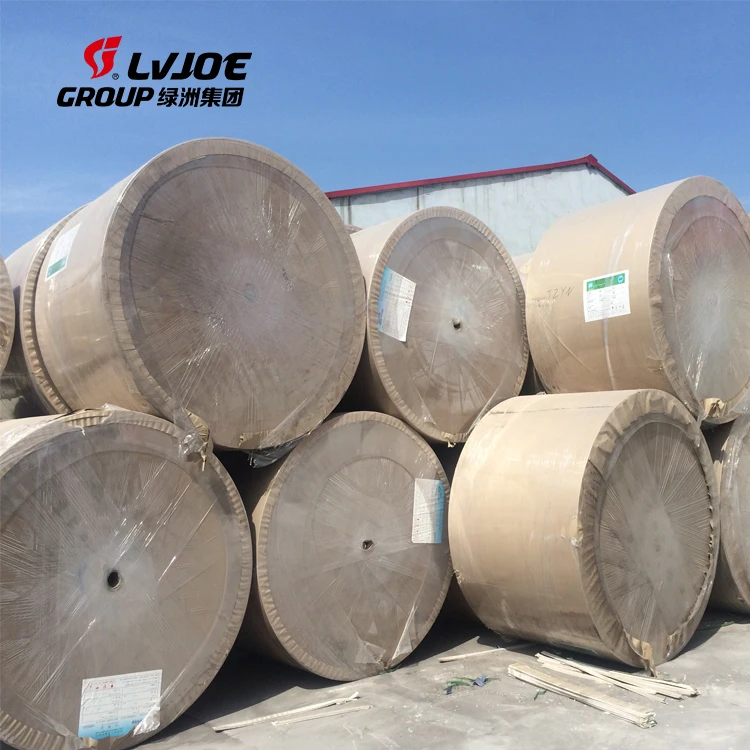

Raw materials consumption lists below :
| spec. thickness | kg/m² | t/h | t/d | t/y | |
| raw gypsum | 12.5 mm | 9.484 | 4.411 | 105.87 | 31,761.79 |
| calcined plaster | 12.5 mm | 7.995 | 3.719 | 89.25 | 26,775.19 |
| paper | 12.5 mm | 0.488 | 0.227 | 5.45 | 1,634.30 |
| modified starch | 12.5 mm | 0.060 | 0.028 | 0.67 | 200.81 |
| foam agent | 12.5 mm | 0.008 | 0.004 | 0.09 | 26.78 |
| accelerator | 12.5 mm | 0.060 | 0.028 | 0.67 | 200.81 |
| glue | 12.5 mm | 0.006 | 0.003 | 0.07 | 20.09 |
| water | 12.5 mm | 5.996 | 2.789 | 66.94 | 20,081. |
Now I introduce it from the begining:
Where can you find LVJOE company?
1,please search " gypsum board production line" by Goole,
2,please search it on alibaba
3,you also can find us on Tanzania Fair,Big 5, Canton Fair etc.,
4,our products are popular among the foreign engineers
5,we also have reached different countries for business visiting,rountine maintence,installation etc.

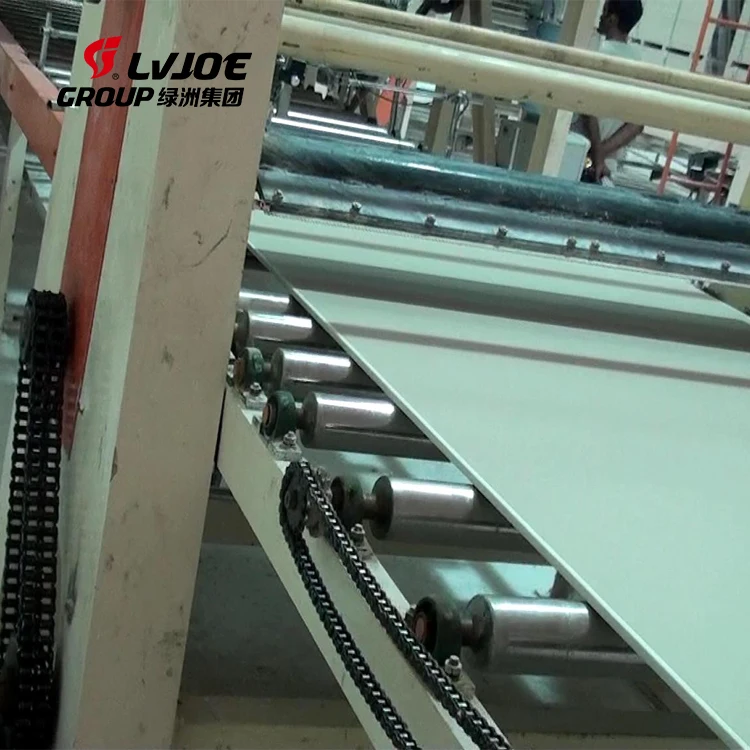

Rollers,
1, materials : stainless steel ,normally we use AISI 304,
2, automatic welding, good-looking and high-precision
3, supply extra 5% when delivery
4, quantity: about 800-1500 pics with different capacity

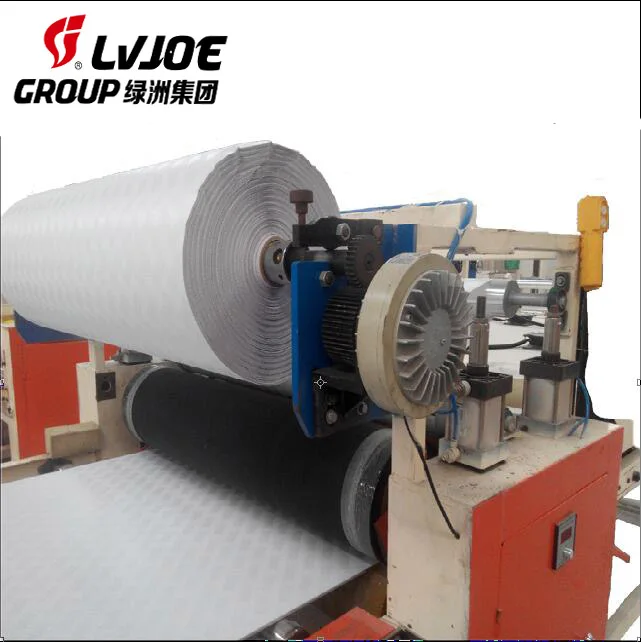

Finished machine:
1, name: forming machines
2, models: 5 models with different technology and prices
3, model in th photo lists below : FM-03 (Standard quality), popular in China market for capacity 5 million m²/year
4, normal packing method: plastic package
Forming section:
The upper and lower paper is conveyed to the cardboard station by electic hoist.The lower paper goes through the cardboard tension device,indentation device and swing correction device to the forming station,while the plaster slurry of certain consistency ,which is formed in the vertical mixer from various kinds of solid powder materials and liquid materials,flow out on the lower paper at forming station.Meanwhile,the upper paper goes through tension ,swing correction device,and edge sealing adhesive and then to the forming station. The upper and lower paper together packs the plaster slurry to get plaster board with specified thickness. After going through the seting belt conveyor,the formed plasterboard has certain strength.
Dosing system
1, dry raw materials dosing, example gypsum powder, modified starch, other additives
2, wet raw materials dosing, example water ,foaming agent, other additives
3, model: 3

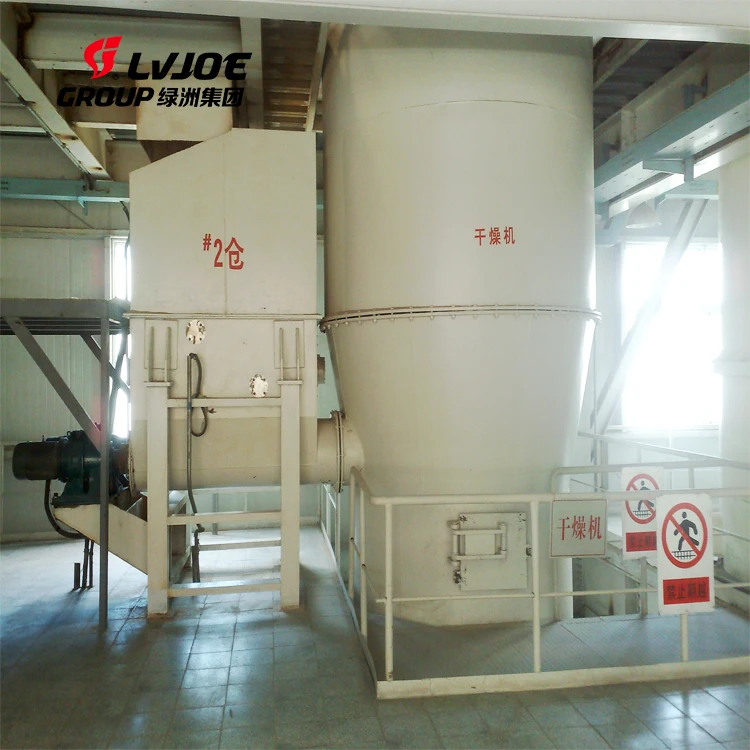

Dry materials dosing
The building plaster is conveyed to the weighing beld via bucket elevator ,screw conveyor and rigid vane feeder and then conveyed into the screw conveyor for mixer. This system has material internal circulating function for over flow of material sent to weighing belt to make conveying process quite stable.
Modified starch and other dry additives are conveyed to the screw conveyor for mixer after metering.
Glass fiber used for producing water resistant and fire resistant plasterboard is added to the screw conveyor for mixer after cutting.

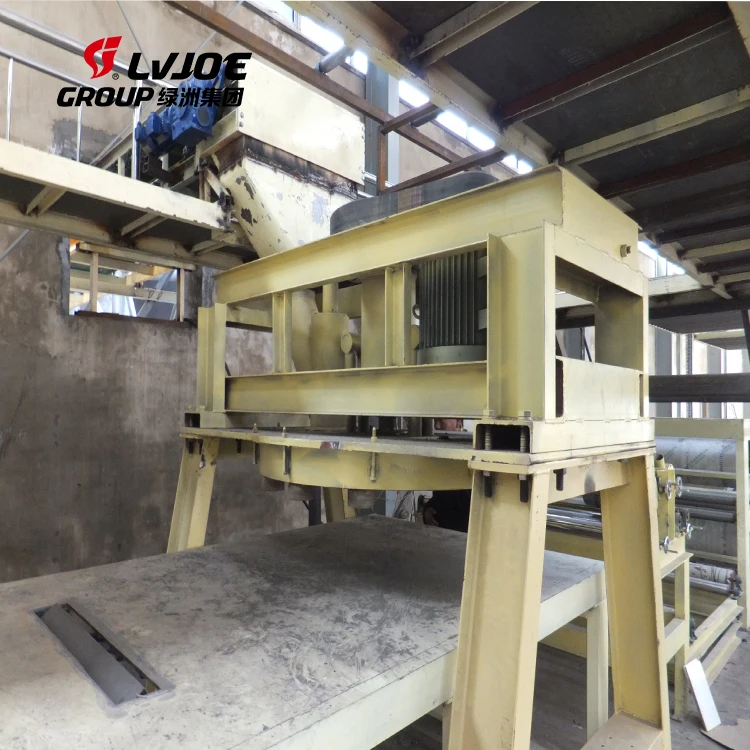

The above mentioned dry materials premixed in a special powder mixer for making additives homogeneously distribution and then conveyed into the slurry mixer
welcome to visit our factory
whatsapp:+8617769015576
QQ:1991824067
Skype:s_lfzl
Wechat:80665362
