3. Low power consumption, with high production efficiency.
4. It is easy to replace different products. 3. One year warranty, and life-long maintenance.
Technical Data:
Main Unit Size
1650mm x 1450mm x 1900mm( L X W X H)
Operating system:
10"inch THIGET man-machine interface operation system
PLC
6-axis XDS of THINGET
Pneumatic accessories
Air TAC Cylinder(with magnetic ). Air TAC Solenoid valve, Penumatic connetor
Bearings
NSK Bearings
LV accessories
Schneider (air switches, contactors, relays)
Servo motor
Shihlin
Stepping motor
Three-phase stepping motor
Drive motor
Single Phase motor Use of high-precision indexer driver positioning structure in 12 equal parts structure
Total power of equipment
4.5KW /h. Power supply supports, three phase 380V
Packaging size of adhesive tape
40-130MM
Width of adhesive tape
15-25MM
packing speed
60-70PCS/Min

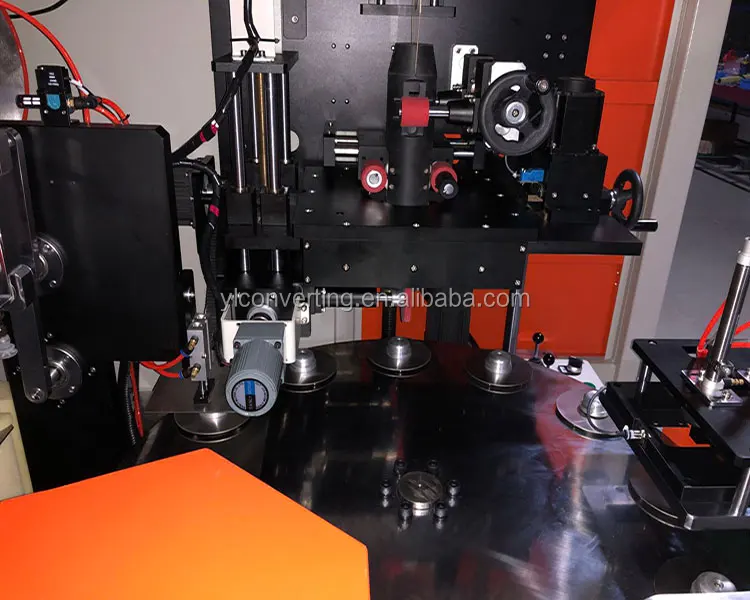

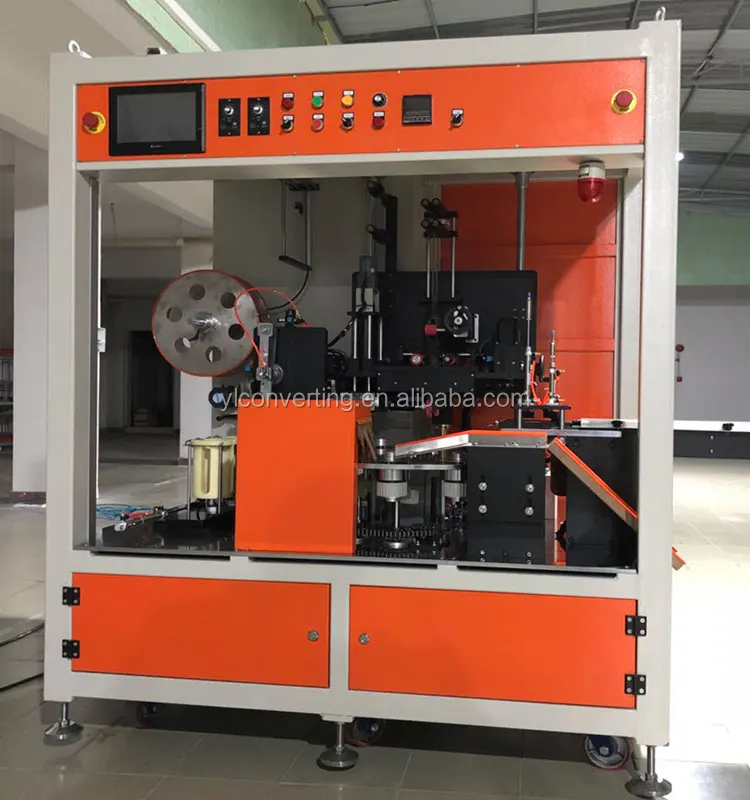

Machine's picture :
Workflow:
1.Place the adhesive tape into automatic handling plate, and the material then enters into the feed line, after which photoelectric sensor acts and make sorting if there's no material, and stop if there is material.
2. Pipeline senses the incomming materail., make pressing, and hit the material into the mold staion.
3. The station mold receives the step motors, and drives the large plate of the 12 stations to make them enter the film nesting station.
4.Servo positioning delivery film(length setting available), film cutting , film nesting, and then turns to the station.
5.Press the film into the station.
6.Scale absorption and placement are done by servo manipulator in a vacuum mode, also. it is equipped with the scale inspection, and scale plate can sense the positioning, and the plate will be replace with no stopping.
7.Enter into the heat shrink, and then finished the manufactured.
