New Design Copper Ore Rotary Drum Dryer For Copper Processing Plant

Product Overview

Description

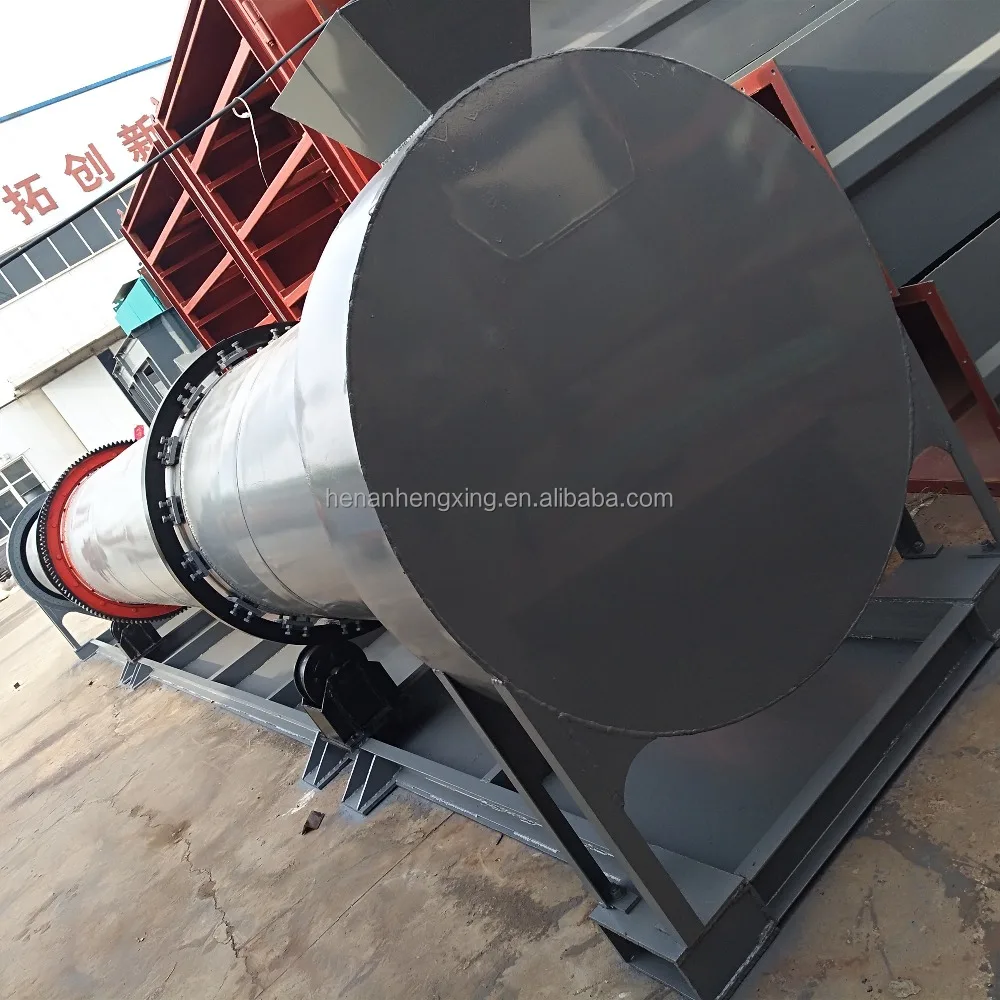

New Design Copper Ore Rotary Drum Dryer For Copper Processing Plant

The production capacity is 0.5-1.5t / h 50-55t / h.

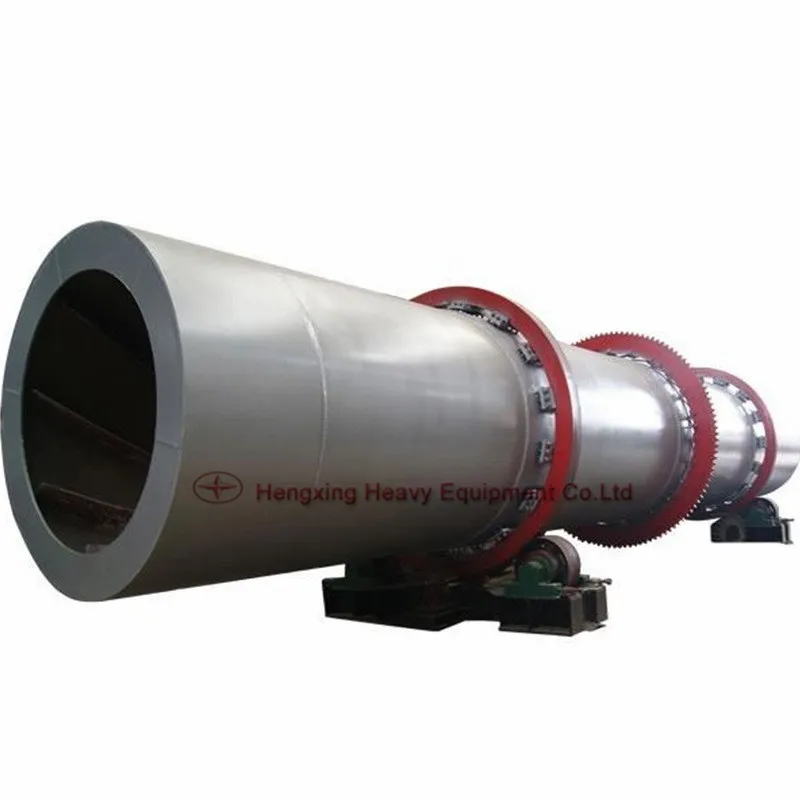

Structure of the copper ore rotary drum dryer

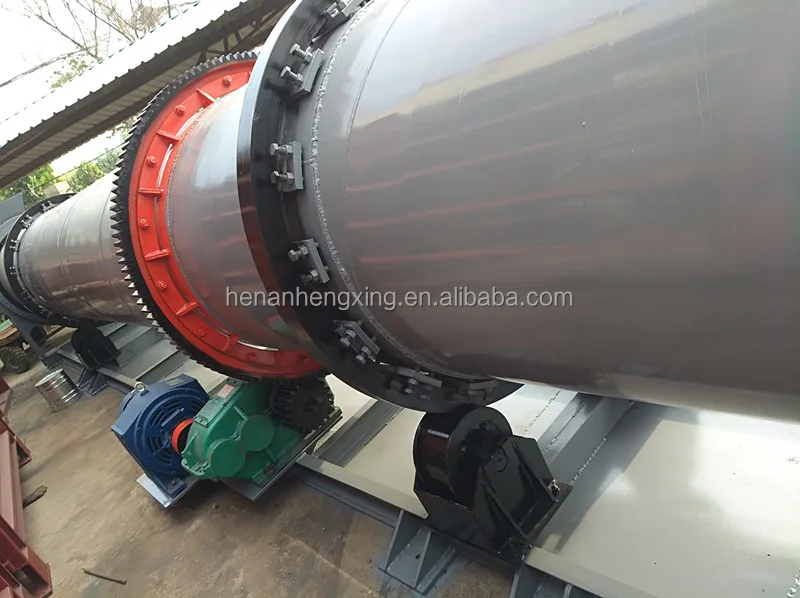

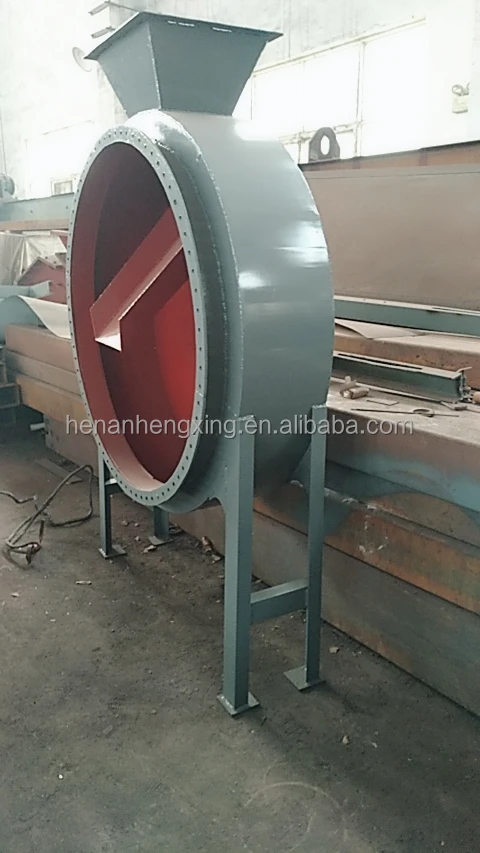

the copper ore  rotary drum dryer  mainly consist of Rotary Drum, Inlet Hole, Discharging Hole, Ring, Gear, Carrier Roller, Transimission ASSY, Air Duct Pipe, Induced Draft Fan, Hot Air Furnace, Chimney, Cyclone Dust Separator, etc.

Working Principle of the copper ore rotary drum  dryer :

The hot air furnace supply the clean hot air inside the copper concentrate rotary drum dryer

 The feeder machine sends the wet mateiral inside the Rotary Dryer

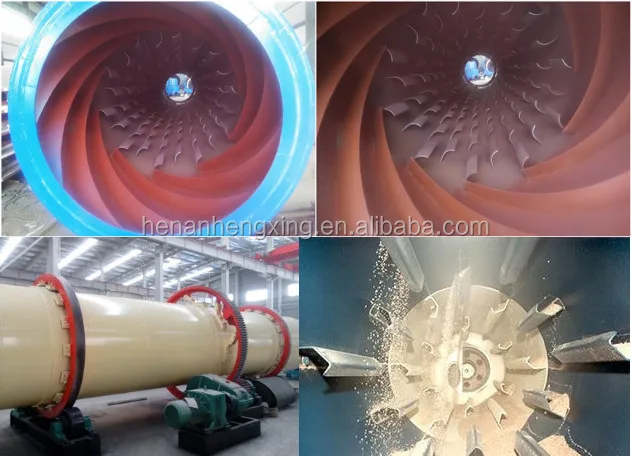

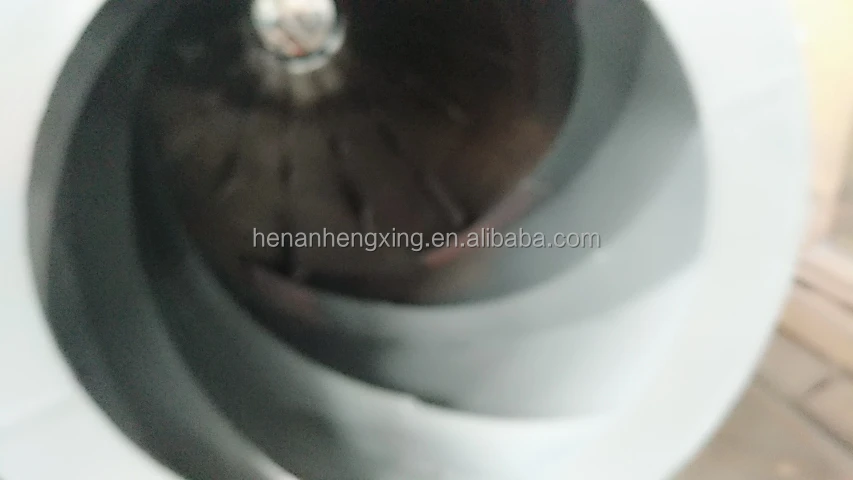

When the copper concentrate dryer  is rotating, the lifting plates inside the Rotary Dryer , mix the wet material and hot air together sufficiently so that the wet material can be dried effectively by the hot air. The moisture of the wet material is evaporated into water vapour.

The dried materials are discharged through the discharging hole as the product.

 On the end of the Rotary Dryer , there is one high pressure induced draft fan which suck out the water vapour, and then the water vapour goes into the cyclone dust separator.

In the cyclone dust separator, the dust mixed with the steam is separated from the water vapour, and falls down and goes out of the bottom discharging hole of the cyclone dust separator. The water vapour finally goes into the atmosphere by the chimney directly.

Custom Engineered copper ore  rotary drum dryer :

Hengixng equipment  rotary dryers are custom engineered to reach optimum drying efficiency.

We’ve built a reputation on building the best and most suitable rotary dryers with reasonable price to our customers in the industry. All of our  rotary dryers are custom designed to suit the unique processing needs of your material. Whether you require low or high inlet temperatures, short or long drying time, counter-current or co-current flow drying process, Sunco Machinery’s design team can design a rotary drum dryer for your application specially.

The Capacity of Hengixng  Rotary dryers can be from 0.5 t/h to much large capacity as your actual need.

In order to supply the most suitable  rotary dryers,  kindly help to supply more information about your actual need:

1. What kind of material do you need to dry ?

2. What is the usual size (mm) of the material ?

3. What is the bulk density (kg per cubic meter) of the wet material ?

4. What is the initial moisture content (%) of the wet material ?

5. What is the output moisture content (%) of the dried material needed ?

6. How many tons wet material do you need to dry per hour ?

7. What kind of fuel will you prefer to use such as coal, biomass, natural gas, diesel, etc ?

Copper ore rotary drum dryer technical parameters :

model(m) (shell diameter*shell length)	Shell cubage (m³)	Capacity (t/h)	Gradient (°)	Highest inlet air temperature (℃)	Main motor power (kw)	Weight (t)
Φ1.2×8.0	9.0	1.9~2.4	3~5	700~800	7.5	9
Φ1.2×10	11.3	2.4~3.0	3~5	700~800	7.5	11
Φ1.5×12	21.2	4.5~5.7	3~5	700~800	15	18.5
Φ1.5×14	24.7	5.3~6.6	3~5	700~800	15	19.7
Φ1.5×15	26.5	5.7~7.1	3~5	700~800	15	20.5
Φ1.8×12	30.5	6.5~8.1	3~5	700~800	18.5	21.5
Φ1.8×14	35.6	7.6~9.5	3~5	700~800	18.5	23
Φ2.2×12	45.6	9.7~12.2	3~5	700~800	22	33.5
Φ2.2×14	53.2	11.4~14.2	3~5	700~800	22	36
Φ2.2×16	60.8	13.0~16.2	3~5	700~800	22	38
Φ2.4×14	63.3	13.5~16.9	3~5	700~800	37	45
Φ2.4×18	81.4	17.4~21.7	3~5	700~800	37	49
Φ2.4×20	90.4	19.3~24.1	3~5	700~800	45	54
Φ2.4×22	99.5	21.2~26.5	3~5	700~800	45	58
Φ2.6×24	127.4	27.4~34.0	3~5	700~800	55	73
Φ3.0×20	141.3	30.1~37.7	3~5	700~800	75	85
Φ3.0×25	176.6	37.7~47.1	3~5	700~800	75	95
Φ3.2×25	201	42.9~53.6	3~5	700~800	90	110
Φ3.6×28	285	60.8~76.0	3~5	700~800	160	135

Performace Features of the copper ore rotary dryer :

Energy Saving: The consumption of coal and electric can be lower 8% to 16% than the normal rotary dryers, with the production ratio higher than 10% to 15%;

Environment Friendly: The special desigh Hot Air Furnace can supply the clean hot air for the rotary dryer, and there is little dust and noise during working process;

Compact Structure, Easy Maintenance and Operation, Low Invest Cost;

 Broad Fuel Option:  The fuel can be waste wood, biomas fuel, rice husk, natural gas, diesel,  electricity, etc.

 Long Usage Lifetime: Daily the user only need to add some grease on the transimission parts such as gear.



Hengxing rotary  dryer shipping :

About our factory :

Zhengzhou HengxingHeavy  Equipment  Co.,Ltd is a professional manufacturer of mining, crushing, screening and drying equipments, with a long-term supply of ore dressing and gravel aggregate industries with crushers, vibrating screens, washing equipments and belt conveyors, drying equipment,rotary kiln,AAC equipement ,etc.  we persist in providing highly customized solutions according to different requirements, including single machines, and complete production lines.  While expanding domestic market percentage constantly, our  products are being exported to Europe, Africa, Central Asia, Southeast Asia, South America, North America, Australia and so on, more than 20 countries and regions totally.







About Installation and Commissioning
we are able to guide the overall installation of whole set rotary dryer production line, including stone crushing production line and ball mill production line,rotary dryer production line, etc., which will allow you to start the normal operation of equipment immediately and successfully.
