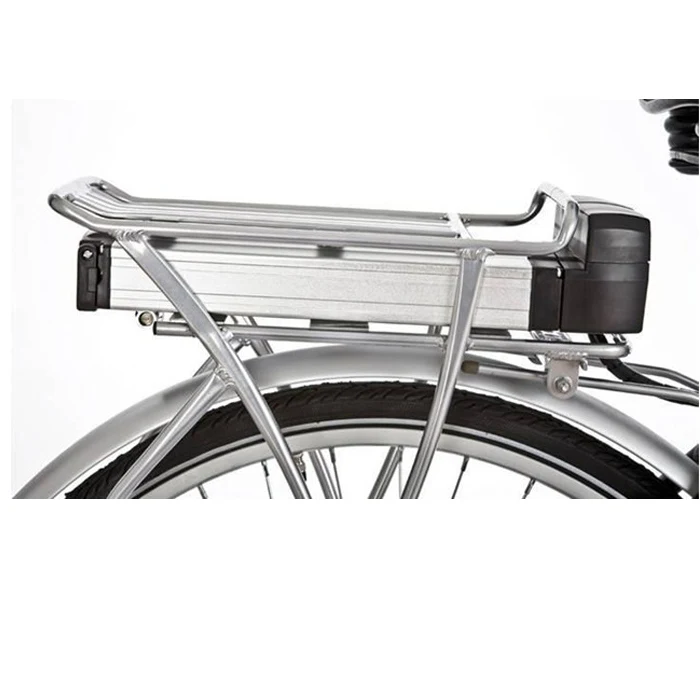

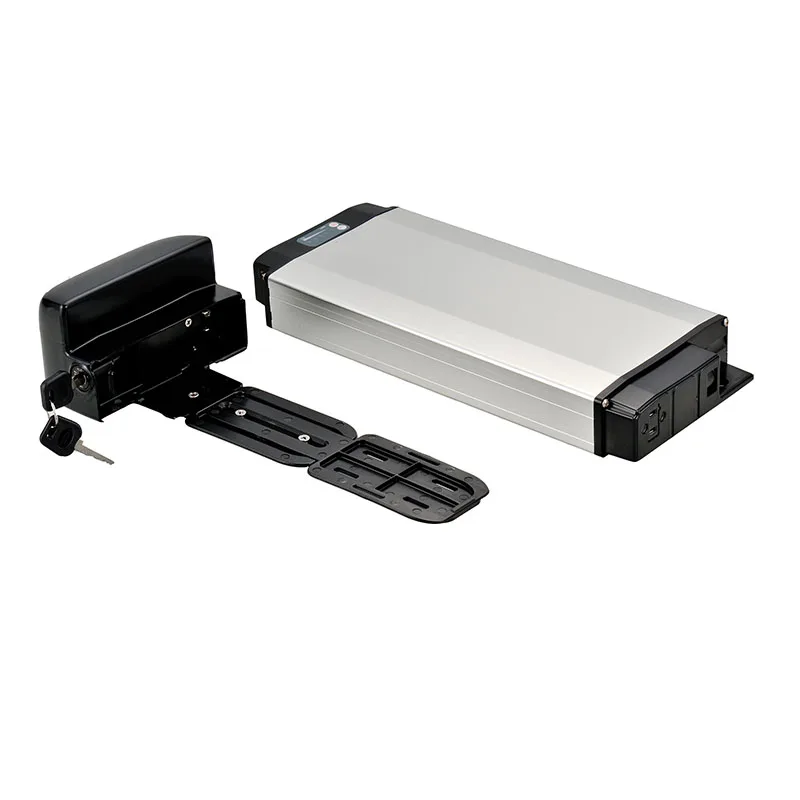

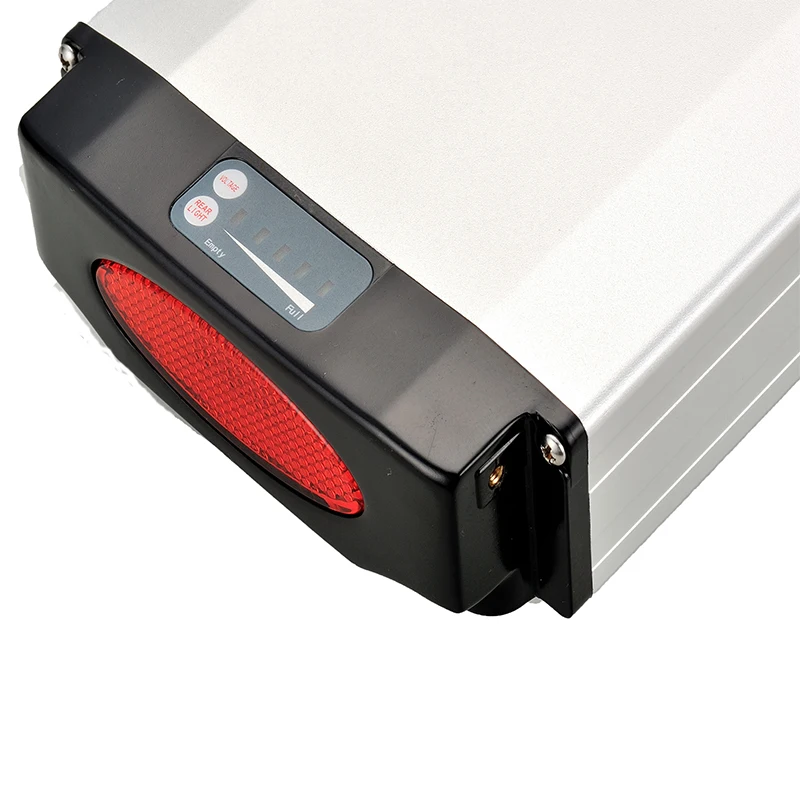

Rechargeable 36v lithium battery ebike battery for electric bicycle

Share on (60740043692):


Price:

Quantity:


Product Overview

Description


Product Description

High Sales Volume Lightweight Bicycle Battery Pack 36v lithium ion battery

\t
Model NO
\t
HC-001-A
\t
Type
\t
Lithium-ion 18650 10S5P
\t
Configuration
\t
10S4P
\t
Battery cell brand
\t
Domestic
\t
Battery dimension
\t
379*149*92 mm
\t
36VNominal Voltage
\t
36V
\t
Nominal Capacity
\t
10AH
\t
Over discharge protection
\t
28±0.5v
\t
Over charge protection
\t
42±0.01V
\t
Charging current
\t
≤5 A
\t
Continuous discharge current
\t
≤15A
\t
Transient excess current
\t
60±10A
\t
Charge time under standard current
\t
About 4-6 hours
\t
USB
\t
Optional, it depends on you
\t
Charge mode
\t
CC/CV
\t

Attention
\t
1.Don't dispose in fire or heat
\t
2.Don't puncture, damage an disassemble
\t
3.Don't mix fresh batteries with used batteries
\t
Battery warranty
\t
27 months

Using different cells, the different battery pack can be made for this case:

\t
Voltage
\t
Battery Cells
\t
Capacity
\t
36V
\t
Samsung
\t
11AH、13AH、14.5AH、17.5AH
\t
Panasonic
\t
11AH、13AH、14.5AH、17.5AH
\t
LG
\t
11AH、13AH、14.5AH、16AH、17.5AH
\t
China-made
\t
10AH、11AH、12..5AH、13AH
Related Products
Our Company

    Jinhua HengChuang New Energy Co.,Ltd is located in jinhua City, Zhejiang Province, China. HengChuang is a company specialized in producing lithium battery, battery BMS and electric bike charger, integrating R&D and sale. Since its inception in 2016, continue to absorb a variety of talents, improve product quality, improving staff quality, in order to grow their companies. Within one year after establishment, we have achieved good results. Strict quality guarantee system and perfect management system, high-quality products after-sales service is our foothold. The face of fierce competition, the company system is constantly being improved, relying on science and technology, continuously improve the technology content of products sold, for society, customers and companies to create a higher market value.

Our Services

Features
*Lower self-discharge rate
Adopt A certain amount of negative additives, add to the negative active material by special process method, it can not only surmount self discharge too bigger but also reduce power consumption when initial charge
*Good lower-temperature performance
Polar plated are added highly active low-temperature expansion agent and conductive material. The product has super low-temperature discharge capacity, avoid continued line mileage of battery reducing.
*Safe and reliable
Special design for all battery non-return valves,use automatic anti early drying the removable relief valve. This valve have check fluid infusion function as the common battery but also have the one way exhaust hermetic function as hermetic battery. These make the battery with lower water loss when in the course of charge-discharge. Sealing reaction efficiency is higher. When use in the electric vehicle, the capacity will be more bigger, non infiltration liquid, higher function of gas recombination, and when the battery are maintenance, it is easy to remove the valve.
*Long service life
Battery discharge depth DOD 80% can do 500 cycle when in the standard condition


Custom product
We can manufacture the product according to the customers. Customize size, Customize voltage, Customize capacity, Customize current.
Jinhua HengChuang New Energy Co.,Ltd is a company specialized in producing lithium battery, battery BMS and electric bike charger, integrating R&D and sale. We have professional production team, systematic production system and the advanced expert production equipment. All our products are manufactured with advanced equipment and strict QC procedures in order to insure high quality. And we can meet various requirements from different types of customers. Welcome to send us the inquiry, we are very pleased to supply service for you.


Packing & Delivery
1.All the cargoes will be tested strictly before send out.
2.We choose the most safety and comfort pack material before ship out.
3.We choose the safer but cheapest way to ship the good.
4.We choose the several shipping ways for customers reference.
