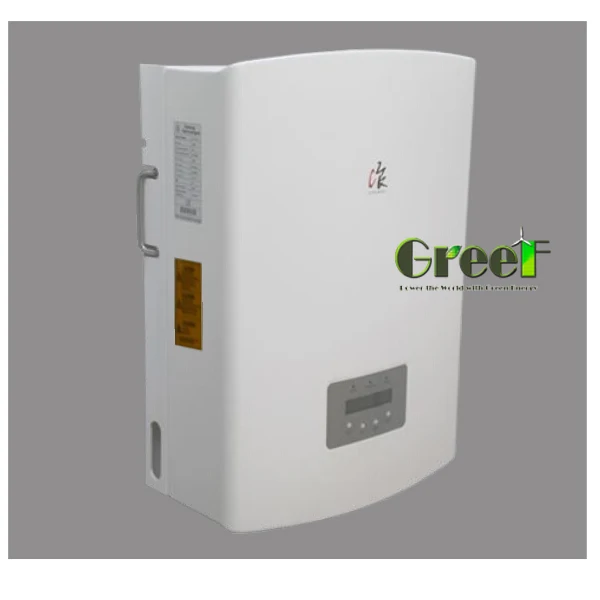

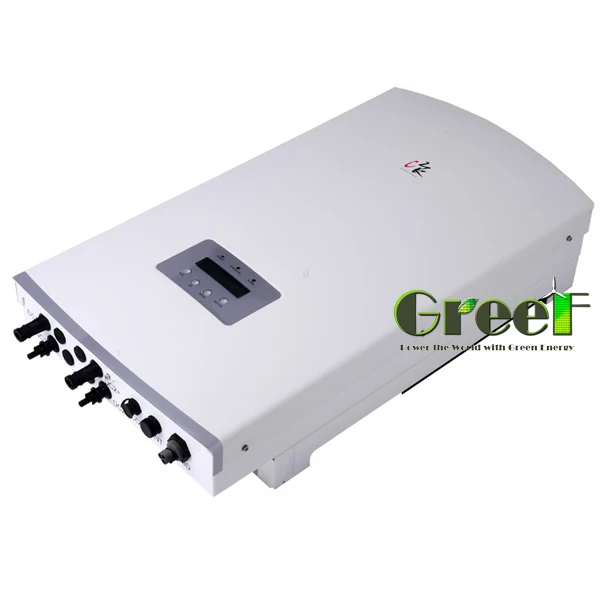

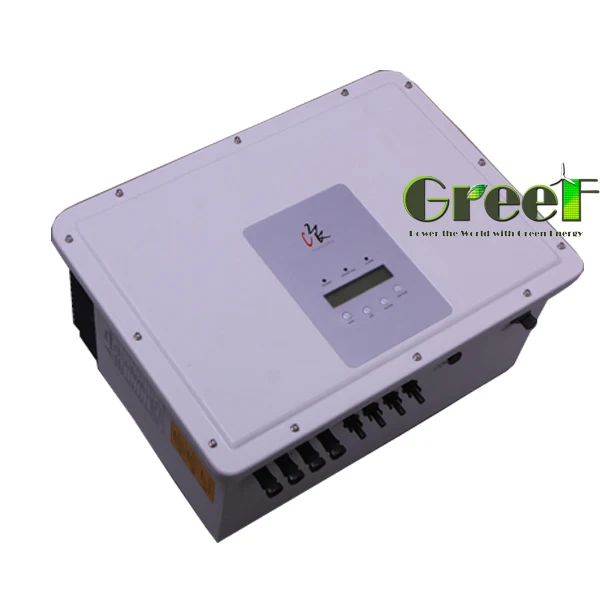

4kW Wind Turbine and Hybrid System Grid Tie / On Grid Inverer
4kW Wind Turbine and Hybrid System Grid Tie / On-Grid Inverer
4kW Wind Turbine and Hybrid System Grid Tie / On-Grid Inverer
4kW Wind Turbine and Hybrid System Grid Tie / On-Grid Inverer
4kW Wind Turbine and Hybrid System Grid Tie / On-Grid Inverer
4kW Wind Turbine and Hybrid System Grid Tie / On-Grid Inverer
4kW Wind Turbine and Hybrid System Grid Tie / On-Grid Inverer

4kW Wind Turbine and Hybrid System Grid Tie / On Grid Inverer

Share on (60740057622):


Price:$589.00

Quantity:


Product Overview

Description


Product Description

2kW 3kW 4kW 5kW on-grid Invertor is one of the crucial parts in the wind and solar hybrid system to feed the electricity to the public grid. Thanks to its new technology and novel algorthm, GCI series grid tie inverters are among the most efficient and reliable grid tie inverters in the world.


\t
Advantages:
\t
Over 97.5% Max. Efficiency
\t
Ultra wide input voltage range
\t
Controlled PWM inverter technology
\t
Ultra wide input voltage range
\t
Precise MPPT algorithm
\t
IP65, visually pleasing for domestic environment
\t
RS 485, WIFI/GPRS (optional) interface
\t
Wifi and monitoring app available
\t
40 point programmable, linearly extrapolated power curve, via inverter display, to match the output of a specific wind turbine.
\t
Ultra wide input voltage range from 30V up to 810V.

\t
Operation temperature from -25°C to 50°C.
\t
Compact and light design, one-person easy installation.
\t
5 years standard warranty, 10 years optional upgrade
SPECIFICATIONS
\t
Model
\t
GCI-2K-H
\t
GCI-3K-H
\t
GCI-4K-H
\t
GCI-5K-H
\t
Energy source
\t
Wind channel + PV channel
\t
Rated output power
\t
2kW
\t
3kW
\t
4kW
\t
5kW
\t
Max. transient power
\t
2.2kW
\t
3.3kW
\t
4.4kW
\t
5.5kW
\t
Max. DC input voltage
\t
600V
\t
MPPT mode
\t
Power curve tracking for wind ;Max power point tracking for solar
\t
MPPT operating range
\t
30-400V for wind
100-400V for PV
\t
30-540V for wind
                                              100-500V for PV
\t
Rated DC voltage
\t
250V
\t
300V
\t
Max.DC input current
\t
10A
\t
15A
\t
Number of MPPT/Max strings per MPPT
\t
1/1
\t
Internal consumption
\t
<6W(No wind)
\t
Rated AC grid voltage
\t
230V
\t
AC grid voltage range
\t
180~270V(adjustable)
\t
Rated grid frequency
\t
50/60Hz
\t
DC injection current
\t
＜20mA
\t
＜50mA
\t
Oprating phase
\t
Single
\t
Rated AC grid output current
\t
8.7A
\t
15.7A
\t
17.4A
\t
21.7A
\t
Output power factor
\t
＞0.99
\t
Grid current THD
\t
Total THD ＜4%
\t
Max.efficiency
\t
＞97%
\t
Protection
\t
DC reverse polarity protection,AC short circuit protection,islanding protection,temperature protection Etc.
\t
Topology
\t
Transformerless
\t
Utility monitoring
\t
Islanding protection VAC, FAC in accordance with UL 1741, G83/1, As4777, VDE 0126-1-1
\t
Ingress protection
\t
IP65
\t
Operationg environment temperature
\t
-25~60℃
\t
Interface
\t
RS485/WiFi or GPRS(Optional)
\t
Designed lifetime
\t
＞20 years
\t
Operating surroundings humidity
\t
0~95%
\t
EMC
\t
EN61000-6-1:2007 EN61000-6-3:2007
\t
Size/Weight
\t
339W/565H/164D(mm) /11kg
\t
339W/565H/172.5D(mm)/14.5kg
\t
339W/565H/172.5D(mm) /14.5/kg

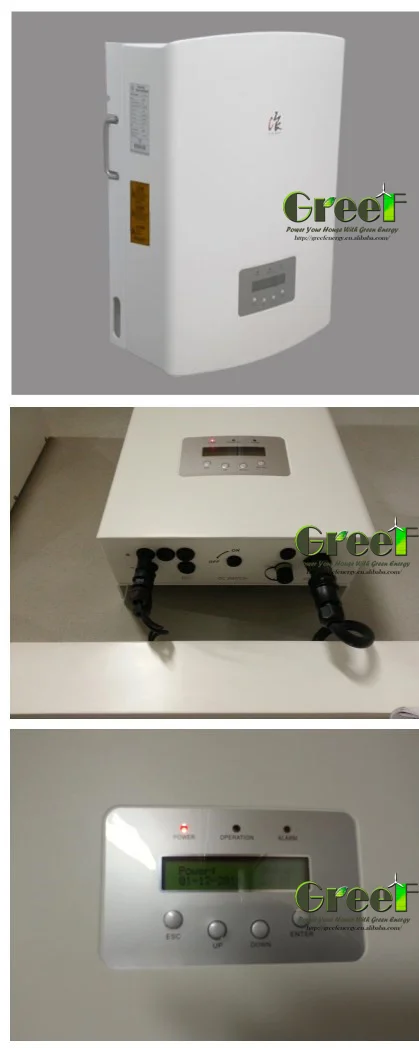

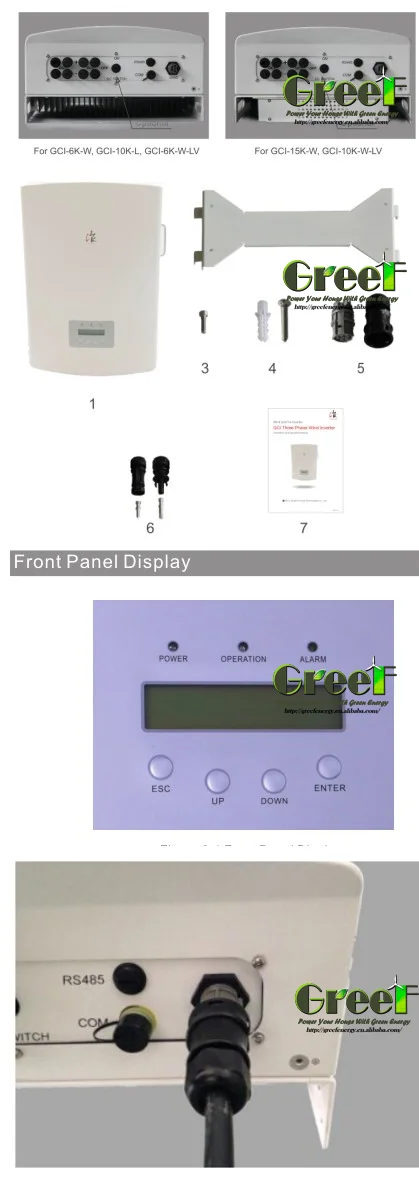

Detailed Images
Packing & Delivery


1.Inner Cartoon package and outer Plywooden case . And for delivery by sea we can use tray

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air or by DHL FEDEX,UPS all are available.

If you have any request in package and shipping please tell our sales we will do according to your request.


Our Service

2kW 3kW 5kW on grid inverter are free stardard 5 years warranty, can update to 10 years.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.

(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.

(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.

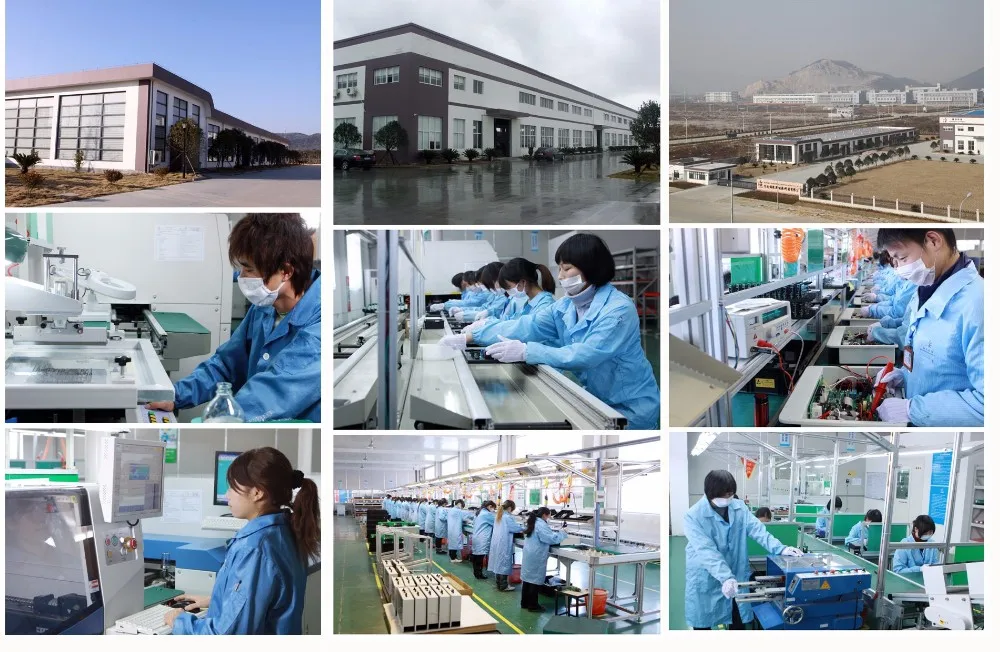

Company Information
