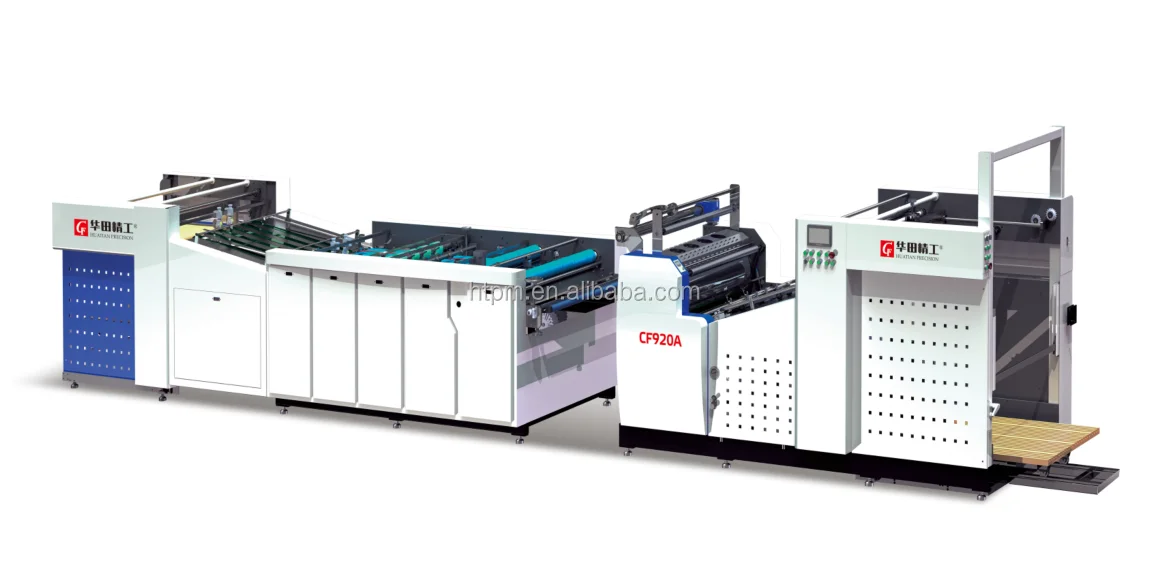

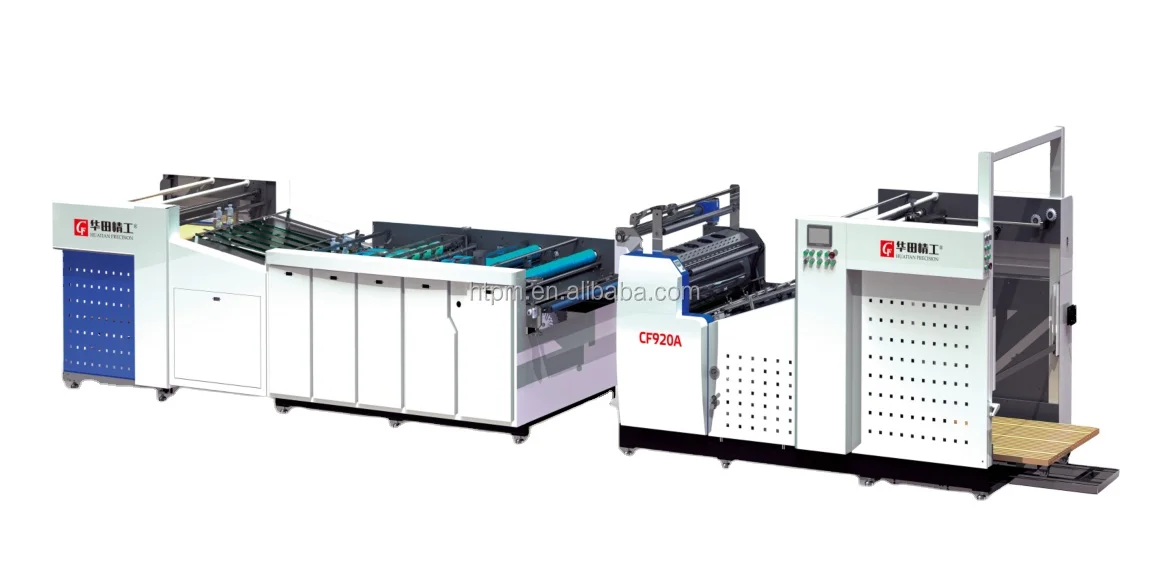

CF920A bopp film pet film High speed hot Lamination machine

Product Overview

Description

CF920 Automatic bopp film hot lamination machine







 Character and advantage:

1.this machine is equipped with a paper pre-stacker device,and there is one trolley in the feeder table.

2.The feeder table adopts vacuum suction device ,it can guarantee the stability and smooth of the feeding process

3.This machine is equipped with side guide and front guide device,it can effectively control the precision of the paper gripper.

4.This machine adopts big heating roller and electromagnetic heating technology ,it can ensure the quality of lamination.

5.This machine adopts split-type structure,the cutter party and main machine party is separated, this design makes operation and maintenance easily.

6.This machine is equipped with fast-change device for the pressure cylinder.

7.The delivery adopts the new design ,it is automatic and easy to operate.

Technicial Parameter:



Model	CF740	CF920
Max paper size	740X920mm	920X1040mm
Min paper size	270X300mm	300X320mm
Paper thickness	105-500g/m2	105-500g/m2
Laminating speed	0-65m/min	0-120m/min
Laminating temperature	80-110℃	80-110℃
power	25kw	25kw
Weight	2600kg	3200kg
Machine size	5.6×1.4×1.55m	6.1×2.3×1.55m
Front guide positioning device	√	√
Side guide positioning device	√	√
Heating method	Electromagnetic Heater	Electromagnetic Heater
Chain cutter device	optional	optional
Anti-curvature device	√	√
