Small Size Electric Fire Truck For Emergency Use
Small Size Electric Fire Truck For Emergency Use
Small Size Electric Fire Truck For Emergency Use
Small Size Electric Fire Truck For Emergency Use
Small Size Electric Fire Truck For Emergency Use

Small Size Electric Fire Truck For Emergency Use

Share on (60740115683):


Price:$6,900.00 - $7,300.00

Quantity:


Product Overview

Description


Product Description

Product Application

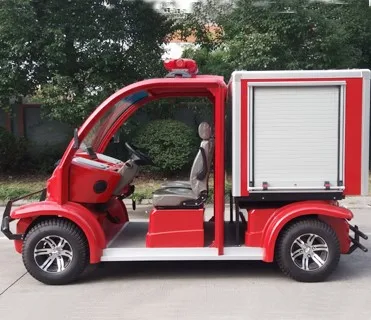

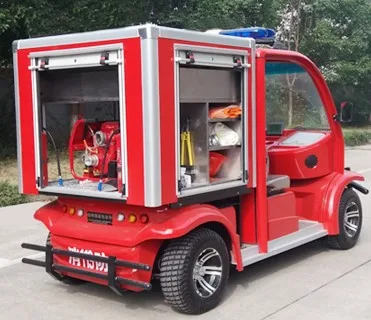

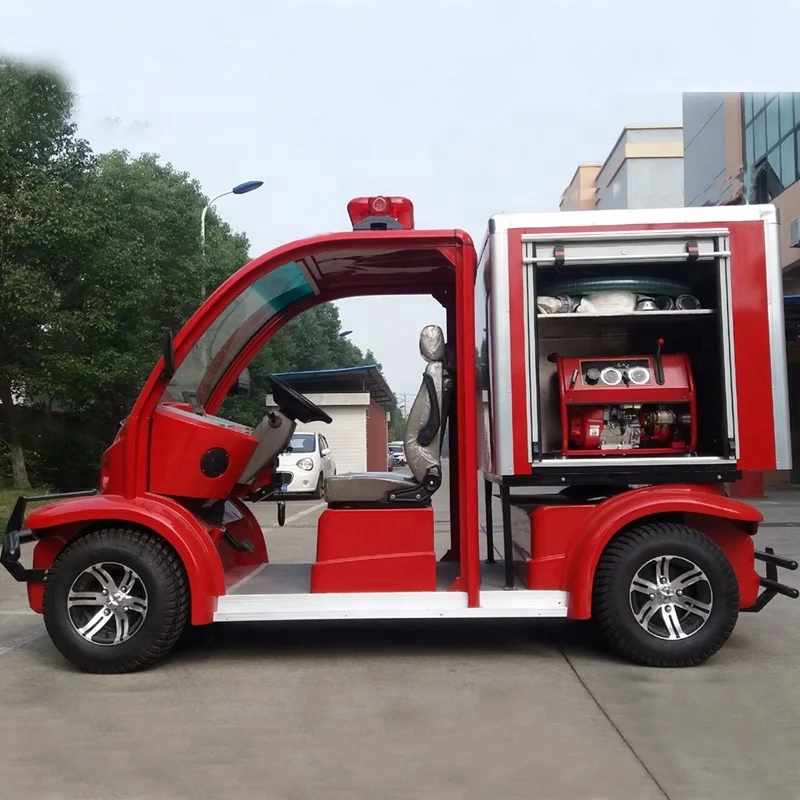

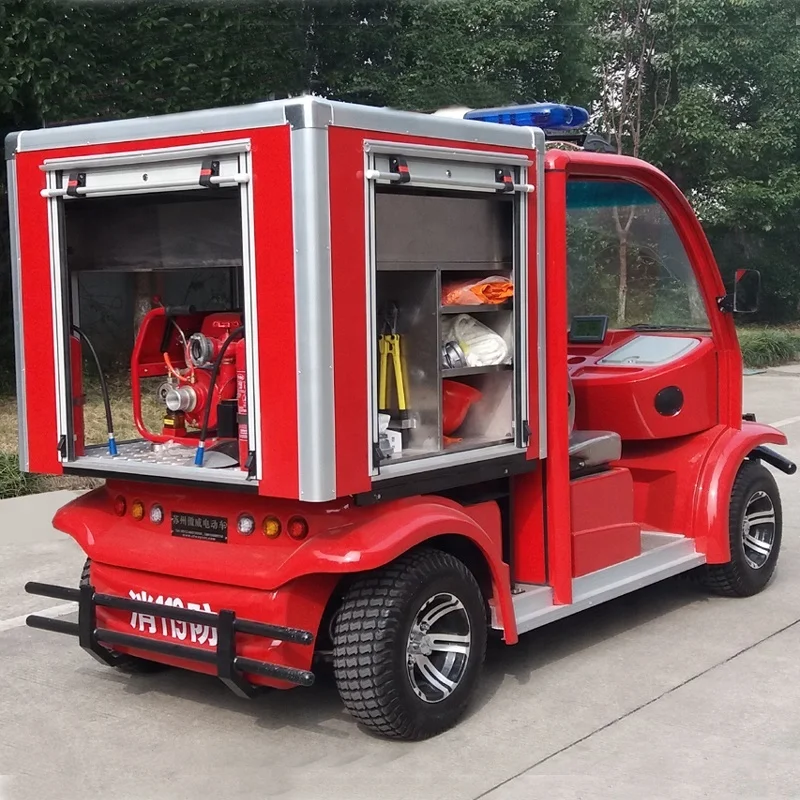

LS6042HC is a Small Size Electric Fire Truck For Emergency Using. It's customized based on electric personal carrier LS6042K. Some basic fire fighting equipment can be It can be stored inside the rear box. It can used in many places, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where is far from the fire fighting bureau or not convenient for big size fire fighting truck, for emergency cases.

\t
SPECIFICATIONS OF Small Size Electric Fire Truck LS6042HC
\t

Key Components
\t
Controller
\t
Curtis Brand
\t
Motor
\t
5KW AC/DC motor
\t
Battery
\t
8pcs, 6V210AH Lead Acid Battery
\t




Performance
and
Dimensions
\t
Passenger Capacity
\t
2
\t
Range (Loaded) *
\t
70-80kms
\t
Max.speed
\t
25-35km/h
\t
Min. Turning Radius
\t
4m
\t
Max. Gradeability
\t
20%
\t
Max. Loading Weight
\t
400kgs
\t
Net Weight
\t
700kgs
\t
Overall Dimensions
\t
3090X1490X1950mm
\t
Body and Frame
\t
Frame (Chassis)
\t
Welded steel framework, with anti-rust treatment of sand blasting and painting
\t
Body and Roof
\t
PP plastic front body and rear body; FRP roof
\t
Windshield
\t
Laminated, with wiper
\t
Roof supports
\t
Aluminum
\t
Seat
\t
High back seat with head rest, made by reborn sponge, artificial leather + foldable armrest
\t
Floor
\t
Galvanized Steel plate and anti-slip rubber floor mat
\t
Dashboard
\t
FRP, with 2 storage box, forward/reverse switch, ignition key, digital meter
\t
Side trim
\t
Aluminum alloy
\t
Sider mirror
\t
2pcs, foldable
\t
Electric System
\t
Lighting system and horn
\t
2 headlights, 2 front turn signals, 2 brake light, 2 rear turn signal, with voltage reducer (converting from 48V to 12V), electric horn.
\t
Backup Buzzer
\t
12V
\t
Digital Meter
\t
With speedometer, amperemeter, voltmeter, odometer, F/R indicator, Turn signal indicator, battery power meter
\t
Audio System
\t
CD player and Radio, with 2 speaker
\t
Charger
\t
Smart charger, input 110V-240V~50Hz-60Hz, output 48V, 25A
\t
Steering, Brake, Transmission and Suspension
\t
Steering System
\t
Single-stage rack and pinion steering system, automatic rocker compensating function
\t
Brake system
\t
4 wheel hydraulic drum brake and park brake
\t
Accelerator
\t
Stepless speed change
\t
Driving mode
\t
Rear axle two stage deceleration, motor direct driving
\t
Rear axle
\t
Integrated, Gear ratio12.49:1
\t
Suspension system
\t
Front independent suspension, rear plate leaf spring + cylinder hydraulic shock absorber
\t
Wheel & Tyre
\t
12x7 Aluminum rim & 155R12C tire
Packing & Delivery
\t
Packaging
\t
Container Size
\t
Assembled
\t
Disassembled
\t
20'ft  Container
\t
1
\t
/
\t
40'GP Container
\t
3
\t
/
\t
40'HQ Container
\t
3
\t
6
\t

Packing Method
\t
Nude Packing
Certifications
Our Company

More than 12 years experiencein electric vehicle business

The partners of Suzhou Lexsong have been in electric vehicle business for more than 12 years, can provide valuable suggestion and support to your purchasing and your business.

3 Production Lines with Production Capacity of 15000 units yearly

Our factory has 3 production lines, one line for golf carts and its variants; one line is personal carrier, sightseeing bus and their variants; one line is for various customized vehicles

Our electric vehicles have been exported to more than 40 countries around the world

Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.

10 Categories 100 models for different applications

We have 10 different categories and more than 100 models for different applications, golf cart, utility cart, personal carrier, sightseeing car, electric truck, garbage truck, fire truck, etc. Moreover, we customize electric vehicles as per customer's request at reasonable cost, short lead time and high quality.

Our Service

12+ Years EV Expertise

The partners of Suzhou Lexsong has more than 12 years experience in electric vehicles. With that expertise, we can help you grow your business.

Life-time Spare Parts Supplies

In the life-time of the vehicles or maximum within 5 years we stop the production of any model, we still supply the spare parts for after service

One Year Warranty

We provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.

Flexible Payment Terms

We offer different payment terms to different customers according to customer's special request, in order to support your business.

18x7x360 Technical Support

We provide technical support by phone or email, in 360 days a year, 7 days a week and 18 hours a day.



Main Categories

Electric Golf Cart

Personal Transport Vehicle


Electric Shuttle Bus


Electric Industrial Vehicle

Electric Car

Special Vehicles

FAQ

Q1. Do you accept to customize the vehicles as per our special request?

Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
