China thermo king 6TON refrigerator van truck for meat and fish
- Category: >>>
- Supplier: Hubei Veldlion Machinery Co. Ltd. [Hubei China]Hubei
Share on (60740193484):
Product Overview
Description
Product Description
1. China thermo king 6TON refrigerator van truck for meat and fish
| Specification | |||
| Truck | Drive mode | 4X2 | |
| Chassis | DFL1160 | ||
| Engine | Model | ISB180 40 | |
| Type | 4-cylinder in line, turbocharging, air cooling, inter cooling, electrical control engine | ||
| Max. power(Kw/rpm) | 132/2500 | ||
| Max. torque(Kw/rpm) | 925/1200-1700 | ||
| Bore /Stroke(mm) | 107×124 | ||
| Displacement(ml) | 5900 | ||
| Type of fuel | Diesel | ||
| Compression ratio | 17.3:1 | ||
| Dimensions | Overall dimension (mm) | 9990X2495X3850 | |
| Wheel base (mm) | 5600 | ||
| Front/Rear tread(mm) | 1880/1800 | ||
| Appr./Depa. angel (°) | 20/10 | ||
| Performance | Max. speed(Km/h) | 90 | |
| Mass | Payload (Kg) | 9300 | |
| Curb weight(Kg) | 6505 | ||
| G.V.W (Kg) | 16000 | ||
| Special functions | Specifications | Overall dimension of body (mm) | 7400×2280×2400 |
| Min. temperature(°C) | -18 | ||
| Inside and outside of van's material | FRP(Fiber Reinforced Plastics) | ||
| Middle of van's material | Polyurethane | ||
| Insulation layer | Under 120kPa high pressure,overall foam | ||
| Rear doorpost | stainless steel | ||
| ventilation opening | yes | ||
| Special configration | adopt to thermo king independent unit | ||

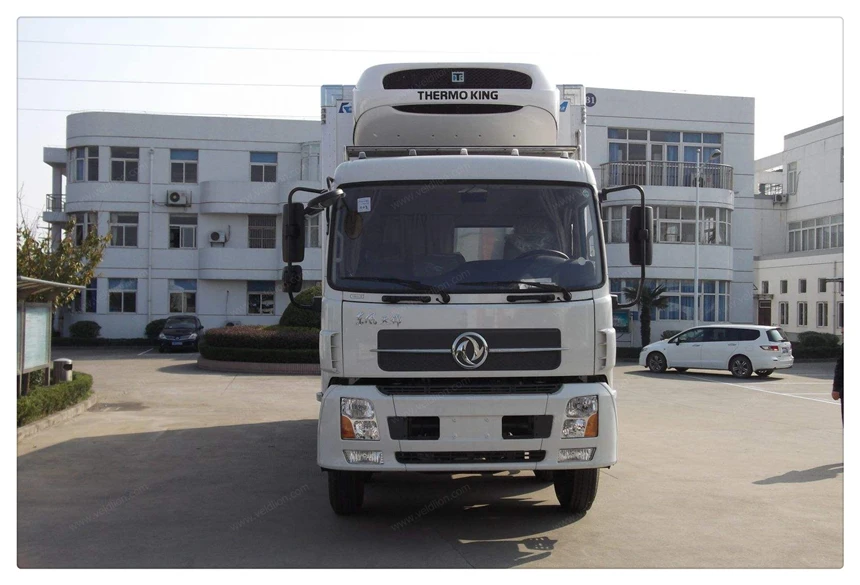

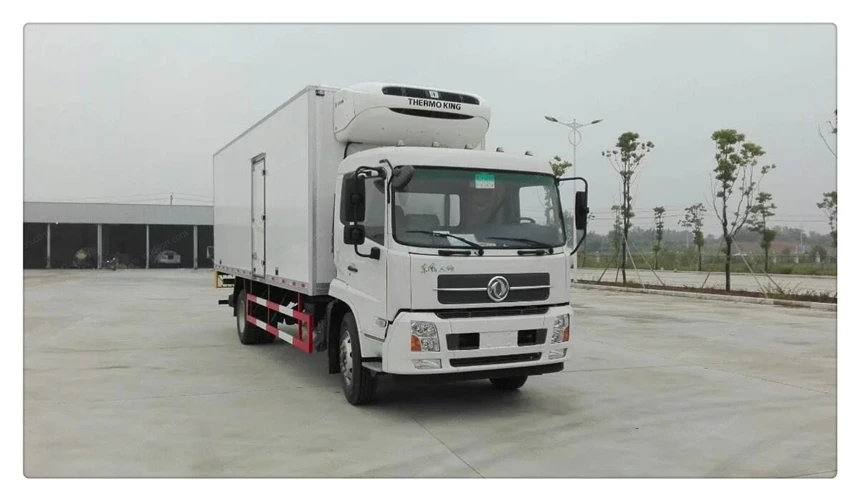

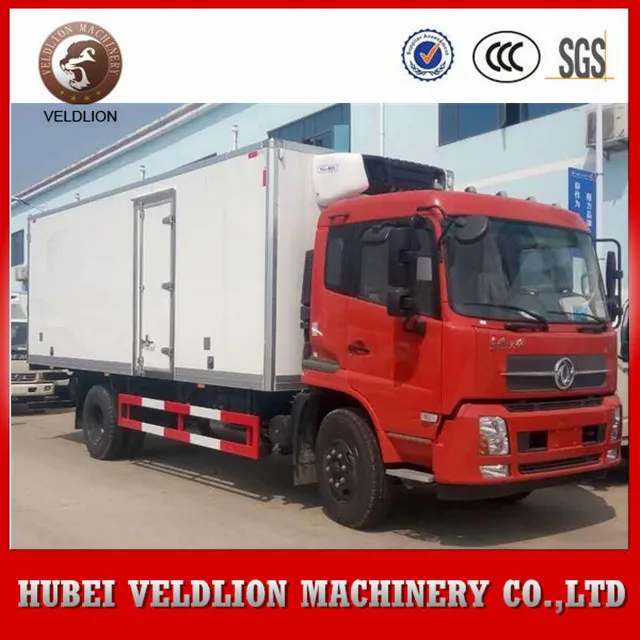

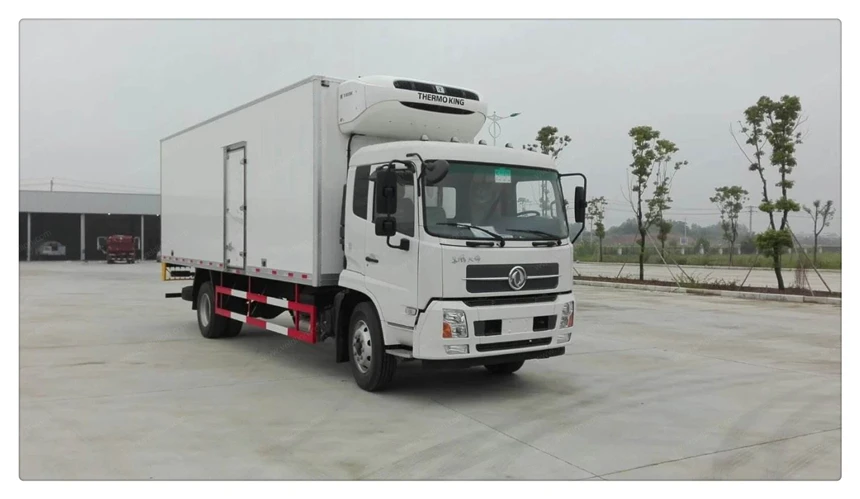

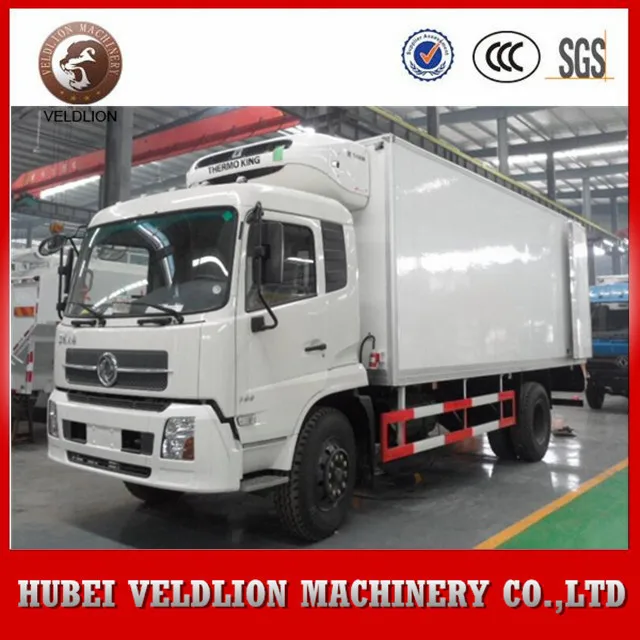

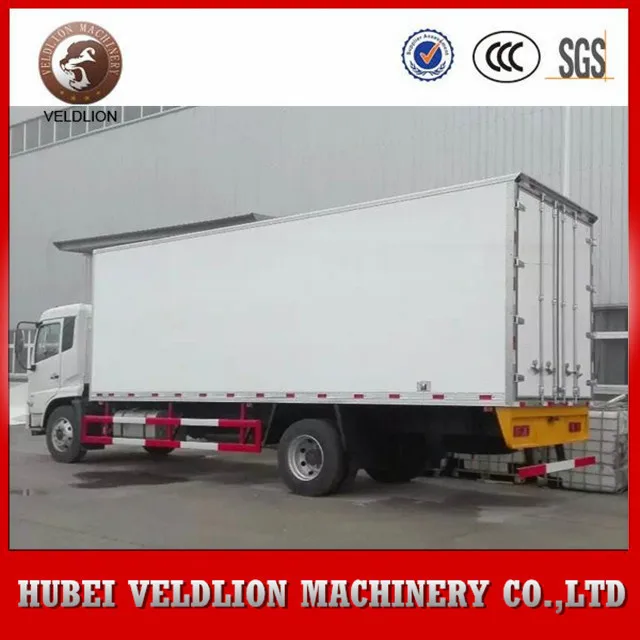

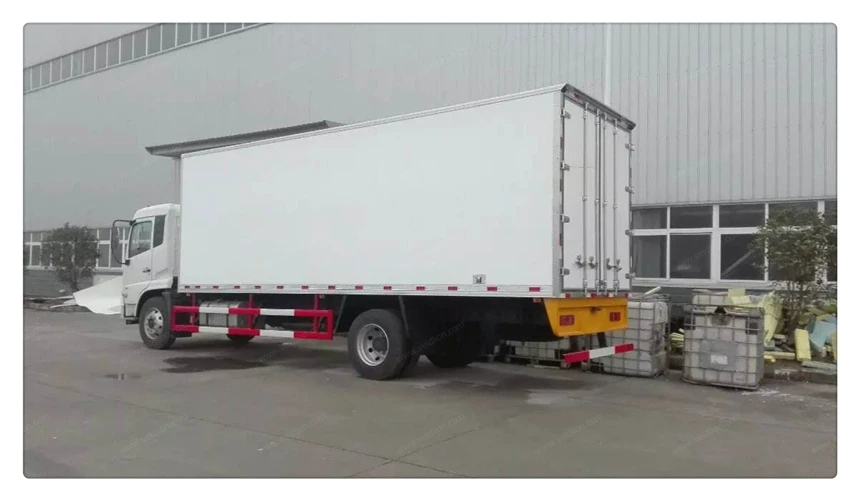

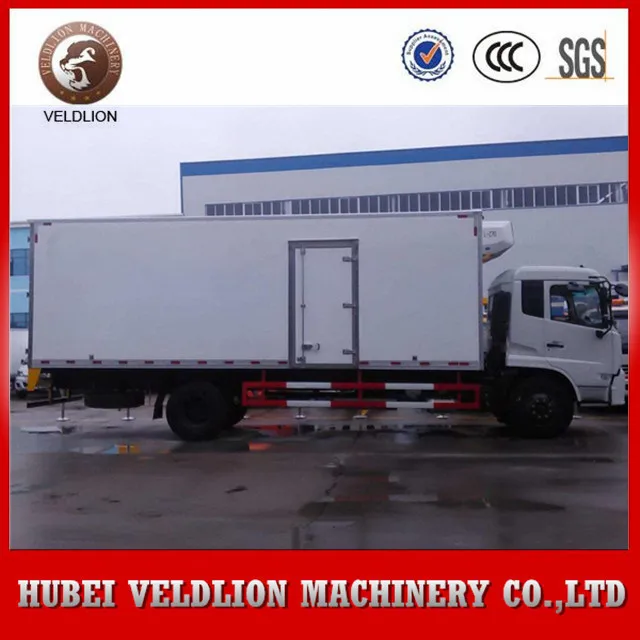

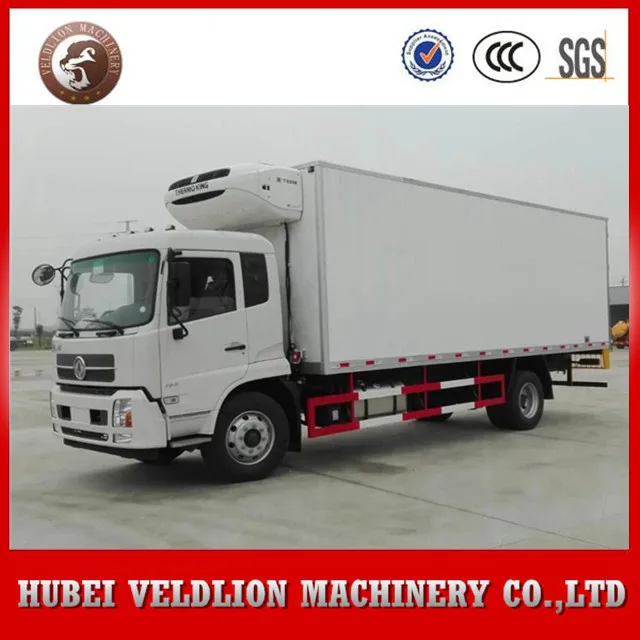

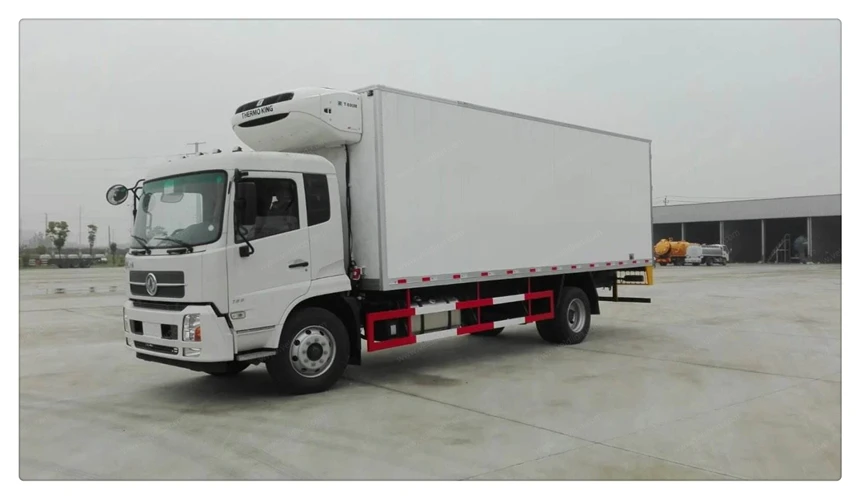

2. China thermo king 6TON refrigerator van truck overall photos
3. refrigerated truck workmanshop
4. refrigerator unit
Company Information

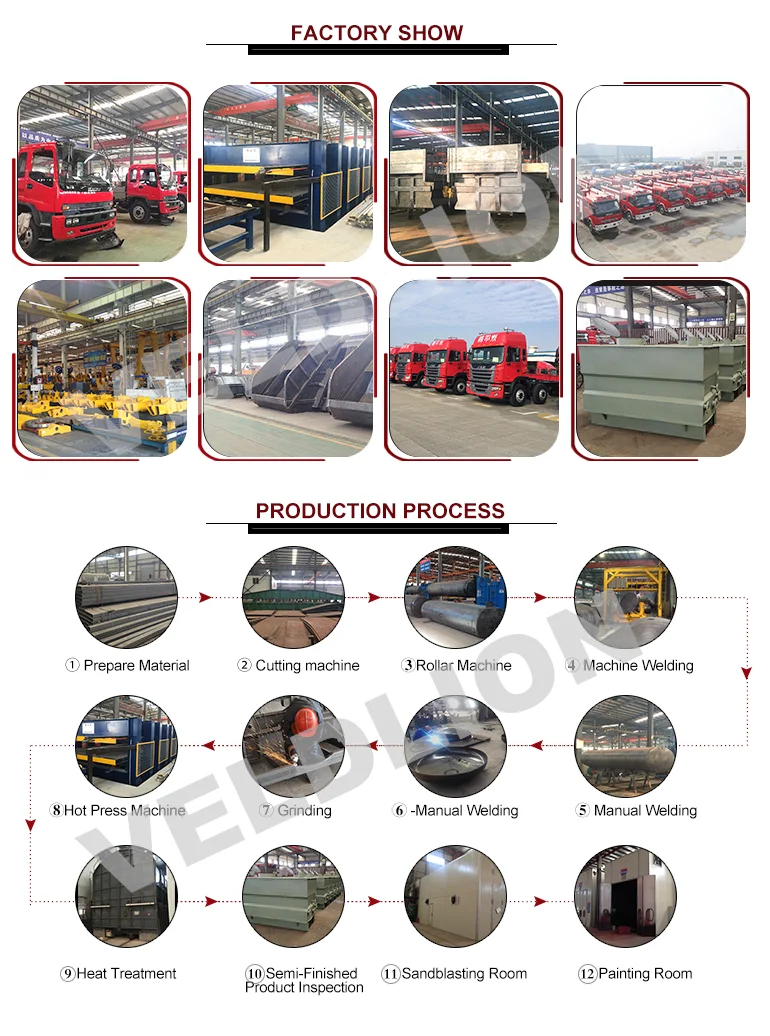

Factory production
