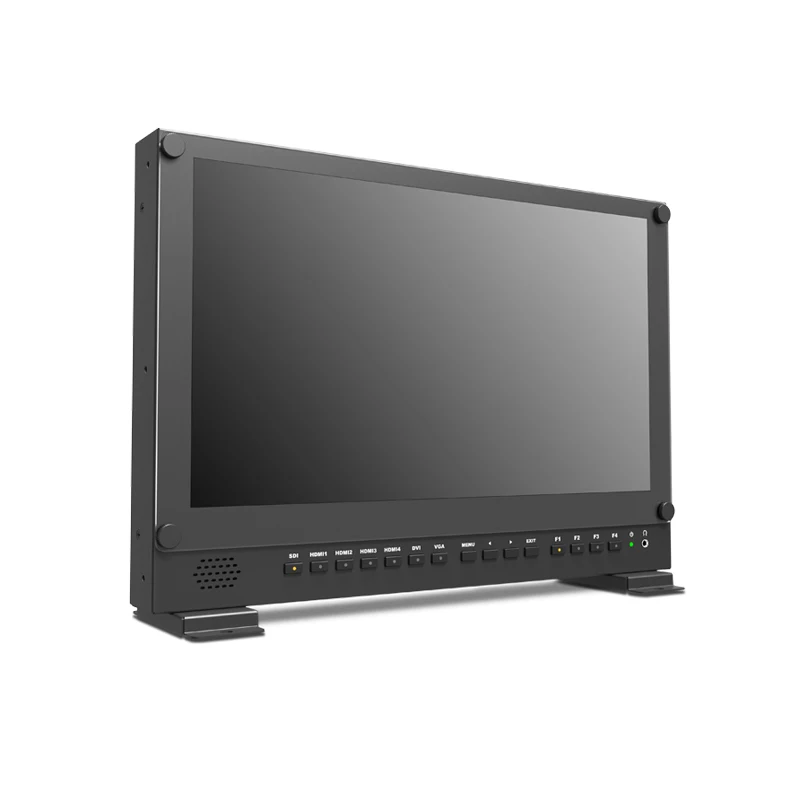

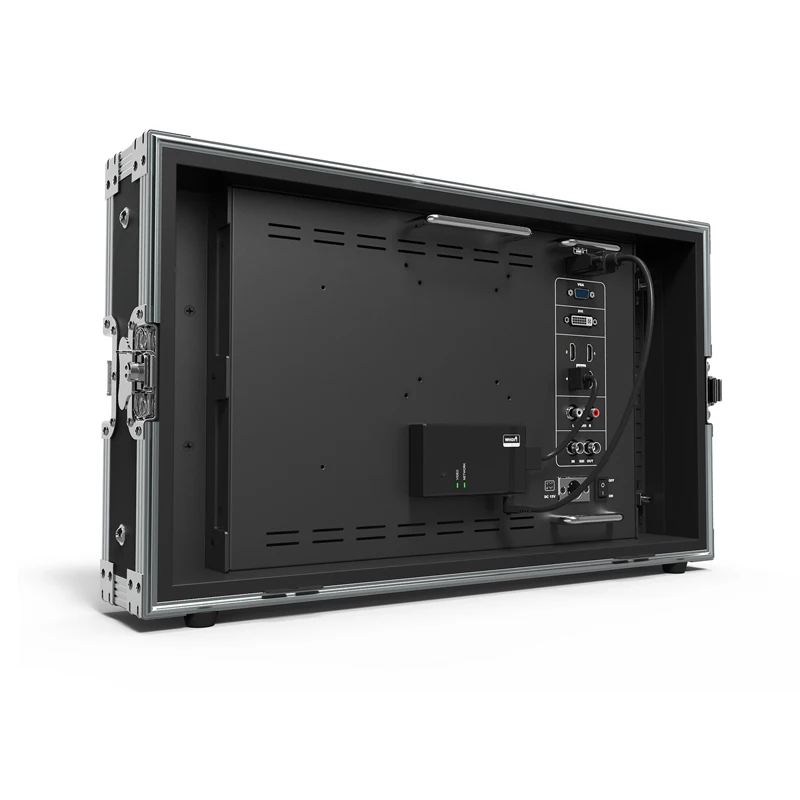

15.6 inch 12G SDI 4K director SDI Broadcast Monitor
- Category: >>>
- Supplier: Quanzhou Neway Industrial Ltd.
Share on (60740198925):
Product Overview
Description
CK1560-12G: 15.6 inch 12G SDI 4K director SDI Broadcast Monitor
PRODUCT SHOW
| Product Show |
Specification
| Specification |
DISPLAY | Display Screen | 15.6” 8bit |
|---|---|---|
| Physical Resolution | 3840×2160, 4K | |
| Aspect Ratio | 16:9 | |
| Brightness | 330cd/m² | |
| Contrast | 1000:1 | |
| Viewing Angle | 176°/176°(H/V) | |

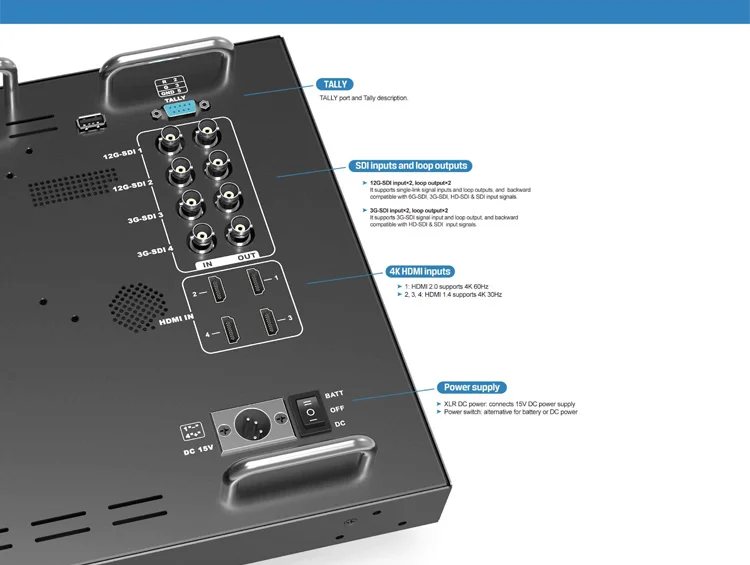

INPUT | 12G-SDI | 2 |
| 3G-SDI | 2 | |
| HDMI | HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz) | |
| HDMI wireless | 1 (optional) | |
| TALLY | 1 | |
OUTPUT | 12G-SDI | 2 |
| 3G-SDI | 2 | |
AUDIO | Speaker | 1 |
| Ear Phone Slot | 1 | |
POWER | Current | 2.1A (15V) |
| Input Voltage | DC 12-24V (XLR) | |
| Battery Plate | V-mount / Anton Bauer mount | |
| Power Consumption | ≤31.5W | |
ENVIRONMENT | Operating Temperature | 0℃~60℃ |
| Storage Temperature | -20℃~60℃ | |

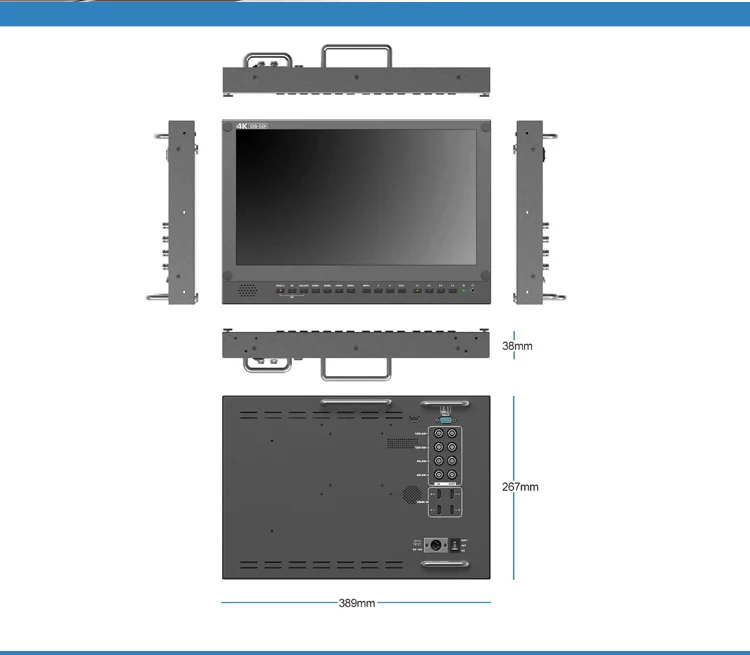

DIMENSION | Dimension(LWD) | 389×267×38mm / 524×305×170mm (with case) |
| Weight | 3.4kg / 12kg (with case) |
