2019 GPRS NB IoT LoRaWAN Smart Parking Lot Sensor Traffic Parking Guidance System For Remote Monitoring
- Category: IoT Solutions & Products >>>
- Supplier: Beijing Dingtek Technology Corp. Ltd.
Share on (60740233248):
Product Overview
Description
Overview

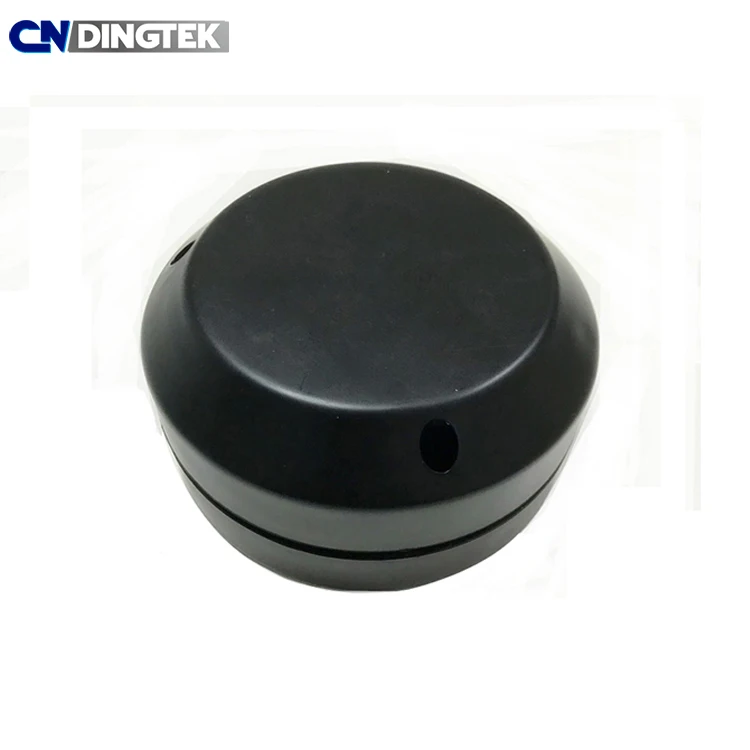

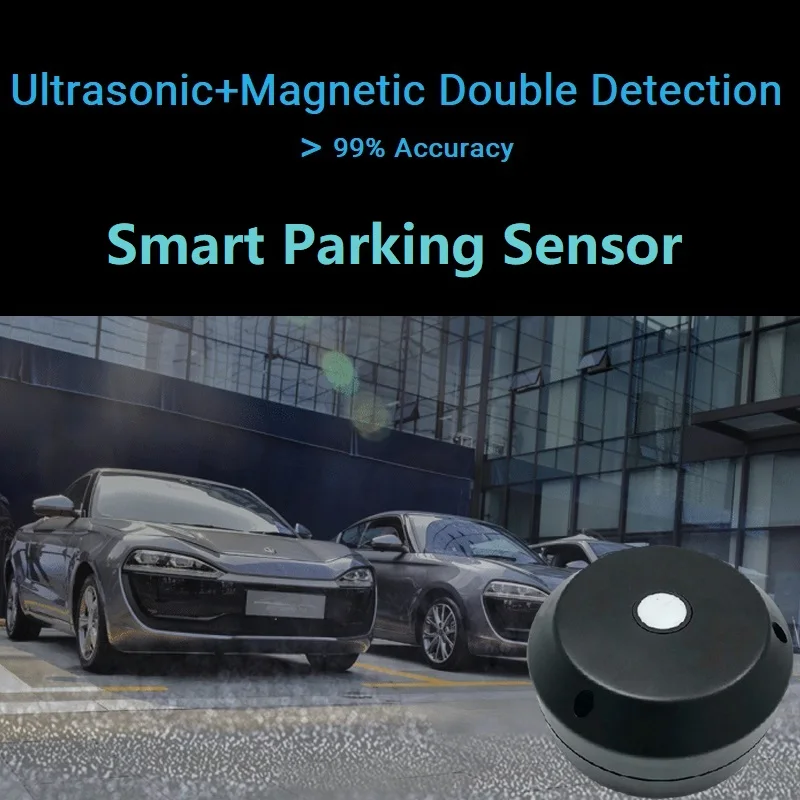

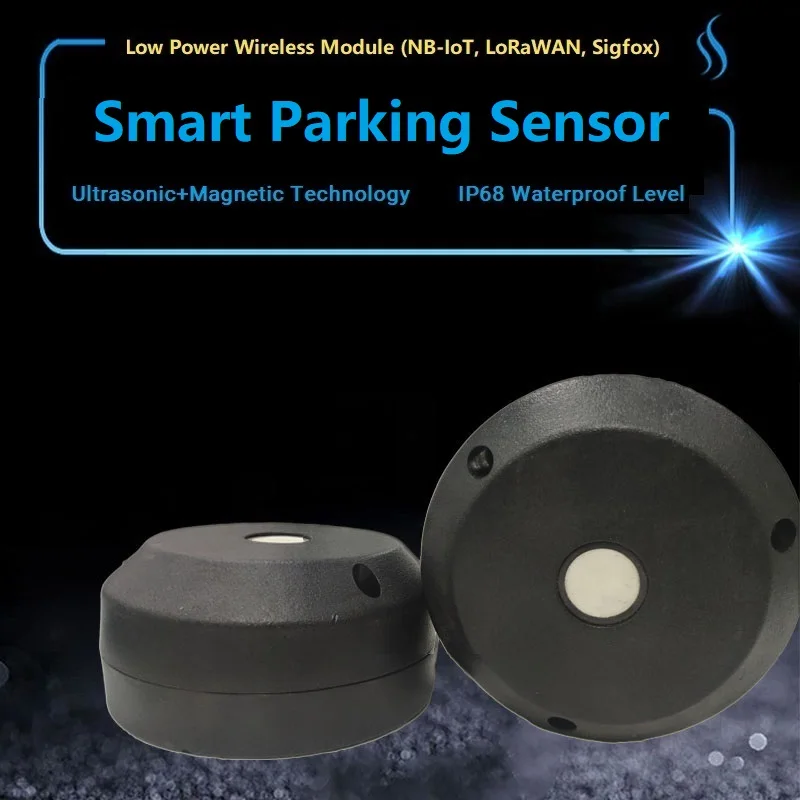

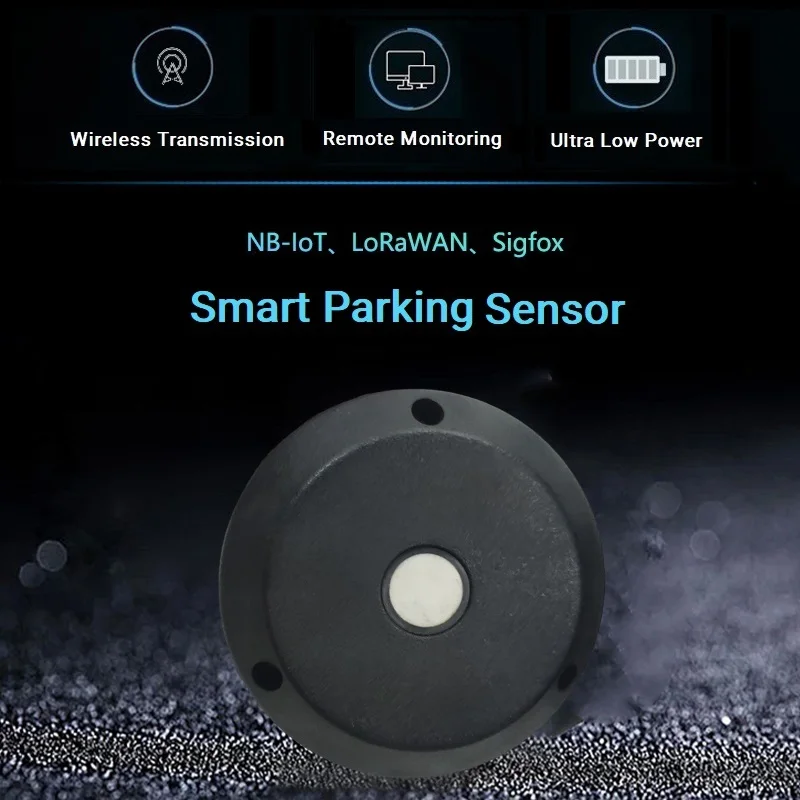

➤DO200 parking occupation detector is sensor which combining ultrasonic and magnetic technology. With the redundant technology of sensor, it achieves accuracy of 99%. The error is only happened while extreme environment, like flood and thunder at the same time.
➤From the performance, it overwhelms the lonely magnetic products. With LoRaWAN wireless lenetwork, it transmit the status via Communicate with the server through NTAA. Finally users can monitor the status remotely.

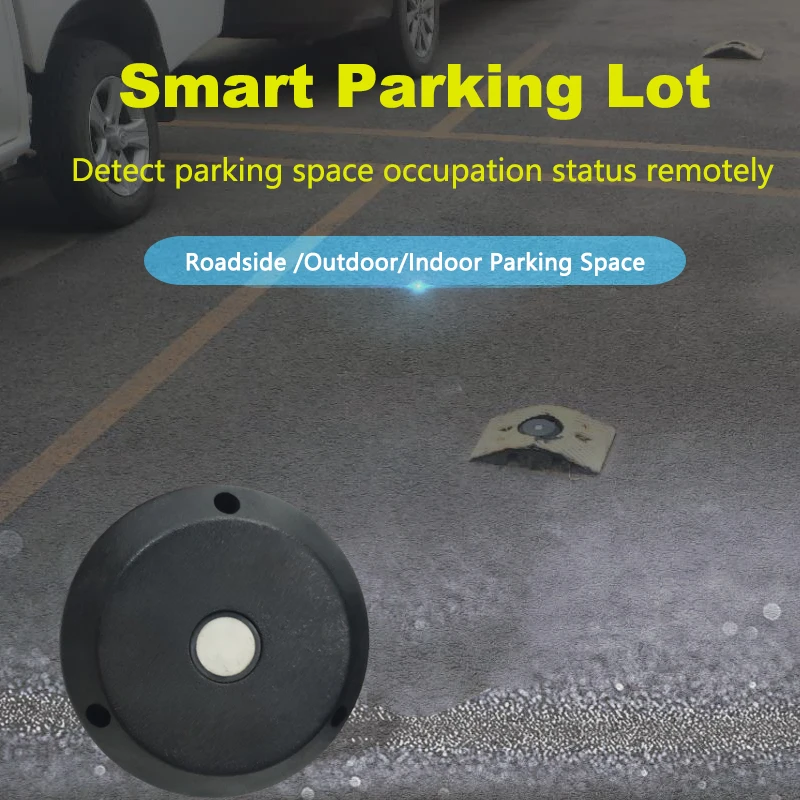

It is applicable for smart parking application, parking bay booking and etc. it support CN470,EU868,AS923,AU915,USS915,KR920,IN865, RU868 band plan, and deployed in Europe, Middle East, South-East Asia and China. As it is with algorithm of low power consumption, the internal battery work for more than 5 years. The IP66 level ensure the endurable working outdoor.
Product Paramenters
Overview | Dimension | 115*115*50mm |
Net Weight | 150g | |
Color | Black/White | |
Shell Material | ABS | |
Detector | Principle | Ultrasonic + Magnetic |
Accuracy of Report | 99% | |
Controller | MCU | STM32, 32bit ARM® core controller |
Radio | Frequency | LoRaWAN CN470,EU868,AS923,AU915,USS915,KR920,IN865, RU868 |
Sim Card Socket Size | Micro | |
Battery | Internal Battery | Non-recharged Lithium battery ER18505M 7000mah@3.6VDC. |
Lifetime | 5 years at 4 times report per day | |
Current | <150mA@3.6V(uploading), <40ma@3.6V(working normal), <60ua @3.6V (sleep normal) <240ua @3.6V (sleep transit detection) | |
Environment | Operating Temperature | -20 ~ +70℃ |
Storage Temperature | -40 ~ +85℃ | |
Protection Level | IP66 |
Network
SAAS
Application
