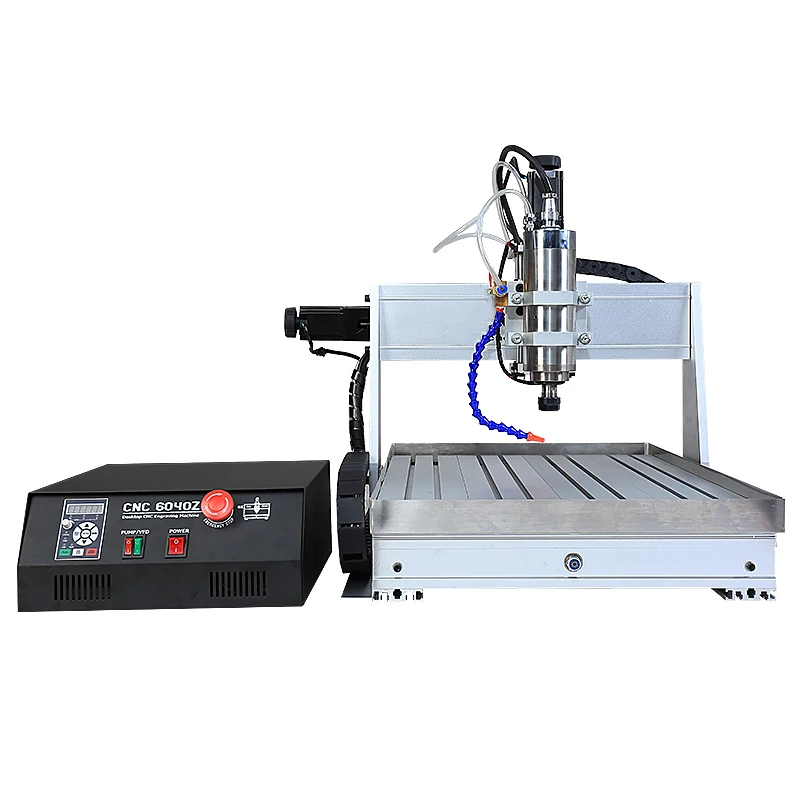

Mini Cooper Gold CNC Engraving Machine 6040 4 Axis Router For metals with Water chiller
- Category: >>>
- Supplier: Shenzhen Gthink Tech Co. Ltd.
Share on (60740302306):
Product Overview
Description

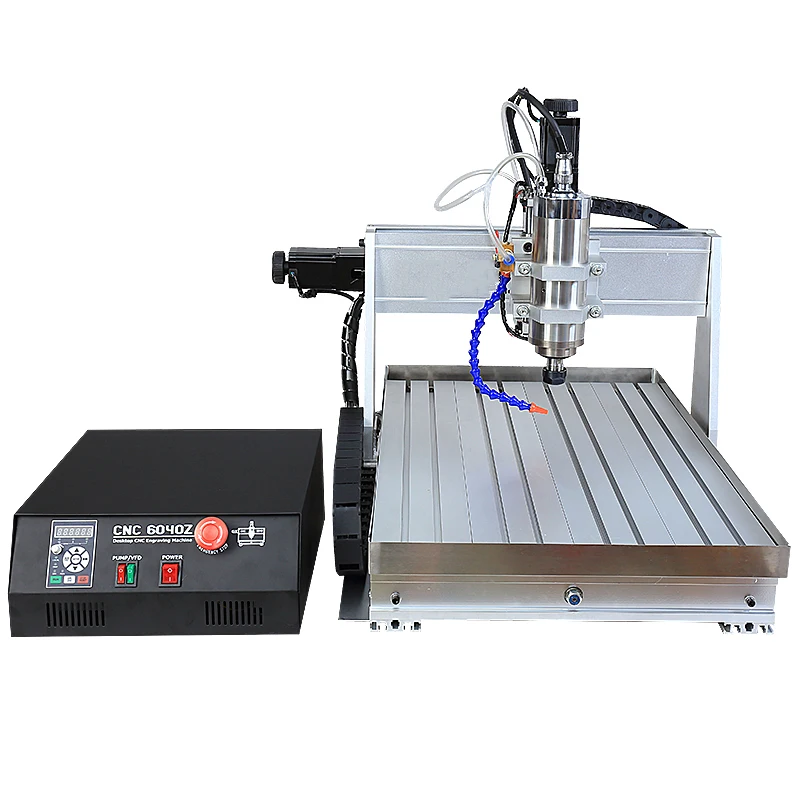

Mini Cooper Gold CNC Engraving Machine 6040 3 Axis Router For metals with Water chiller
Product Description
Brief introduction
A. What area it can used for?
CNC 6040 4 axis 2.2KW router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.
B. What materials it can used for?
It can work for Wood, acrylic,plastic,Jade, PCB ,PVC,Aluminum, Copper, Acetate Sheet, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.
The Hardware Capabilities :
1. Limited switch added.
2. Auto checking function added
3. 2200W spindle
4. USB or parllerl port.

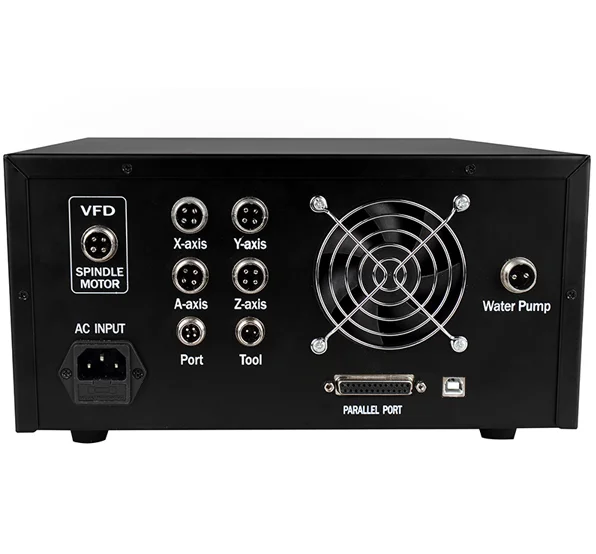

5. Control box can be 3 axis and 4 axis universal.

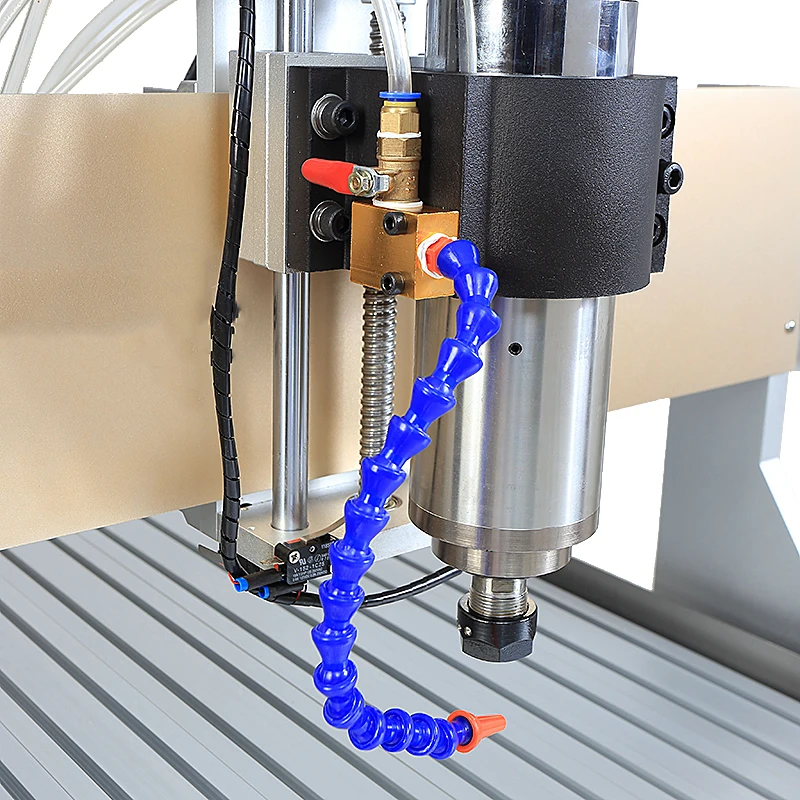

6. Water cooling spindle, less noise
7. Bigger Z axis area 105mm
8. Water cooling system added,quite good for soft metals like aluminum and cooper.
Soft service :
1. CE approval.
2. Youtube cnc machine video support.
3. Technical team always available.
4. English manual available.
5. High performance low cost
6. From reliable & trustable profesional China mini CNC router machine manufacturer.
Other features:
1. Independent power supply for mainboard, prolong using life.

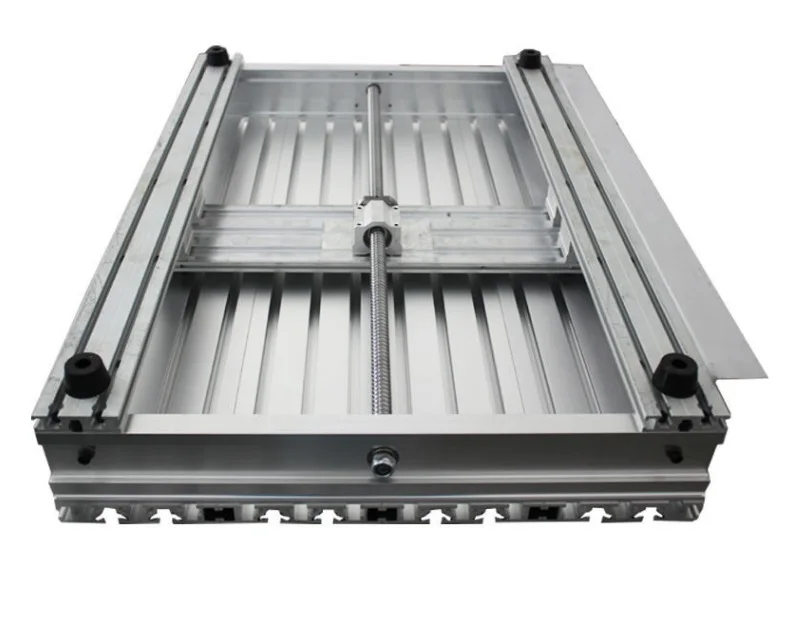

2. With strong aluminum alloy frame materials.
3. Cover plates reducing pollution for the screws and shafts.
4. steady and strong support structure Spindle motor knob.
5. Independent power supply for mainboard, prolong using life.
6. Use with a computer which connets with a cable (parallel or usb cable),customers need to prepare G codes,then lead it to the MACH3 or USB software and start to run the machine.
Specifications
Effective working travel | 400(X)mm*600(Y)mm*105(Z)mm | |
Shape dimension | 890*690*525mm | |
Work table dimension | 742mm*480mm | |
Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs | |
acceptable material thickness | ≤145mm | |
Driving units | X/Y/Z axis | SFUR1605-DFC7-P0 ball screw |
Sliding units | X axis | Dia.20mm chrome plate shafts |
Y axis | Dia.16mm chrome plate shafts | |
Z axis | Dia.13mm chrome plate shafts | |
Stepping motor type | 57 two-phase 3A 150N.cm | |
Spindle motor | Brand new 2200W water cooling spindle, 24000RPM | |
Principal axis collet | ER-20 3-12mm | |
Repeat accuracy | 0.05mm | |
Spindle precision | radial beat acuities 0.03 mm | |
Software environment | MACH3 Support windows XP, USBCNC support Windows 10 | |
Maximum speed | Engraving : 0-3000mm/min, No-load: 4000mm/min | |
Control unit | E100S2R2B + JMC542 3axis drive board | |
Computer connection | USB port and Parallel port | |
Command code | G code, or any MACH3 support format file | |
Protection | Emergency stop button | |
Operating Voltage | AC220V/110V | |
Accessories | Pump, Auto checking tool , cutter, same as accessories photo | |
Warranty | 1 Year | |
Package size | Wooden box package , 88*66*70cm | |
Gross weight | 85KG | |
Detailed Image
Packaging & Shipping
Packing List:
1 water pump *1
2 CD (software)*1
3 Fixed briquetting *4
4 milling bit *1
5 clamp tool *3
6 parallel cable *1
7 USB cable *1
8 auto-checking tool *1
9 clamp tool *6
10 engraving bit *3
11 collet 3.175 *1
12 screws *4
13 limited switch *4

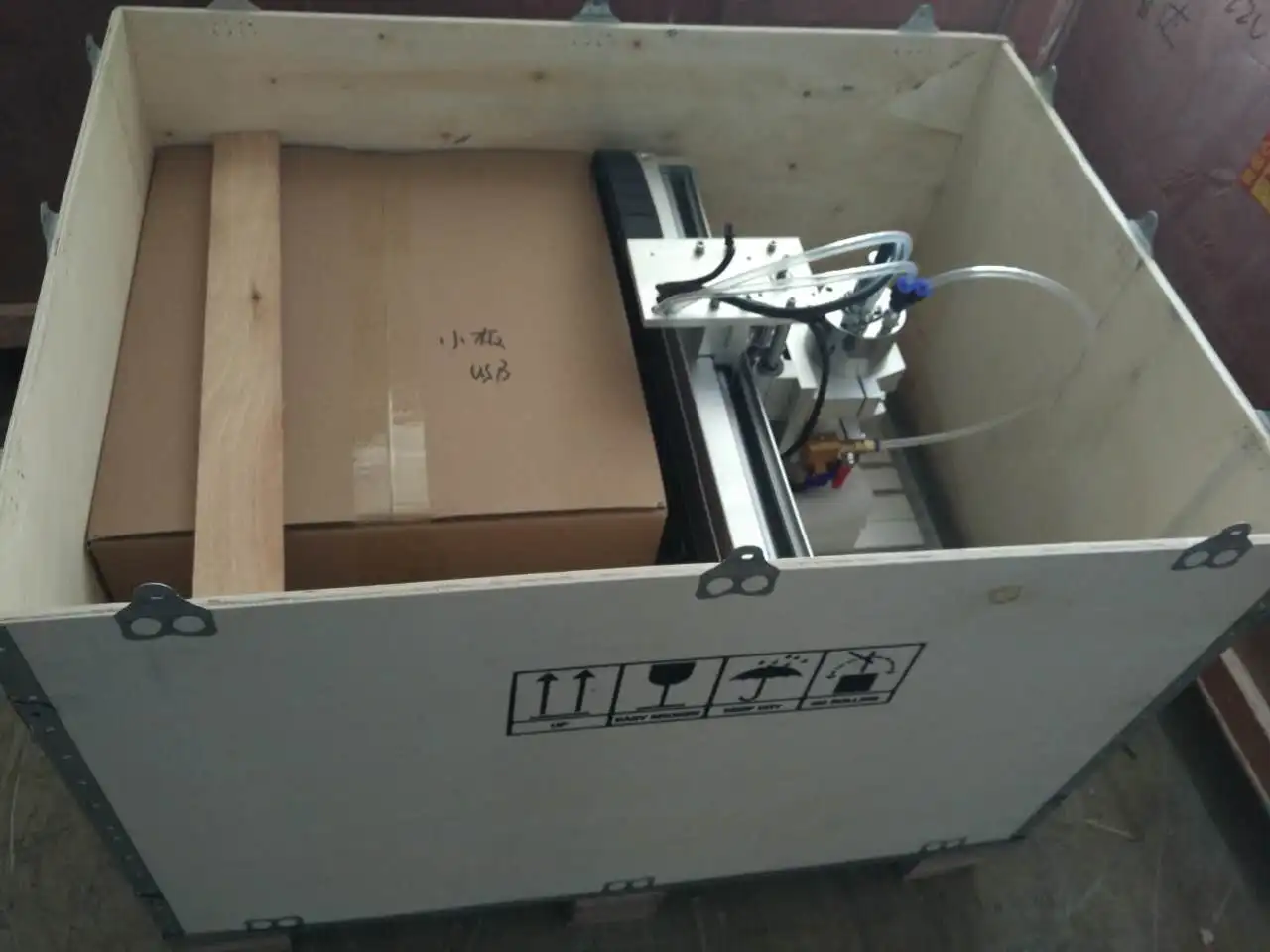

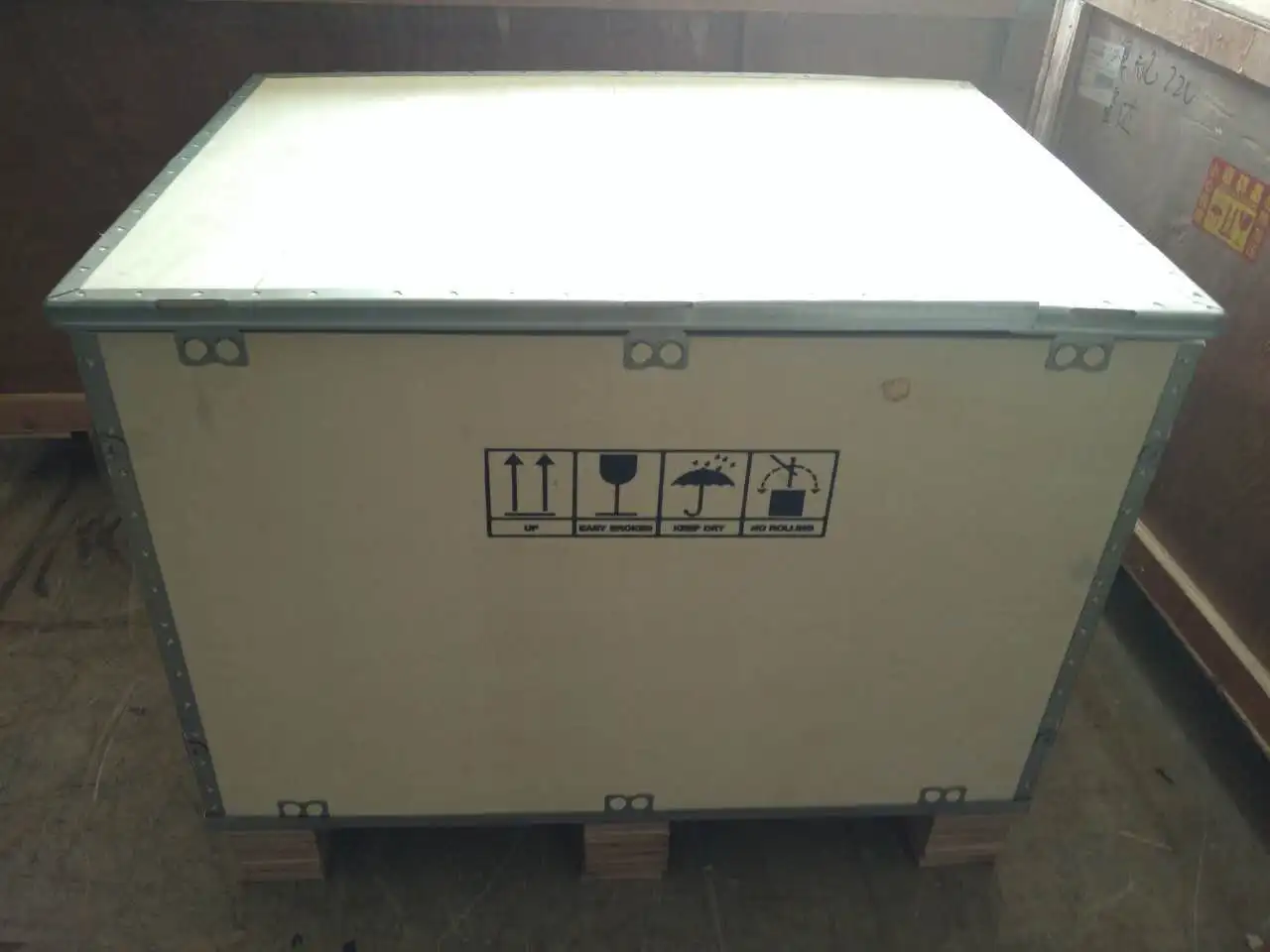

Packing Method:
1. Wooden box box .
2. Package size:88*66*70cm,weight 85KG,Wooden box.
Shipping Methods:
1. 1)Express(door to door):DHL/UPS/Fedex/TNT / EMS / HKEMS / Post Air Mail etc.
2)Air/Sea Shipment: Please provide us your air port information.
2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.
3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days will be needed for some remote place.
Shipment Time:
1. For samples within 1-3 workdays
2. Wholesales Orders : 2-5 workdays according to different quantities
3. OEM orders:7-10 days after receiving your sample confirmation and payment.
