Product Description

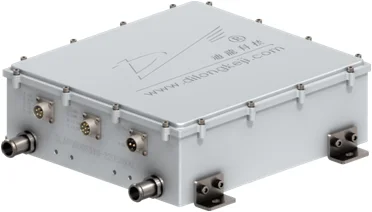

15kw ev charger ac to dc auto electric bus or truck fast onboard battery charger
Place of Origin:Hebei, China (Mainland)
Brand name:Dilong electrical converter charger
Model Number:DA15KM32-360C
Features:
Constant current and constant voltage automatic conversion, effectively save charging time
Active power factor correction≥0.99
Input over-voltage/under-voltage protection
Output over-voltage/under-voltage protection
Output over-current protection
Output short circuit protection
Output reverse connect protection
Over-temperature protection
CAN communication intelligent fault alarm, protection function
Small volume, high power density
Designed for new energy vehicles

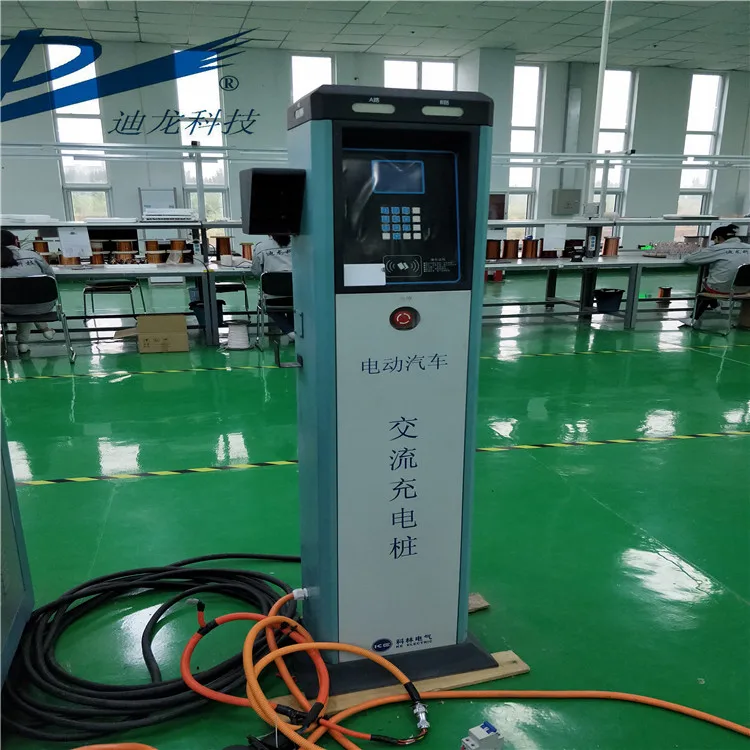

Control guidance function connected with charging pile(Optional)
Functions of remote detection, burning, fault inquiry and so on
Specification
Input Voltage | 380Vac (3 phase 4 wire) |
Output power | 15KW |
Output Voltage | 360Vdc(210-420Vdc) |
Output Current | 50A@250Vdc(max) |
Voltage accuracy | Vo:<±1% |
Line Regulation | <±0.2% |
Load Regulation | <±0.5% |
Ripple and Noise | <±3%Vo |
Dynamic response | ≤200us |
≥94% | |
Over-voltage protection | yes |
Under-voltage protection | yes |
Over-current protection | yes |
Under-current protection | yes |
Short circuit protection | yes |
Output reverse connect protection | yes |
Over-temperature protection
| 85±5 ℃ CAN warning protection |
CAN communication | yes |
Isolation Voltage | 2000VAC Input-Output 2000VAC Input-shell 2800VAC Output-shell 500VAC/1min Output-Case |
Insulation resistance | Input-output-shell>10MΩ |
Operating Temperature | -40~+70℃ |
Operating Humidity | 20%~90%RH |
Cooling mode | Forced air cooling |
IP Grade | IP65 |
Weight | 25kg |

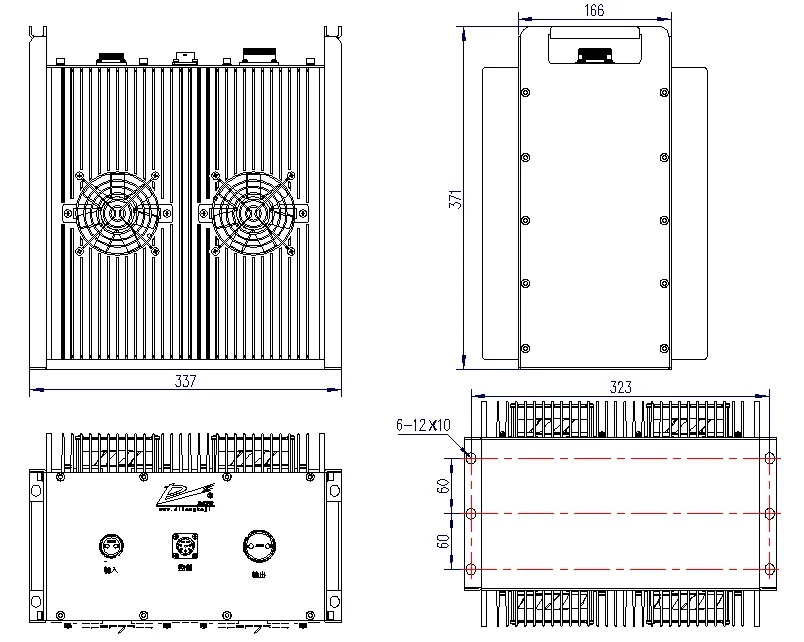

Size | |
Installation Guide
Certifications

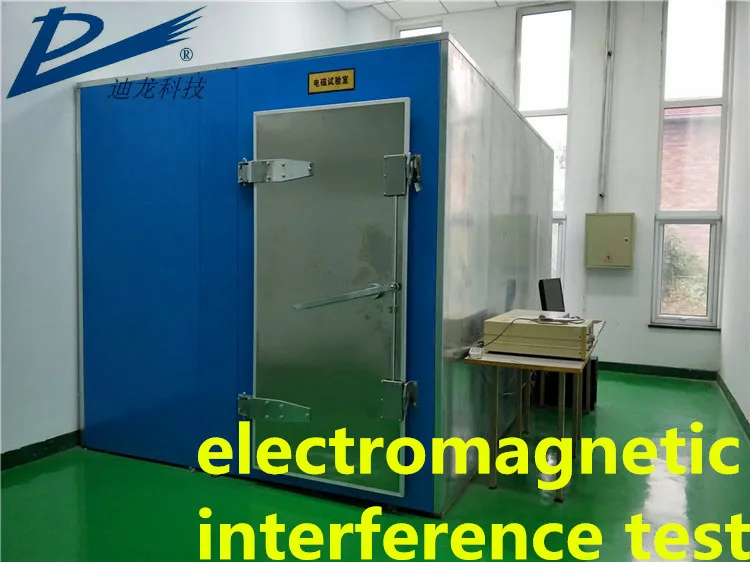

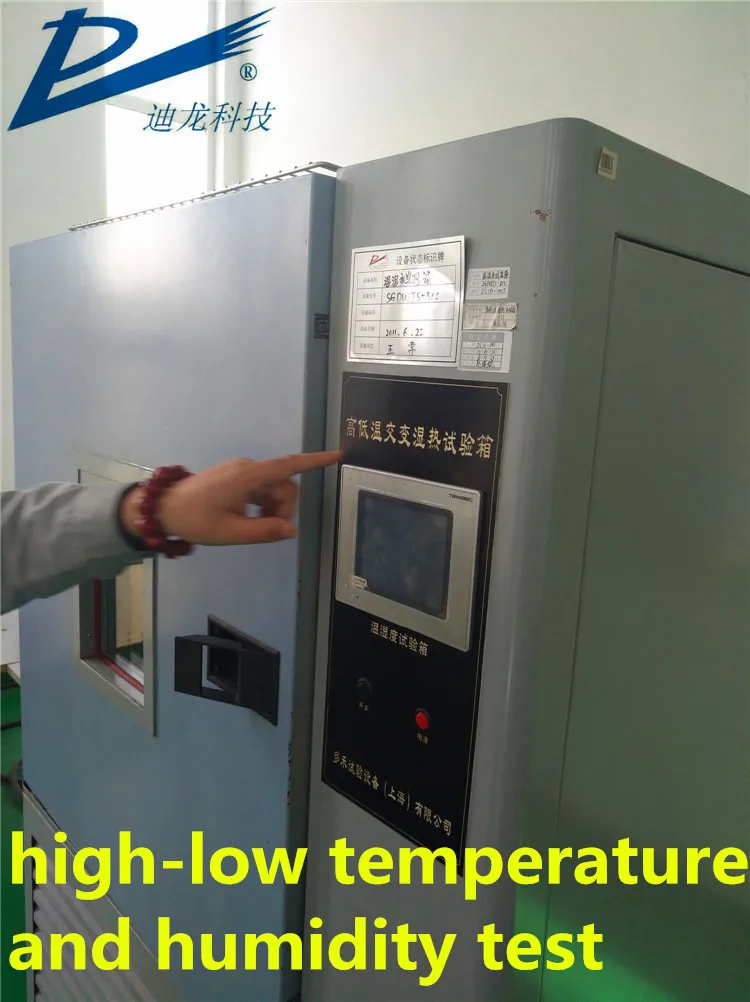

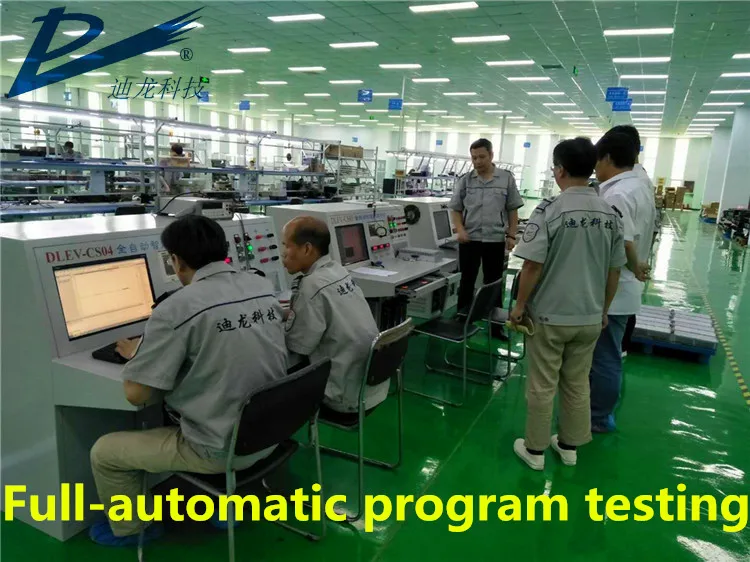

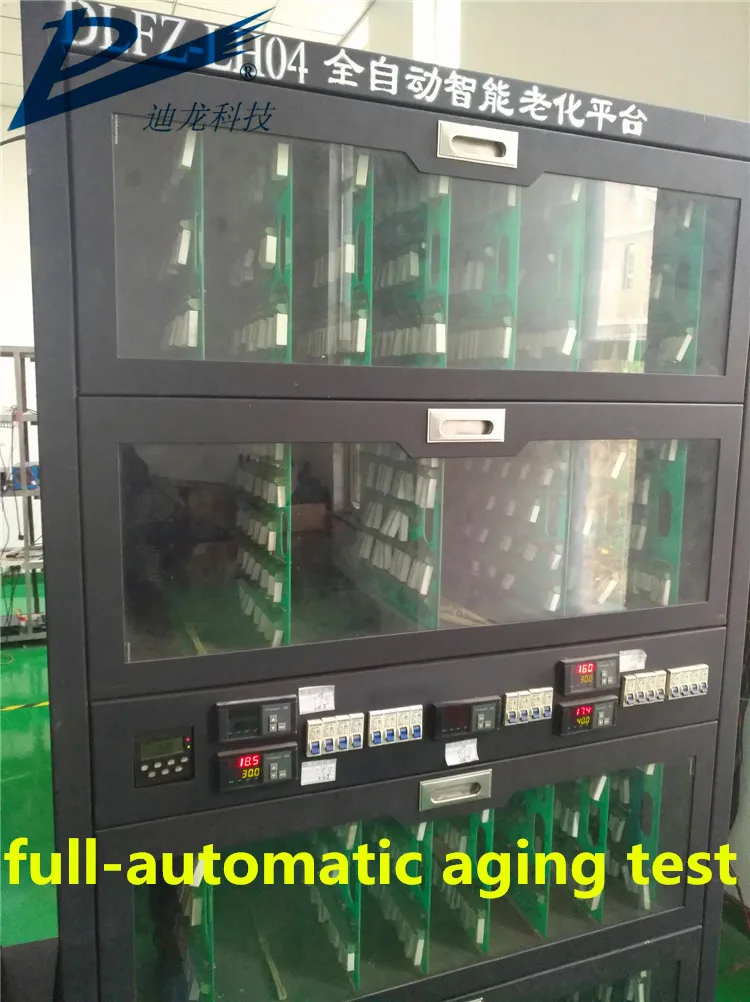

Advanced testing

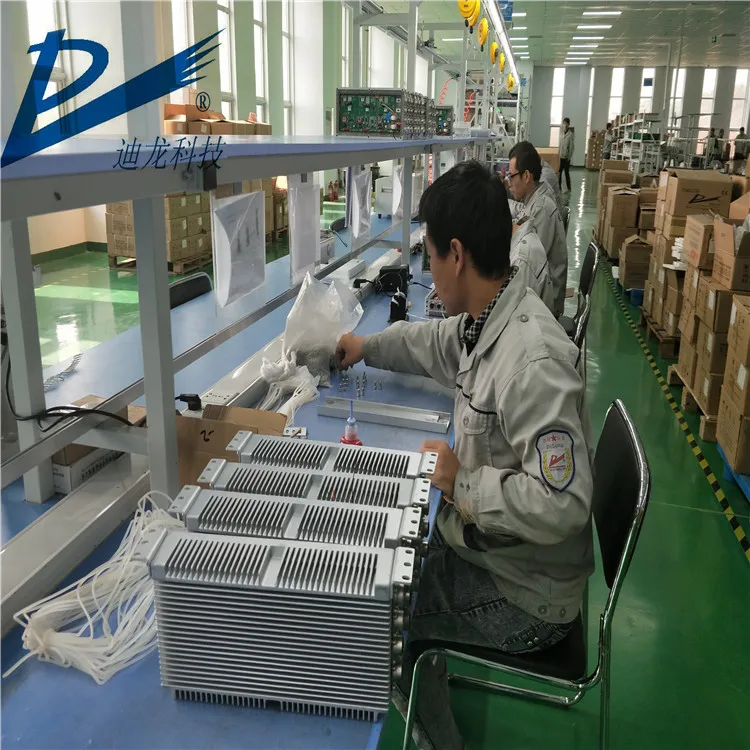

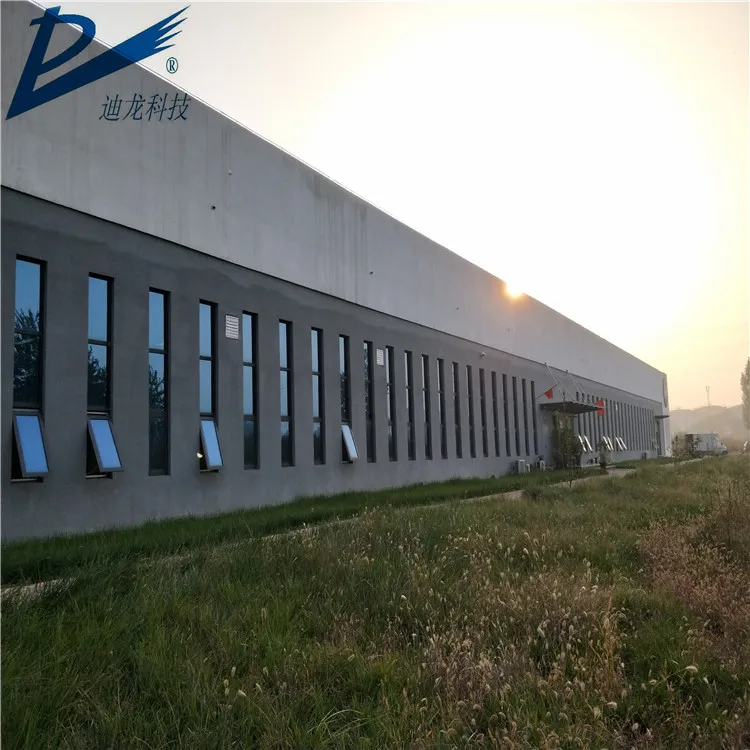

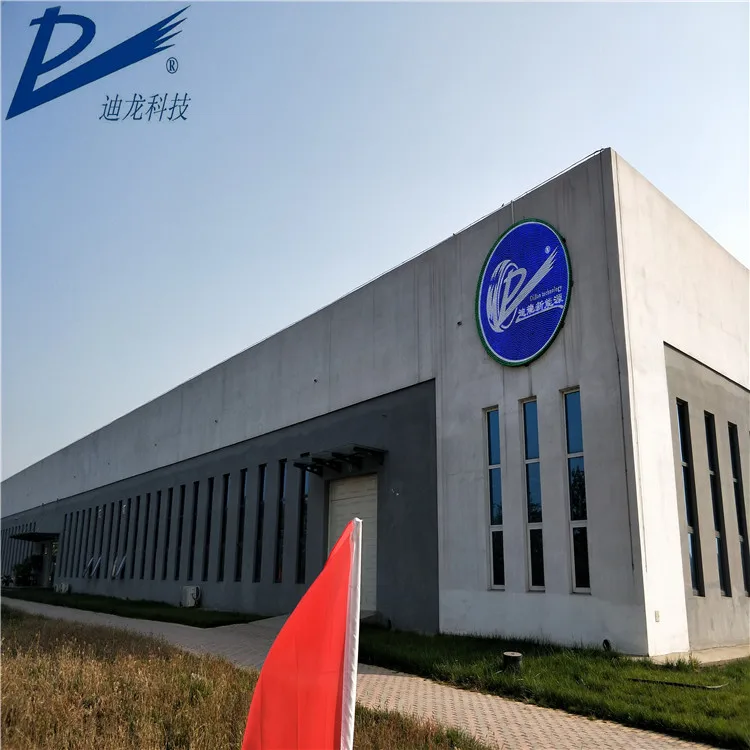

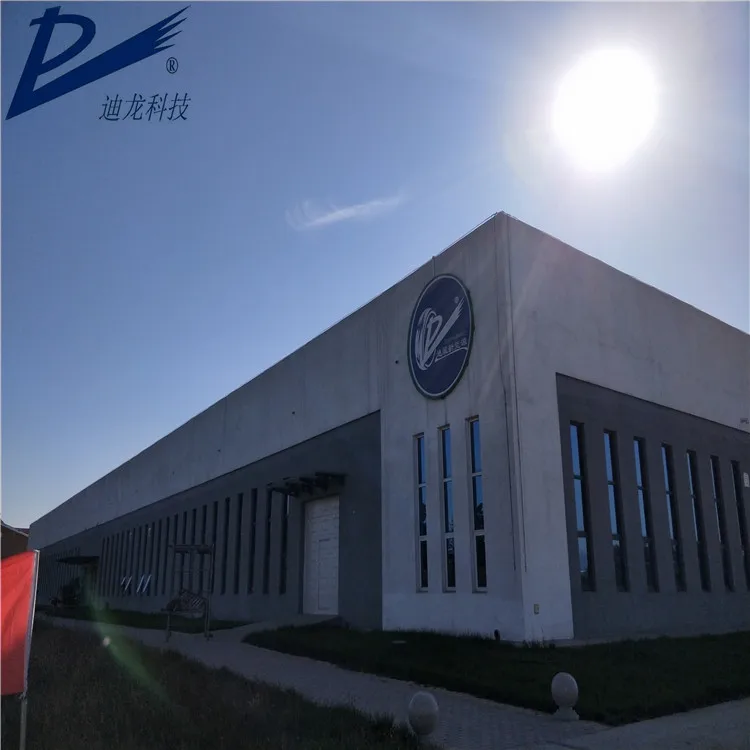

Company Information
We are a professional military power supply and industrial power production enterprise which integrates development, production and sales. The company was set up in 1990. Nowadays, we have established branch company, more than 280 employees in beijing and shenzhen city. The factory has developed a series of power supply, such as 1/16brick 50W, 1/8brick 100w, 1/4brick 100w, half brick 200w, brick 700w, and DLSP module power supply. Technology is already ahead of domestic and international peers.
