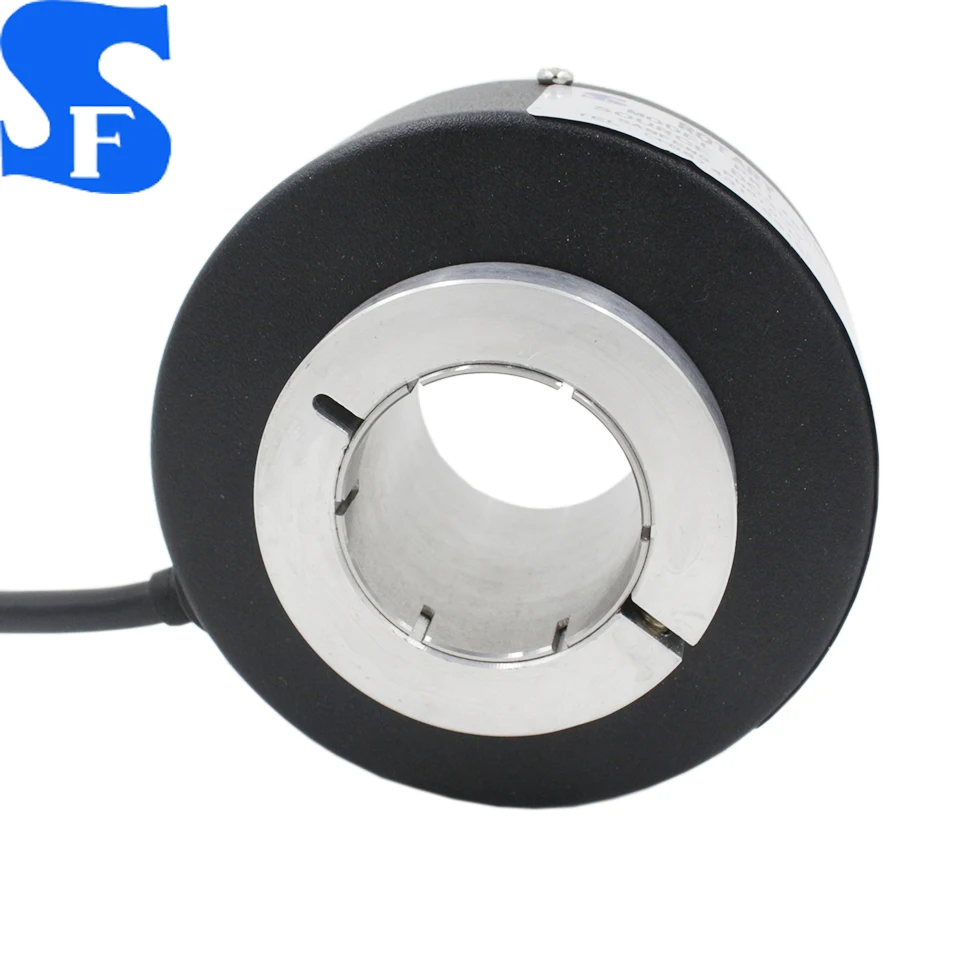

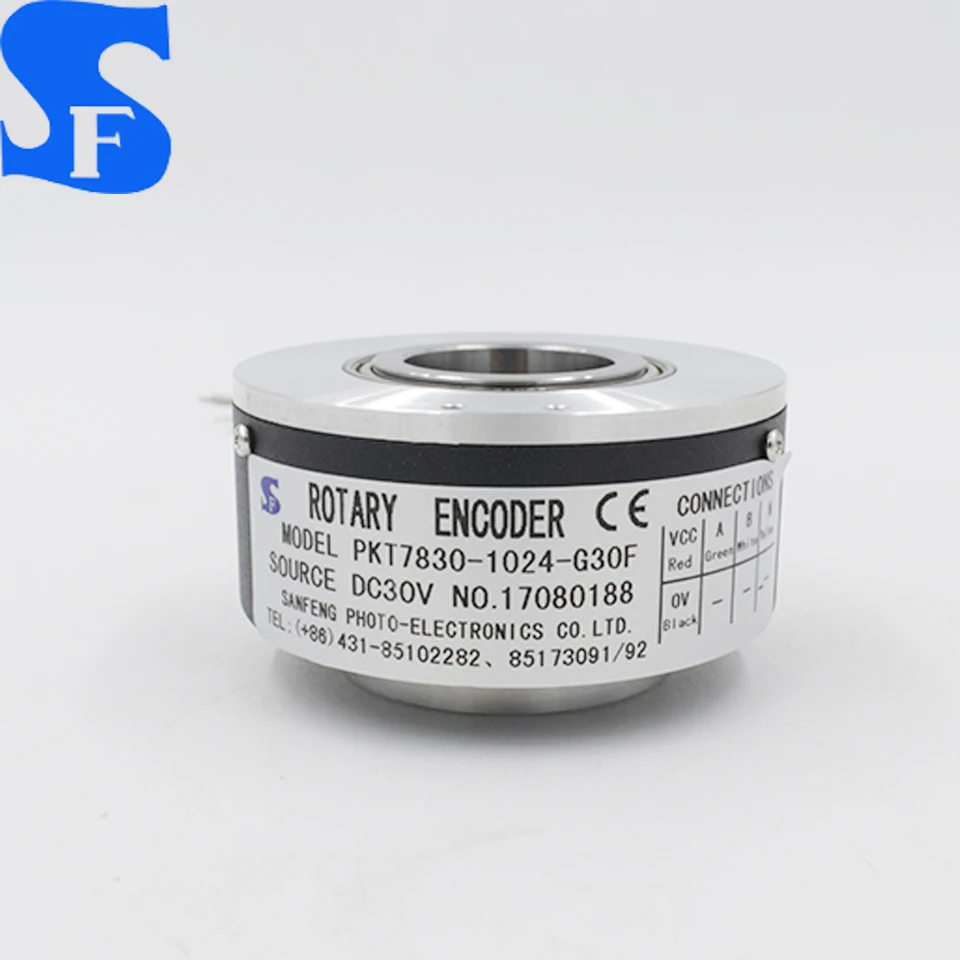

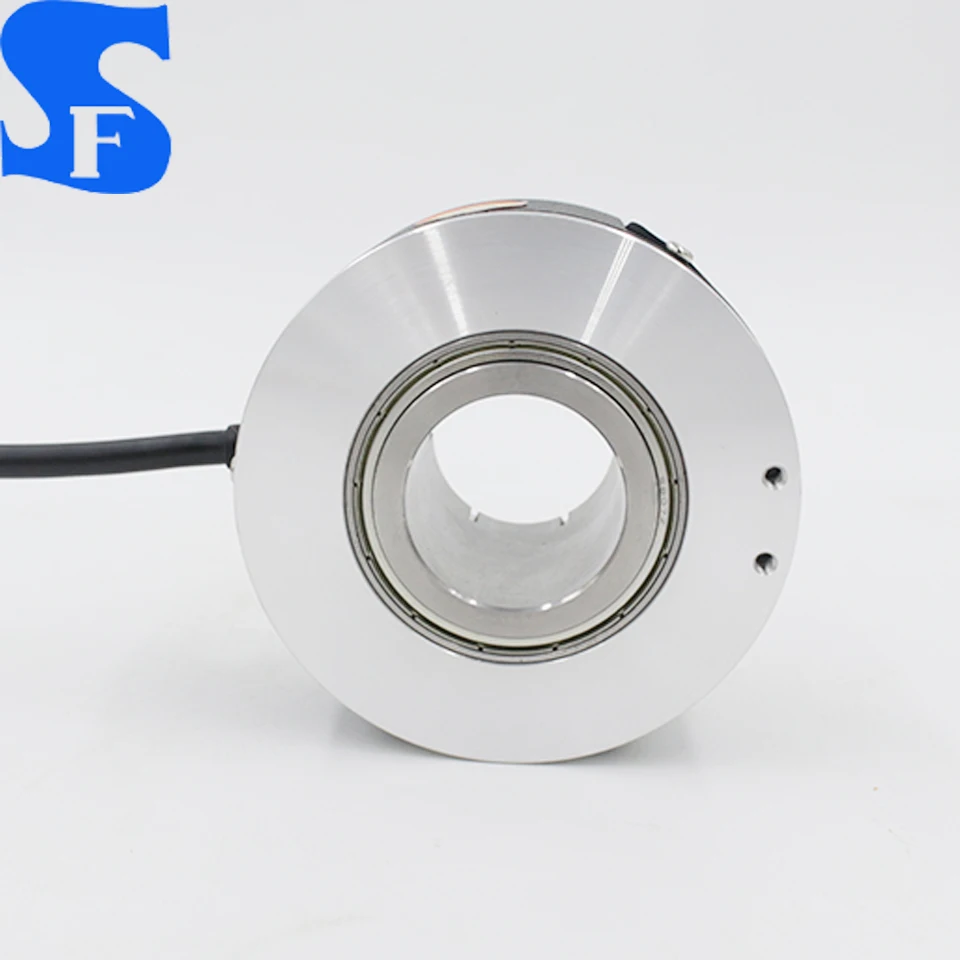

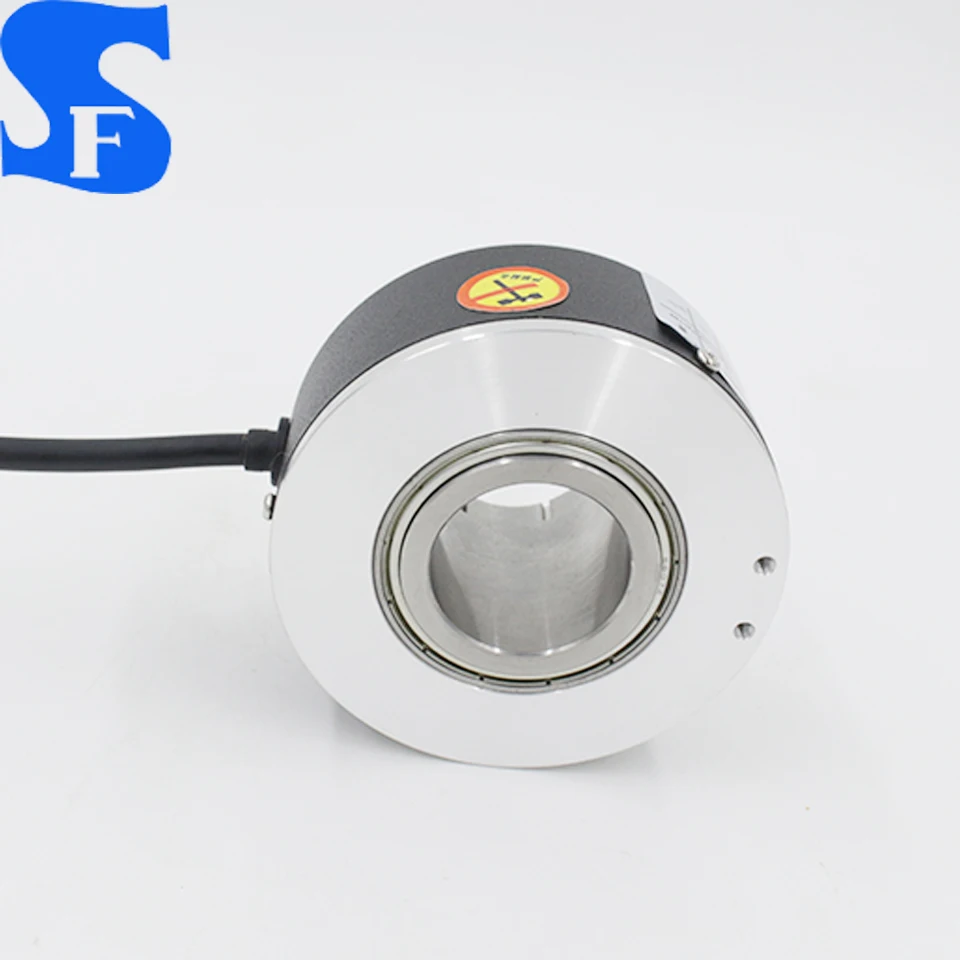

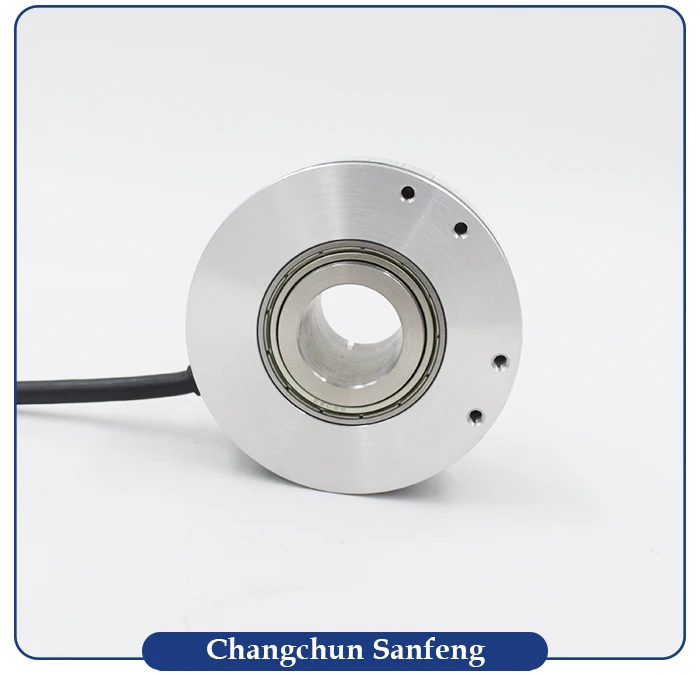

length measurement sensor elevator optical incremental encoder

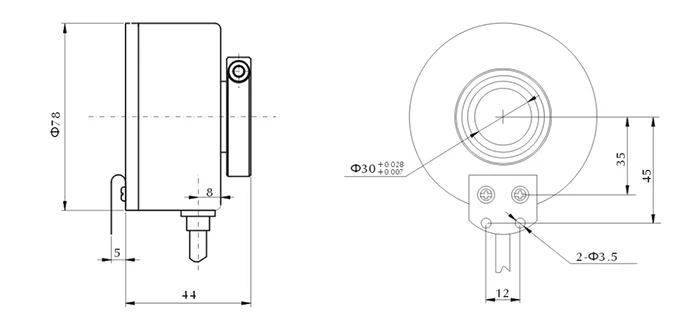

Resolution

1024,200,2500,3000P/R

Supply Voltage

DC5V / DC 10V~30V

V_H  Output Voltage

≥Vcc*70%

V_L  Output Voltage

≤0.5V

Current Consumption

≤150mA

Output Phase

A.B.Z

100kHz Max

Rise / Fall Time

≤1μS /Driver≤0.1μS

Starting Torque

3*10^-2N*m(+25℃)

Shaft Loading

Radial

40N

Axial

20N

Rotating Inertia

6*10^-5Kg*m²

Max Rotating Speed

2500r/min

Vibration Resistance

70m/s²(10~200Hz) 2 Hours in xyz Direction

Shock Resistance

490m/s² (3 Times in xyz Direction,each time 11ms)

Protection

IP54

Operating Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.5Kg

Accessories

Elastic Mounting Plate

Cable Color

Red

Black

White

Green

Yellow

Blue

Pink

Brown

Shield

Output Form

CEF

Vcc

0V

A

B

Z

-

-

-

FG

L

Vcc

0V

A

B

Z

A(_)

B(_)

Z(_)

FG
