Product Overview

Description


Product Description

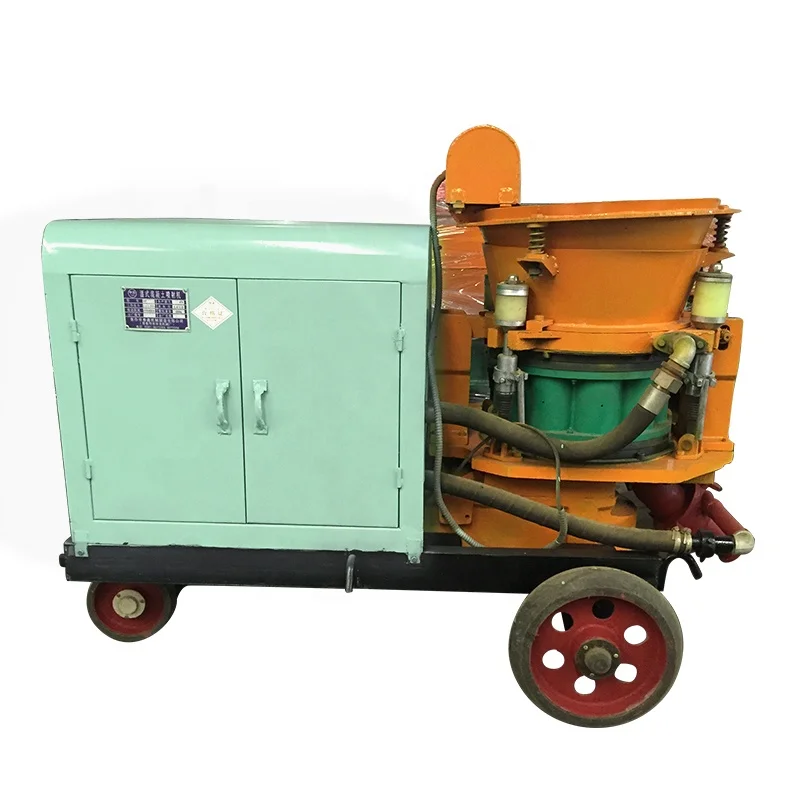

Main Features of after-sales service provided mini wet and dry mix shotcrete machine for sale

1, Accelerator dosing system is designed to convey accelerator independently while accelerator dosage can be accurately measured and adjusted freely by dosing pump.
2, Special rubber lining on hydrocyclones can vibrate under air pressure so that concrete will not stick to chamber. Smooth inner of chamber facilitates concrete conveying.
3, Stable performance, easy operation, low energy consumption, long service life, good spraying effect and environment friendly.

Main Features of after-sales service provided mini wet and dry mix shotcrete machine for sale :

\t
Technical Parameters
\t
SSP-7
\t
SSP-9
\t
Spraying Capacity(m³/h)
\t
7
\t
9
\t
Max. Spraying Distance (m)
\t
Vertical15,Horizontal30
\t
Vertical15,Horizontal30
\t
Concrete Slump(cm)
\t
8-15
\t
8-15
\t
Water Cement Ratio
\t
0.55-0.65
\t
0.55-0.65
\t
Max. Grain Size(mm)
\t
15
\t
15
\t
Diameter of Convey Hose(mm)
\t
Φ57/Φ64
\t
Φ57/Φ64
\t
Working Air Pressure(MPa)
\t
0.3-0.6
\t
0.3-0.6
\t
Air consumption(m³/min)
\t
8-12
\t
8-12
\t
Feeding Height(m)
\t
1.3
\t
1.3
\t
Motor Power(kw)
\t
7.5+0.75+0.25
\t
11+0.75+0.25
\t
Dimensions(L × W × H)(mm)
\t
1900×1050×1300
\t
1900×1050×1300
\t
Weight(kg)
\t
900
\t
1000

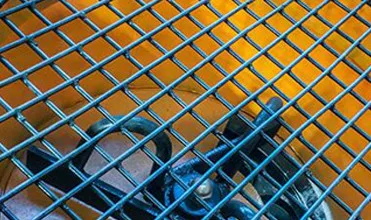

Hopper

Enlarged feeding inlet

Rotor system

Forced feeding by the piston completely avoiding material sticking in rotor material chambers, high adaptation to materials

Accelerator pump

Liquid accelerator system allows accurate dosing and uniform mixing

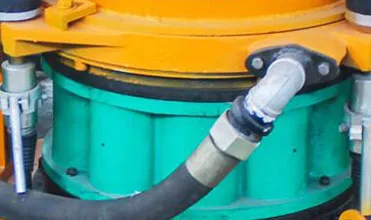

Vortex stream implement

Special rubber lining of vortex stream implement, no material sticking

Application of after-sales service provided mini wet and dry mix shotcrete machine for sale :

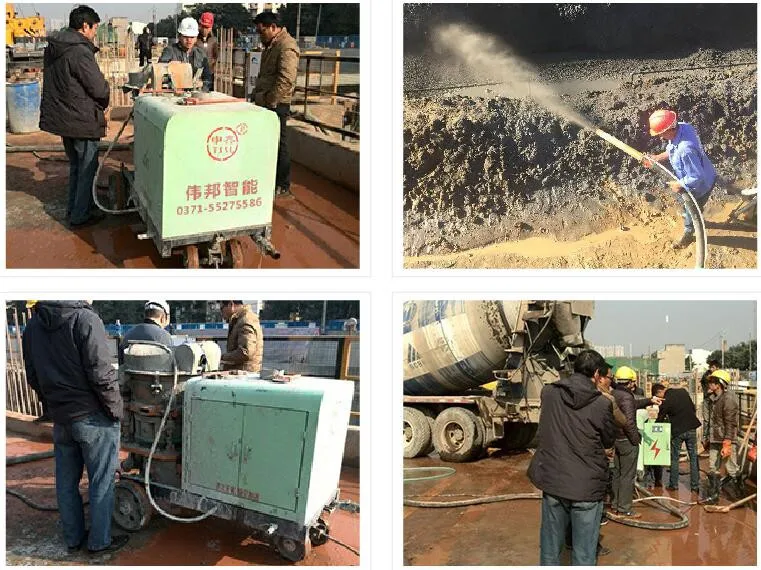

SSP-7/9 gunite pump is the universal machine for dry and wet-mix shotcrete application of slope stabilization and excavation support, mining, tunneling, culverts, underground construction, hydro-engineering.

We provide a wide selection of cost-effective shotcrete machines. Feel free to contact us and click the button below you will get a competitive price.

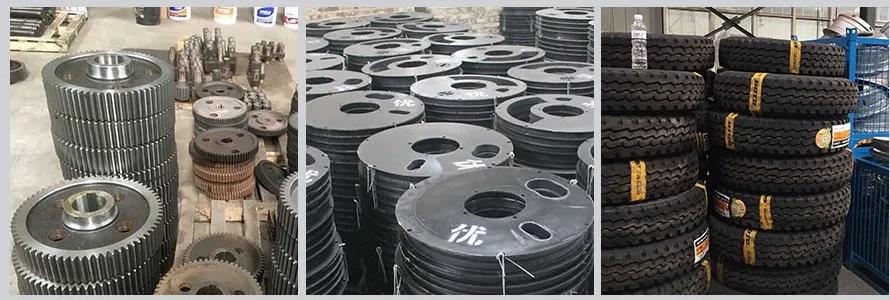

Spare Parts


The machine already has neccessory spare parts.


We suggest buy more sets for long time operation.

We guarantee high quality of each part of shotcrete machine .

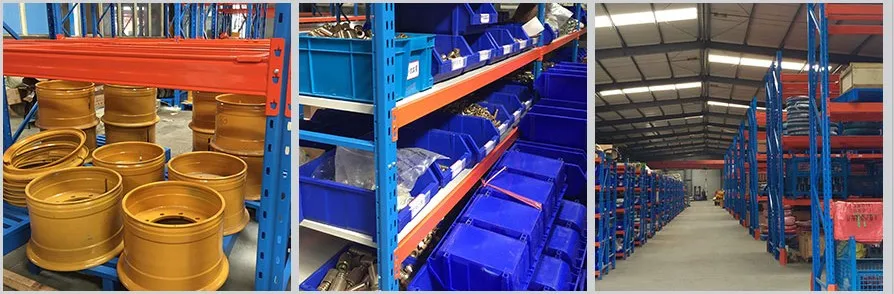

Spare parts production workshop and storage workshop


We are manufacturer.
We provide you factory price shotcrete machines.
We have all kinds of models of shotcrete machines for our customers to chose.

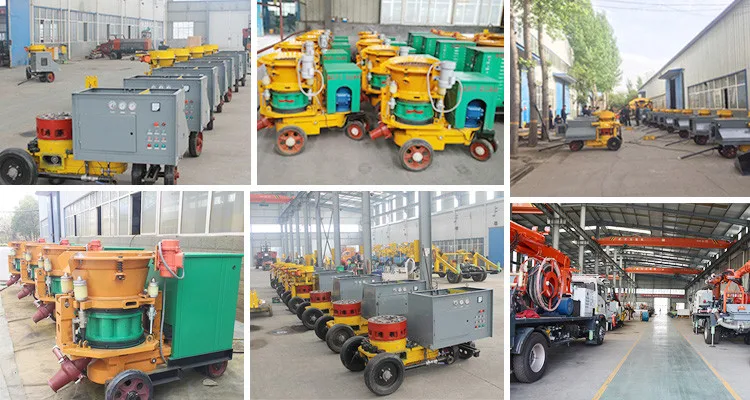

Workshop Images
Our Company
Contact Us

We are sincerely looking forward your inquiry on Pumping system hydraulic wet shotcrete machine for sale and welcome you visit our factory!
