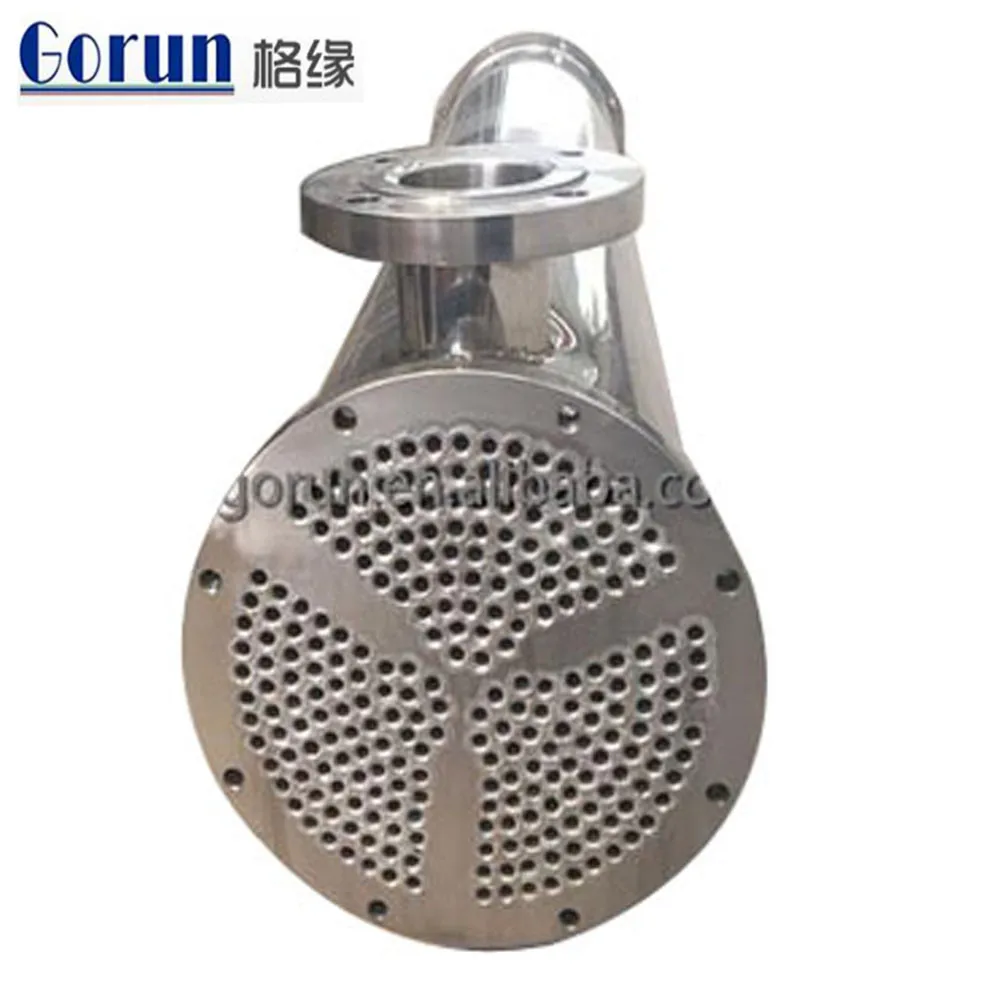

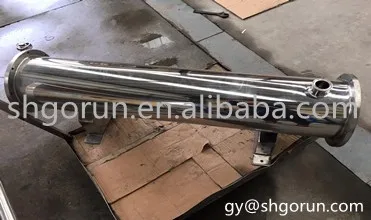

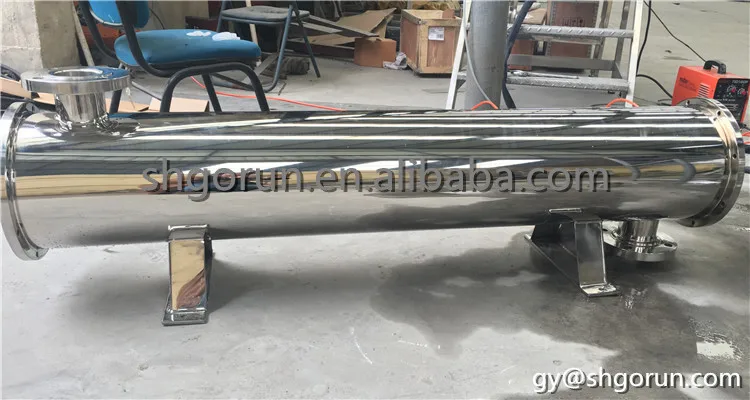

Customized High Quality Marine Oil Cooler


Tube Heat Exchanger


Brief Introduction
This tube heat exchanger is mainly used in the process of heating or cooling materials in pharmaceutic, chemical industry, food and beverage industry.The tube heat exchanger is made of SUS304 and SUS316L.
Features:
1.High efficient and energy conservation: heat transfer coefficient of the heat exchanger is 6000-8000W/m2.0C.
2.Long service life: all parts are made of stainless steel
3.Fast heat transfer speed:  resistance to high temperature (400 ℃), high voltage (2.5 Mpa).
4.Compact structure, small footprint, light weight, convenient installation, saving investment in civil construction.
5.Flexible design,saving money. complete specifications, practical and targeted,
6.Easy operation , long cleaning cycle and convenient cleaning, low maintenance cost
7.Wide application fields, which can be widely used in the fields of thermoelectric, factory, petrochemical, urban central heating, food and medicine, energy electronics, mechanical light industry, etc.

Specification for the heat exchanger


Model
Heat exchanging area(m2)
Diameter of the pipe(mm)
Length of  lined pipe(m)
Inlet & outlet
(mm)
Inlet & outlet of heat exchanging medium
Heating exchanging pipe(mm)
Pressure in pipe
(Mpa)
Pressure on housing
(Mpa)
GH-2
2
219
1.5
25
32
Φ20*1.5
0.25
0.25-0.5
GH-4
4
300
1.5
32
40
Φ20*1.5
0.25
0.25-0.5
GH-6
6
300
1.8
32
40
Φ20*1.5
0.25
0.25-0.5
GH-8
8
400
1.8
40
50
Φ20*1.5
0.25
0.25-0.5
GH-10
10
400
2.2
40
50
Φ20*1.5
0.25
0.25-0.5
GH-15
15
426
2.2
50
50
Φ25*1.5
0.25
0.25-0.5
GH-30
30
530
2.55
50
65
Φ25*1.5
0.25
0.25-0.5
GH-45
45
550
3
50
65
Φ25*1.5
0.25
0.25-0.5

Notice: all these parameters can be customized.Please tell me your requirements, then we will design for you as soon as possible.


Our Company

Shanghai Gorun Machinery Technology Co., LTD. ,established in 2010,is committed to the design, production and installation and commissioning of equipment in medicine, food, chemical industry and electronics industry.

Main products: Stainless steel tank series, water treatment equipment, homogeneous emulsion pump series,water & powder mixer, colloid mill, wine fermentation tank, CIP online cleaning and process automation control and pipeline installation.
