Product Overview
Description

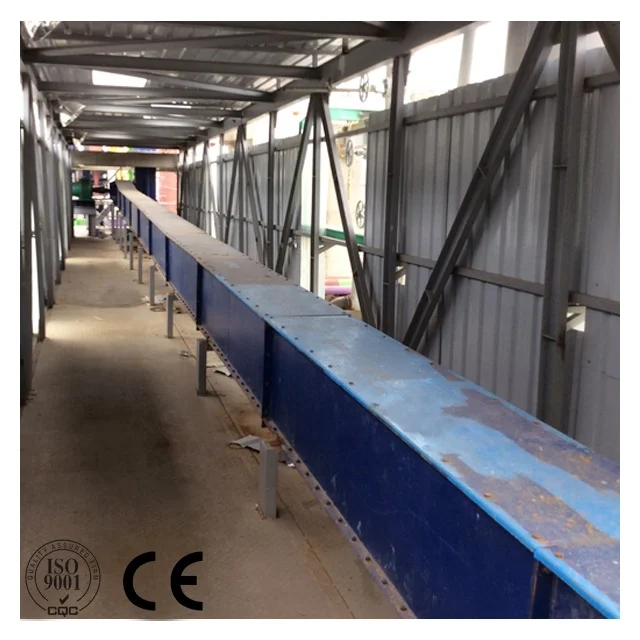

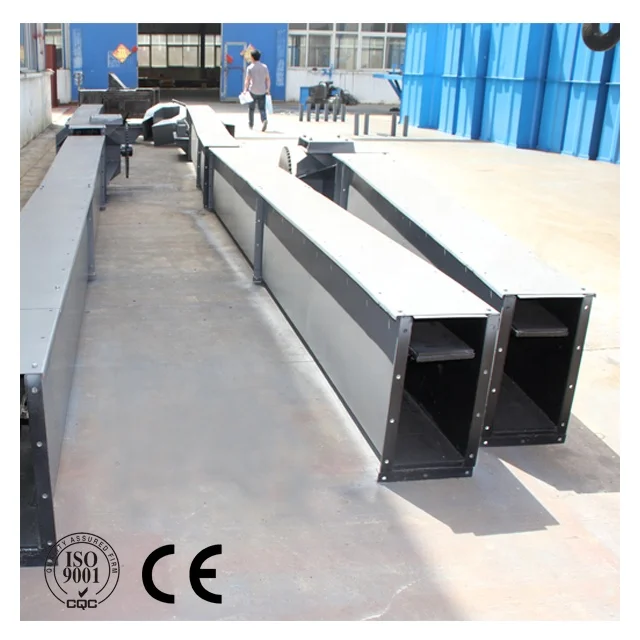

Quality Assurance Coal Ash Drag Conveyor
Description

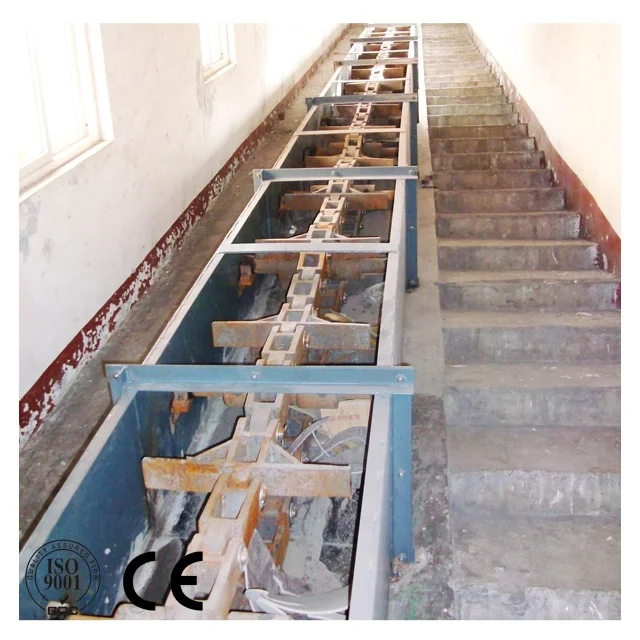

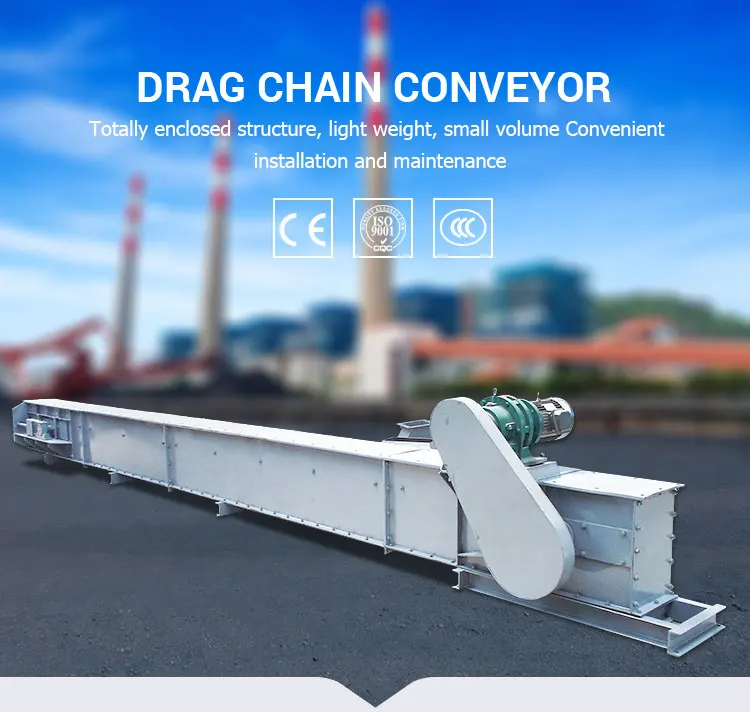

Coal ash drag chain conveyor is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By means of moving chains, it can continuously transport the materials in closed rectangular casing horizontally or at a slight incline.
1

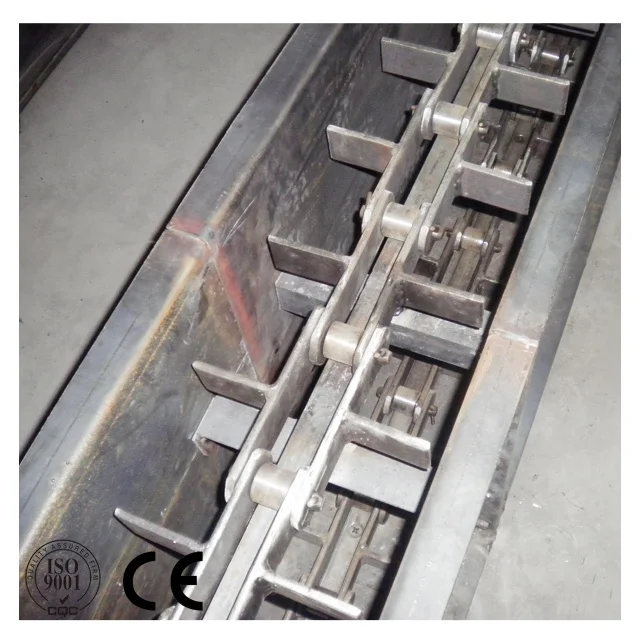

DROP-FORGED CHAIN
High strength, long lifetime.
2
QUALIFIED GEAR BOX
China famous brand
SEW, Flander, ABB, Sumitomo.
3
SPROCKET
Casting technology, high strength.
TECHNICAL PARAMETER
The parameter above is just for reference, it can be customized by different requirement.
Model | MS 16 | MS 20 | MS 25 | MS 32 | MS 40 | MS 50 |
Chute Width (mm) | 160 | 200 | 250 | 320 | 400 | 500 |
Transport Speed (m/s) | 0.16 m/s, 0.20 m/s, 0.25 m/s, 0.32 m/s | |||||
Bulk Density (t/m3) | 0.2~1.8 t/m3 | |||||
Capacity (m3/h) | 15~29 | 23~46 | 36~72 | 59~118 | 83~166 | 115~230 |
Conveyor Length (m) | 10~80m | |||||
Installation Angle (degree) | 0°~30° | |||||
WORKING PRINCIPLE
HENAN GREEN ECO-EQUIPMENT CO., LTD
Henan Green Eco-Equipment Co., Ltd. is located in Economic Development Zone, Xinxiang,
registered capital of 10 million RMB. We have a group of professional research, engineering, production, sales and after-sales service team serve all around the world clients.
