Product Overview
Description
Airtac SC40*75 Double Acting Pneumatic Air Cylinder
Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | ||||||||
Acting type | Double acting | ||||||||||||||||
Working medium | Clean air(40um Filteration) | ||||||||||||||||
Mounting type | SU/SC Series | Basic type FA FB CA CB CR LB TC TC-M | |||||||||||||||
SCD/SUD Series | Basic type FA LB TC TC-M | ||||||||||||||||
SCJ/SUJ Series | Basic type FA LB TC TC-M | ||||||||||||||||
Guaranteed pressure | 1.5Mpa | ||||||||||||||||
Working pressure range | 0.1-0.9Mpa | ||||||||||||||||
Working temperature | -5~70℃ | ||||||||||||||||
Speed Range | 50-800mm/s | ||||||||||||||||
Cushion type | adjustable cushion | ||||||||||||||||
Cushion stroke | 20mm | 30mm | 32mm | 40mm | 45mm | ||||||||||||
Port size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | ||||||||||||
Alloy Cylinder Hard Anodizing
High-density aluminum alloy material can be formed by CNC processing at one time
thickening the cylinder body, not easy to change shape
The inner wall is mirror-finished, the surface of the cylinder body is hard oxidized
beautiful, corrosion-resistant and wear-resistant
Smooth operation, adaptable to various working environments, longer service life

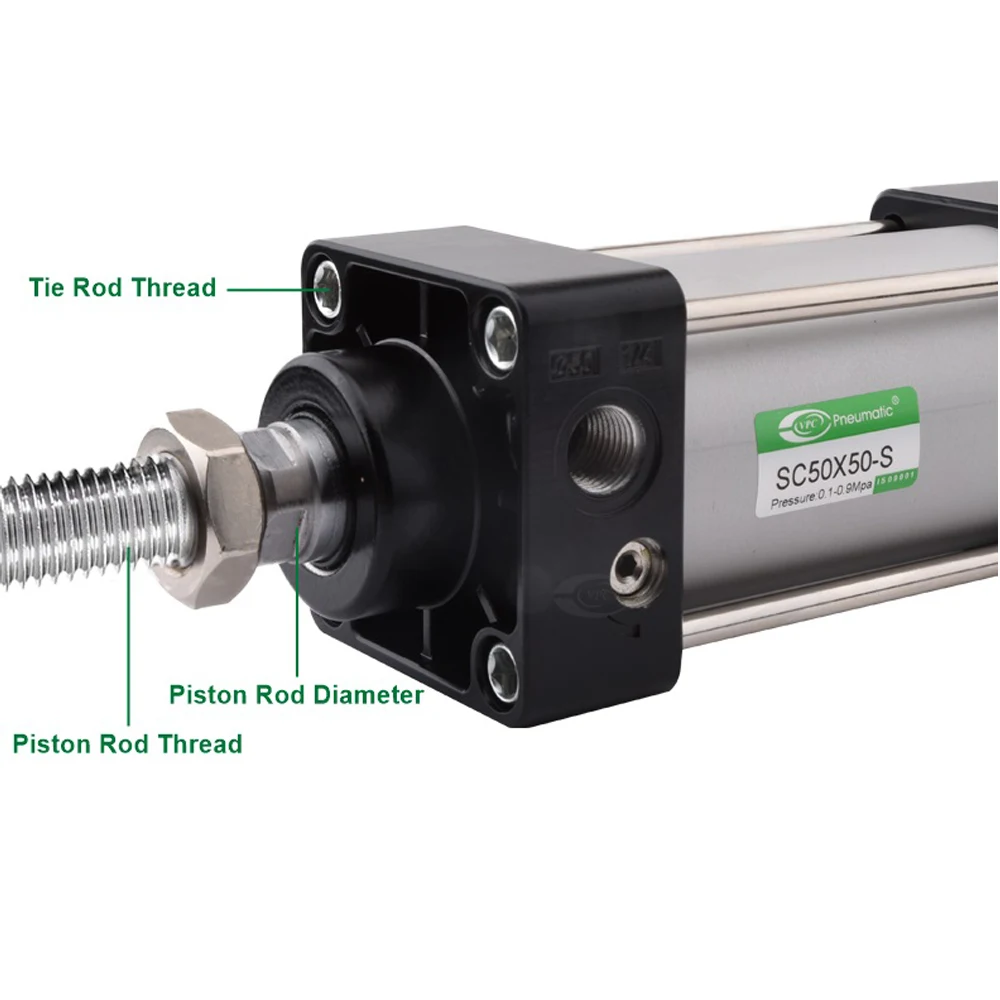

Fine Machining Tight Thread
Cylinder body installation hole is formed by drilling and tapping center at one time,
high precision thread, precise wear
45# carbon steel piston rod, clear thread,high strength and not easy to break, easy to install
High degree of anastomosis between inlet and outlet holes
not easy to leak, quick assembly of various connectors
Customized Fastening Thickened Base
Customized fasteners, the base is tightly connected to the cylinder
Can be used with various accessories according to requirements

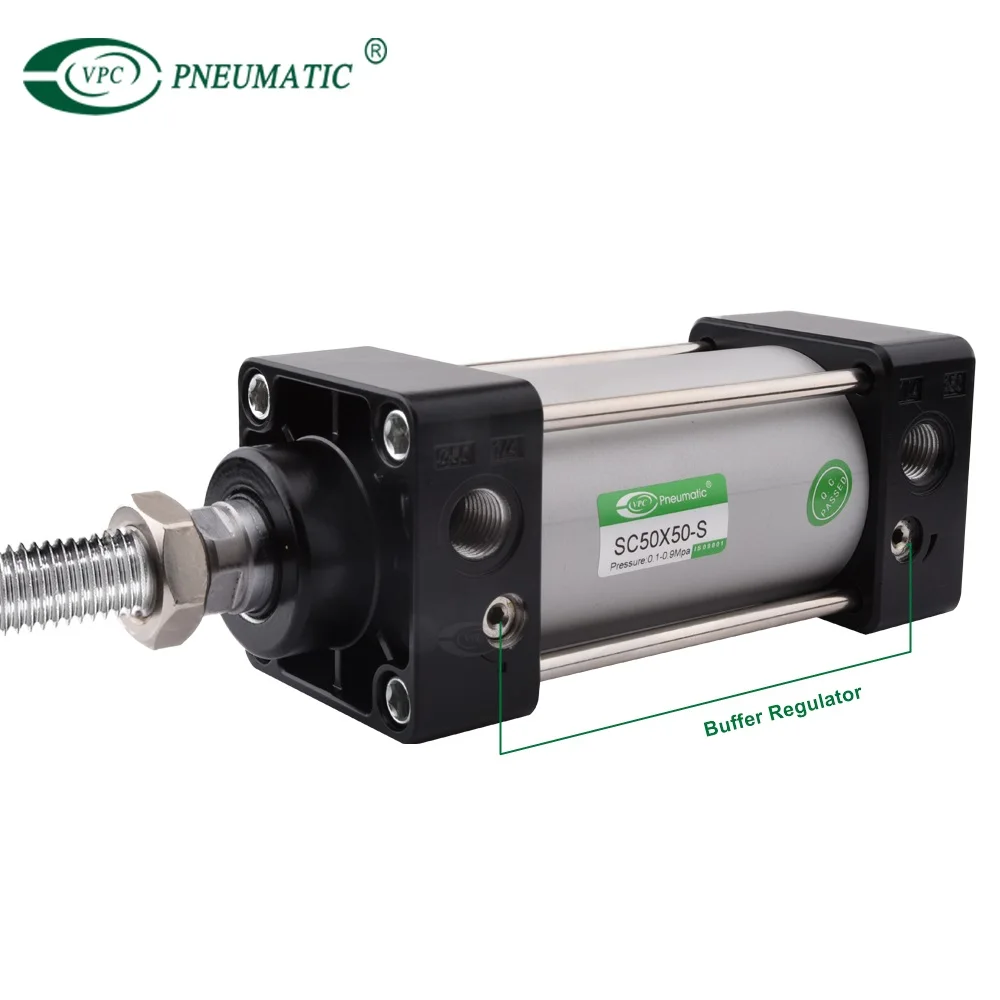

Buffer regulator
Cylinder with buffer adjustment function, adjust the intensity according to demand
Slow down the impact of the cylinder, resist aging,make the cylinder output more stable and durable
Ordering Code SC/SU Series Standard Cylinder
SC 50 X 50 - S - 20 - LB
SC→Series CodeSC:Standard cylinder
SCD:Double-shaft type
SCJ:Double-shaft,
adjustable stroke type
SU:Standard cylinder
SUD:Double-shaft type
SUJ:Double-shaft,
adjustable stroke type
SCD:Double-shaft type
SCJ:Double-shaft,
adjustable stroke type
SU:Standard cylinder
SUD:Double-shaft type
SUJ:Double-shaft,
adjustable stroke type
50→Bore
50→ Stroke
S→Magnet
Blank:Without Magnet
S:With Magnet
Blank:Without Magnet
S:With Magnet
20→Adjustable Stroke
10:10mm 20:20mm
30:30mm 40:40mm 50:50mm 75:75mm 100:100mm
LB→Mounting type
Blank:Standard Cylinder
LB:Leg mounting
FA:Front rear plate mounting
FB:Front rear plate mounting
CA:Single trunnion mounting
CB:Double trunnion mounting
CR:Double trunnion with Hinge,
mounting
TC:Centre trunnion mounting
Blank:Standard Cylinder
LB:Leg mounting
FA:Front rear plate mounting
FB:Front rear plate mounting
CA:Single trunnion mounting
CB:Double trunnion mounting
CR:Double trunnion with Hinge,
mounting
TC:Centre trunnion mounting
A magnet is installed on the piston, by switching the button to check the operation position of the cylinder.
How to order(Example)
1) Model of standard double action cylinder:SC-40X100-S-TC Bore:40mm stroke: 100mm with magnet Mounting: TC style.
2) Model of standard double action cylinder: SC-36X100-S-LB Bore:63mm stroke: 100mm with magnet Mounting: LB style.

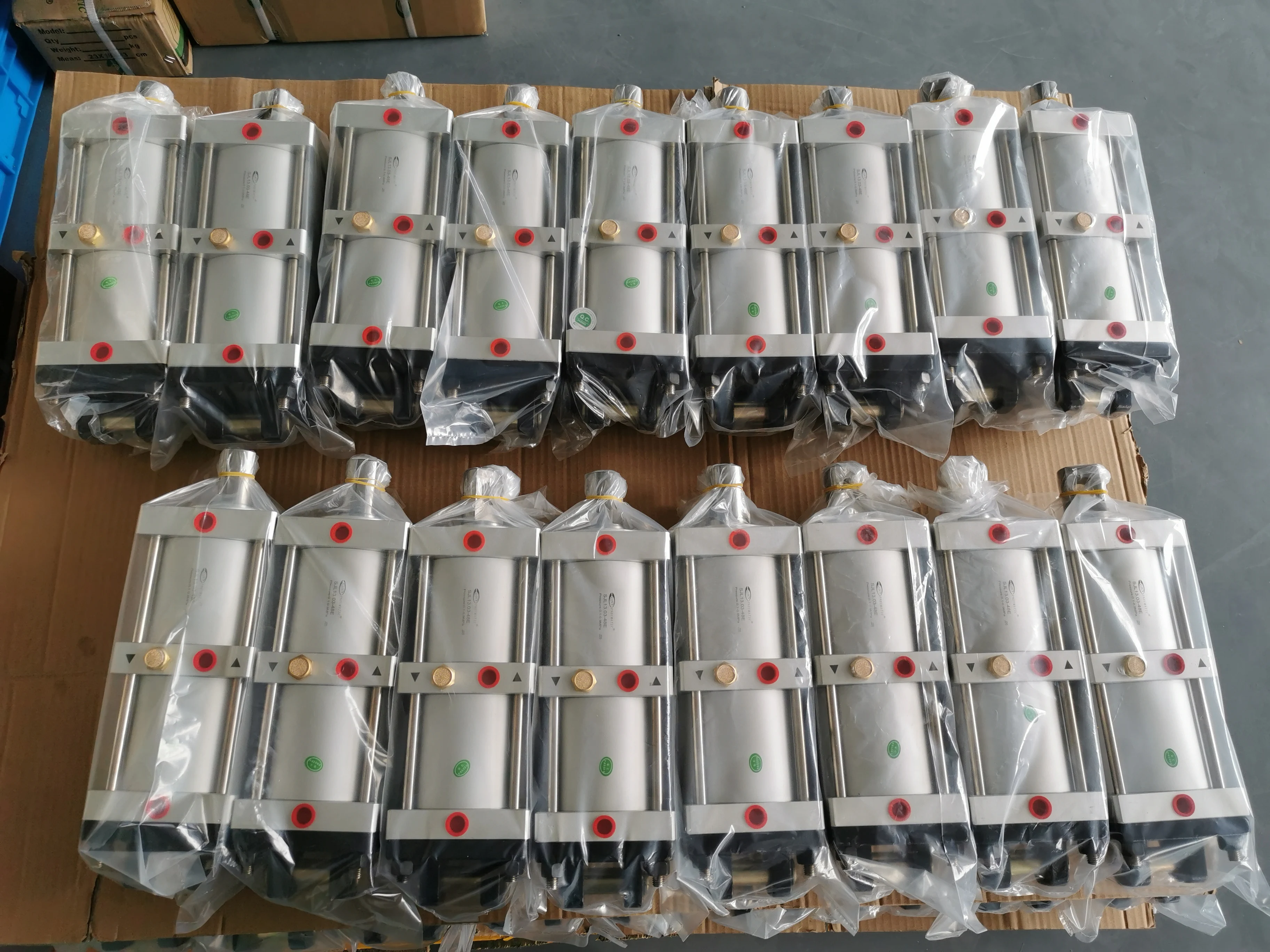

PRODUCTING
