New Model Output Power Factor 1.0 Hybrid MPS V Series Pure Sine Wave 5000 Watt Inverter

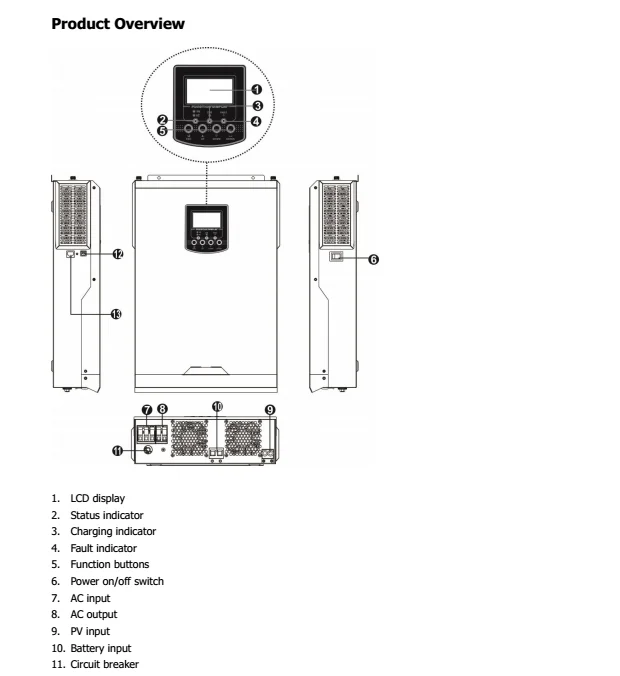

Product Overview

Description

New Model Output Power Factor 1.0 Hybrid MPS-V Series Pure Sine Wave 5000 Watt Inverter











Product Features:

high efficiency pure sine wave inverter(PF=1).

wide PV input range(120Vdc--500Vdc)80A MPPT SCC; intelligent 3 stage 60A AC charger.

Surges to 2X continuous power for 5 seconds for motor loads.

Intelligent functionality enables utility and solar input prioritization.

Wide utility input range(90Vac--280Vac)for unreliable grid even in the most challenging environments.

Field serviceable with replacement boards and spare parts. Monitor, troubleshoot, or communication with USB/RS232.

System configures quickly into compact, wall-mounted system.

Working without batteries in sun day.







Model	MPS-V-3000-24	MPS-V-5000-48
RATED POWER	3000VA/3200W	5000VA/5000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers)
	90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	6000VA	10000VA
Efficiency (Peak) PV to INV.	97%
Efficiency (Peak) Battery to INV.	94%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	33 VDC	63 VDC
Maximum Charge Current	60 A	60 A
SOLAR CHARGER
Maximum PV Array Power	4000 W
MPPT Range @ Operating Voltage	120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum Charging Current	80A
Maximum Efficiency	98%
PHYSICAL
Dimension, D x W x H (mm)	100 x 300 x 440
Net Weight (kgs)	9	10
Communication interface	USB/RS232
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

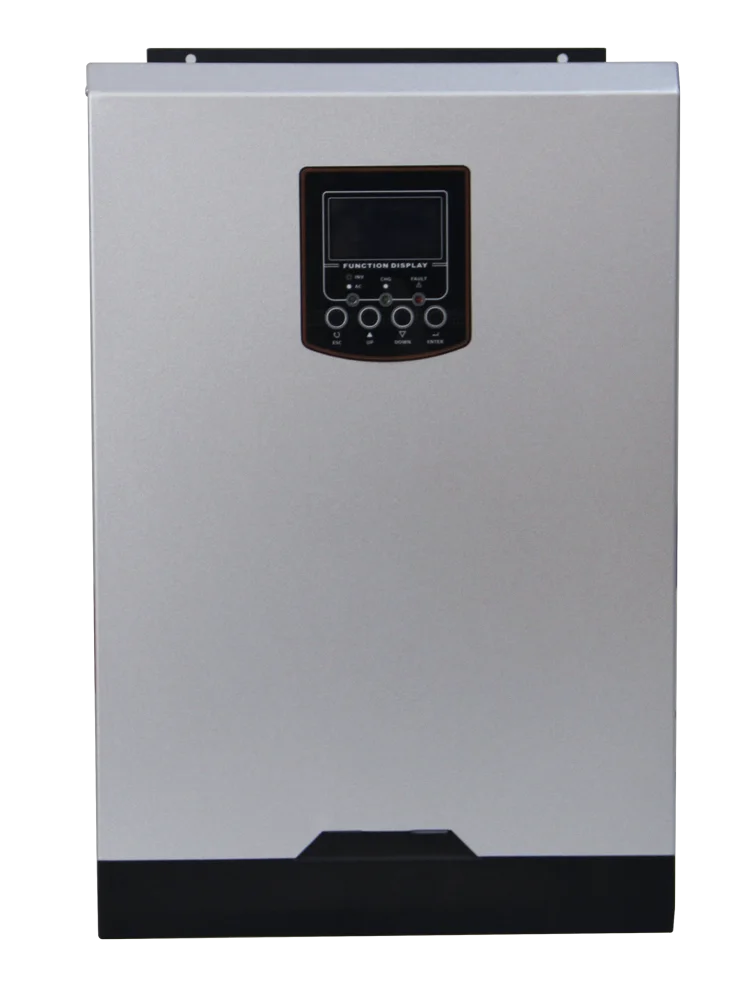

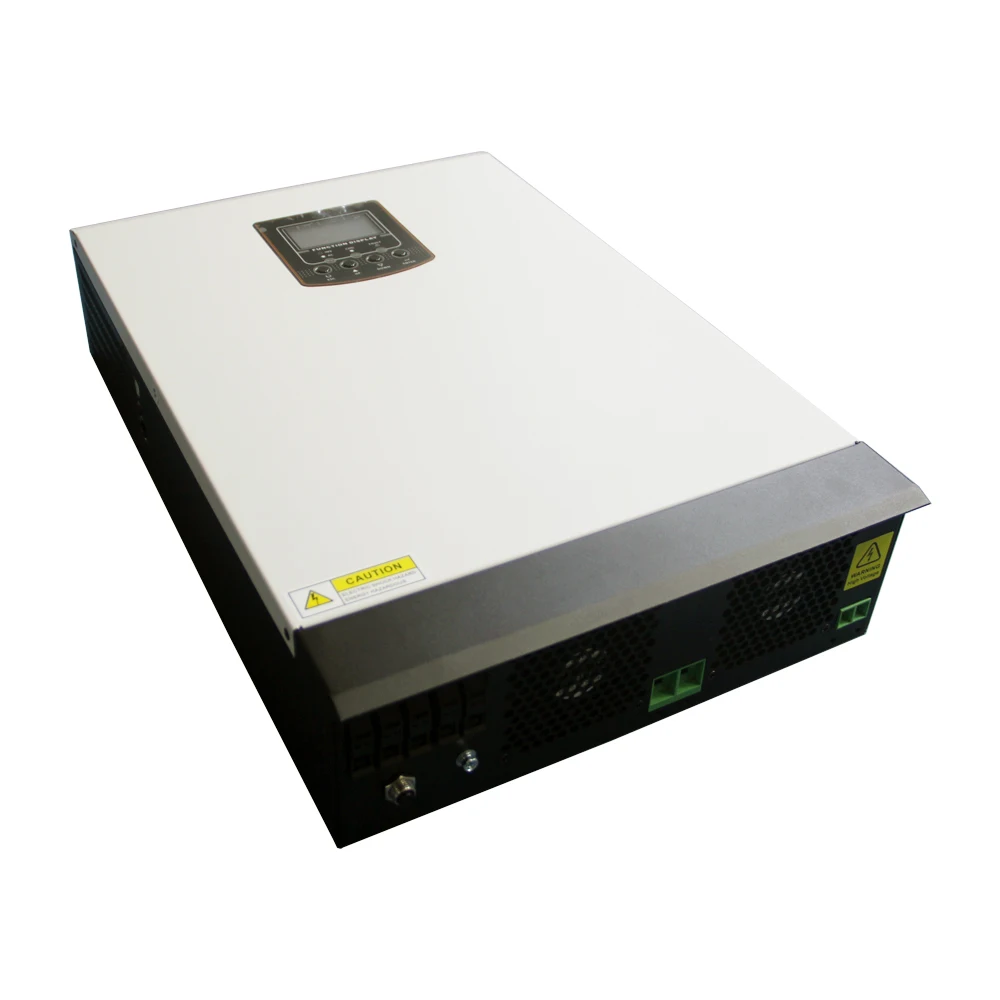

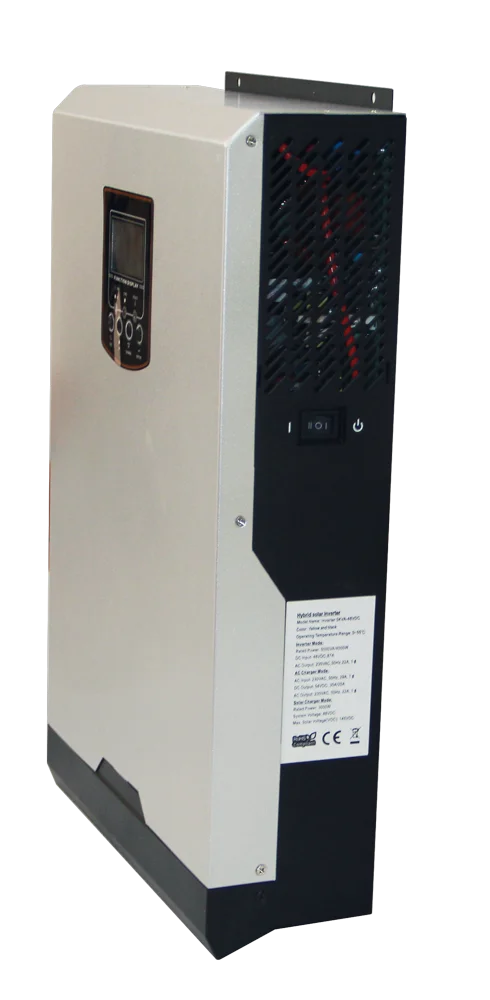

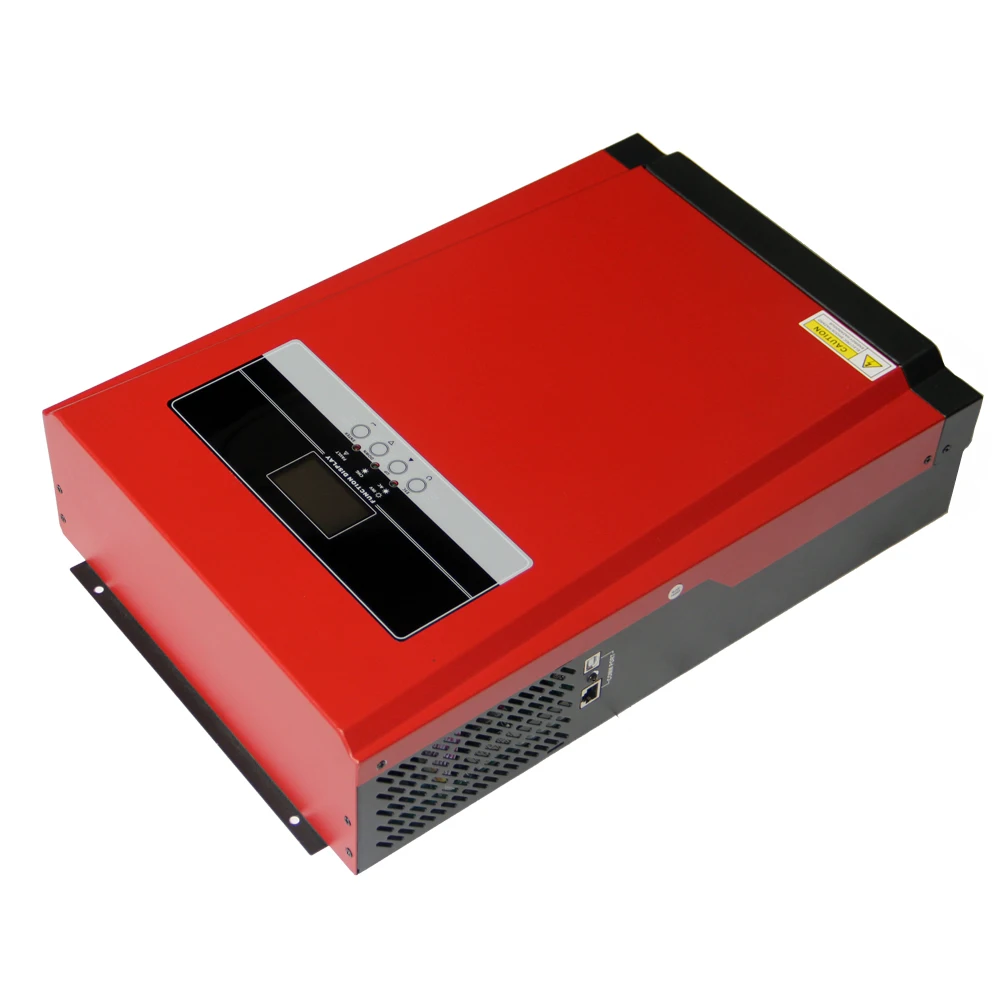

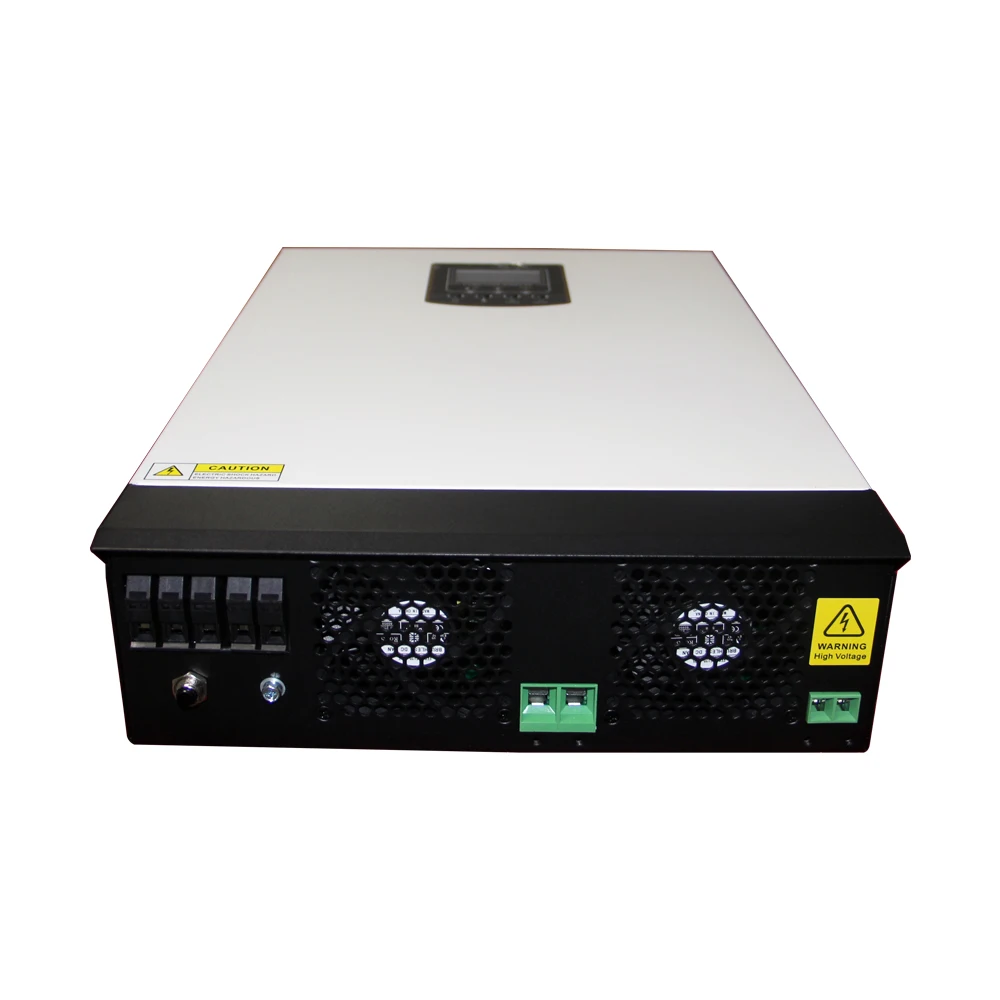

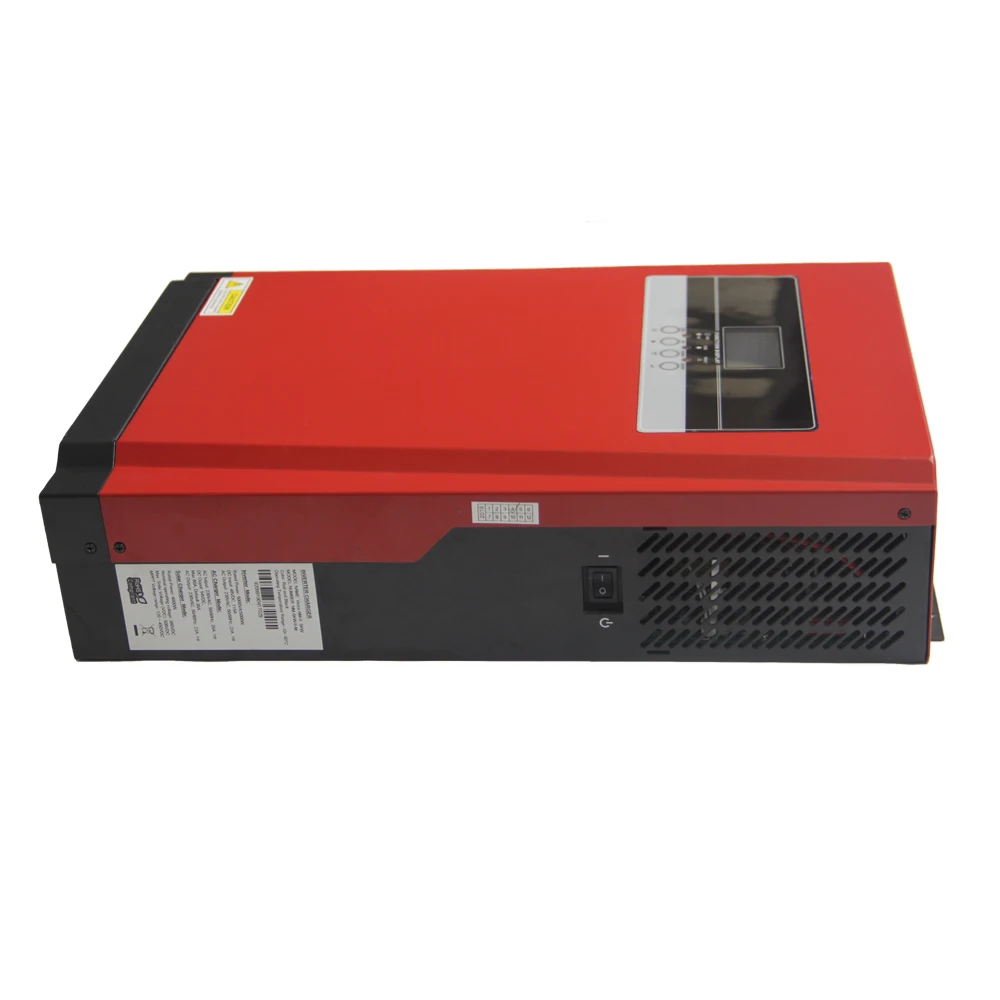

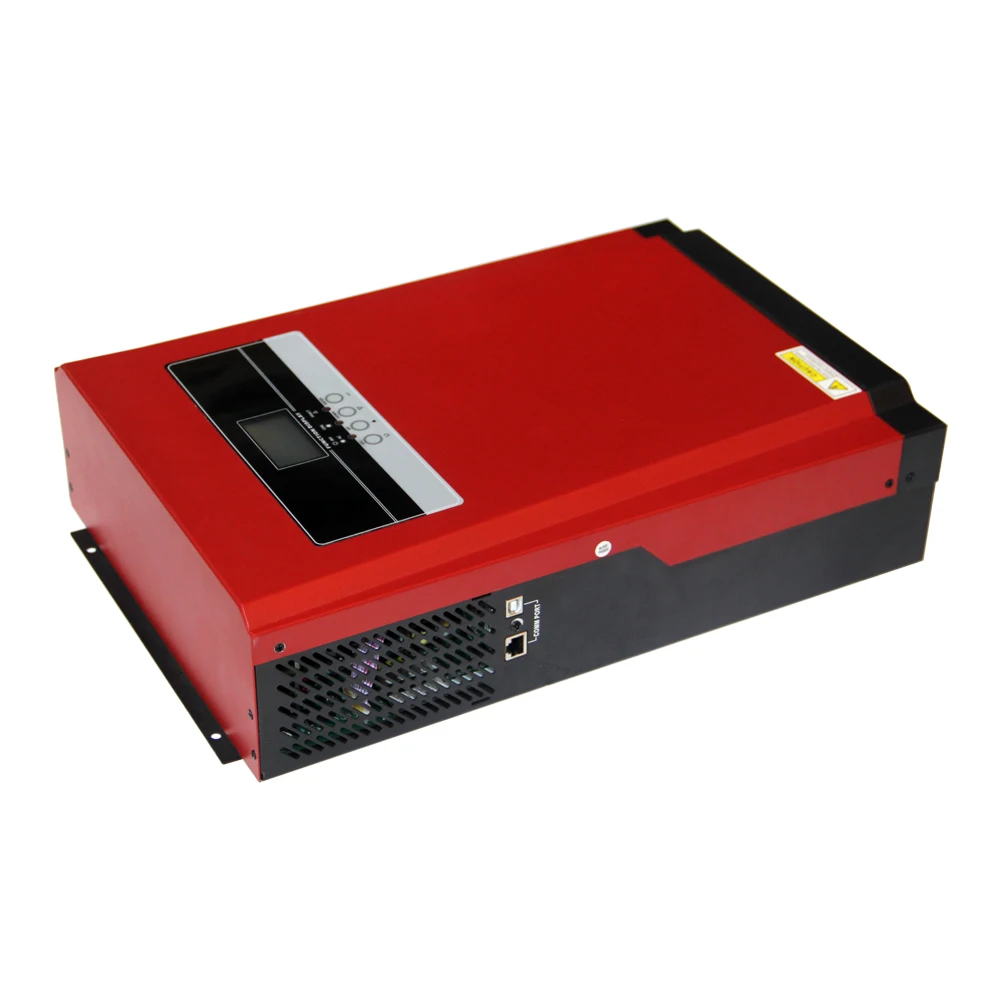

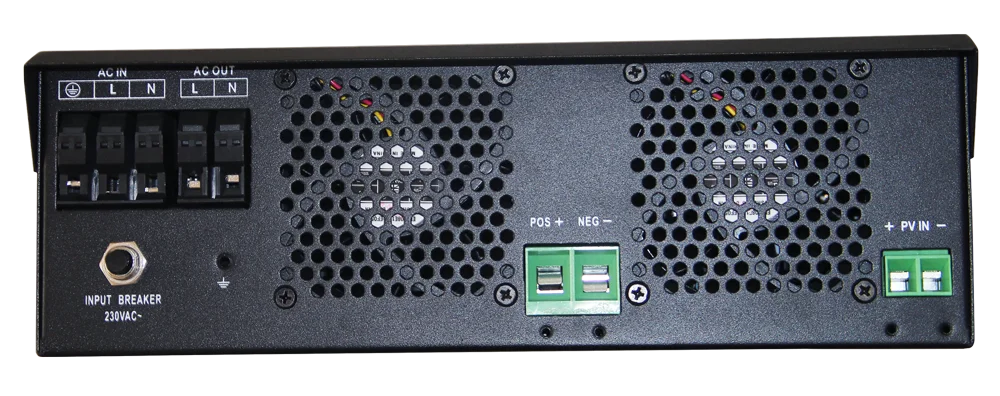

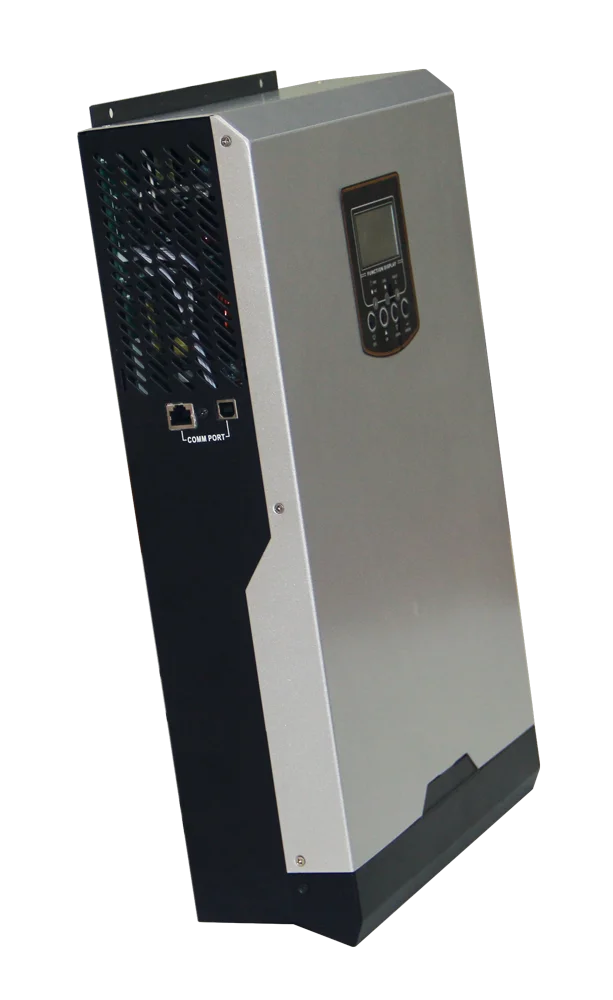

PRODUCT SHOW
