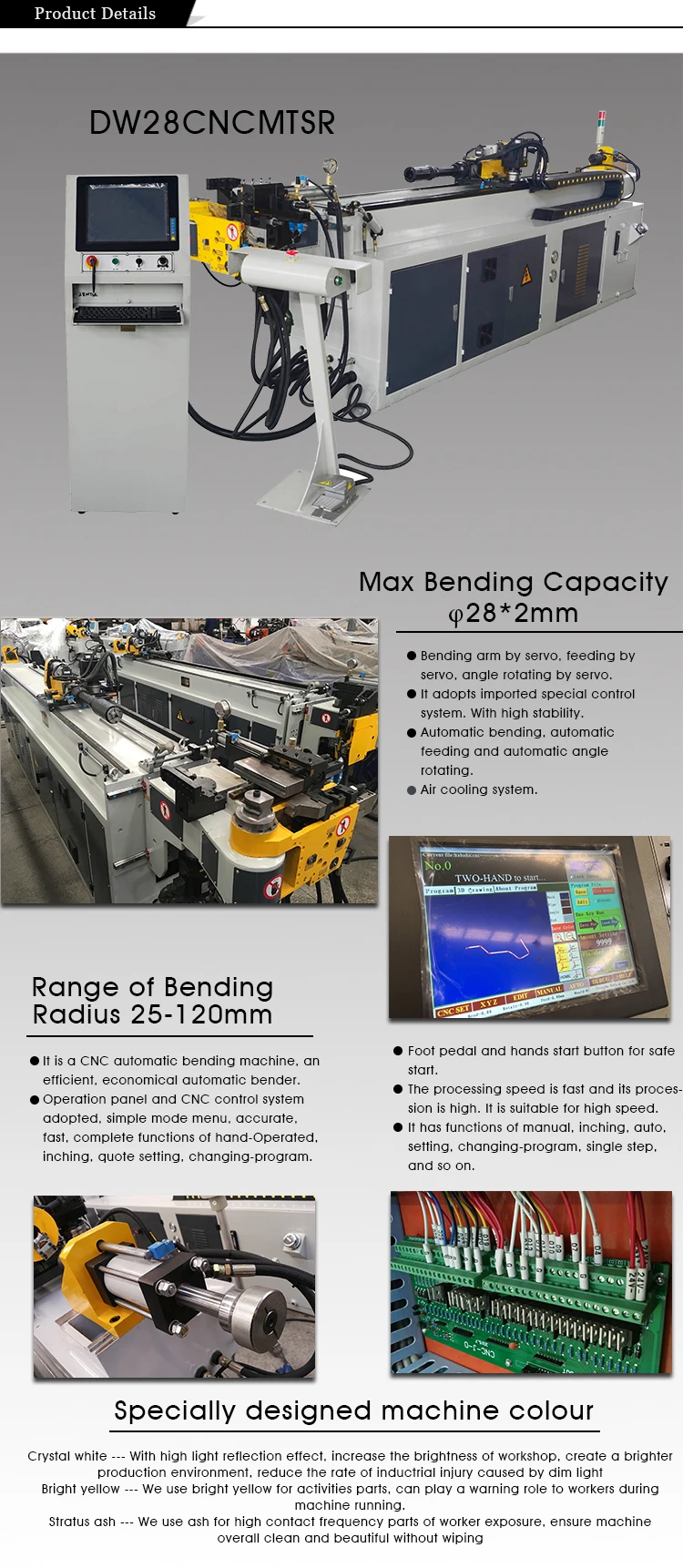

Manufacturing Tools Bending Machine Used For Making Metal Pipe
Suggestion&Sample
No. | Item | Data |
1 | Max Bending Capacity | Φ28*2mm |
2 | Rang of Bending Radius | 25-120 mm |
3 | Max Bend Angle | 190 Deg |
4 | Max Length Over Mandrel | 2600 mm |
5 | Working Height | 1120 mm |
6 | Bending Speed | 248 Deg/Sec |
7 | Bending Precision | +/-0.1 Deg |
8 | Feeding Speed | 1800 mm/Ses |
9 | Feeding Precision | +/-0.1 mm |
10 | Rotate Speed | 375 Deg/Sec |
11 | Rotate Precision | +/-0.1 Deg |
12 | Total Power | 7.55 Kw |
13 | Machine Size | 3900x1000x1500 mm |
14 | Machine Weight | 1950 Kg |
Related Product
Company Profile
Certificate&Logistic
Contact Us
FAQ
Q: Are you a manufacturer or trading company? |
| A: We are a manufacturer. We focus on metal pipe/tube processing machinery for over 30 years. |
Q: How to choose the pipe/tube bending machines? |
A: You have to inform us following details:Max. outside diameter,Wall thickness,Bending radius (CLR), The pipe material,The drawings if possible |
Q: What is the biggest bending capacity you could offer? |
A: As of now the biggest bending capacity is 168mm outside diameter for cold bending. |
Q: Where is your factory located? How can I visit there? |
A: Our factory is located in Zhangjiagang city (beside to Shanghai). You can fly to Shanghai Hongqiao or Wuxi airport directly. All our clients, from home or abroad, are warmly welcome to visit us! |
Q: How does your factory do regarding quality control? |
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained SGS, CE certificate.
|
