Elevator Part Elevator Over Speed Governor OSG OX 240

Product Application

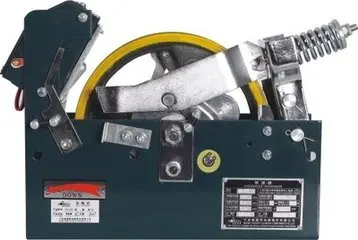

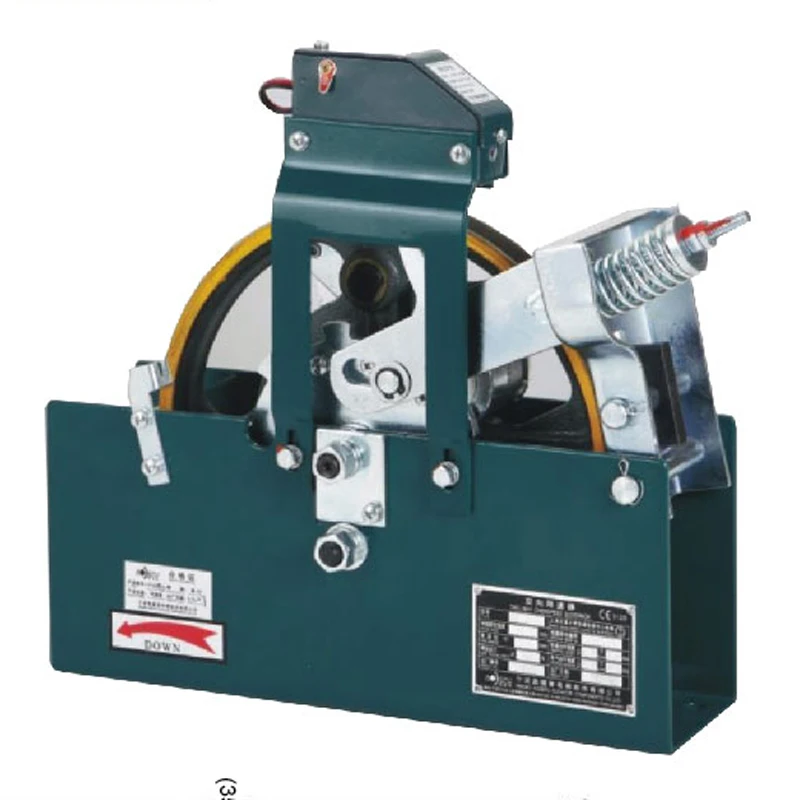

This is a dual-direction over speed governor. Down braking is performed with down tripping safety gear; Up braking is performed with mechanical rope brake. Because of using the rope releasing device, the pulley of the governor is still able to rotate while the rope brake is activated, so the ascending car protection will be much more safe and reliable. This governor is simple in structure, easy to install and convenience to adjust.
The tension device falls into two types, vertical type and swinging type.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

Name: Speed Governor SN-X208

Original:China

Roomless Single Direction

Rated Speed :0.63-1.75m/s

Rope Dia: 6mm

Sheave Diameter: 200mm

Rope Tension Force:500N

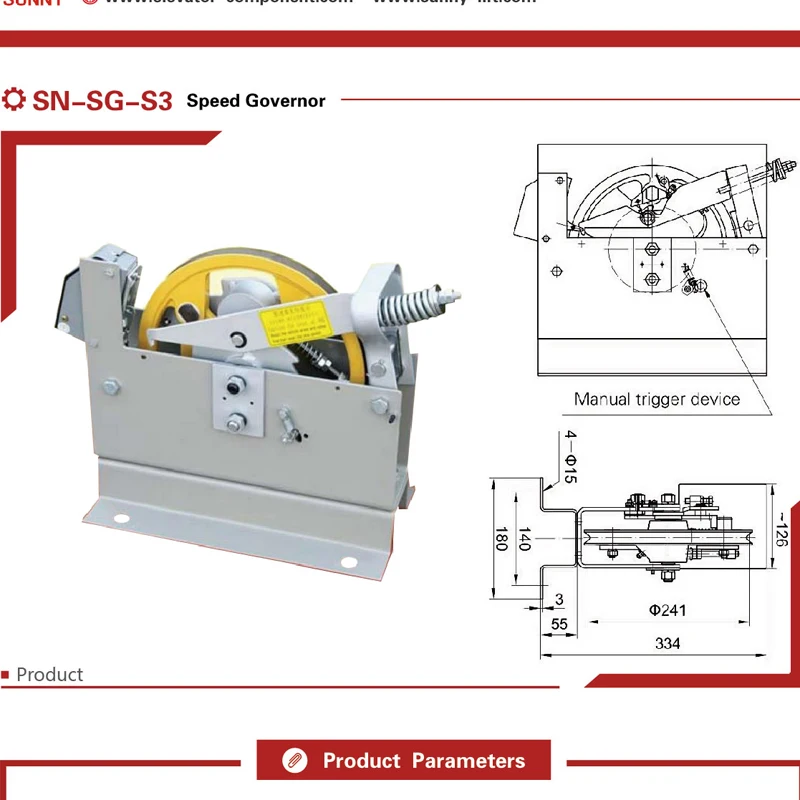

Main Features

Name:Over Speed Governor SN-SG-X3
Original: China

Rated Speed:0.5m/s-1.75m/s(CTensionE)

                          0.25m/s-2.0m/s,2.5m/s(GB)

Rope Tension Force:800N-1500N

Rope Dia: 8mm

Sheave Diameter:241mm

Lifting Height: 60B-120B

Machine Parts

Name: Speed Governor
Original: China
Villa Elevator Solution,two direction

Rated speed :0.63-1.75m/s

Rope Dia :6mm(standard),8mm(optional)

Sheave Diameter :240mm

Suitable Location : Capsules Side or the heavy side

Main Features

Name: Over Speed Governor
Original: China
Rate Speed :0.25-2.5m/s

Rope Dia:8mm

Sheave Diameter:240mm

Rope Tension Force:500-1500N
