High quality paper honeycomb pallet making machine

High quality paper honeycomb pallet making machine

This machine is for honeycomb lamination, the proceed as following:Paper Roll Loading  -> Core Feeding -> Inserting -> Core Expanding  ->Surface Paper Heating Laminating->Gluing -> Drying -> Board Slitting -> Board Cutting -> Conveyor. The Kraft color paper honeycomb board widely suing in packing field, and the white paper honeycomb panel using in furniture which can make printing on it.

Main Features:

1) Working paper rolls width 1300--1800mm, we also can customize!

2) Lamination speed: 0--25m/min

3)Electric or Steam heating both available

4) Two heating chamber for better moisture remove and lamination

5) Auto paper tension system with hydraulic control

6) Superior cutting system with Servo control

Machine Parts

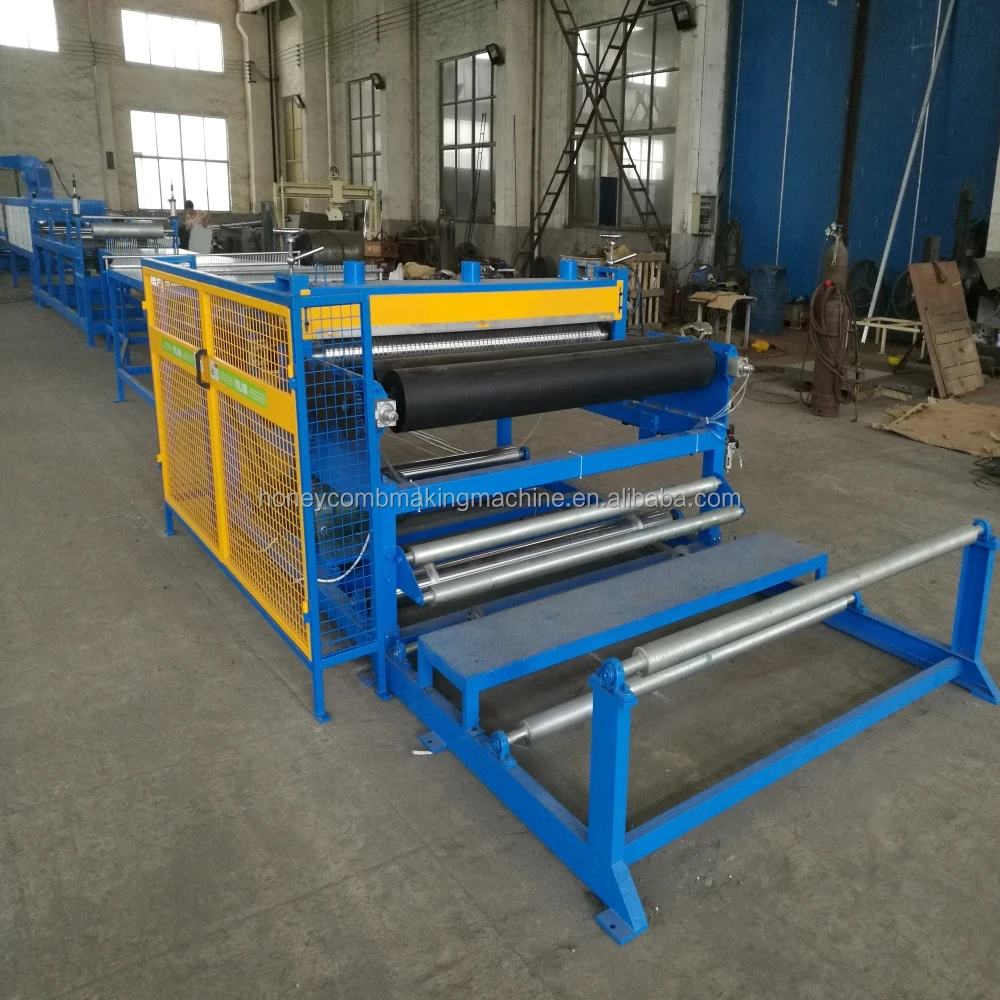

Name: Expanding Machine

• With brush roller which makes auto Continuous core feeding
•\tGuide bars can be easy-adjustable as per required panel width

Machine Parts

Name: Heating Machine

•The heating box two sides with 12pcs double-layer door;

•Driving use 6 chains

•Electric heating ( with heating tube inside)

Machine Parts

Name: Surface Paper Heating Machine
•Remove the moisture of surface paper for better lamination

Machine Parts

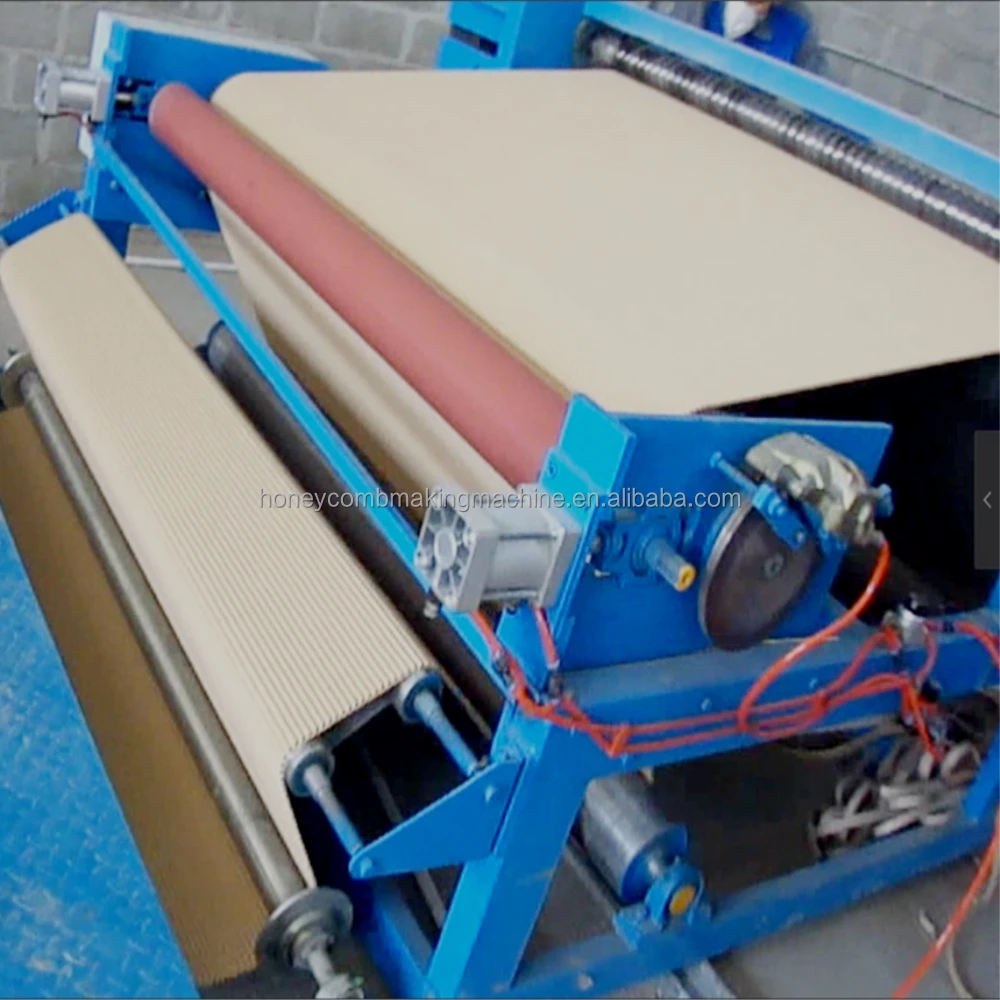

Name: Gluing Machine
•Multi function gluing machine: not only can make glue on honeycomb core both sides; also can make glue on top or bottom surface paper.
•With glue recycle system

Machine Parts

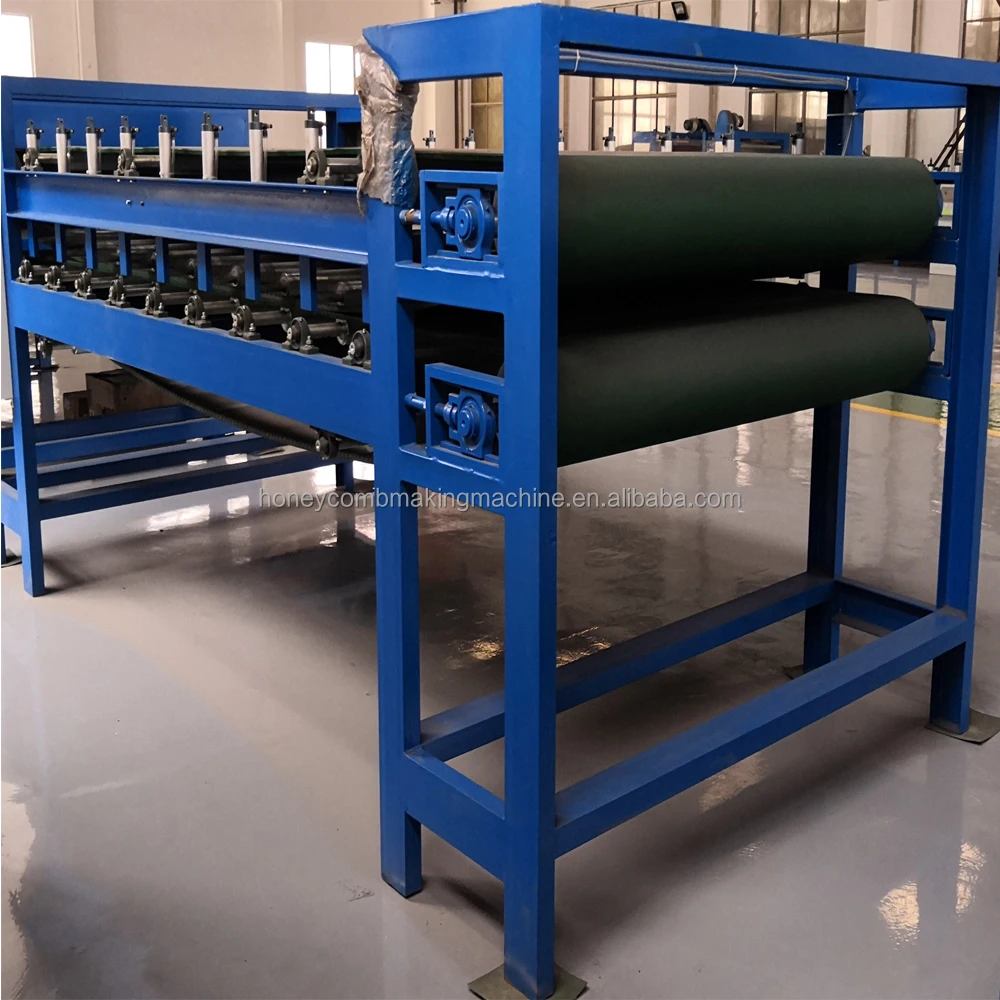

Name: Heating Machine

•Using double layer rock wool to keep the temperature, the door four sides with sealing trips which arranged by 45 dgree

•The digital display temperature control, automatic control of heating temperature

•Twincast synchronous pressing conveying + floating pressure roller, ensure the board smooth, pressure roller with adjustable pressure

Machine Parts

Name: Slitting Machine

•For honeycomb board edge trimming.

•This machine can improve to CC cutter( cookie-cutter)
• HSS blade, diameter is 350mm

Machine Parts

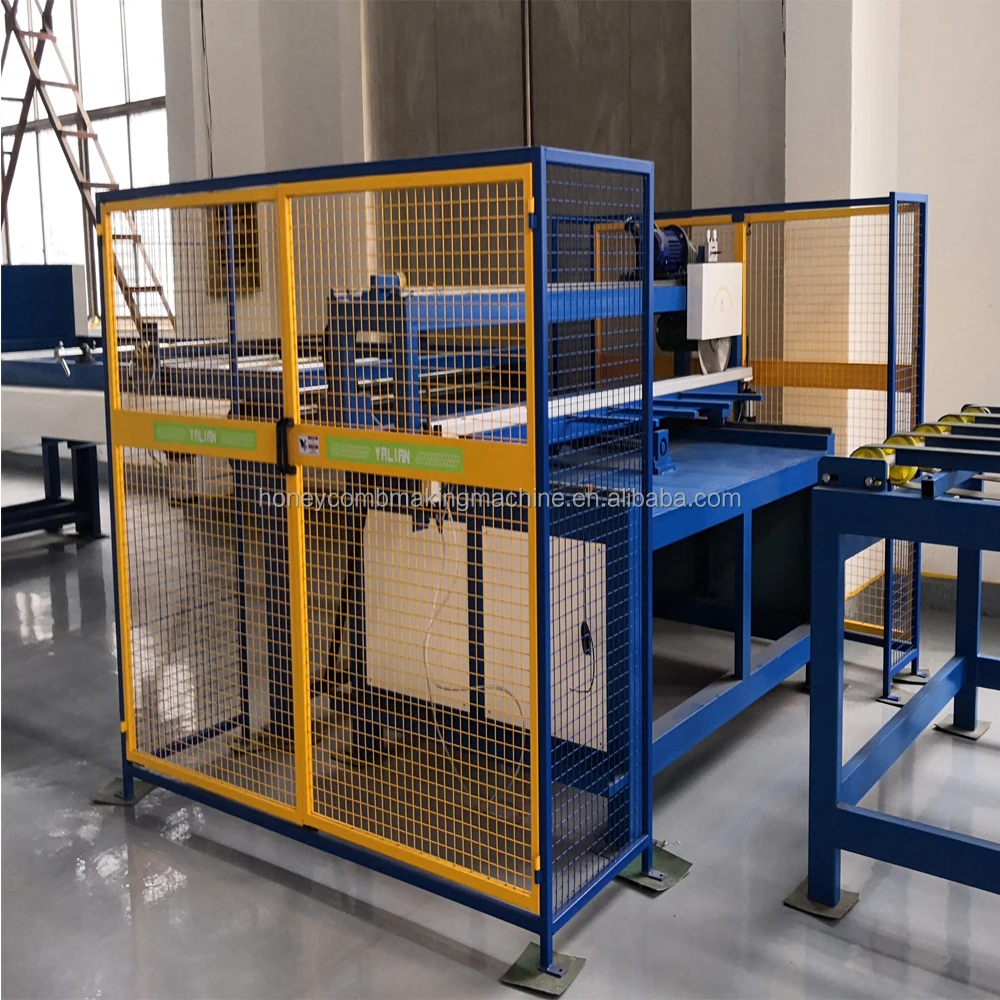

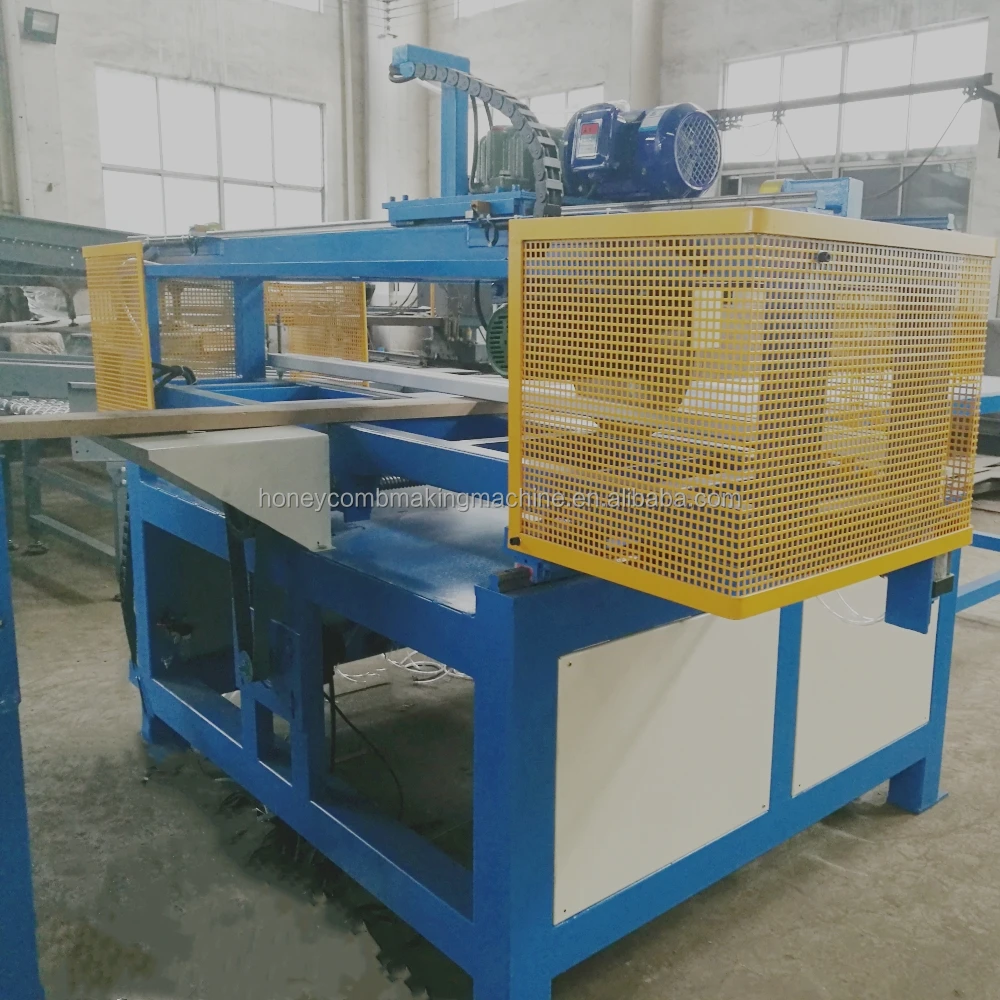

Name: Cutting Machine

• NC control running cutter & Servo system guarantees cutting precise
• Tracing cross cutting, automatically length measure. PLC touch screen control, cutting using toothless cutting disc, it can has manual and automatically two kinds of control ways. Cutting accuracy±1mm; diagonal error±5mm

Machine Parts

Name: Conveyor

•Finished  board conveyor and if necessary for auto stacking.

Pre-Sales Service

* Inquiry and consulting support.
* Machine Design and Quotation Sheet with Technical Details
* View our Factory and See the Machine Running

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
