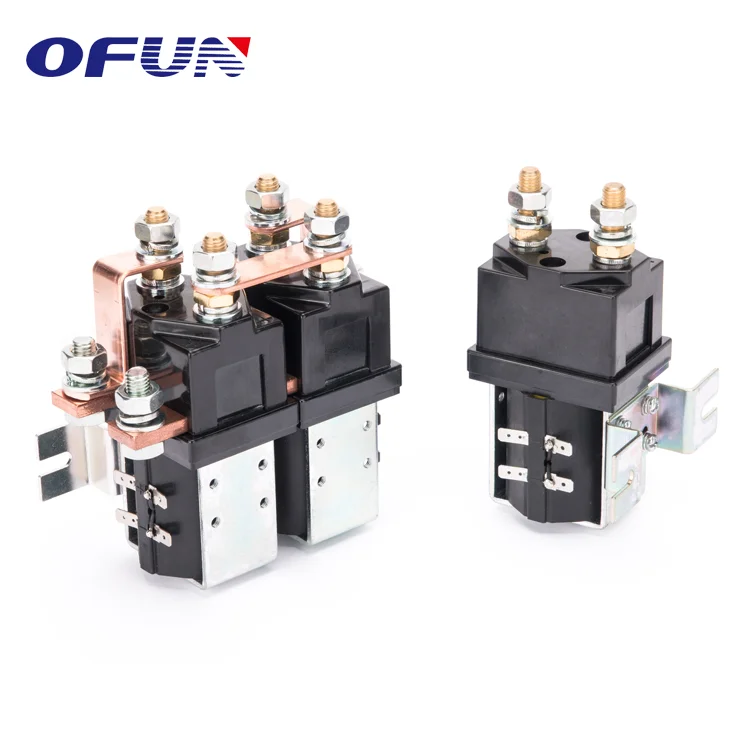

OFUN ZJWT100A 12 24 36 48 Volt Dc Relay Contactor Magnetic For Pump Motor
Product Description
| Product Name | DC Contactor |
| Parameters | Coil Voltage Of Contact Circuit(V) |
| 6-220V | |
| Coil Power | 19-22W |
| Main Rated Load Current Of Contact Circuit | 100A |
| Rated Voltage Of Contact Circuit | 6-80V DC |
| Dielectric(Volt)Strength | 50HZ 1000V AC 1Min |
| Rated Load Current Of Contact Circuit | Not Above 80mv |
| Operating Time | Pickup(Contact makes):≤30 ms Release(Contact breaks):≤30 ms |
| Action Characteristic | Pickup(Contact makes):≤66%us Release(Contact breaks):≤30%us,≥5%us |
| Mechanical Life | 100 Thouand times |
| Electric Life | 20 Thousand Times |
| Specifications Subjiect To Change As The Customers' Request!!! | |
Product Introduction
This Series Contactors Are Suitable For The Battery Or The Rectification Power And Suppliers Power,Using For Handling Drawing,The Pump Motor And Other Electronic Vehicle.
Application
This Contact Is Applicable For Electric Control System Of Electromobile, Motor Forklift, Grab, Vehicle Air Conditioner, Communication Power Supply, And UPS.
Main Products
OFUN Is A Full Service Company Dedicated To Offering Various Kinds Of Contactor,Cylinder Head,Switch And Water Pump Etc. In Automobiles And Forklift.
If You Are Interesting In Any Products,Send E-Mail Of The Item Number To Us So We Can Give You Our Best Resolves.
