2KG Electric Melting Furnace Gold Silver Copper Smelter 1100C 110V or 220V

Product Overview

Description

- The furnace is small, easy to operate, and will melt non-ferrous types of metals up to 1150 degrees C. (such as aluminium, lead, brass, bronze, gold and silver)



-  It is ideal for the casting hobbyist, or for professional applications such as in the manufacture of jewelry or for alloy research projects.



- It is ideal for melting metal and then pouring the molten metal into moulds for the manufacturing of small castings, or heating applications requiring the heat treatment of metals.



- It simply plugs in to a normal 220-240VAC (we also produce 100-130V) domestic power point. No special power circuit is required. Power consumption when furnace power is active is 2KW.



- The size is: 1170*200*360mm and weighs 5.1 Kg. The complete package weighs 10.0Kg



- The furnace controls are easy to use and allows precision setting of any desired temperature. It utilises a thermocouple which is used by the temperature controller to control the “ON” time, for the furnace to reach the desired temperature.



- Once the desired temperature is reached, it will maintain that temperature by the controller switching the power to the furnace “ON” or “OFF” as required, in order to maintain the desired temperature.

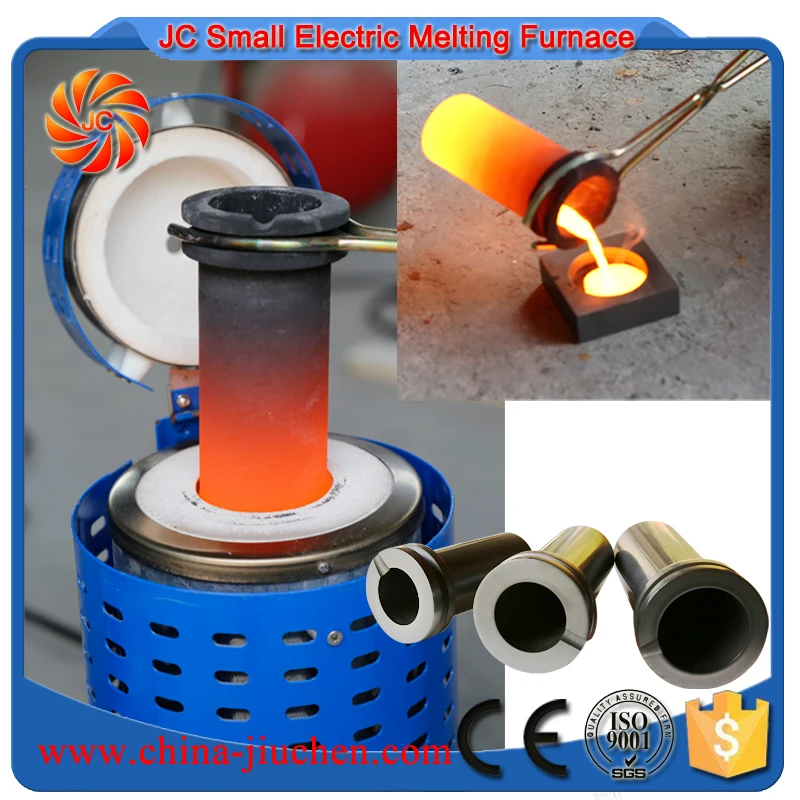

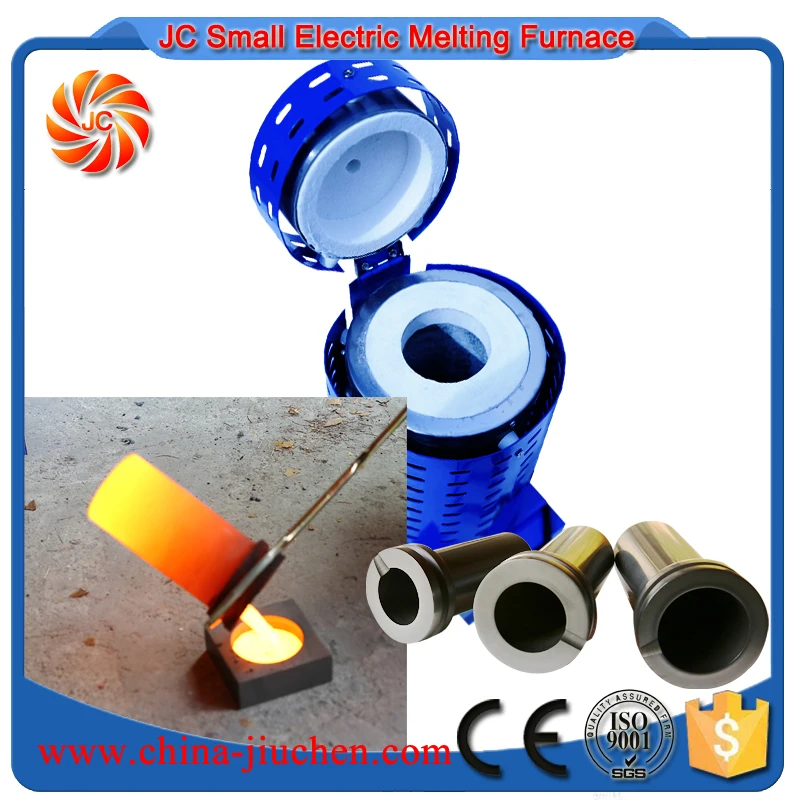

- The furnace comes supplied with a standard 1Kg crucible and suitable crucible tongs. Optional 2Kg and 3Kg crucibles are available if required.

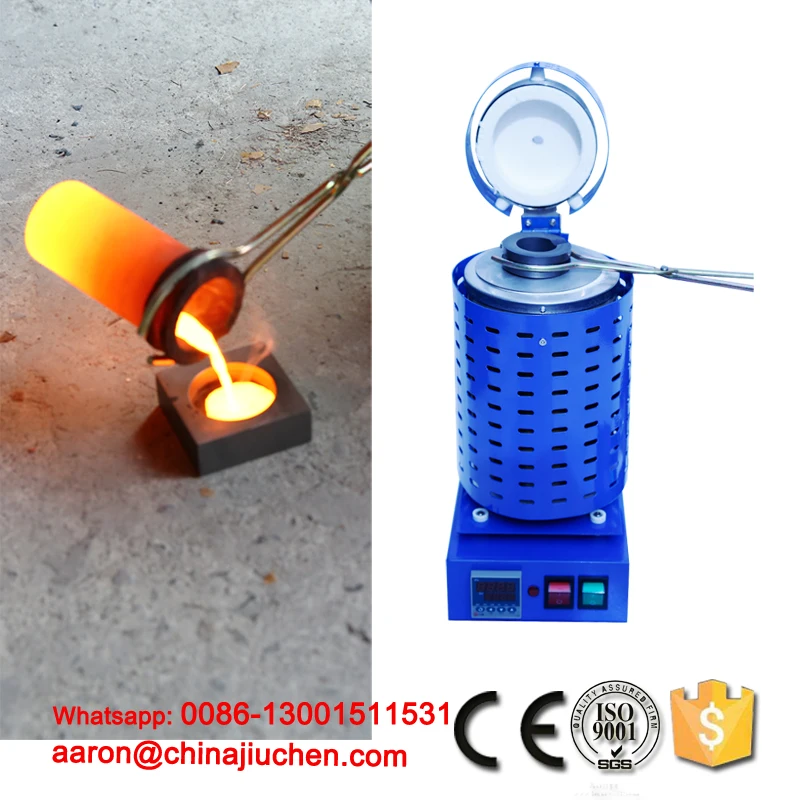

- The tongs wrap around the crucible top recessed ring, allowing a safe method of removing the crucible for pouring.



- The furnace also comes supplied with heavy duty gloves and safety glasses.

Features

1,Exquisite & Convenient:

Small size, light weight, can be operated independently.

2,Operated simply:

The parameters can be changed convenient by pressing arrow buttons.

The seting temperature and surveyed temperature can be showed at the same time.

Working reliably

3,Controlled precise:

Microprocessor PID control, PID auto-tuning function ensure the accuracy of the temperature control in any state

4,Working efficient:

Melt fast, efficiency highly, good insulation effect, low power consumption.

5,safety&environmental protection

Automatic, intellective, have not special requirement about working condition.

Noiseless, no radiation.



Applications:

1, Jewelry processing industry of gold, silver, copper and other metals smelting.

2, Schools, laboratories, chemical smelting . Melting and heat treatment of non-flammable, non-explosive materials.

3, Melting and heat treatment of products which need highly temperature accuracy and reliability.

4, Small temperature processing applications.

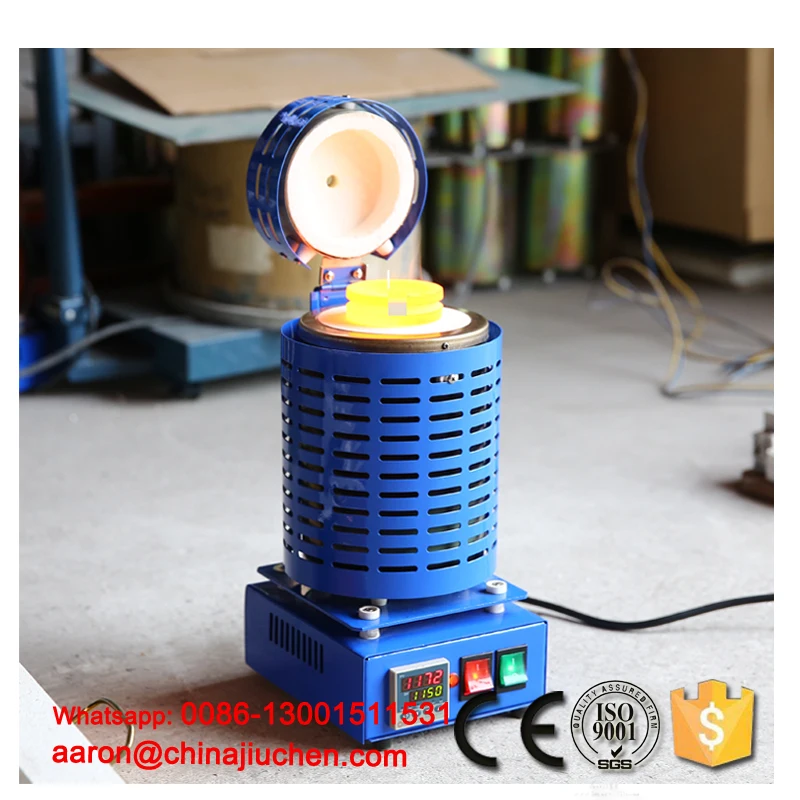

- The “Green Switch” is used to turn “ON” control power and allows setting of the desired temperature using the temperature controller.



- The “Red Switch” allows power to go to the furnace and heating of the crucible begins.



- The desired temperature,  “Green display” is set by adjusting the “Up” and “Down” arrows. The “Horizontal Arrow” is the curser and will allow you to set a particular digit, such as the “4” in this example, instead of progressing in an upcount mode all the way to 420. The curser points to a particular digit in order to change that digit.



- When you have set the particular digit to the correct setting, then you can either wait a few seconds or press the “Confirm” horseshoe symbol.



- Experiment with the controls with the “Red Switch” in the “OFF” position, until you are familiar with how to set the temperature. Then when ready, switch “ON” the “Red Switch” to start heating.

- The “Red” lamp will light when there is power going to the furnace, or will be off when the temperature controller is switching the furnace power off, or the “Red Switch” is in the “OFF” position.



- The “Red Display” shows the actual temperature as seen by the thermocouple.
