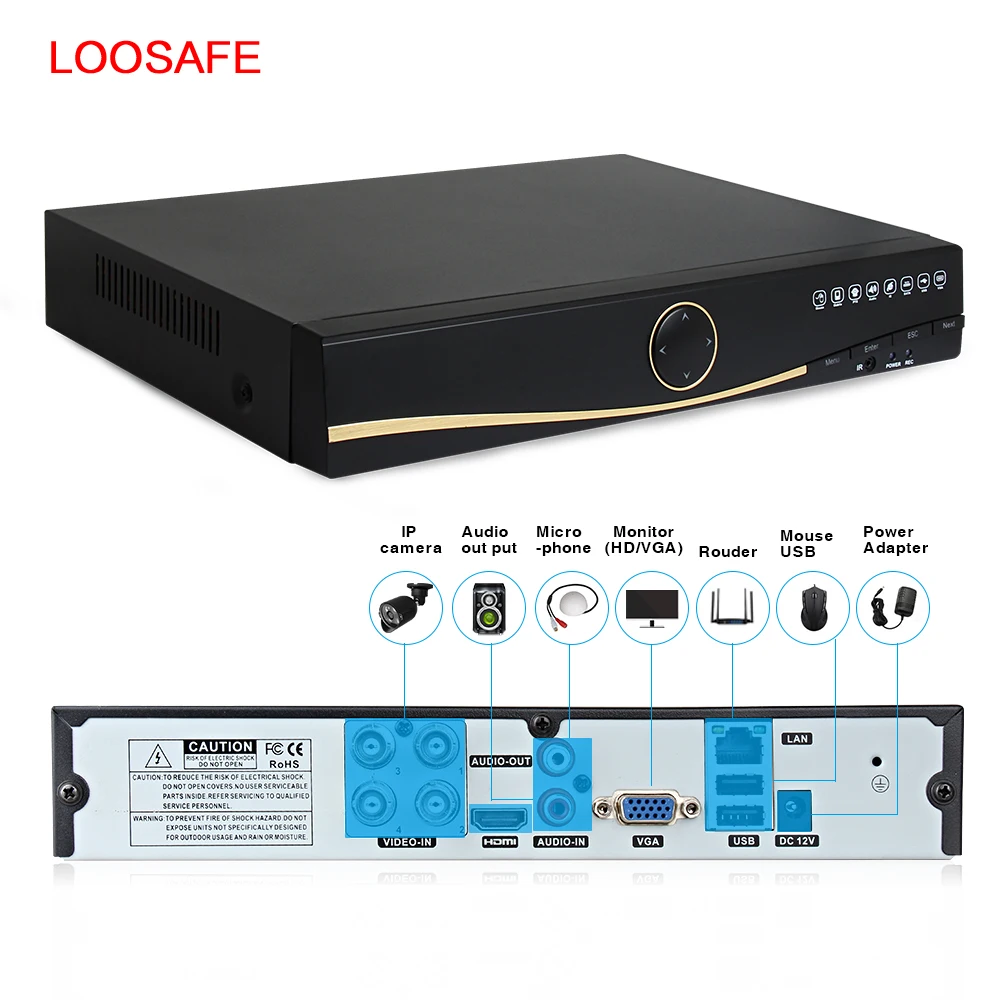

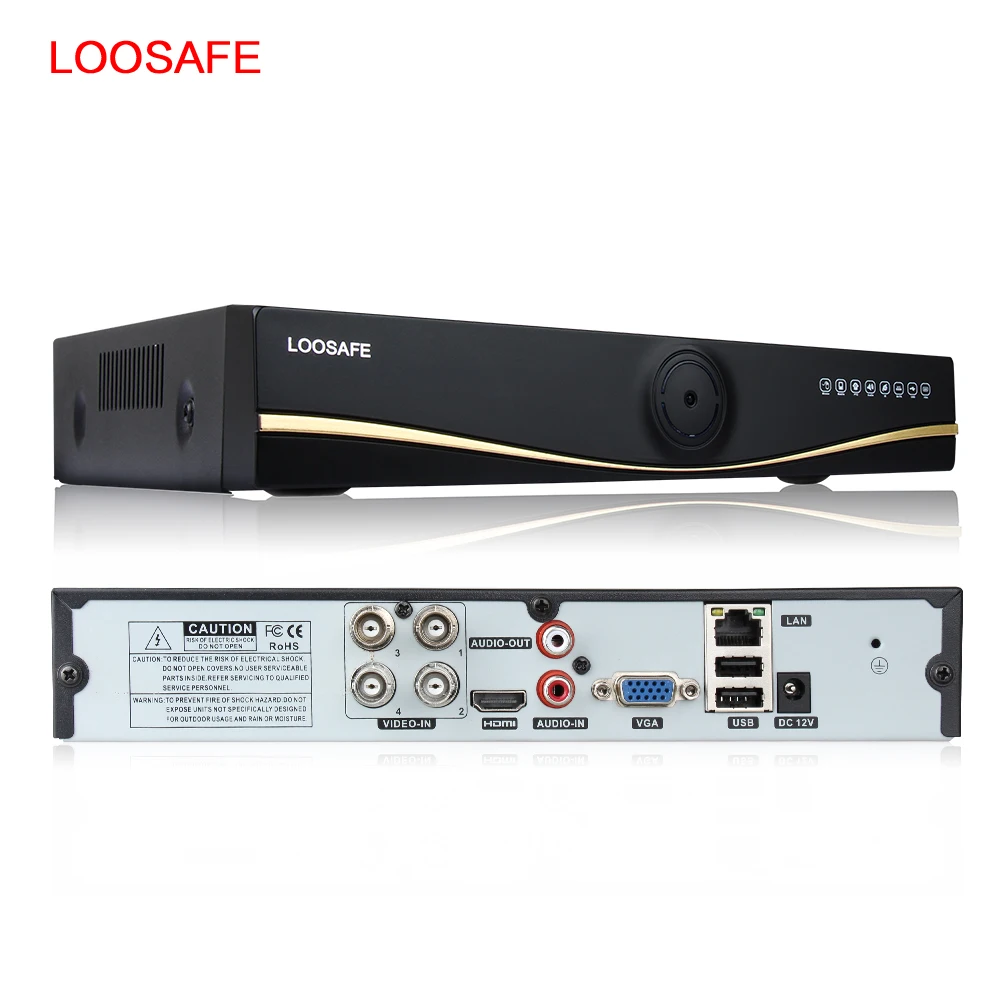

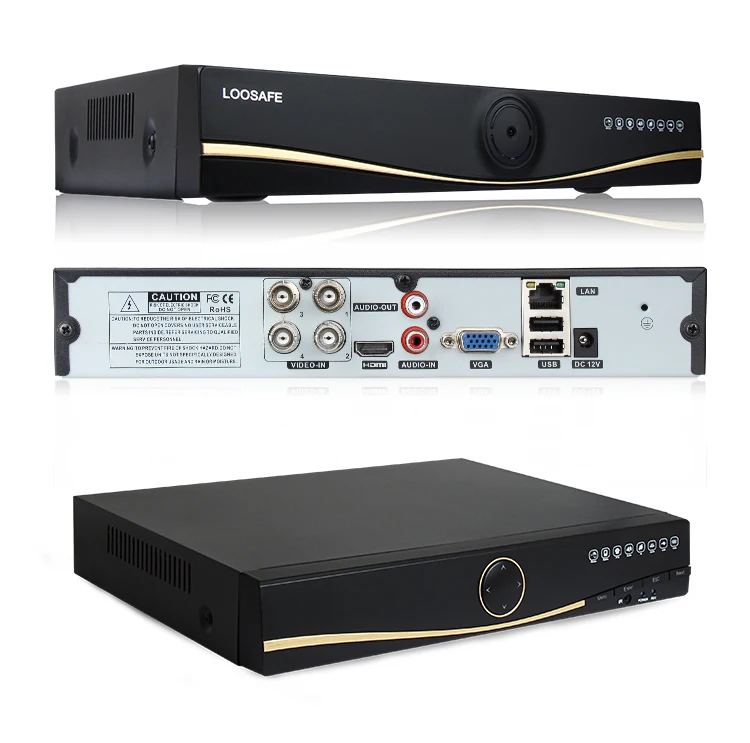

Hotsale!!! 4 Channel 1080P DVR H.264 Remote control HD AHD DVR Camera Recorder
| Technical Parameters | ||
| Product | Brand | LOOSAFE |
| Model | LS-AHD 4CH | |
| Systme | main processor | Industrial embedded microcontroller |
| operating system | embedded linux | |
| system resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| Video | image encode standard | H.264(Main Profile) |
| encode resolution | 4CH AHD 1080P (1920*1080) | |
| Frame rate | PAL: 1-25f/s;NTSC: 1-30 f/s | |
| Bitrate rate | 512Kbps-4096Kbps,option,pretermit 2048Kbps | |
| Type | video / complex | |
| Dual-stream | support | |
| Audio | audio compression | G.711A |
| sample rate | 8KHz, 16Bit | |
| type | 64 Kbps | |

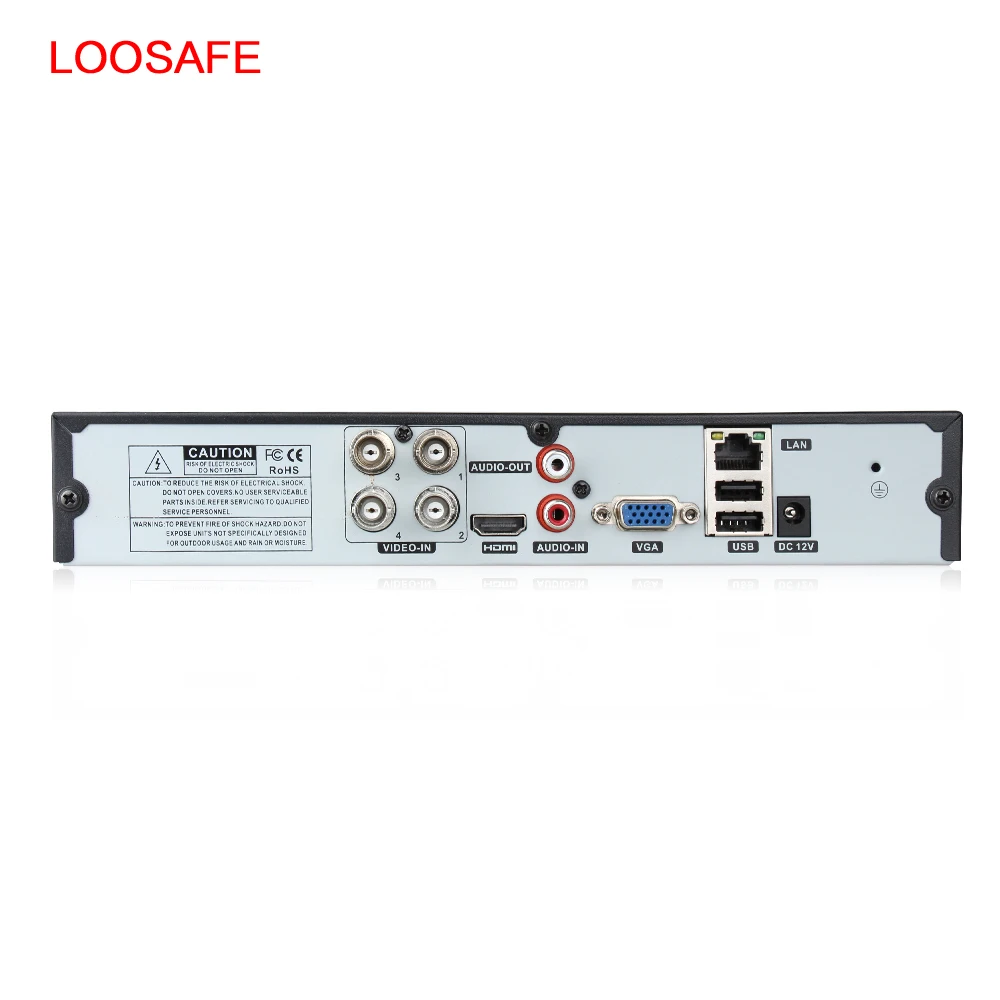

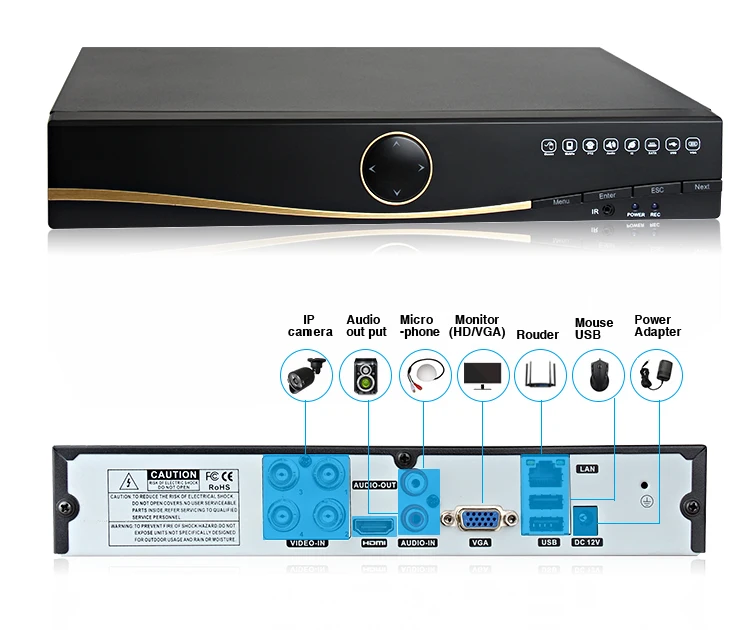

| Video Port | Video input | 4ch BNC |
| Video output | 1ch CVBS, 1ch VGA, | |
| matrix output | No | |
| Audio Port | audio intput | 4ch RCA |
| audio output | 1ch RCA | |
| Audio intercome input | with audio input&output while using | |
| Video management | video type | Automatic video/ manual video/Motion Detection Video/ Alarm video |
| video playback | Max.support 4ch backup | |
| backup type | support U disk/ USB moblie device and Net device | |
| Alarm | alarm input | no |
| alarm output | no | |
| Network Function | support protocol | Support TCP/IP,UDP,RTP/RTSP,DHCP,PPPoE,DDNS,NTP ect. Net Protocol |
| IE control | internal WEB Server, restoration each parameters and IE remote control | |
| P2P cloud service | support | |
| Motionr Control by Mobile | Support IOS,Android,blackberry,Symbian,Microsoft ect. | |
| Storage | Hard disk Port | support a SATA interface, Max.capacity 4TB |
| Communication interface | Network interface | a RJ45 interface,10/100 m Adaptive enternet Slot |
| USB Port | 2 * USB2.0 | |
| Communication | 1* 485 interface ( Standard) | |
| Others | Power supply | DC 12V |
| Power dissipation | <15W( Hard Disk NOT included) | |
| Work temperature | –10℃~55℃ | |
| Work humidity | 10%-90% | |


LOOSAFE
Shenzhen Loosafe Electronic Technology Co., Ltd. was founded in 2005, specializingin surveillance products
research and development, strict quality control processes,professional servicefor customers to create the
perfect video security monitoring overall solution program. We have a wide range of surveillance products
chain includingwireless WIFI cameras, high-definition network cameras, Analog / AHD camera, CCTV system
kits, DVR, NVR, video capture card, surveillance accessories and LCD monitor.
More product styles may be more attractive to !
click below product image learn more details.

We can promise the quality of camera.It is more competitive.
All of our products can be customized.Any sizes,shapes,designs,logos meet your requlrement,before quote you the price . we will be appreciated if you can provide the information below:
1.Camera type
2.Material structure and thickness.
3.Camera size(width & Length & High)
4.Printed logo
If you are not clearly we will recomnmend for you. With above informaiton we can quote exact price immediately More product styles may be more attractive to you!
Warm reminder1:
In addition to the above products,we can customize the production of the following:
POE NVR,H.265 NVR IP ,H.265IP Camera,Bullet Camera, IP Camera (wireless ip camera ),HD Alnalog Camera(Bullet camera,Dome camera) ,DVR/NVR ,Panorama Fisheye Camera ,
CCTV Security Kit(wifi NVR Kit ,NVR kit,DVR kit)
Warm reminder2:
Save time quickly get customized products prices,just provide the information below:
1.Camera type
2.Material structure and thickness
3.Application of the camera scene
4.Bag size(width &Length &high)
5.Color of the camera
6.I possible pls prouide the pIcture or artworkof the camear ,If you are not cleatly we will recommend for you .
With above informatton we can quote exact price immediately.
1.Reply your inquiry in 12 hrs.
2.Any professional question would get a professional answer.
3. All item of every order enjoy 2 year warranty from the date of shipped on board.
New products from manufacturers at wholesale prices
