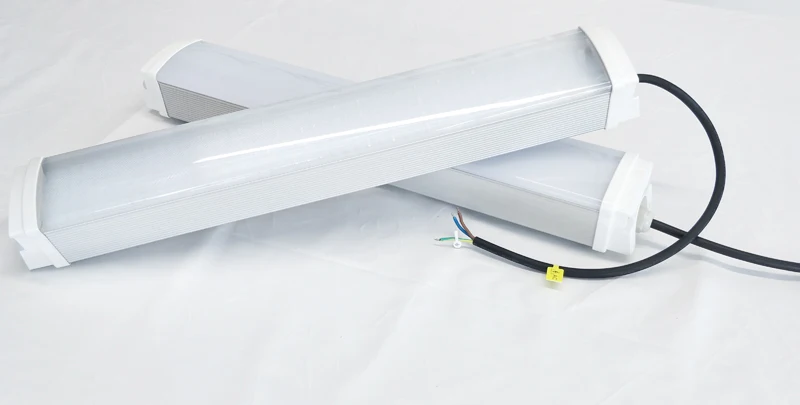

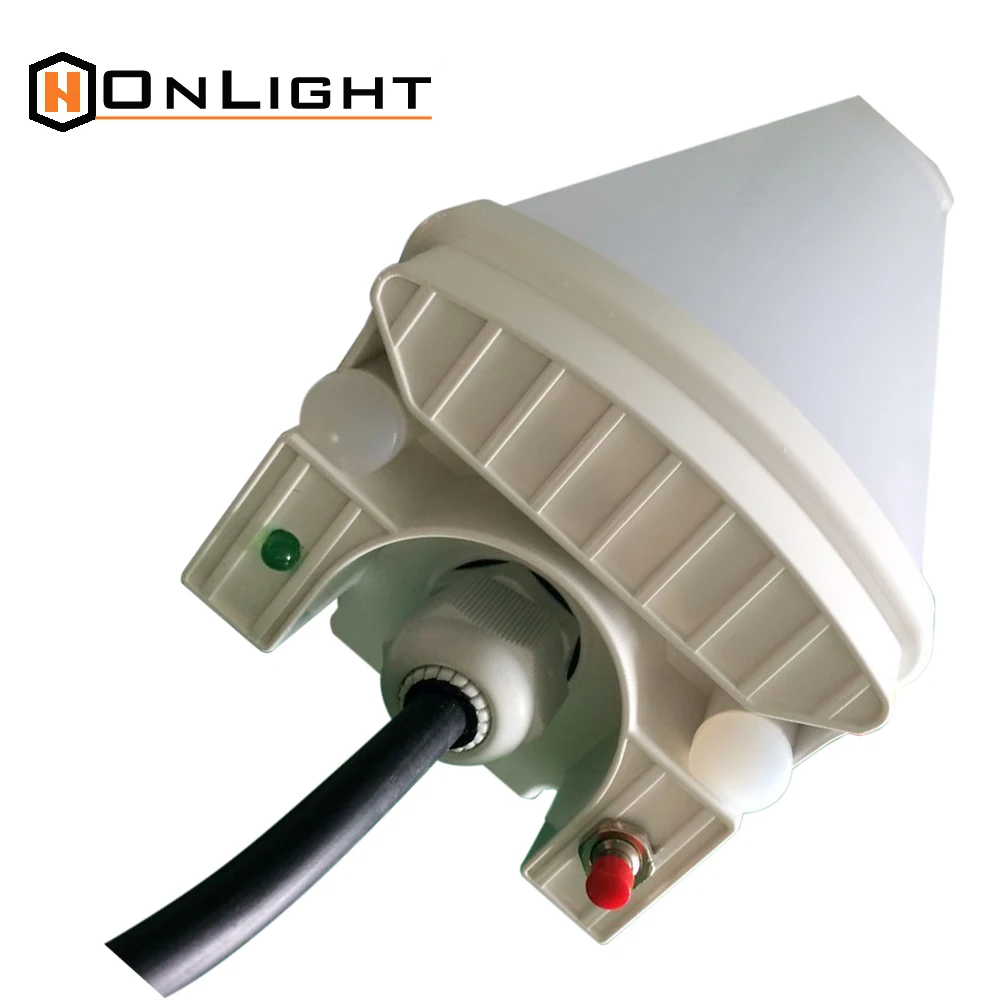

Surface mounted wraparound luminaire linear hanging linkable led shop batten light ip65 led batten luminaires

Product Overview

Description



Surface mounted wraparound luminaire linear hanging linkable led shop batten light 1FT 2FT 3FT 4FT 5FT 6FT 8FT

1. Tri-proof led fixture for waterproof, dust, corrosion and pressure-proof, IP65,  IP66, IK10
2. Rated AC Input voltage AC100-277V, widely work for AC90-265V; Safety operating voltage DC30~DC42V
3. Constant LED forwarder current 45~50mA during tube operating;(Best design for low LED light decay & long life time)
4. High lumination SMD2835 LED and High lumens 90-115lm/w, 120-130lm/w, 130-140lm/w
5. Patent design tool for Aluminum housing, PC diffuser and Aluminum PCB board
6. Temperature difference less than 20°C between inside and outside; Excellent heat dissipation depending on whole thick aluminum housing
7. Widely use for ambient lighting application
8. No UV ,No lead, No Mercury
9. Being reduced 40% heat dissipation, compared with traditional fluorescent lamp
10. 5 years warranty

Model Name:	Enduro Series
Model Part No:	HNX-TP65-10W1F-H
Part Name:	ip65 anging linkable led shop batten light
Input Power:	10W ± 1W
Mercury-free:	Yes
Body Color:	Silver Grey or Customized Color
Input Voltage:	AC 100~277V /AC200-240V / DC12V /DC24V
Input Frequency:	50/60HZ
Power Factor:	>0.95
Conventional Lamp Power to Replace:	20W
Energy Consumption:	10KWH/1000H
Luminous Flux:	1000LM, 1200LM, 1400LM
Color Temperature:	6000K~6500K
Color Rendering Index RA:	>83
Luminaries Efficacy (lamp):	95-110LM/W, 120-130LM/W, 130-140LM/W

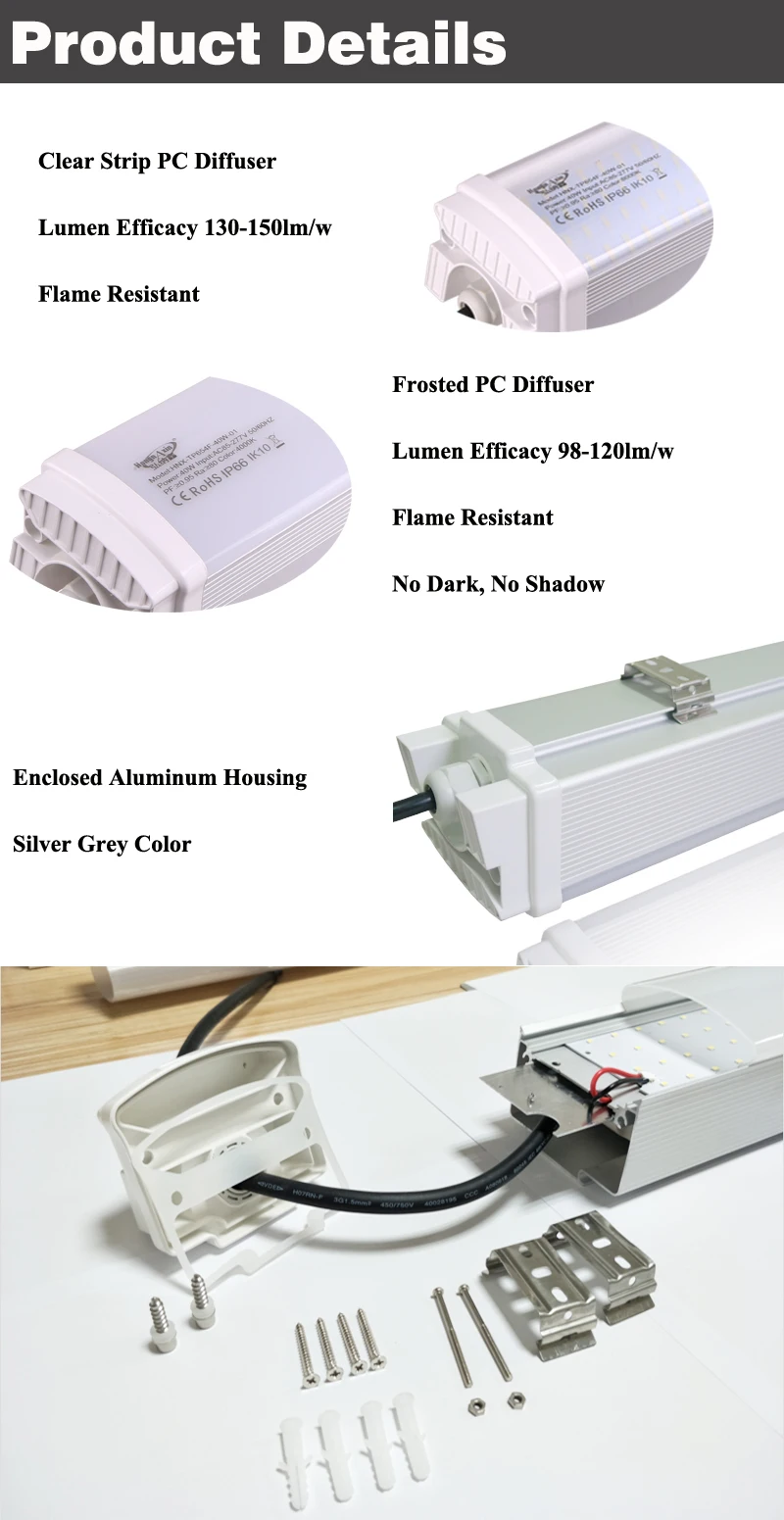

PC Diffuser:	Clear Strip PC Diffuser or Frosted PC Diffuser
Housing Material:	Aluminum Alloy Housing
Power Supply:	Single End or Double End or Back Entry
Beam Angle:	120 degree
Dimension:	300*75*91mm
Nominal Life Time:	50,000 Hours
Working Temperature:	-20℃~+45℃
1-10V Dimmable:	Optional
DALI Dimmable:	Optional
Microwave Motion Sensor:	Optional
Emergency:	Optional
Certificate:	CE,RoHs, LVD, EMC, ERP
Installation Method:	Ceiling Mounted Installation

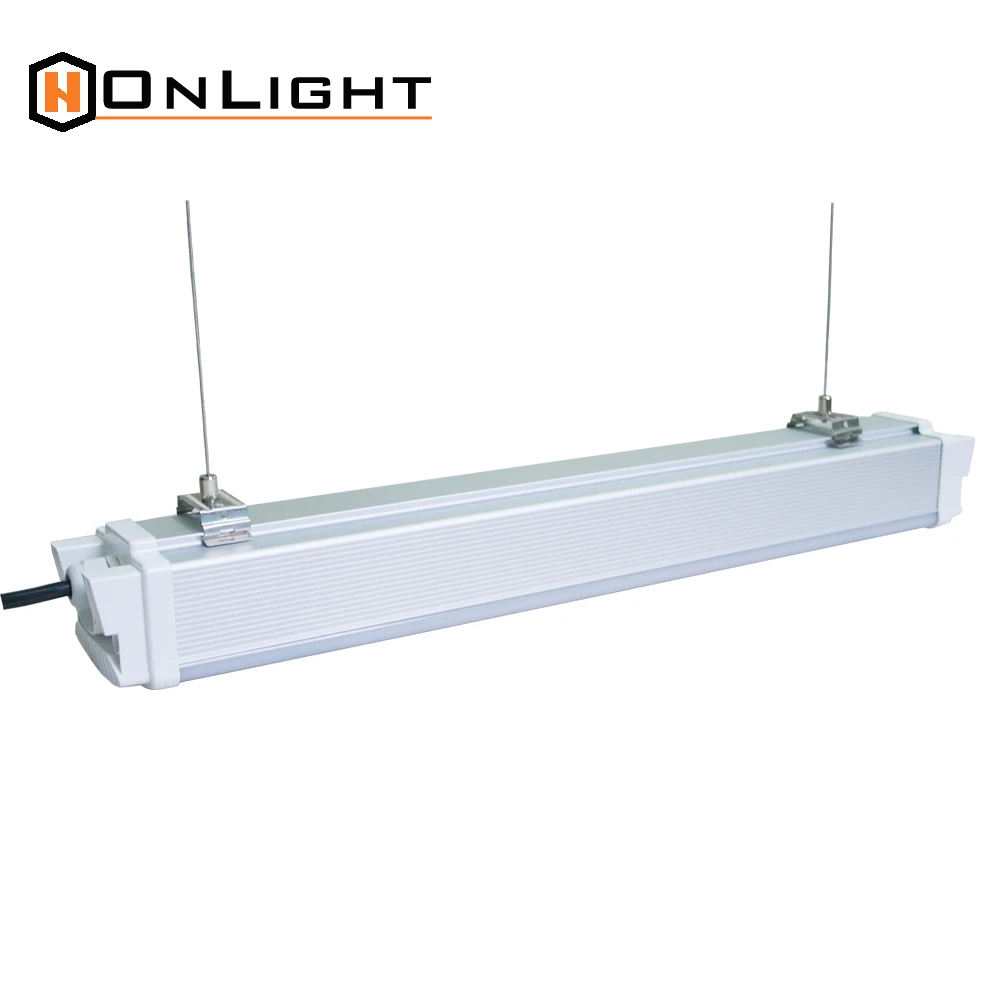

	Suspended Installation
Water Resistant Rating:	IP65, IP66
Vandal Resistant Rating:	IK10
Warranty:	5 Years





Linear hanging linkable led shop batten light Selling Points:

A: Superior Chips: Epistar or Bridgelux SMD Chips; high efficiency and power saving.

B: Driver: Excellent 5 years warranty led driver, high PF, ensure the safety of the light.

C: Heat Dissiption: Thick Aluminium housing with scientific cooling system, better heat dissipation, longer lifespan.

D: Installation: Newest design of modern office, warehouse, car parking lots, workshop, hotel, airport with suspended or ceiling amounted installation way to ensure easier to install.

E: Own tool for Aluminum housing with Unique and Elegant appearance design, modern style, more fashion, more popular.





Model	Lamp Size (mm)	Qty (pcs/ctn)	GW/Carton(kg)	Package Size(mm)
HNX-TP65-20W2F-H	600*91*74	6	8.9	680*240*280
HNX-TP65-30W2F-H	600*91*74		8.9	680*240*280
HNX-TP65-40W4F-H	1200*91*74		15.6	1280*240*280
HNX-TP65-50W4F-H	1200*91*74		15.6	1280*240*280
HNX-TP65-60W4F-H	1200*91*74		15.6	1280*240*280
HNX-TP65-50W5F-H	1500*91*74		19.8	1580*240*280
HNX-TP65-60W5F-H	1500*91*74		19.8	1580*240*280
HNX-TP65-80W5F-H	1500*91*74		19.8	1580*240*280
HNX-TP65-80W6F-H	1800*91*74		23.8	1880*240*280
HNX-TP65-100W8F-H	2400*91*74		23.5	2470*240*200



LED Tri-Proof Light can be widely used in Public Lighting, Commercial Lighting and Industrial Lighting.

Like Metro Station Lighting, Train Stations Lighting, Bus Stations Lighting, Airports Lighting, Tunnels Lighting, Corridor Lighting, Supermarkets Lighting, Car Parks Lighting, Stairwells Lighting, Service Centre Lighting, Gallery Lighting, Horse Farm Lighting, Swimming Pool Lighting, Factories Lighting, Warehouses Lighting, Workshop Lighting, Exhibition Hall Lighting, etc.





Q1: What is the warranty for the Linear hanging linkable led shop batten light?

A1: For our Linear hanging linkable led shop batten light, we have 5 years warranty for standard function, and 3 years warranty for dimmable and emergency function. If any quality problems for this Linear hanging linkable led shop batten light occurred within warranty period , replacement parts will be provided for you by FREE of COST.



Q2: What is the led chips, light efficiency, CRI, CCT for this Linear hanging linkable led shop batten light?

A2: Our chips for this Linear hanging linkable led shop batten light are Epistar SMD2835, 90-120lm/w, CRI>83, CCT: 3000k 3500k 4000k 4500k 5000k 5500k  6000k  6500k.



Q3: Will your Linear hanging linkable led shop batten light work with sensor, auto dimmable and battery emergency?

A3: Yes, we can add radar sensor, 1~10v dimable, auto smart dimmable and emergency function (1 hr, 1.5hrs, 2hrs, 3hrs at full power or half power) on the Linear hanging linkable led shop batten light for your option, please feel free to contact us if there is a need.



Q4: Are your Linear hanging linkable led shop batten light in double end power supply or single end power supply?

A4: Double end power supply and single end power supply for this Linear hanging linkable led shop batten light is available for your option.

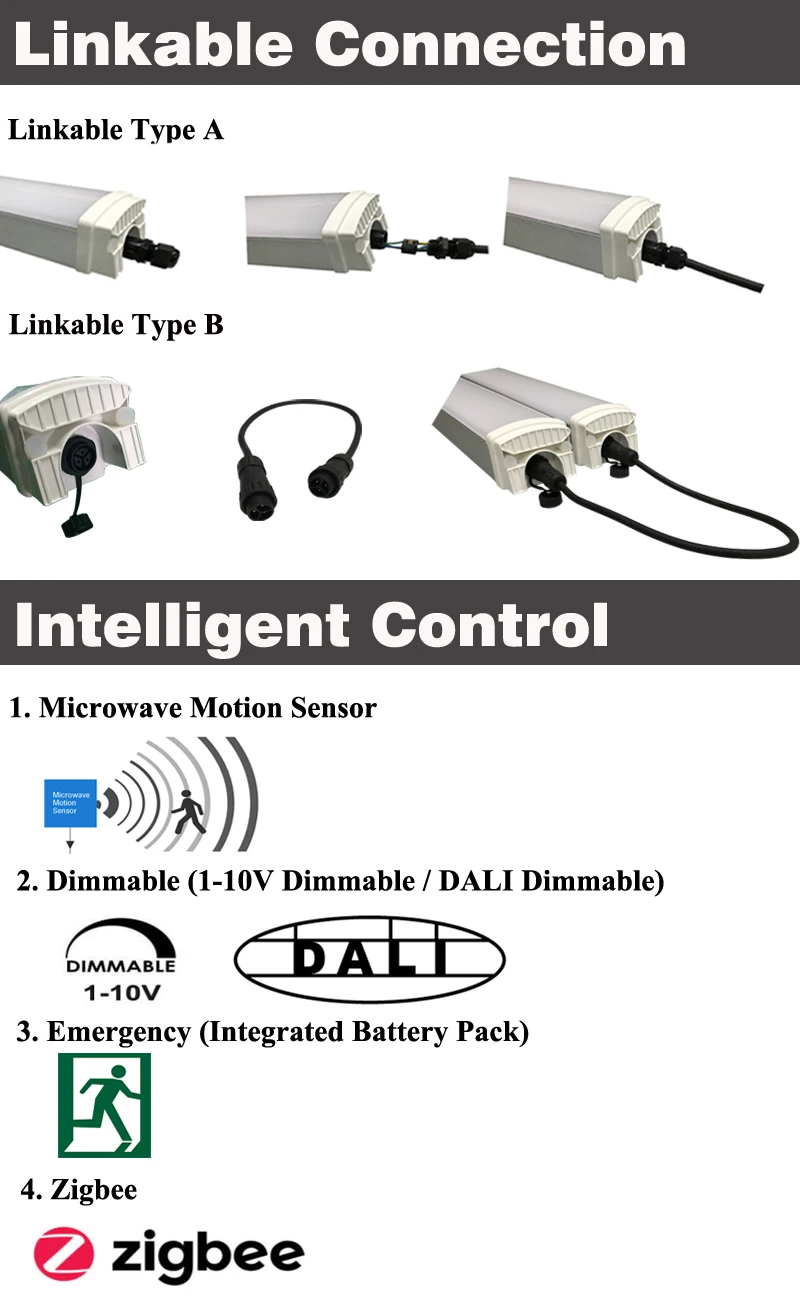

Q5: Can your Linear hanging linkable led shop batten light be series connection and seamless connection?

A5: Yes, our Linear hanging linkable led shop batten light can be connected in series by fast connectors and also available to connect by smart aluminum for seamless connection.



Q6: Do your Linear hanging linkable led shop batten light accept OEM?

A6: Yes, OEM is also welcome for this Linear hanging linkable led shop batten light here. If you need to print your logo on the Linear hanging linkable led shop batten light product itself or on the outer carton box, we can make that with MOQ 500pcs. If you need any other OEM requirement, just let us know the detailed information.



Q7:How to order this Linear hanging linkable led shop batten light?

A7: Just need to confirm which spec you need, then please kindly contact to release sample or mass order. Generally, samples order for this Linear hanging linkable led shop batten light is 5 working days, and mass order will be 14 working days.
