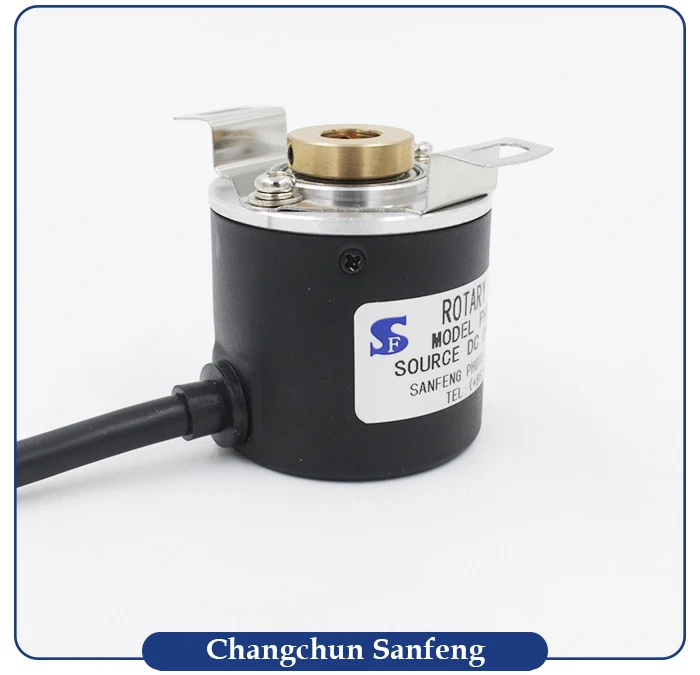

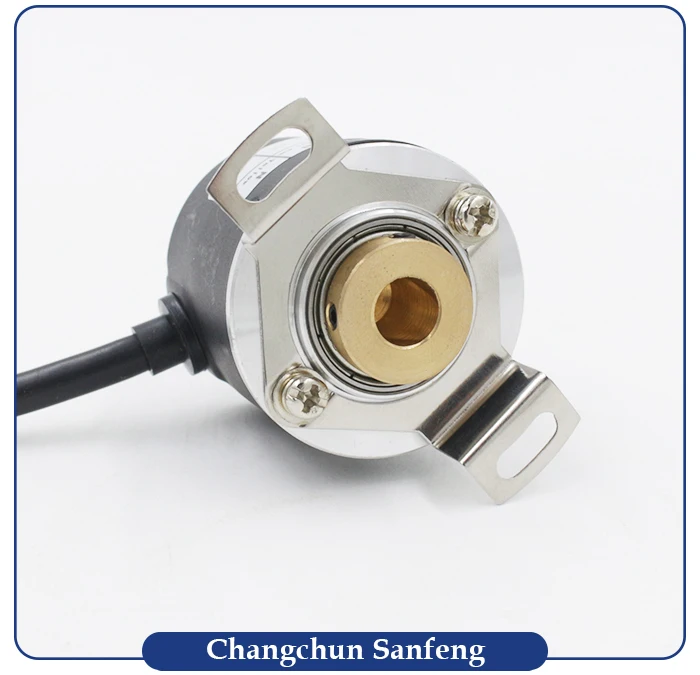

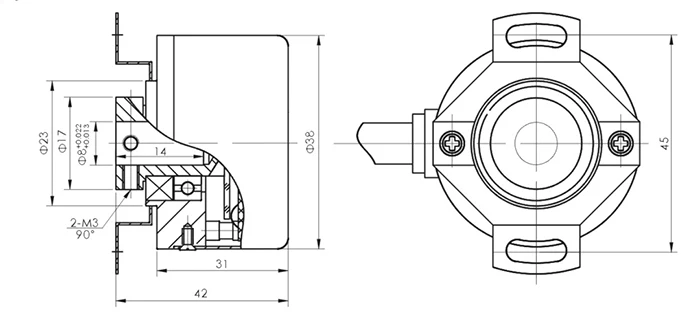

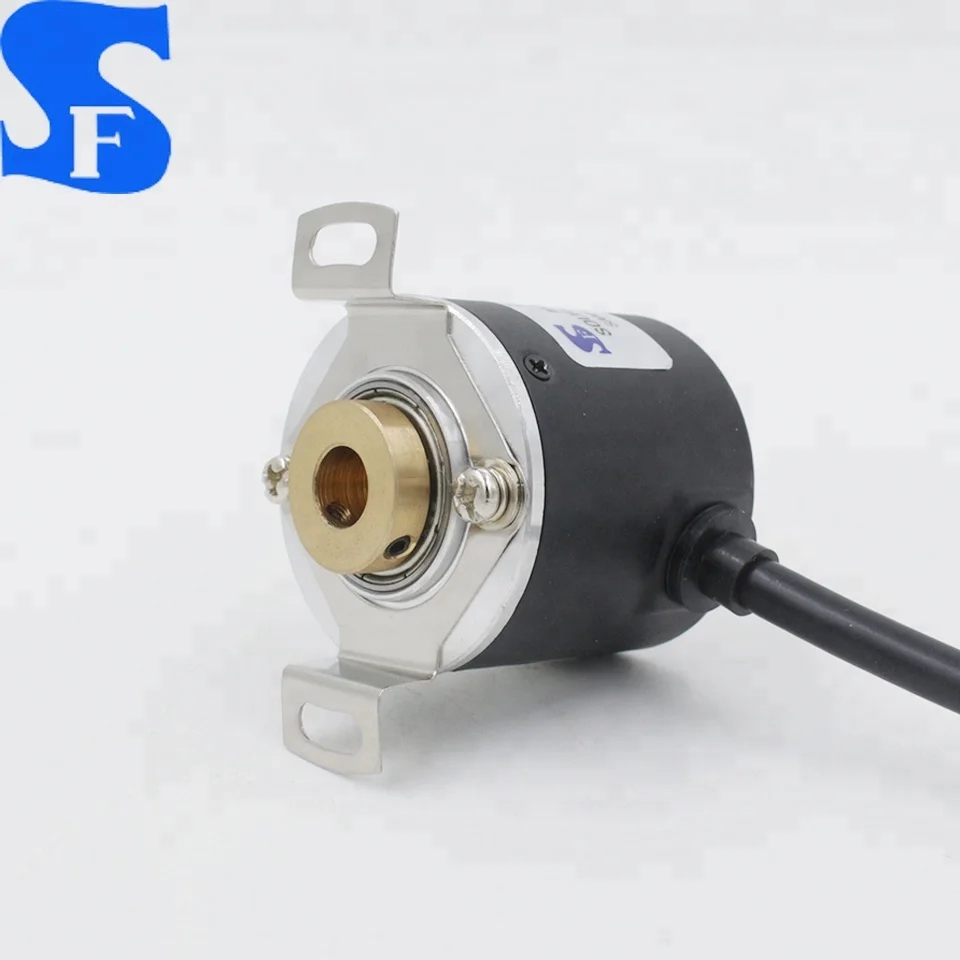

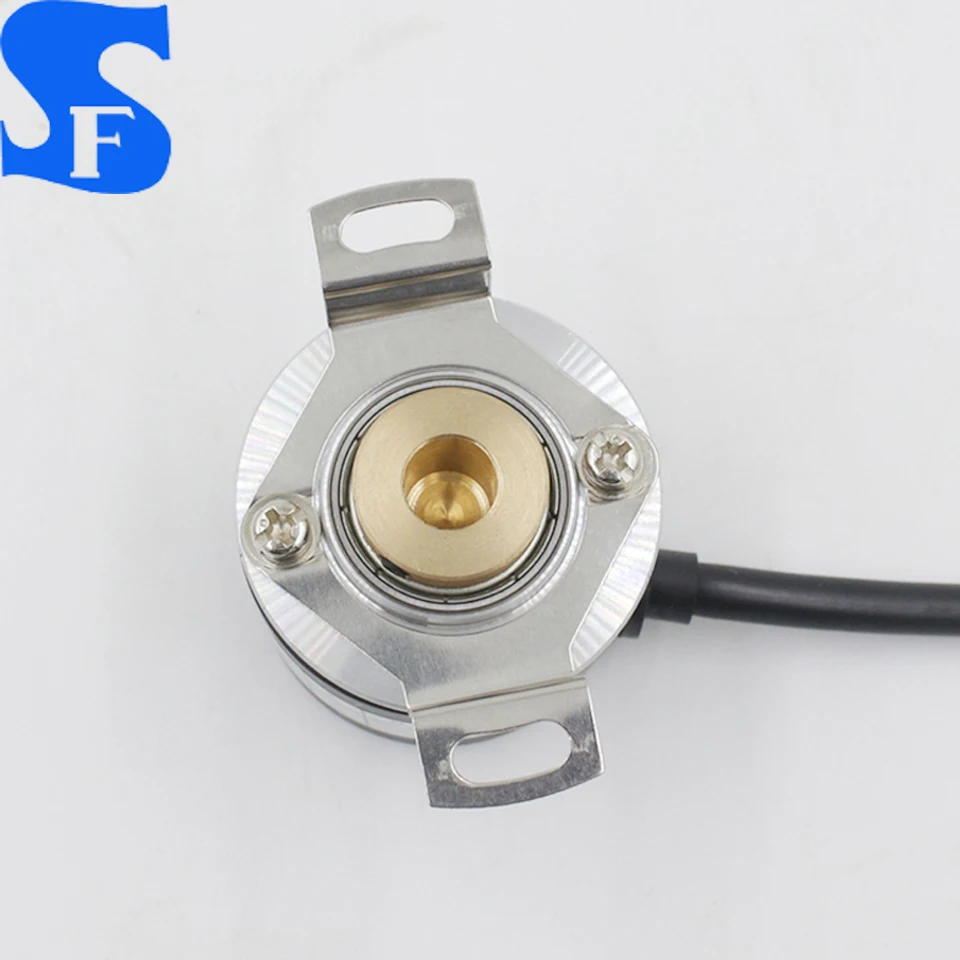

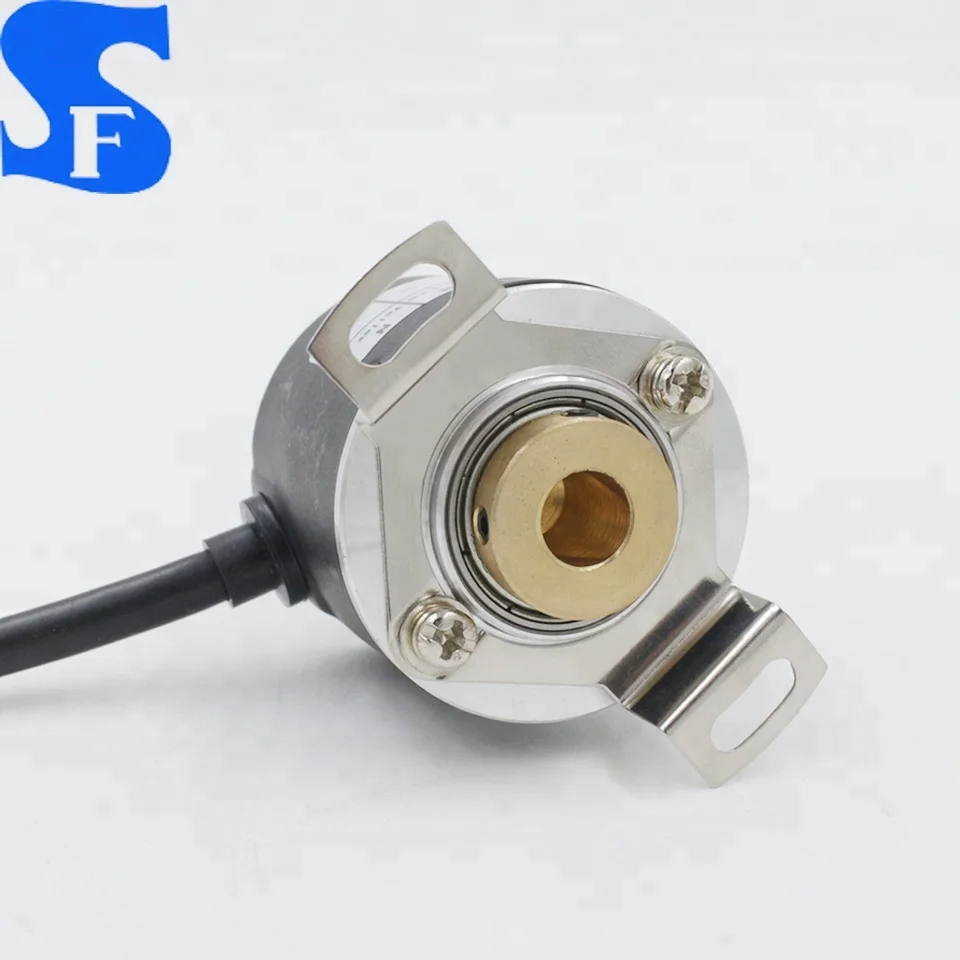

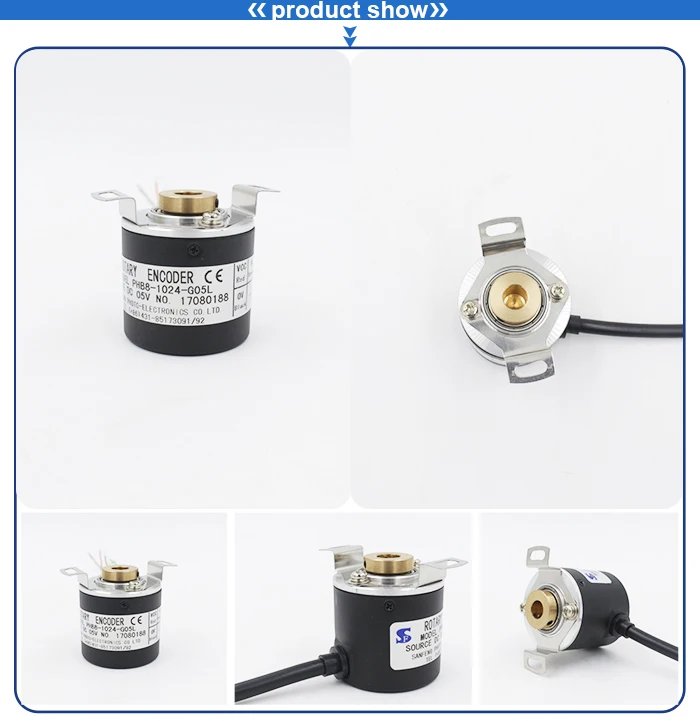

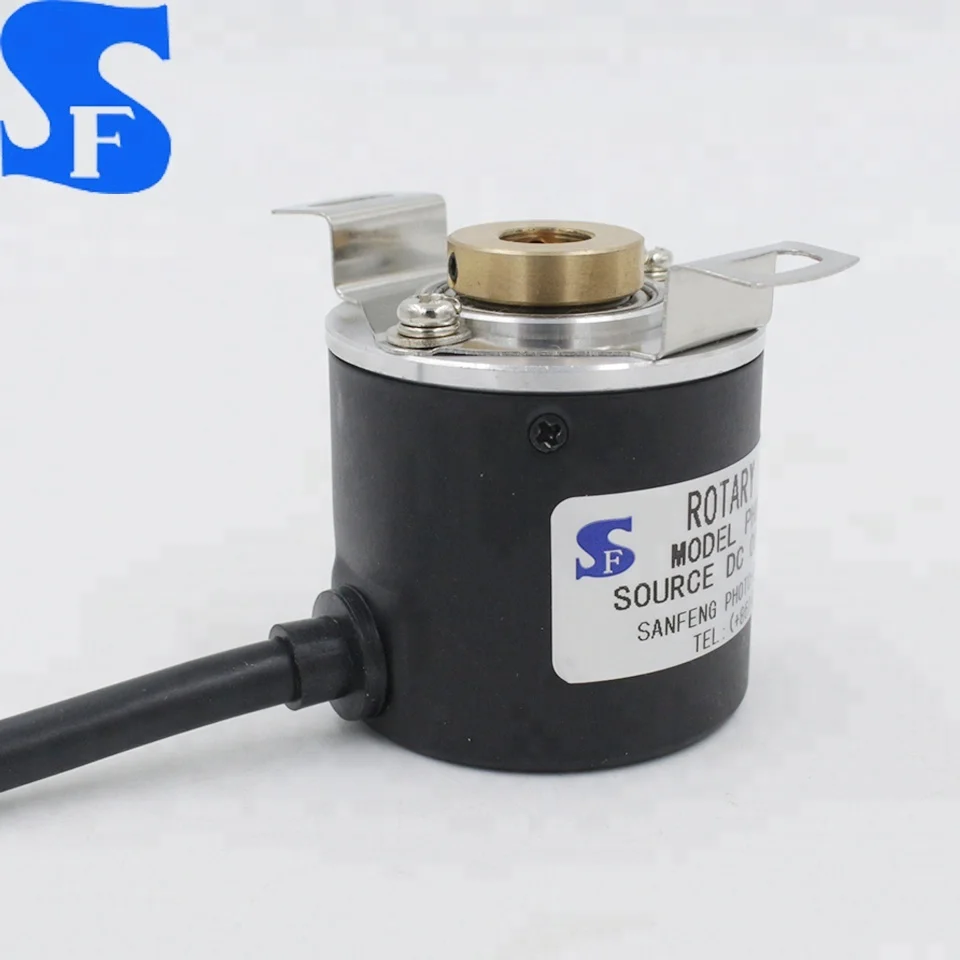

8mm hollow shaft 1024ppr 5V ttl output encoder

Resolution

1024P/R

Supply Voltage

DC5V

V_H Output Voltage

≥Vcc*70%

V_L Output Voltage

≤0.5V

Current Consumption

≤150mA

Output Phase

A.B.Z

Frequency Response

100kHz Max

Rise / Fall Time

≤1μS /Driver≤0.1μS

Starting Torque

5*10^-4N*m(+25℃)

Shaft Loading

Radial

20N

Axial

10N

Rotating Inertia

4*10^-7Kg.m²

Max Rotating Speed

6000r/min

Vibration Resistance

50m/s²(10~200Hz)2 Hours in xyz Direction

Shock Resistance

980m/s²  2 Times in xyz Direction(Continue 6 mS)

Protection

IP54

Operating Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.1Kg

Accessories

Elastic Mounting Plate

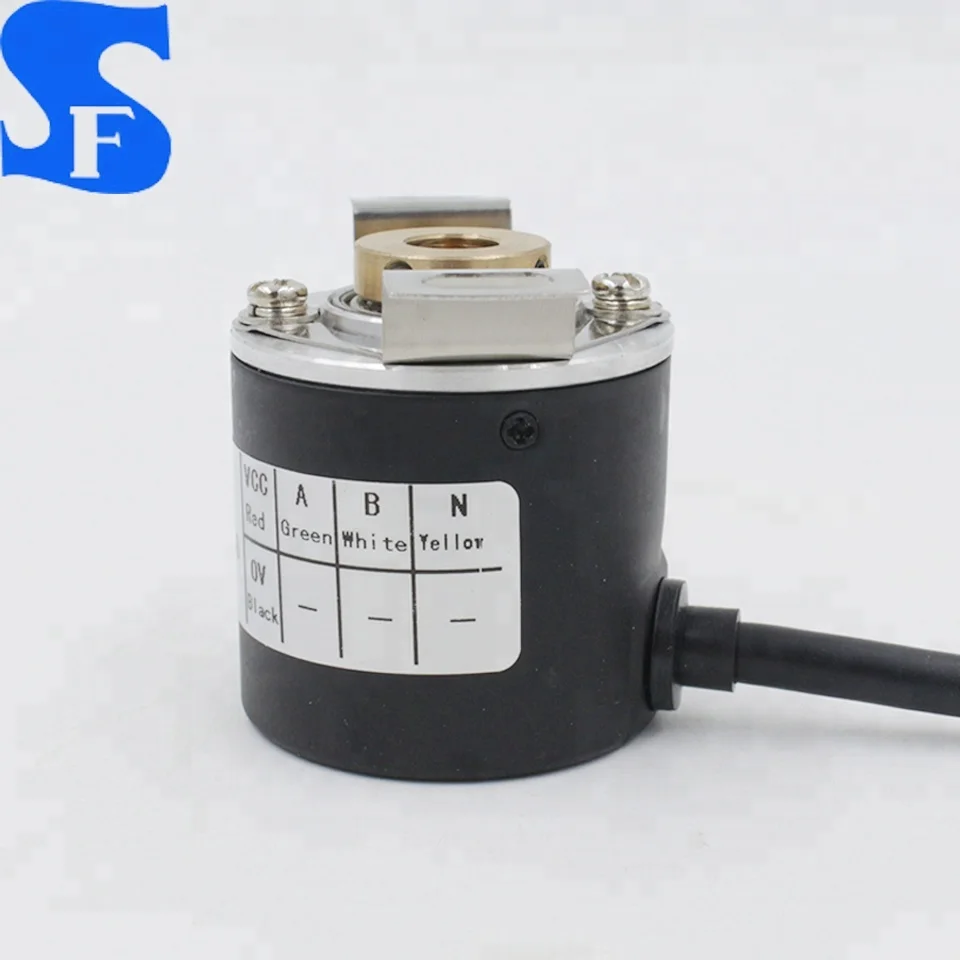

Cable Color

Red

Black

White

Green

Yellow

Blue

Pink

Brown

Shield

Output Form

C/E/F

VCC

0V

A

B

Z

-

-

-

FG

L/D

VCC

0V

A

B

Z

A(_)

B(_)

Z(_)

FG
