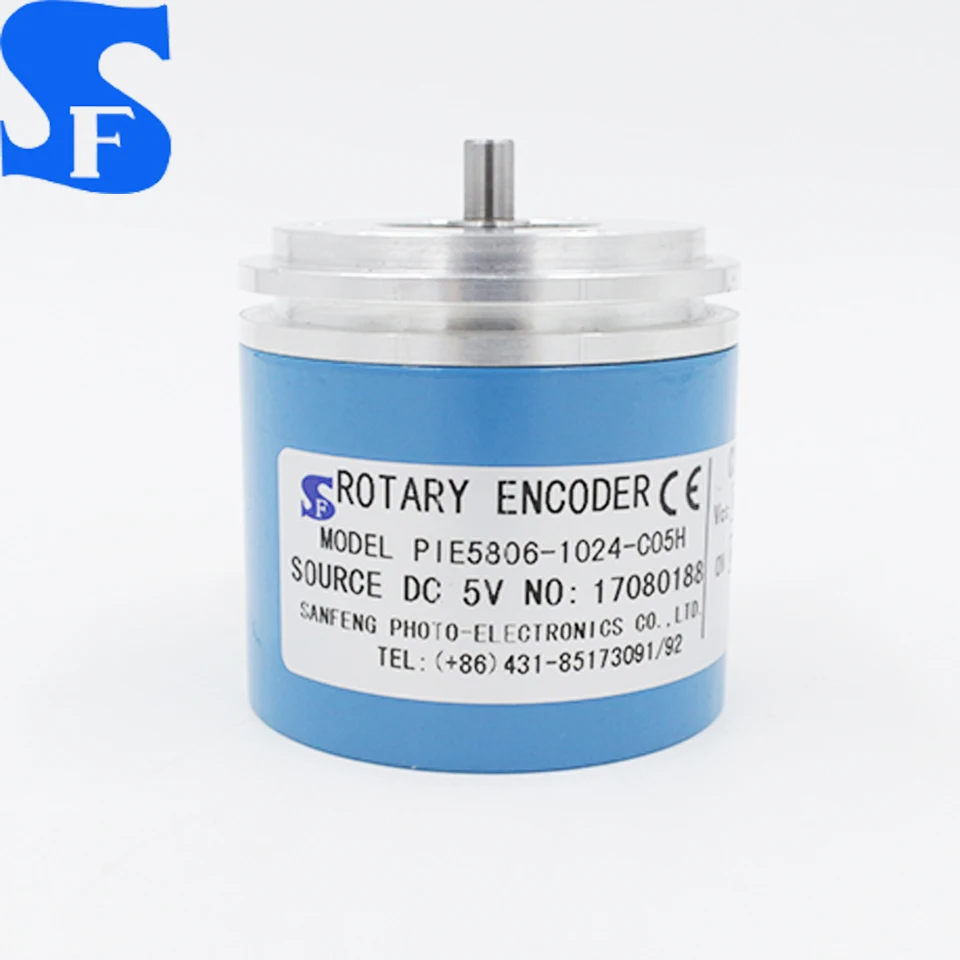

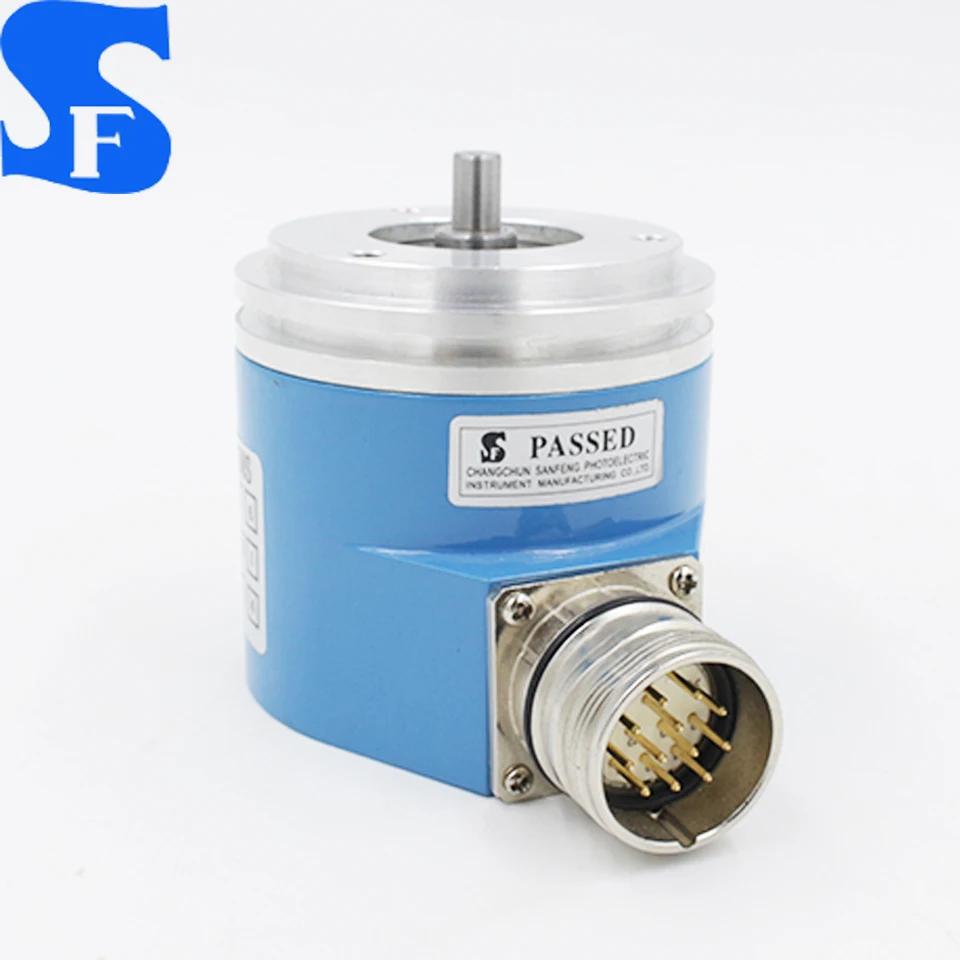

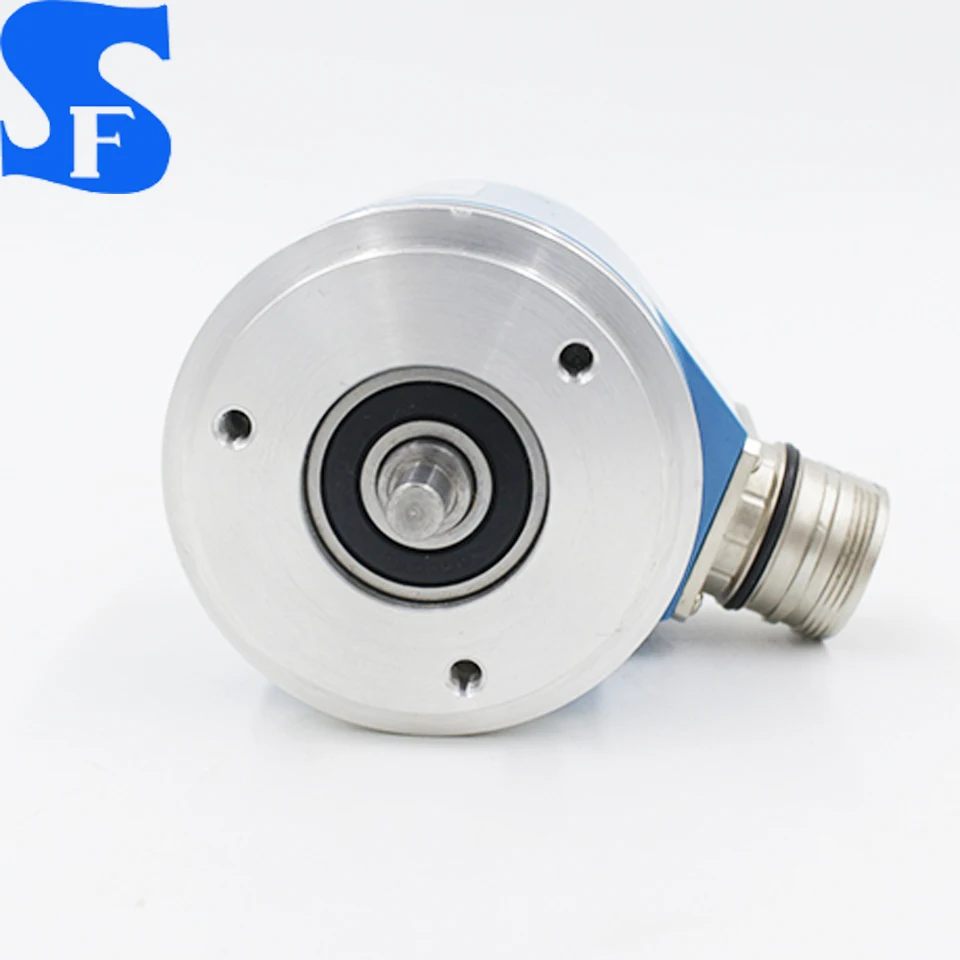

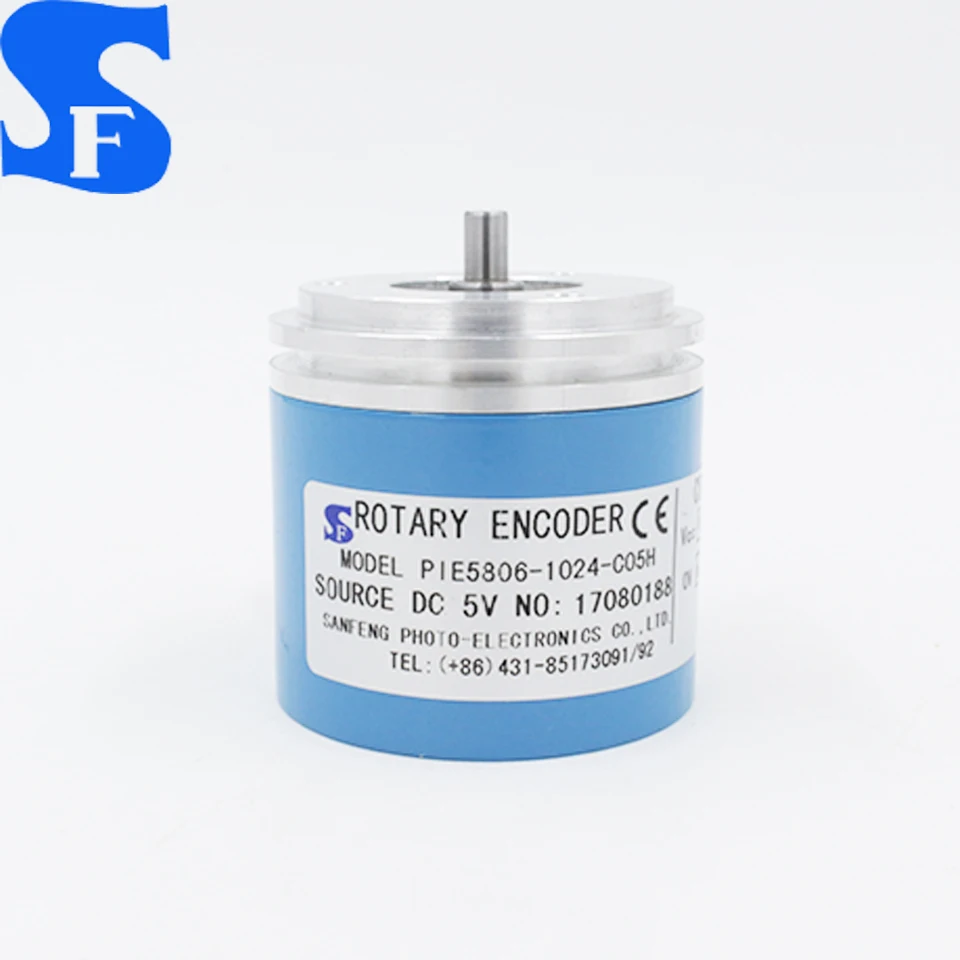

CNC machine using optical incremental flange rotary encoder

Resolution

500~10000P/R

Supply Voltage

DC5V / DC 10V~30V

V_H  Output Voltage

≥Vcc*70%

V_L Output Voltage

≤0.5V

Current Consumption

≤150mA

Output Phase

A.B.Z

Frequency Response

100kHz Max

Rise / Fall Time

≤1μS / Driver≤0.1μS

Starting Torque

3*10^-3N*m(+25℃)

Shaft Loading

Radial

40N

Axial

20N

Rotating Inertia

4*10^-6Kg*m²

Max Rotating Speed

5000r/min

Vibration Resistance

50m/s²(10~200Hz)(2Hours in XYZ Direction)

Shock Resistance

980m/s²(3 Times in XYZ Direction) Continue 6mS

Protection

IP54

Operating Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.35Kg

Accessories

SE/PE Coupling

Cable Color

Red

Black

White

Green

Yellow

Blue

Pink

Brown

Shield

Output Form

C/E/F

VCC

0V

A

B

Z

-

-

-

FG

T

VCC

0V

A

B

Z

A(_)

B(_)

Z(_)

FG

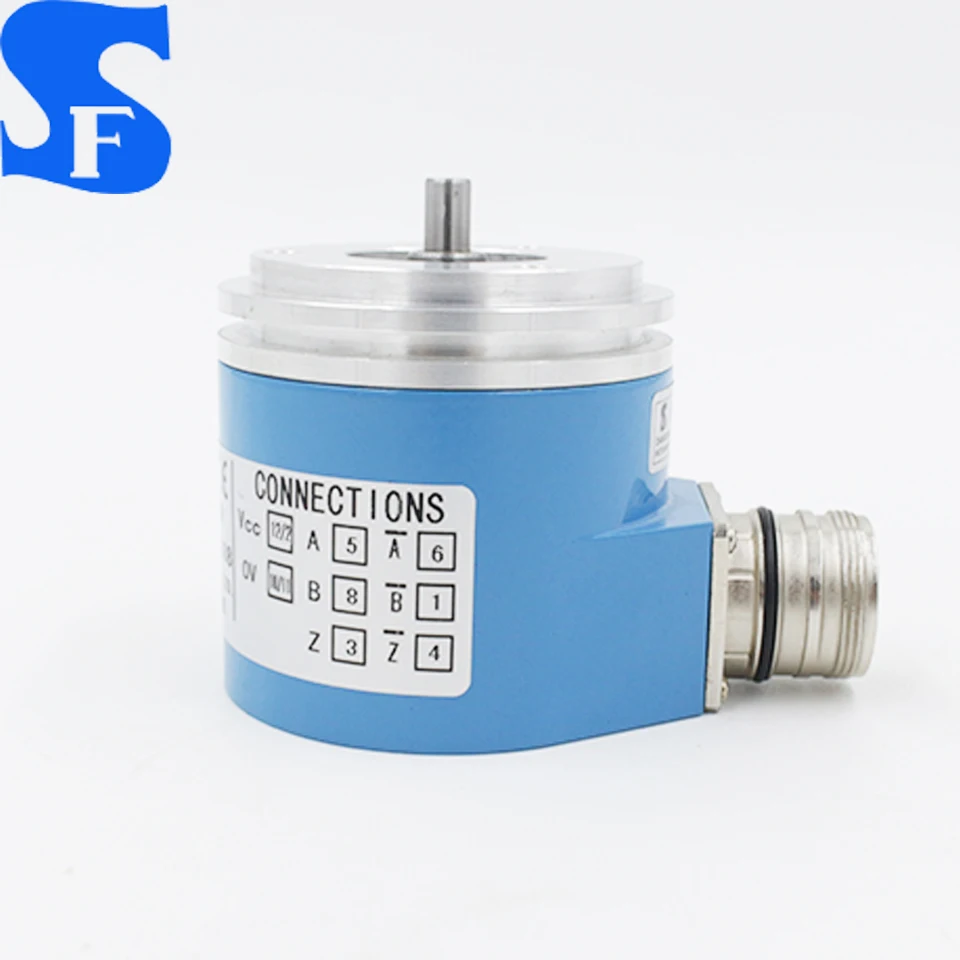

7 Core Socket Subscript

1

7

3

4

5

6

9 Core Socket Subscript

4

3

1

2

5

8

9

6

7
