Key Features :
1) Longer Cycle Life: Longer cycle life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership.
2) Lighter Weight: About 50% of the weight of a comparable lead acid battery .
3) Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
4) Wider Temperature Range: -20℃~60℃
4) Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications:
1) Wheelchairs and scooters;
2) Solar/wind energy storage;
3) Back-up power for small UPS;
4) Golf trolleys & buggies;
5) Kid electric cars;

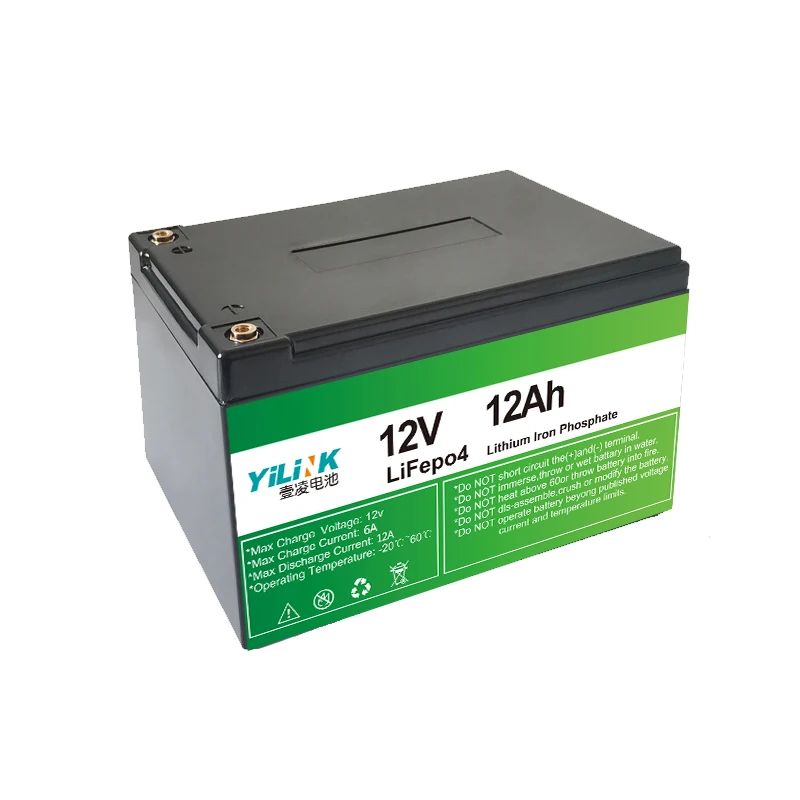

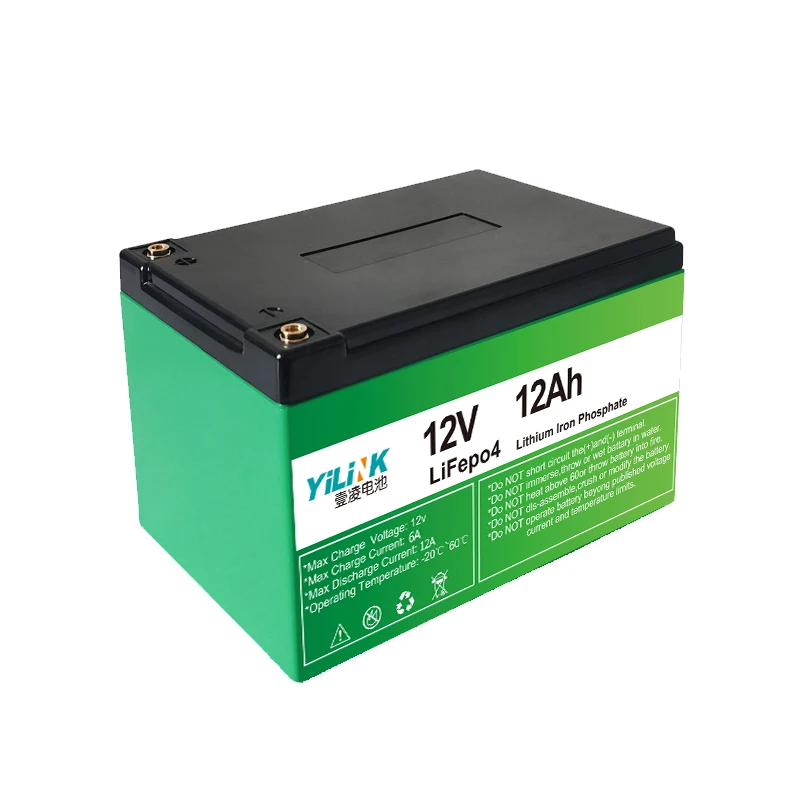

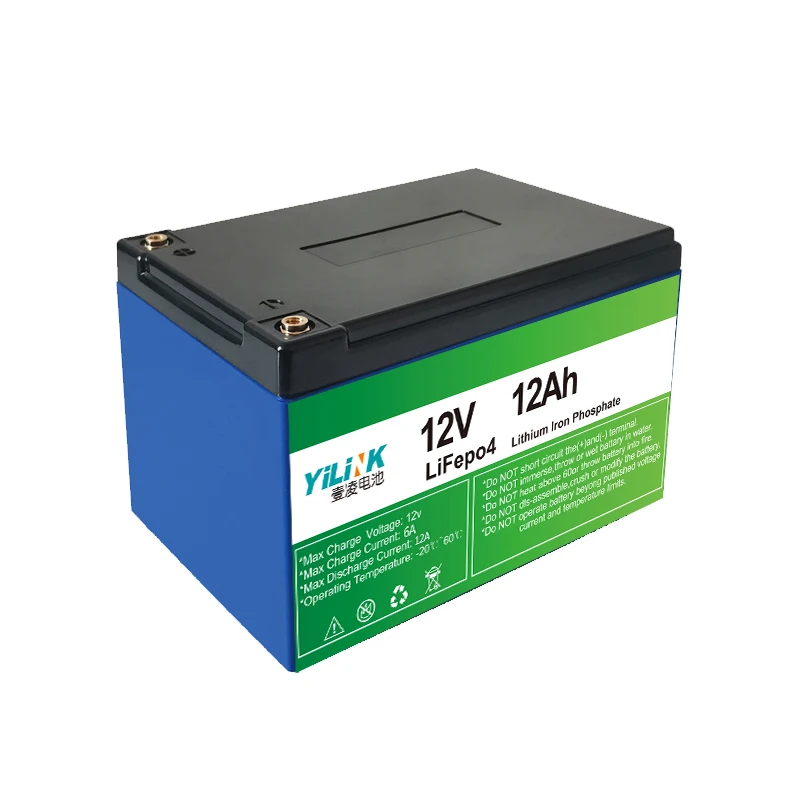

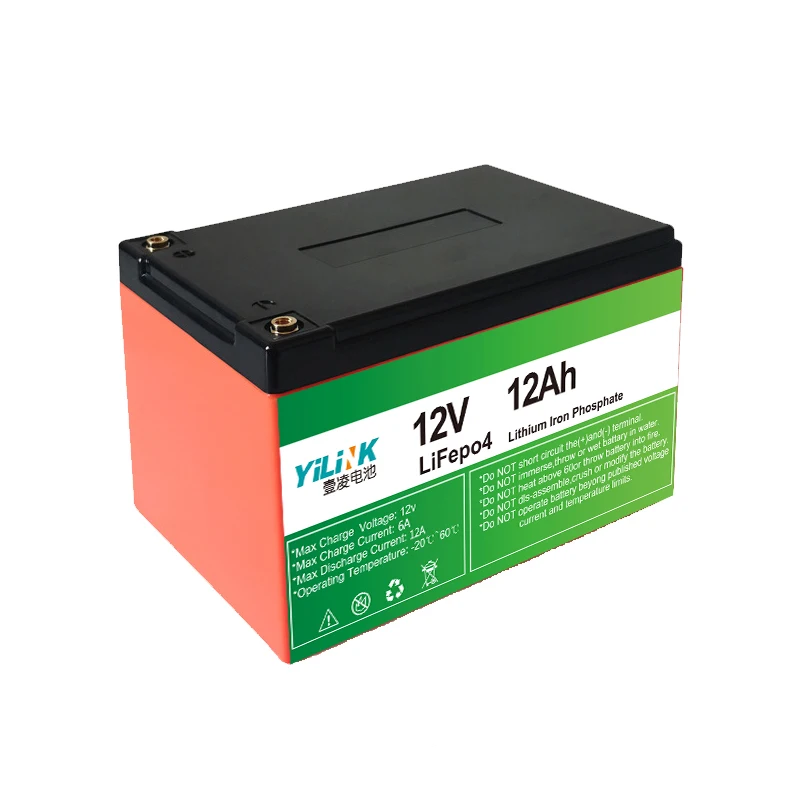

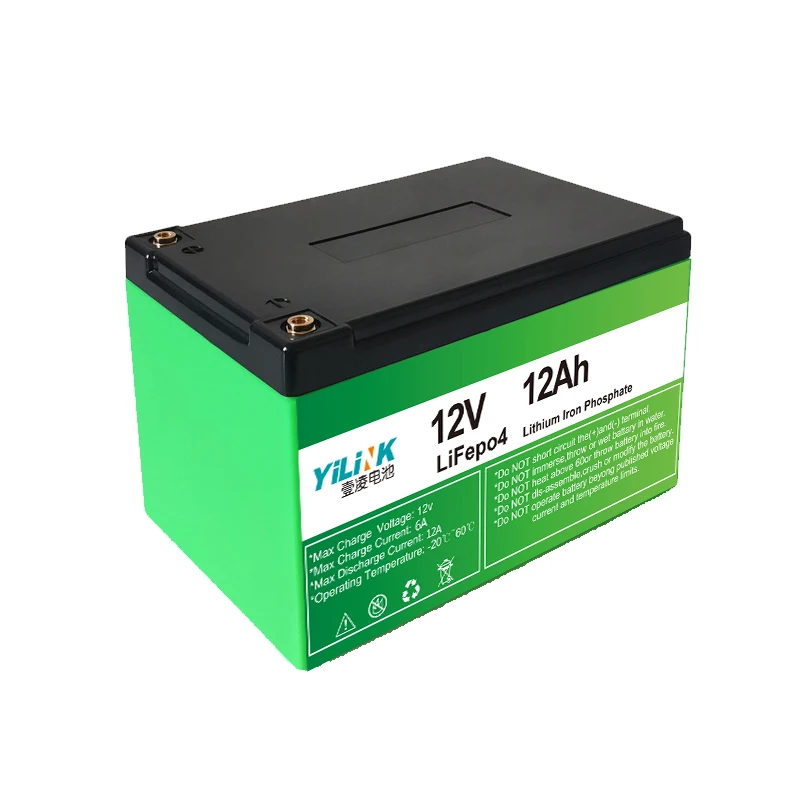

Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 12Ah | |
Energy | 153.6Wh | |
Internal Resistance(AC) | ≤20mΩ | |
Cycle Life | >2000 cycles @ 1C 100% DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV) | |
Charge Current | 2.4A | |
Max. Charge Current | 6A | |
Standard Discharge | Continuous Current | 2.4A |
Max. Pulse Current | 12A(<3s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0℃ to 55℃ |
Discharge Temperature | -20℃ to 60℃ | |
Storage Temperature | -20℃ to 45℃ | |
IP Class | IP65 | |

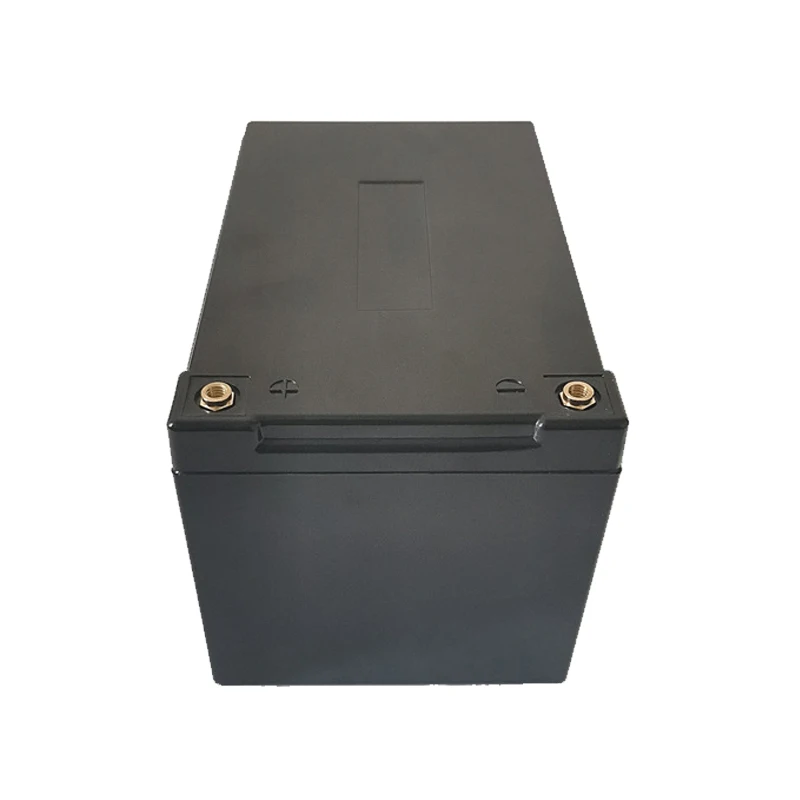

Mechanical | Plastic Case | ABS |

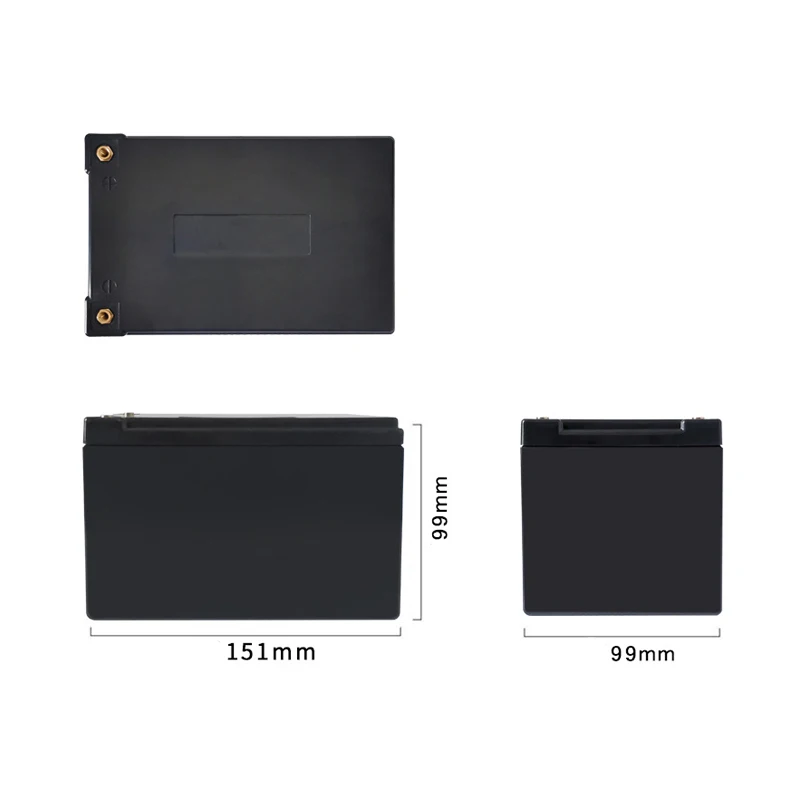

Approx. Dimensions | 151mm*99mm*99mm | |
Approx. Weight | 1.5kg | |
Terminal | M5 |







The lithium LiFePO4 battery pack of our company can be packed in cartons or determined by customer's choice. Then about the international shipping, our products will be put into suitable container shipment as box/ cartons/ pallets.
Shipping:
1. We support varies shipping ways, including DHL / UPS / FedEx / special line, airlines as well as by sea based on customer’s requirements.
2. In different seasons, shipping cost is different, we will recommend the best and safest way according to your specific quantity.
3. Shipping Ports: Shenzhen or Hongkong Port
Our services:
Fast and efficient service is our most important responsibility. Please don't be hesitate to contact us if you have any questions, we believe you will have the good experience from us.
* Professional sales team offer good service before and after sale.
* Quick response: your inquiries would be responded within 12hours.
* Short Lead time: 10-15 days for cells; 20-35 days for battery pack.
* High quality battery: A grade cells, 1 year warranty, 100% real capacity and discharge rate.
* Fast delivery: provide the cheapest & safest shipping way solution.
* Customized Service: OEM/ODM is acceptable, Samples order are welcome.
* Any quality problem of our products will be replaced by new one for free.

We Make A Promise:
1. A grade safety PCM for every battery.
2. A grade quality battery cells.
3. 100% true capacity.
4. Competitive & reasonable price.
5. 1 year warranty.
6. Excellent after-sell service.

Company Introduction:

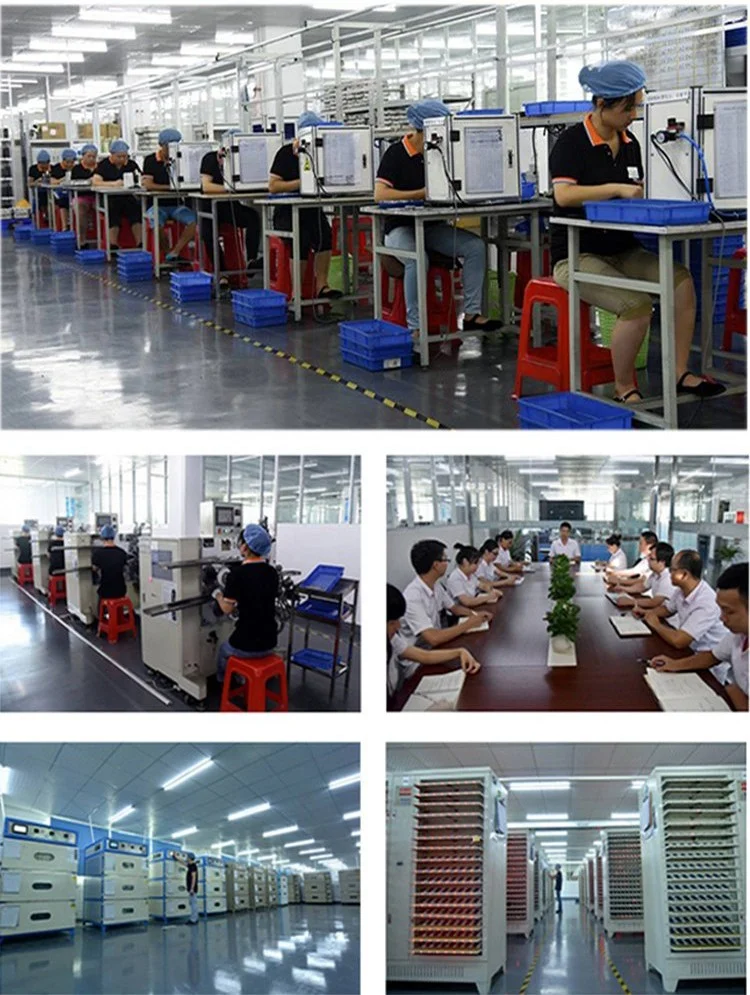

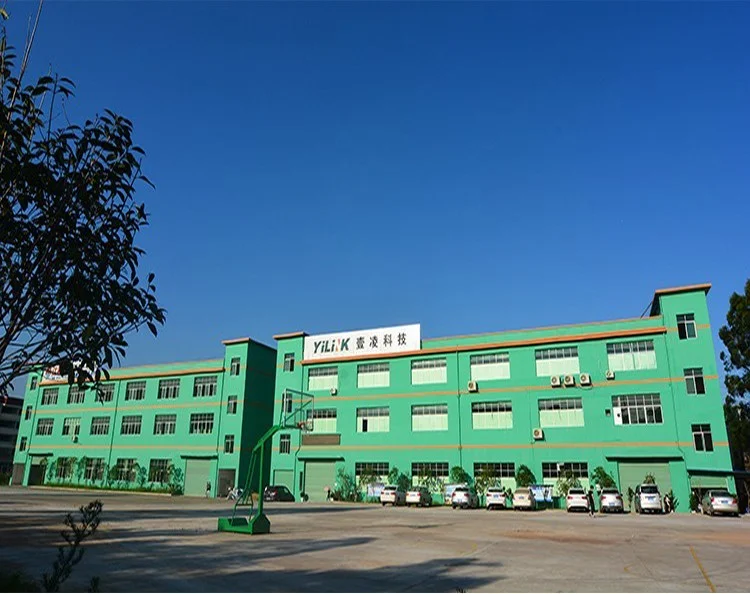

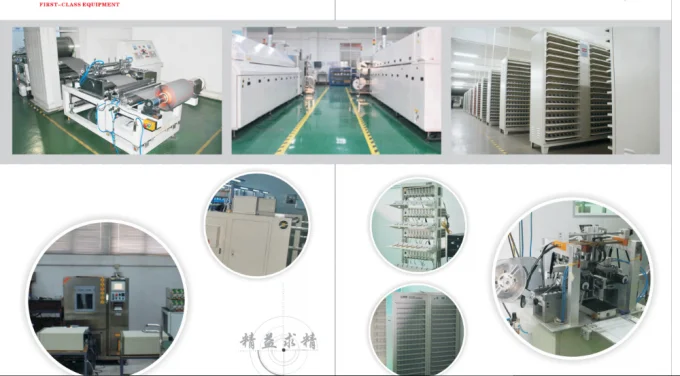

Dongguan Yilink Electronic Technology Co., Ltd, a subsidiary of Yilink Group and we professionally specialized in R&D and manufacturing of rechargeable lithium batteries. With professional team and advanced automatic manufacturing equipment and infrastructures from research, manufacturing to marketing, Yilink has become one of the famous battery solution provider in China and has achieved remarkable success in the field. We not only produce Lithium Polymer batteries, lithium ion battery and LiFePO4 battery, meanwhile, we are a agent of LG Lithium Ion battery cells. Till now, Yilink has set up good business relationship with customers all over the world and most of our product has passed the UL, CE, KC, IEC62133, SGS, UKAS, ROHS and UN38.3 certificates. For more information, you can visit our website: www.yilink.net.
![M]P)D)SU7W]TQ)_NWUPY2U.png](http://sc02.alicdn.com/kf/Hc739819bd15145508925309cd82adbc7S/223452698/Hc739819bd15145508925309cd82adbc7S.png)
History
2008 ♦ Dongguan Yilink Electronic Technology Co., Ltd was founded and set up it’s first production line and began to produce lithium polymer battery and Lithium Ion battery packs for consumer electronics.
♦ The Company attend Hong Kong Electronics Fair Autumn Edition Oct.
♦ The Company was approved as ISO9001 2008 Sept.
2015 ♦ The cell production was moved to new Production Base in JiangXi, Dongguan Factory provide R&D and battery pack assemble.
♦ The Company attend Hong Kong Electronics Fair Spring Edition on April.
♦ was awarded "Top 100 Indigenous Innovation Enterprise” on Sept.
♦ The Company attend Hong Kong Electronics Fair Autumn Edition Oct.
2016 ♦ Most of the products has passed the certifications, such as UL / CE/ CB/ IEC62133/ KC/ UN38.3
♦ The Company attend Hong Kong Electronics Fair Autumn Edition Oct.
♦ Produce highly safety custom Portable Smart Batteries for Russia Market.
♦ Begin the cooperation with HuaWei Communication.
2017 ♦ Begin long-term cooperation with Bosch China and help to produce Custom LiPO Battery Packs.
♦ Specialized to Develop and manufacture High Voltage, High Power battery solutions for UAV Industry.
♦ The Company attend Hong Kong Electronics Fair Autumn Edition Oct.
2018 ♦ The Company attend CES Las Vegas Jan.
♦ The Company attend The China Export Commodities Fair;
♦ The company was approved "High safety High Power Lithium Ion Polymer Battery Production
♦ Cooperate with Mobike, annual sales more than $70,000,000.
Q1. What’s the main product does YiLink manufacture?
A: Rechargeable battery: Li-ion pack, Lipo battery and LiFePO4 battery pack.
Q2. Can I have a sample order before bulk order?
A. Yes, we provide samples for testing and check quality.
Q3. What about the lead time?
A. Samples needs 5~15 days, mass production time is around 30 days, it depends on order quantity.
Q4. Do you have MOQ limit?
A. Yes, we have MOQ limit; 1~10pcs samples is acceptable. Mass production depend on the different model number and existing battery in stock, pls confirm with salesman.
Q5. How do you ship the goods and how long does it take to arrive?
A. Samples can be ship by UPS, FedEx express; it usually takes 5-7 days. Mass production order can be ship by Air transport, Sea transport and special line (Air transport + express).
Q6. How to proceed with an order?
A. 1) we need to know your requirements (voltage, capacity, wire length and connector part number) and application.
2) Then quote based on your requirements.
3) You place an order and pay the deposit; we start to arrange the production.
Q7. Can you print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8. Which certificates do you have?
A: Due to each battery model has different existing certificates, so pls tell us the model number to confirm.
Q9. How about your warranty?
A: 12 months warranty
