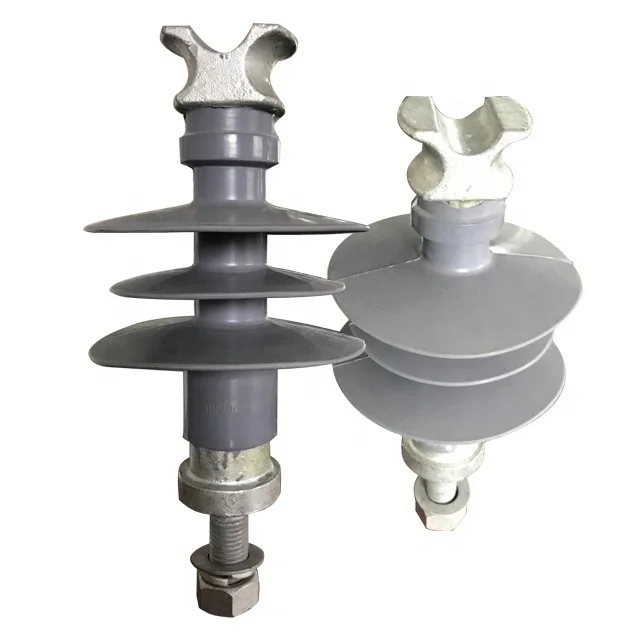

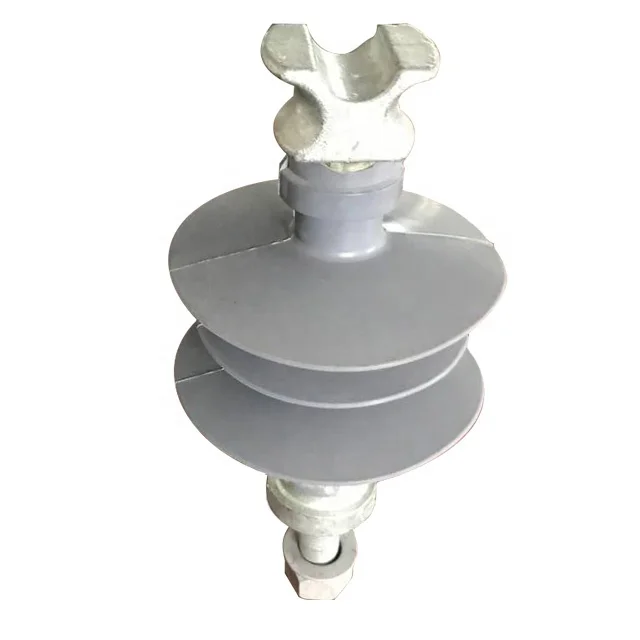

10kv 11kv Pin Type Composite Insulator with Spindle
- Category: >>>
- Supplier: RongZhao (Fuzhou) Imp & Exp Co. Ltd.
Share on (60740840993):
Product Overview
Description
10kv 11kv Pin Type Composite Insulator with SpindleSilicone Insulator
Product Model | Rated volt., kV | Rated mechanical load,kN | Structure height H,mm | Insulation distance mm | Min Creepage distance, mm | Lightning impulse withstand vol.(peak), mm | Power Frequency withstand volt. (Vertual value) kV |
FPQ-10/4T20 | 10 | 4 | 215 | 125 | 280 | 75 | 42 |
FPQ-10/5T20 | 10 | 5 | 250 | 165 | 420 | 105 | 42 |
FPQ-24/6 | 24 | 6 | 305 | 255 | 715 | 150 | 75 |
FPQ-36/8 | 36 | 8 | 440 | 320 | 1000 | 185 | 95 |
FPQ-52/12 | 52 | 12 | 480 | 415 | 1255 | 220 | 110 |
