Super quality Large Scale Innovative Wall Mounted Industrial Negative Pressure Solar Air exhaust fan
- Category: >>>
- Supplier: Jinan Tengyun Environment Engineering Co. Ltd.
Share on (60740848054):
Product Overview
Description
Product Description

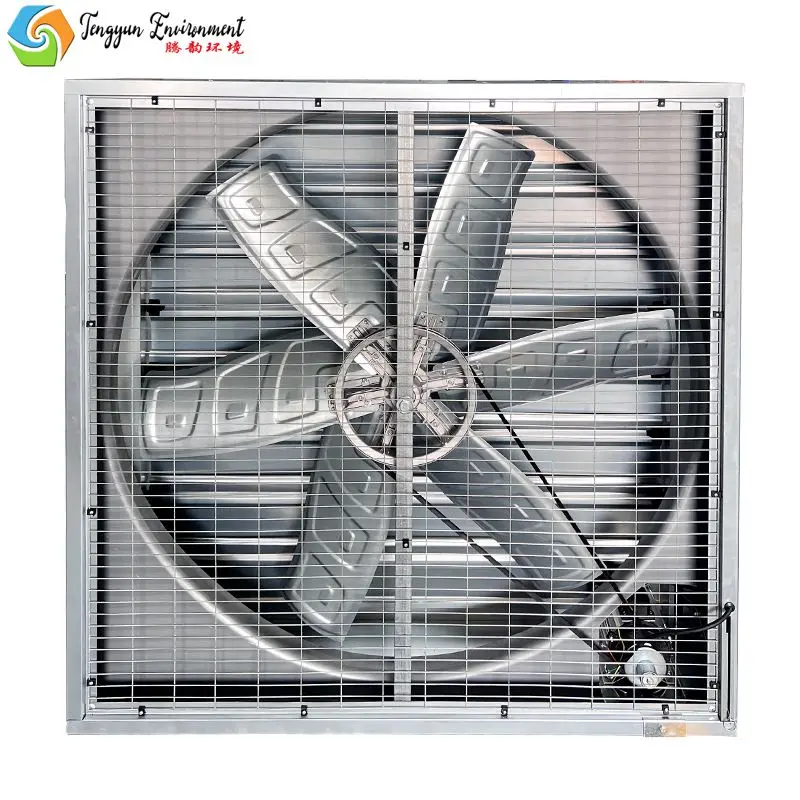

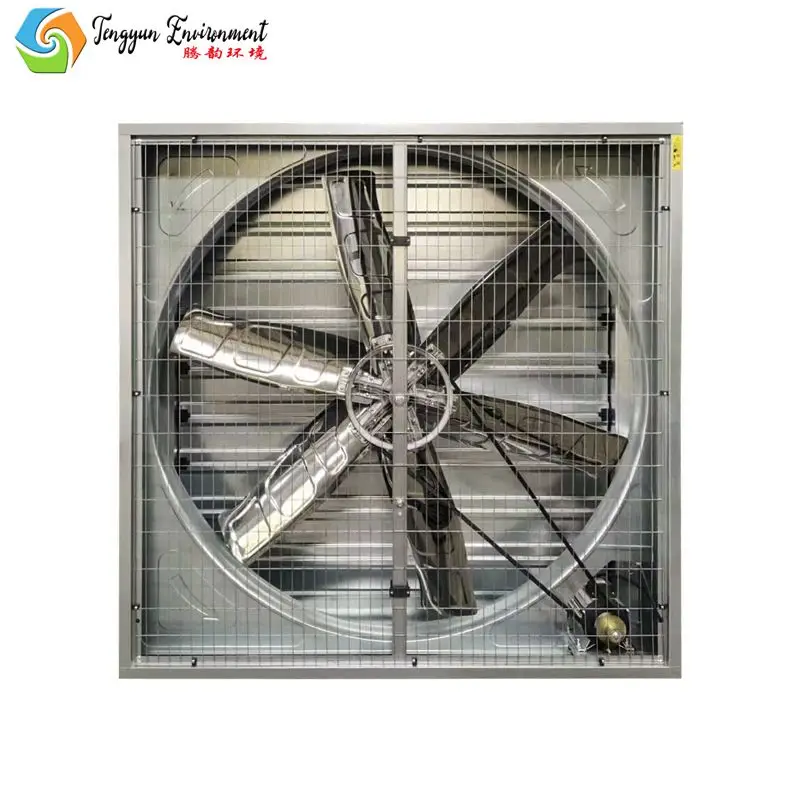

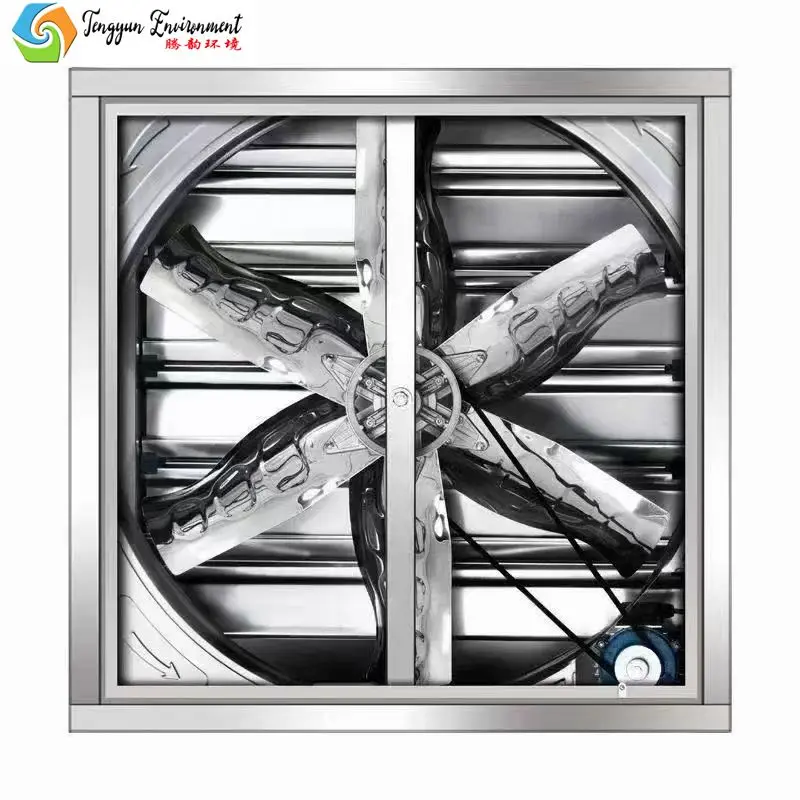

Wall Mounted Negative Pressure Exhaust Fan For Greenhouse use/Poultry farm/Chicken shed

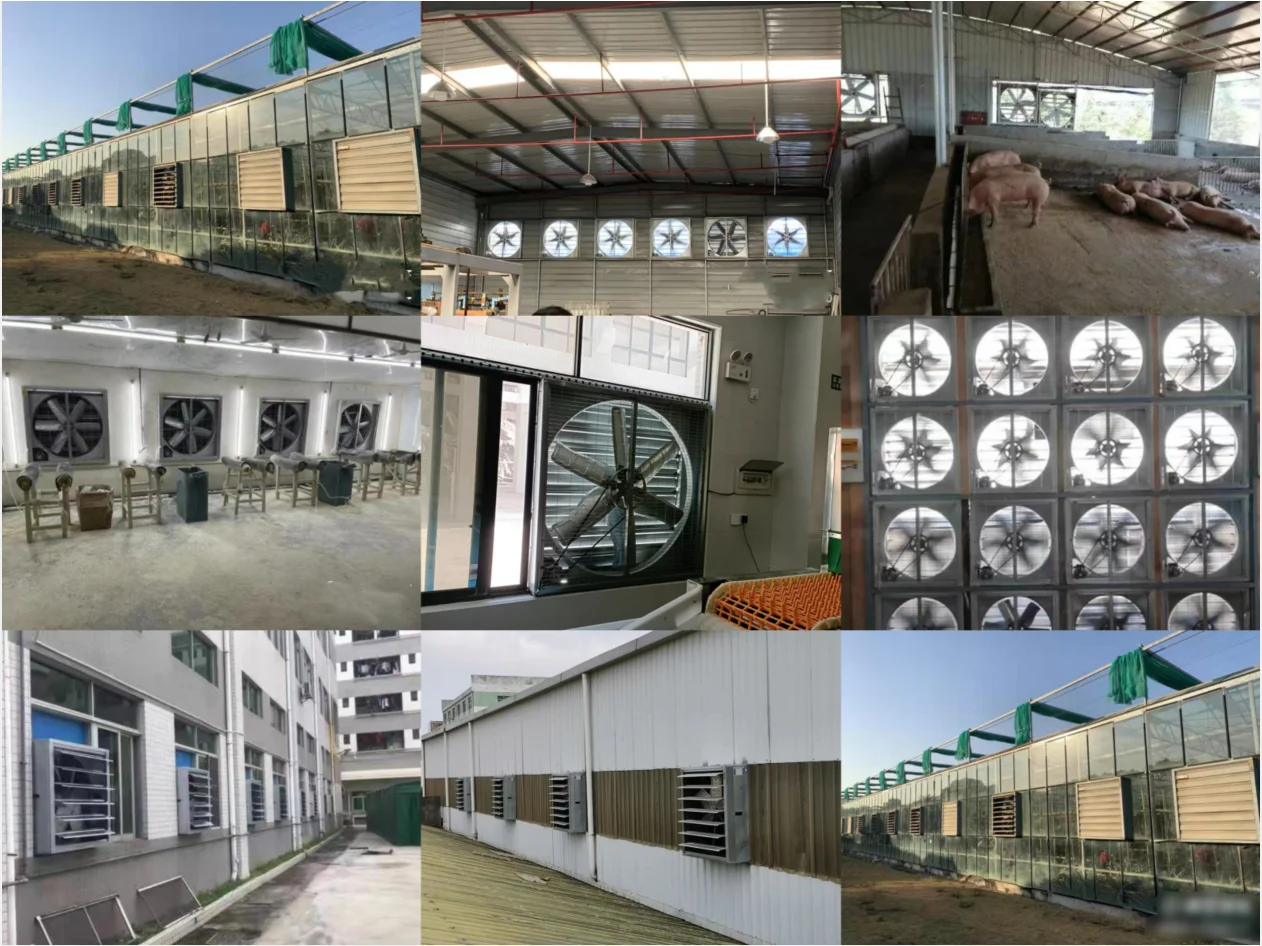

TENGYUN Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry,
poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
TENGYUN Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry,
poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Specification
Model | Drive | Blades Diameter (mm) | Dimension (mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow (m³/hr) | Input power (KW) | Noise (db) |
TY480 | Diect | 380 | 480*480 | 1400 | 1400 | 3000 | 0.18 | ＜70 |
TY600 | Direct | 500 (20inch) | 600*600 | 1400 | 1400 | 5700 | 0.37 | ＜70 |
TY800 | Belt | 710 (28inch) | 800*800 | 660 | 1400 | 18000 | 0.37 | ＜65 |
TY900 | Belt | 750 (30inch) | 900*900 | 630 | 1400 | 22000 | 0.55 | ＜65 |
TY1000 | Belt | 900 (36inch) | 1000*1000 | 610 | 1400 | 25000 | 0.75 | ＜65 |
TY1100 | Belt | 1000 (40inch) | 1100*1100 | 600 | 1400 | 32500 | 0.75 | ＜65 |
TY1220 | Belt | 1100 (44inch) | 1220*1220 | 460 | 1400 | 38000 | 0.75 | ＜64 |
TY1380 | Belt | 1270 (50inch) | 1380*1380 | 458 | 1400 | 44000 | 1.1 | ＜64 |
TY1530 | Belt | 1400 (56inch) | 1530*1530 | 325 | 1400 | 55800 | 1.5 | ＜64 |
Company Profile

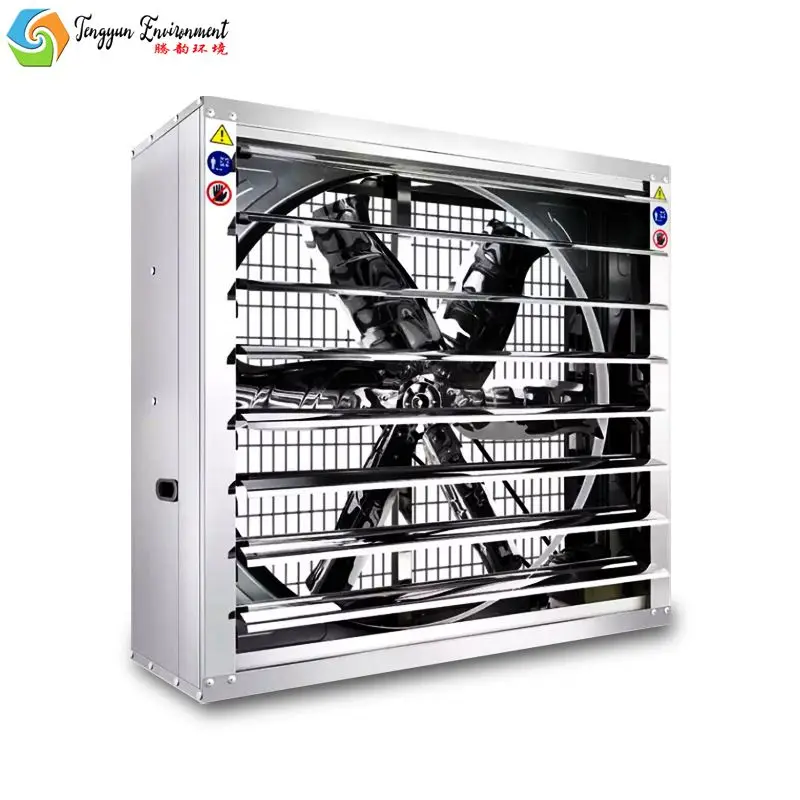

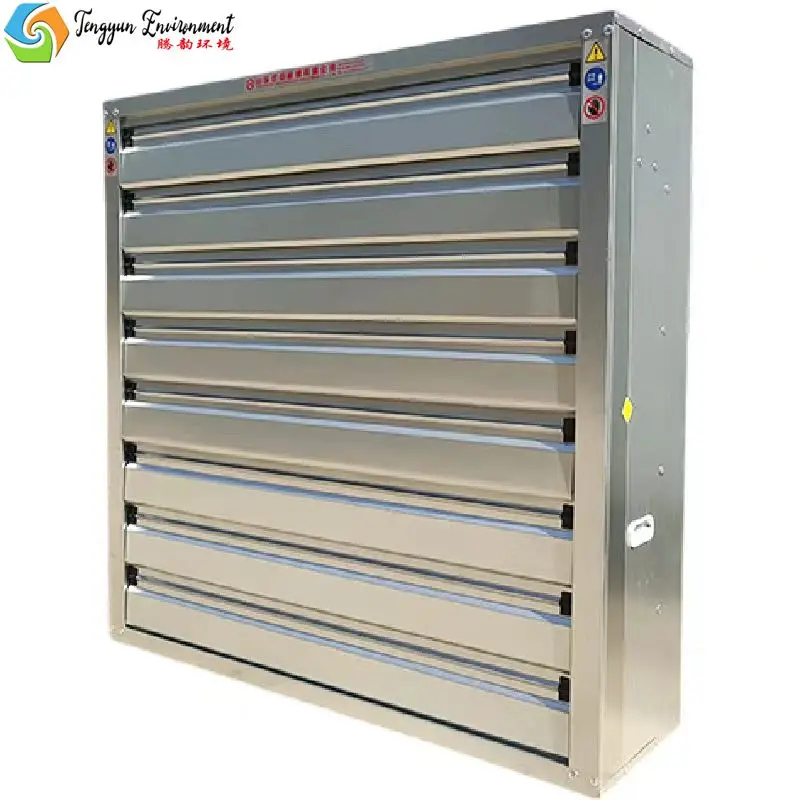

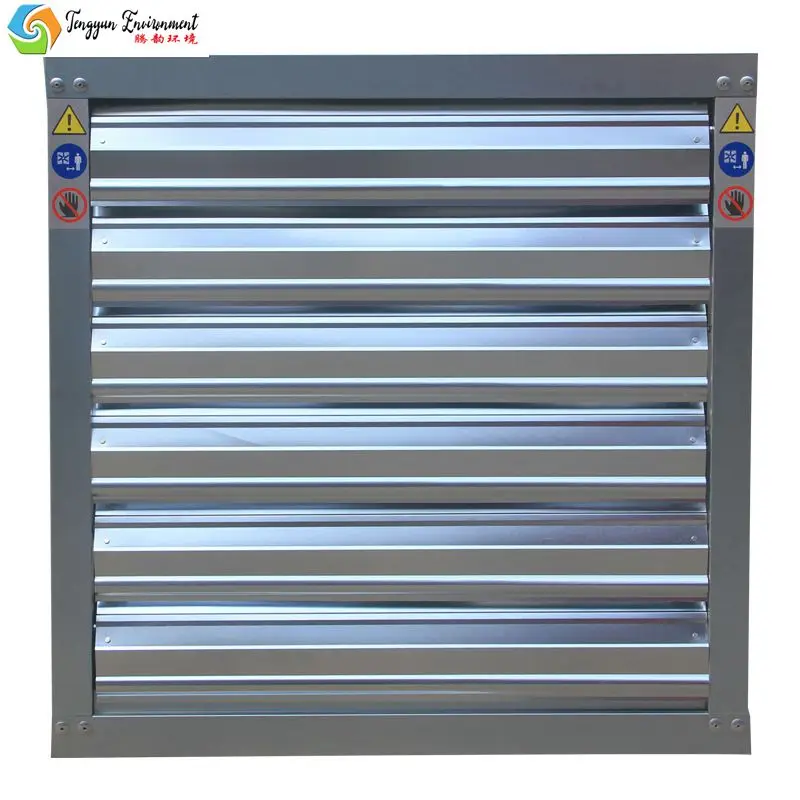

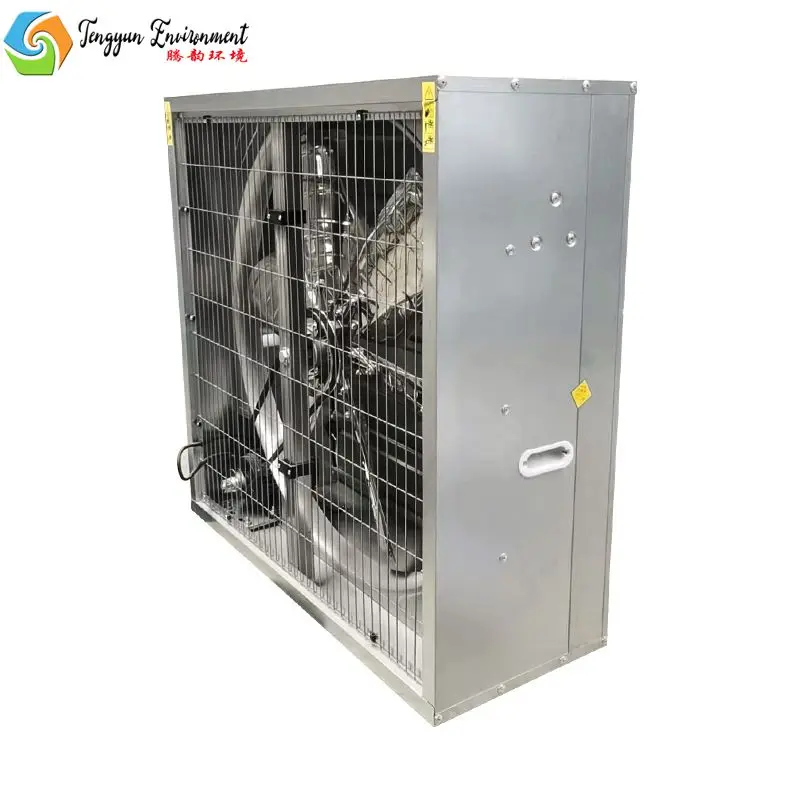

The Big High Speed Push Pull Industrial Ventilation Box Fan Type Greenhouse Poultry Farm 50 inch Exhaust Fan has special push-pull
shutter mechanism, it can open and close shutter automatically. The stainless steel blade uses a stamping molding
process,possessing beautiful,durable, avoiding being deformed and cracked, working smoothly, reducing the noise and effectively
improving the service life. Unique concave handling design of push pull exhaust fan not only helps avoid inconvenience occurred
inthe transport, but also keep favorable installation and beautiful exterior..
shutter mechanism, it can open and close shutter automatically. The stainless steel blade uses a stamping molding
process,possessing beautiful,durable, avoiding being deformed and cracked, working smoothly, reducing the noise and effectively
improving the service life. Unique concave handling design of push pull exhaust fan not only helps avoid inconvenience occurred
inthe transport, but also keep favorable installation and beautiful exterior..

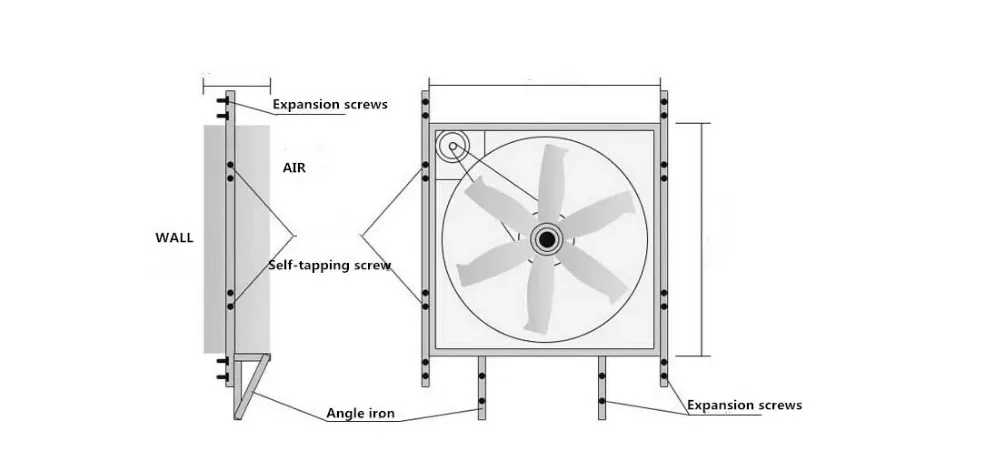

How to install Exhaust Fan
Certifications
FAQ
Q:Is your company a manufacture or Trading company?A:We are a professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse over 20 years in China.
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC
certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC
certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
