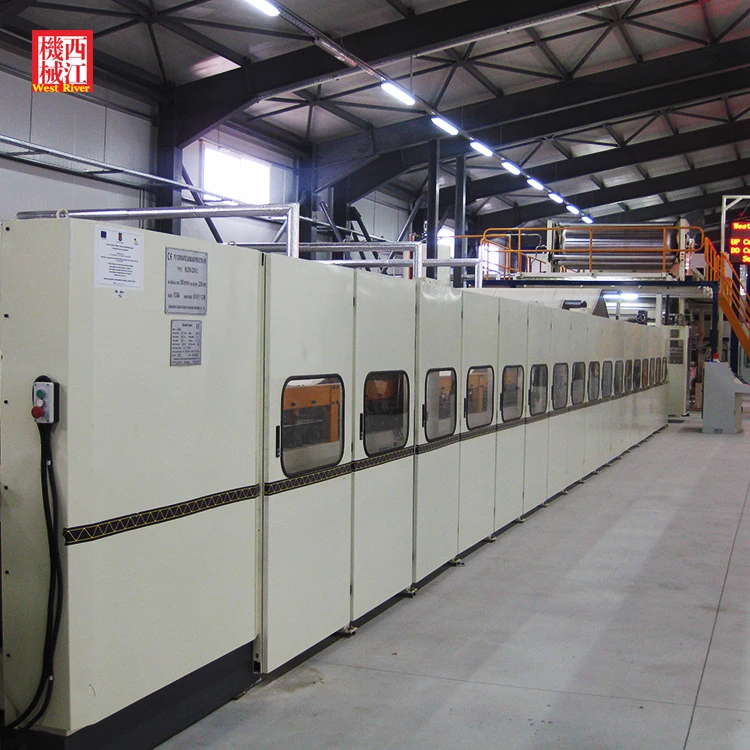

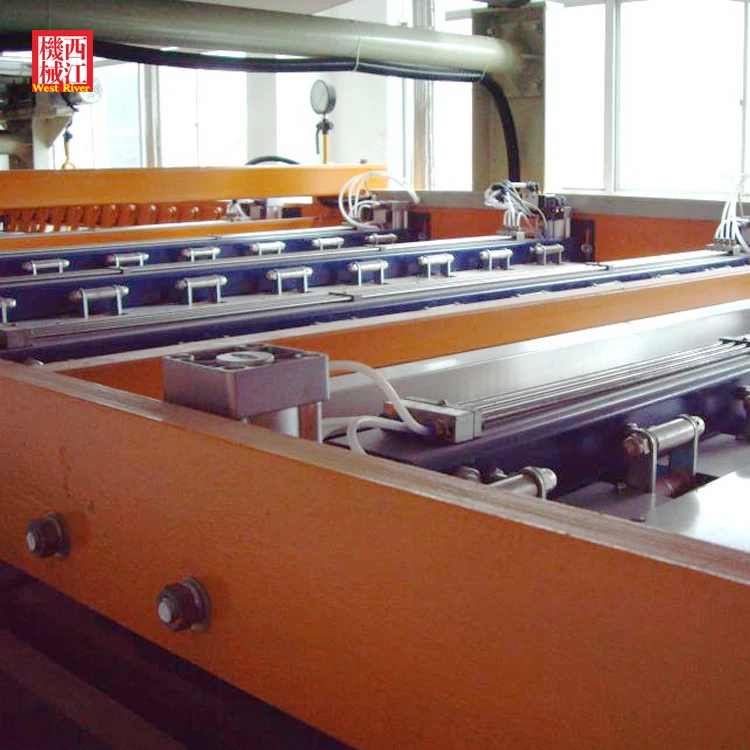

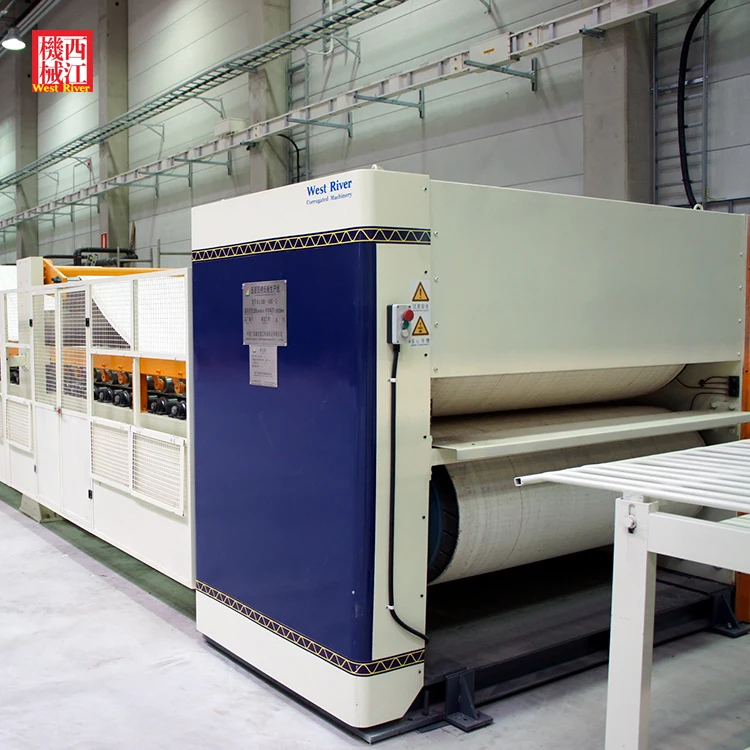

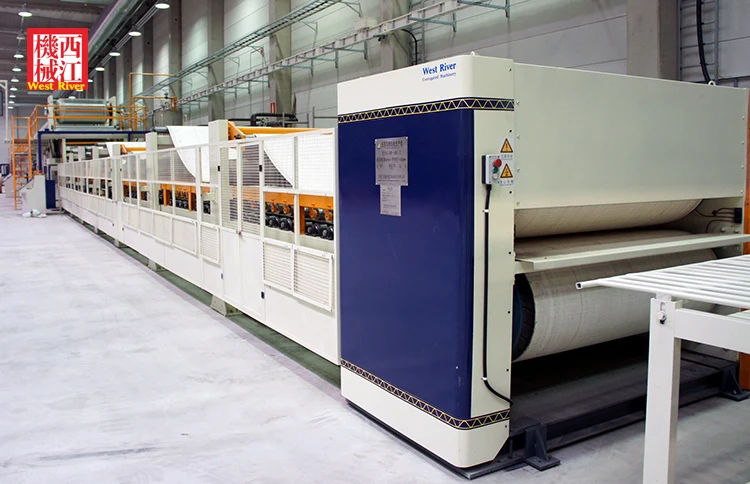

Corrugated Cardboard Production Line Carton Making Machine Double Facer

Product Overview

Description

Corrugated Cardboard Production Line Carton Making Machine Double Facer





Characteristics:



1. Steam-heating, hydraulic-lift, and separate section pressing according to the layers of the cardboard keep       proper pressure, and is useful for the form of cardboard.

2. With pneumatic tension, electric or automatic deviation rectifying, the upper belt keeps the whole machine in     good working condition.

3. Pressing roller or press board can be chosen for compression. The pressure can be controlled by PLC or         the production management system, which ensures the accuracy of thickness and plane of cardboard.

4. The number of heating plates varies from 8, 12, 15, 18, 21, and 24 pieces to match different producing             speed. The heating plate is 160mm high 600mm wide.

5. Might equip automatic correcting and cleaning device for upper cotton belt.

6. Maximum machine speed: 180 M/min -250M/min

7. Available width: 1400mm-2800mm



Technical Parameters:

(mm) Max. Scroll Width	(mm) Length	(mm) Width	(mm) Height	(ton) Weight	(kw) Power
1400	18500	2350	2200	37	55
1600	18500	2550	2200	37.5	55
1800	18500	2750	2200	38	75
2000	18500	2950	2200	38.5	75
2200	18500	3150	2200	39	90
2500	18500	3450	2200	40	90
2800	18500	3650	2200	55	130











FAQs

1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.

2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China

3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.

4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
  We have professional technicists to supervising to production
  Our professional department to examine about every production process

6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
