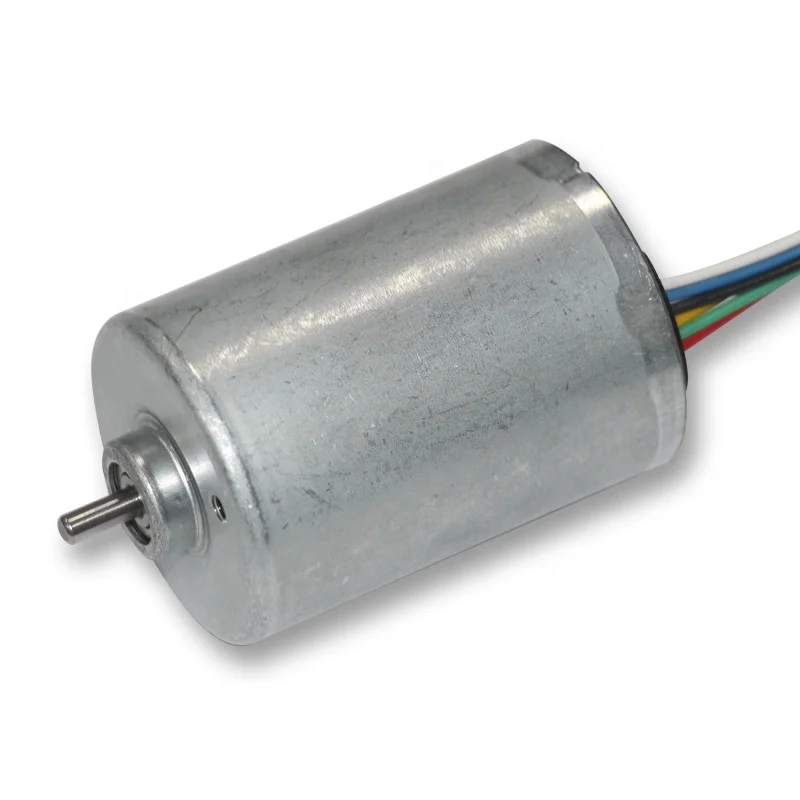

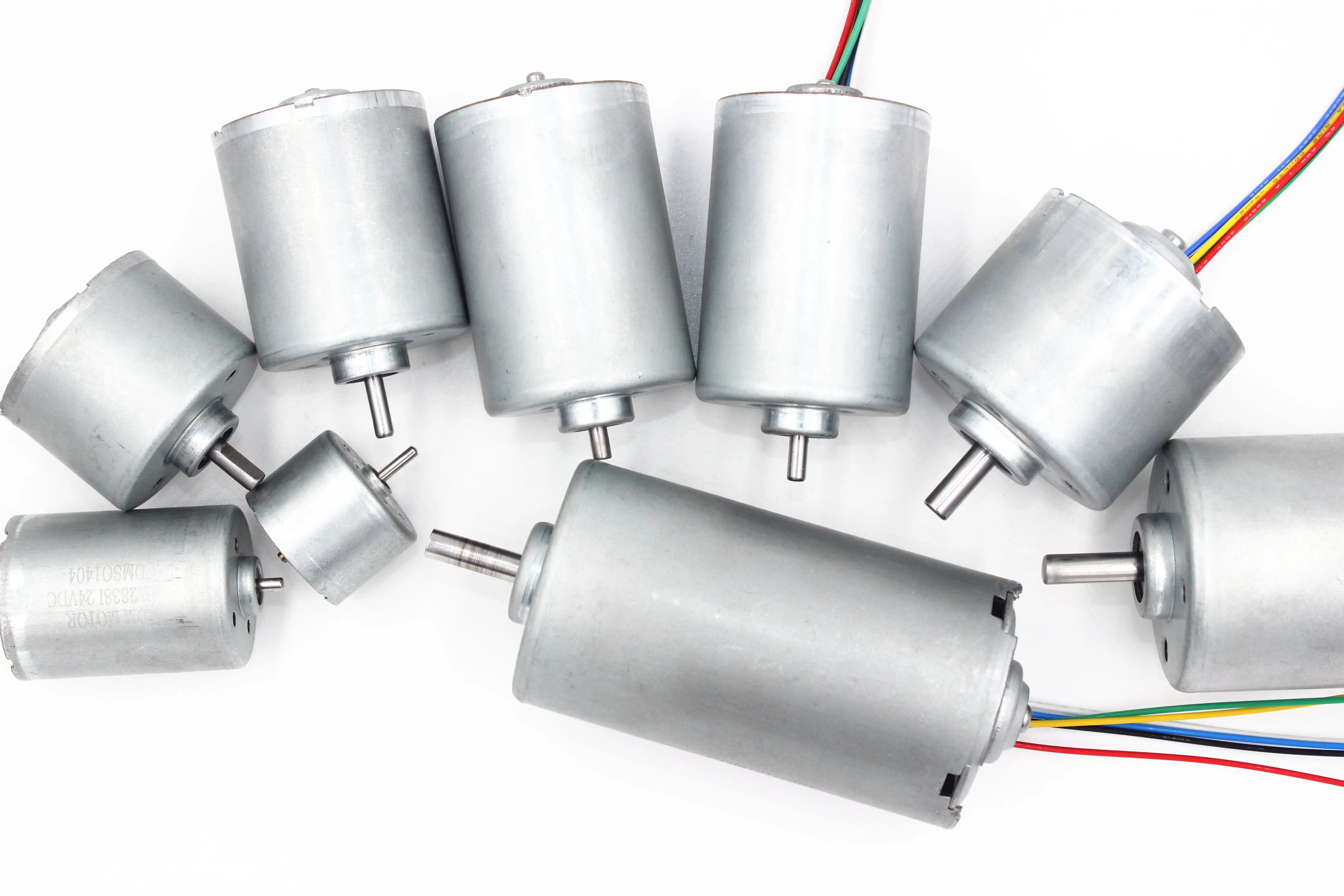

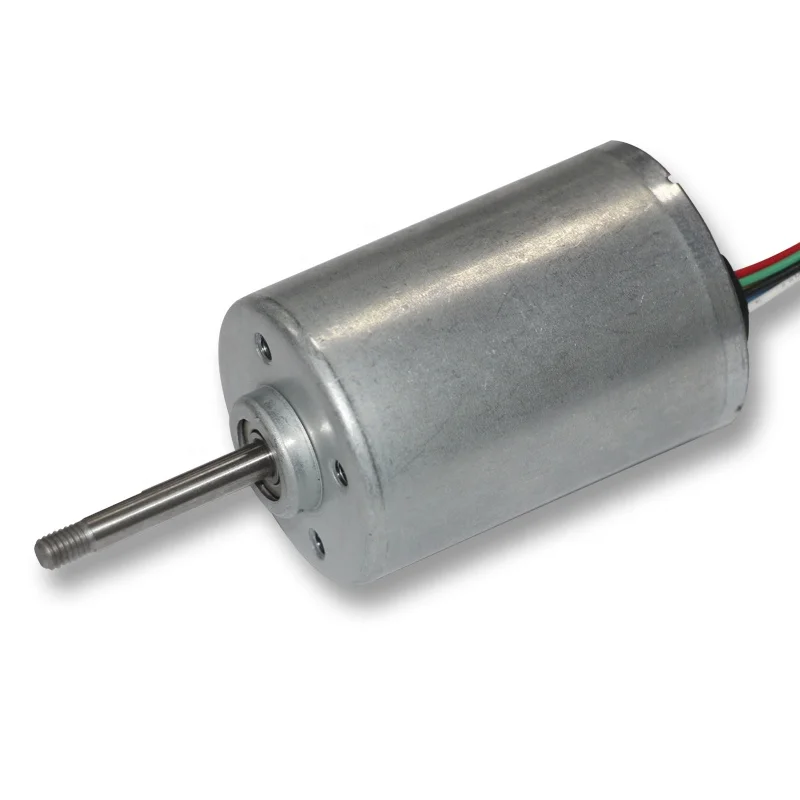

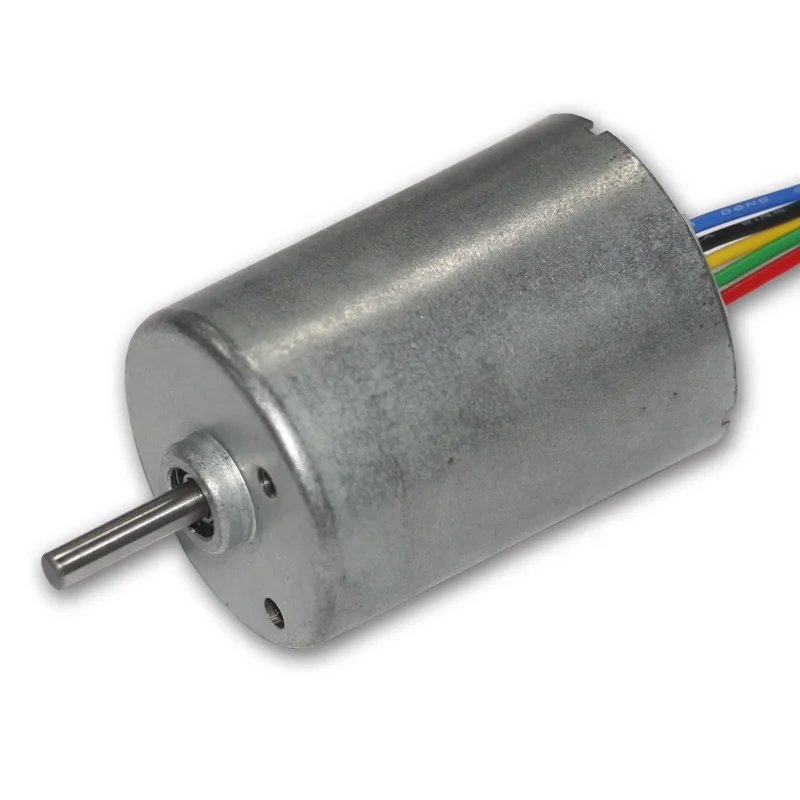

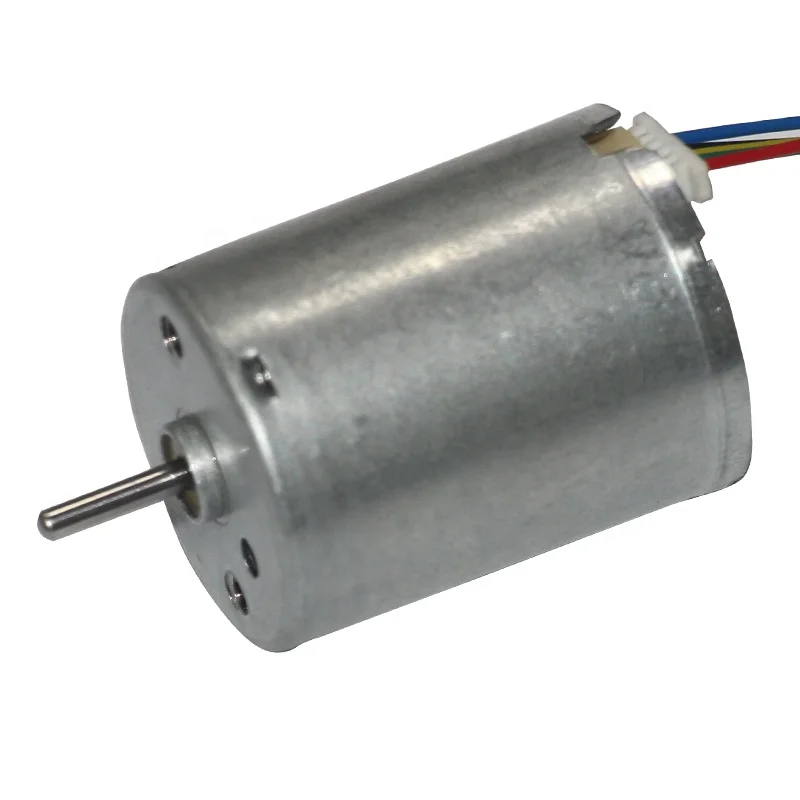

High Torque 24mm 55mm Fascia Gun Brushless DC Motor BLDC Motor For Small Massage Gun Motor
- Category: >>>
- Supplier: Shen Zhen Xin Dong Hui Technology Co. Ltd
Share on (60740890109):
Product Overview
Description
High Torque 24mm - 55mm Fascia Gun Brushless DC Motor BLDC Motor For Small Massage Gun Motor
Specification
Item | Brushless DC Motor |
Brand Name | DH Motor |
Model Number | DBL2838 |
Usage | Home Appliance, Cosmetic Instrument, Smart Home, Power Tools |
Type | Brushless Motor |
Torque | 84.5g.cm |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Totally Enclosed |
Speed(RPM) | 4329rpm |
Continuous Current(A) | 798mA |
Efficiency | IE 1 |
Product Name | 28mm brushless dc motor |
Voltage | 7.4V |
Load Current | 798mA |
Rated Speed | 4329rpm |
Rated Torque Max.(gf.cm) | 84.5gf.cm |
Rated Torque Max.(mNm) | 8.28mNm |
Output Power | 3.752W |
Overall Length | 38mm |
Application | Personal Care,Hone Application,Power Tools,Medical Instruments |
Certification | CE,ROHS,CCC |
Product Description
Advantages of BLDC Motor
BLDCs also offer several advantages over traditional brushed motors:
1.Easy control: BLDCs can be easily controlled electronically using variable frequency drives or electronic speed controllers,resulting in precise speed and torque control.
2.Low maintenance: The absence of brushes and commutators means that BLDCs require less maintenance, saving time and money.
3.Longevity: The absence of mechanical wear and tear means that BLDCs have a longer lifespan than brushed motors, reducing the frequency of replacement.
4.Versatility: BLDCs are suitable for a wide range of applications, from consumer appliances to industrial equipment, making them a popular choice for designers and engineers.
1.Easy control: BLDCs can be easily controlled electronically using variable frequency drives or electronic speed controllers,resulting in precise speed and torque control.
2.Low maintenance: The absence of brushes and commutators means that BLDCs require less maintenance, saving time and money.
3.Longevity: The absence of mechanical wear and tear means that BLDCs have a longer lifespan than brushed motors, reducing the frequency of replacement.
4.Versatility: BLDCs are suitable for a wide range of applications, from consumer appliances to industrial equipment, making them a popular choice for designers and engineers.
Features of Brushless DC Motor
Brushless DC Motors, also known as BLDCs, are synchronous motors that operate on direct current (DC). They are unique in several ways:
1)Efficiency: BLDCs typically have a higher efficiency than brushed motors, resulting in less energy loss during operation.
2)Durability: The absence of brushes and commutators in BLDCs means they are less prone to mechanical wear and tear, and can last longer.
3)Reliability: BLDCs use permanent magnet synchronous technology, resulting in a highly reliable and stable performance.
4)Compact: BLDCs are typically smaller and more compact than brushed motors, making them suitable for applications where space is limited.
1)Efficiency: BLDCs typically have a higher efficiency than brushed motors, resulting in less energy loss during operation.
2)Durability: The absence of brushes and commutators in BLDCs means they are less prone to mechanical wear and tear, and can last longer.
3)Reliability: BLDCs use permanent magnet synchronous technology, resulting in a highly reliable and stable performance.
4)Compact: BLDCs are typically smaller and more compact than brushed motors, making them suitable for applications where space is limited.
Application:
The brushless dc motor are widely used in various fields, including Home Appliance, Cosmetic Instrument, Smart Home, Fascial Gun,Medical Equipment,etc.
BLDC motors are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
BLDC motors are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packing & Delivery

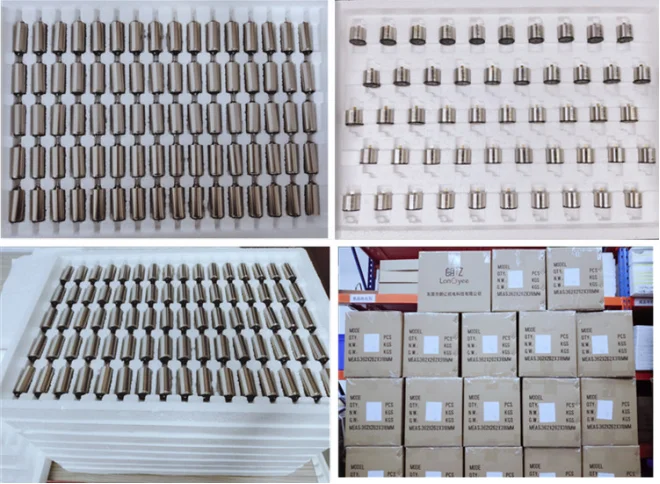

Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.

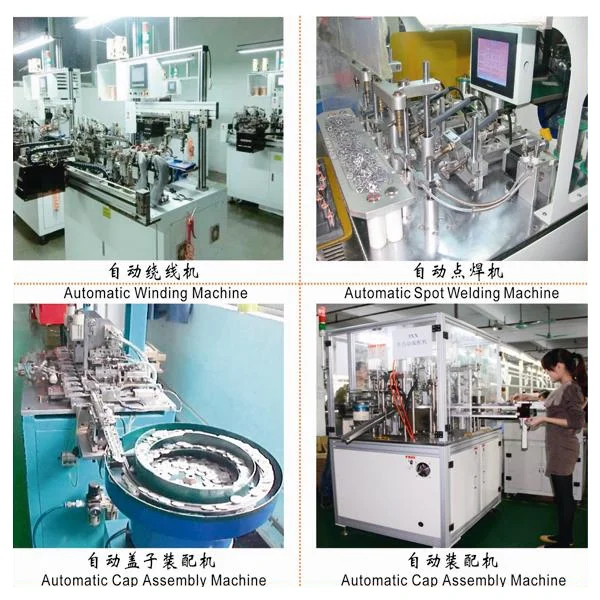

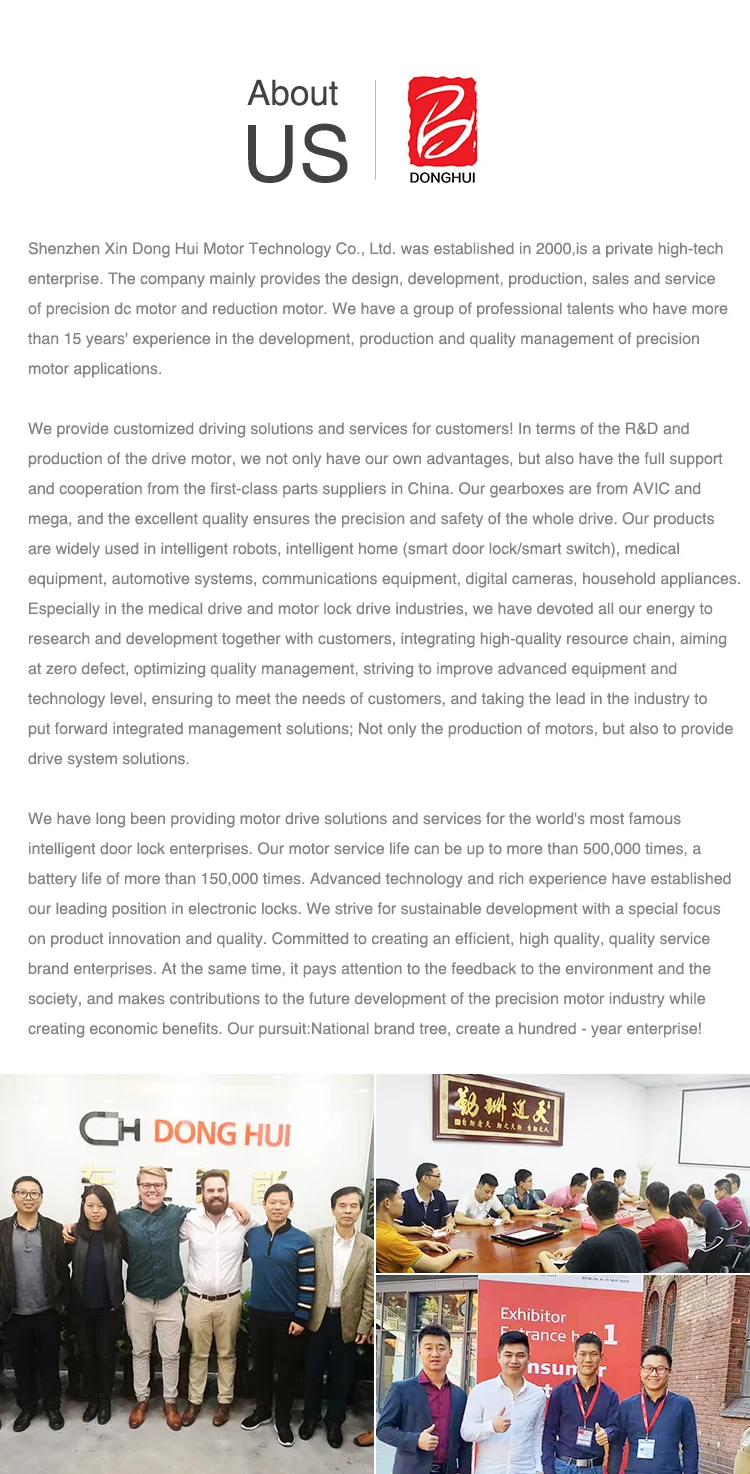

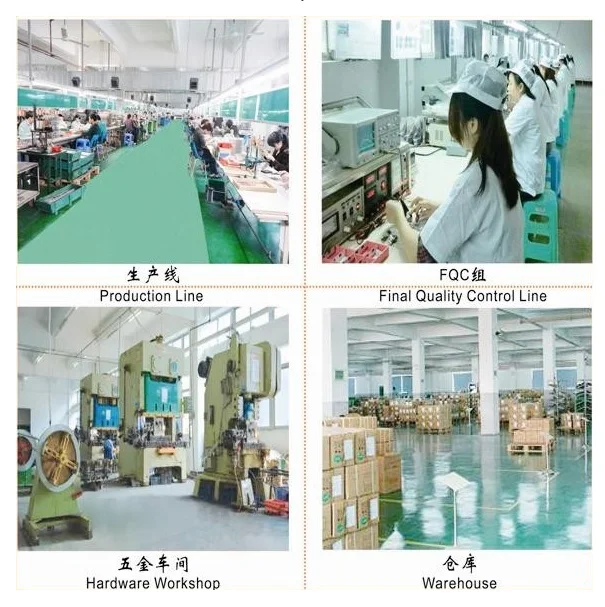

Company Profile
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required,including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application
and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract /deposit → mass production→cargo ready → balance/delivery → further cooperation
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required,including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application
and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract /deposit → mass production→cargo ready → balance/delivery → further cooperation
