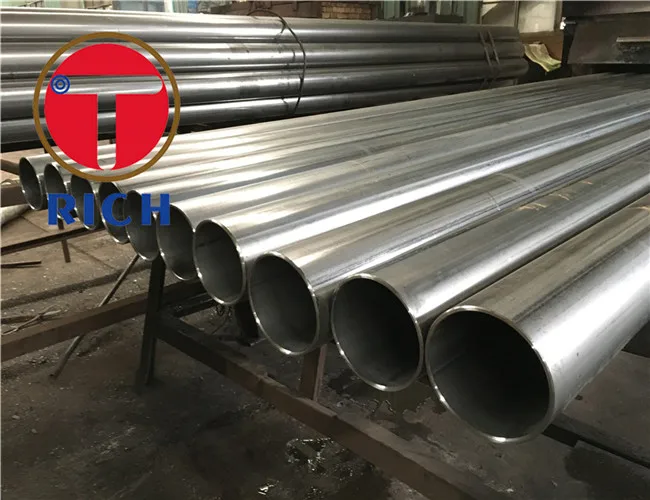

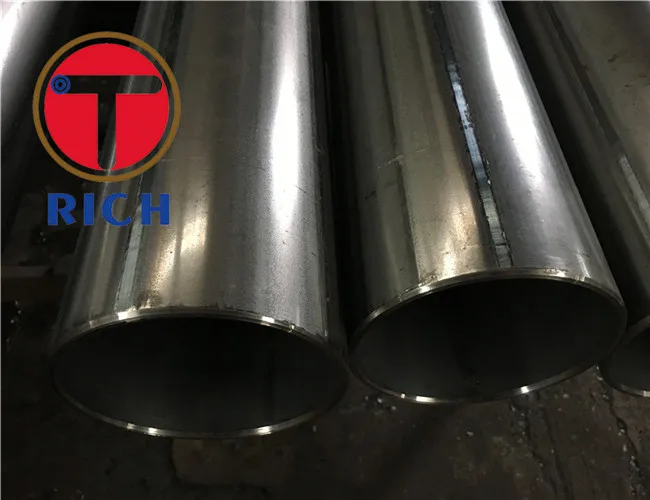

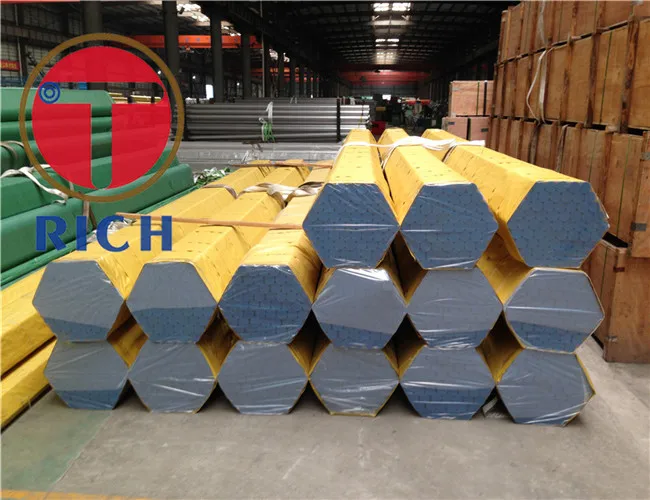

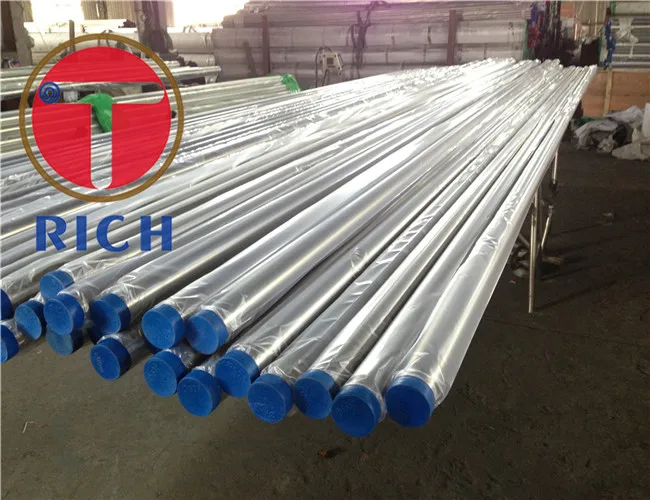

GB/T12770 Material 12Cr18Ni9 019Cr19Mo2NbTi Welded Stainless Steel Tubes for Mechanical Structures
- Category: >>>
- Supplier: Ningbo Timely Import And Export Co. Ltd.
Share on (60740924298):
Product Overview
Description
GB/T12770 Material 12Cr18Ni9 019Cr19Mo2NbTi Welded Stainless Steel Tubes for Mechanical Structures
Product Name: GB/T12770 Material 12Cr18Ni9 019Cr19Mo2NbTi Welded Stainless Steel Tubes for Mechanical Structures
Size range: O.D.:3-500mm W.T.:0.5-50mm L:2000-12000mm according to customers' actual application and production.
Application : For Mechanical Structures purposes
Steel Grade: 12Cr18Ni9,06Cr19Ni10,022Cr19Ni10,06Cr25Ni20,022Cr22Ni5Mo3N,019Cr19Mo2NbTi,06Cr13Al
Table1Tolerance of OD
Classification | Nominal OD | Permissible Tolerance | ||
PC | PB | PA | ||
H T | <25 | ±0.20 | ±0.15 | ±0.10 |
≥25~<40 | ±0.30 | ±0.25 | ±0.20 | |
≥40~<63 | ±0.50 | ±0.30 | ±0.25 | |
≥63~<90 | ±0.60 | ±0.50 | ±0.40 | |
≥90~<159 | ±0.80 | ±0.65 | ±0.50 | |
≥159~<300 | ±0.8%D | ±0.7%D | ±0.5%D | |
≥300~<610 | ±0.1%D | ±0.8%D | ±0.6%D | |
≥10 | protocol | protocol | protocol | |
WC SP | <25 | ±0.15 | ±0.12 | ±0.10 |
≥25~<40 | ±0.20 | ±0.15 | ±0.13 | |
≥40~<50 | ±0.20 | ±0.18 | ±0.15 | |
≥50~<60 | ±0.25 | ±0.20 | ±0.18 | |
≥60~<90 | ±0.30 | ±0.28 | ±0.25 | |
≥90~<100 | ±0.40 | ±0.35 | ±0.30 | |
≥100~<200 | ±0.5%D | ±0.4%D | protocol | |
≥200 | protocol | protocol | protocol | |
Table 2Tolerance of WT
Nominal WT | Permissible Tolerance |
<0.5 | ±0..10 |
≥0.5~1.0 | ±0.15 |
>1.0~2.0 | ±0.20 |
>2.0~<4.0 | ±0.30 |
≥4.0 | ±10%S |
Table3 The density of the steel and Calculation of Theoretic Weight
No. | Steel Grade | Density/(kg/dm3) | The formula after conversion |
1 | 12Cr18Ni9 | 7.93 | W=0.02491S(D-S) |
2 | 06Cr19Ni10 | ||
3 | 022Cr19Ni10 | 7.90 | W=0.02482S(D-S) |
4 | 06Cr25Ni20 | 7.98 | W=0.02507S(D-S) |
5 | 06Cr17Ni12Mo2 | 8.00 | W=0.02513S(D-S) |
6 | 022Cr17Ni12Mo2 | ||
7 | 06Cr18Ni11Ti | 8.03 | W=0.02523S(D-S) |
8 | 06Cr18Ni11Nb | ||
9 | 022Cr22Ni5Mo3N | 7.80 | W=0.02450S(D-S) |
10 | 022Cr23Ni5Mo3N | ||
11 | 022Cr25Ni7Mo4N | ||
12 | 022Cr18Ti | 7.70 | W=0.02491S(D-S) |
13 | 019Cr19Mo2NbTi | 7.75 | W=0.02435S(D-S) |
14 | 06Cr13Al | ||
15 | 022Cr11Ti | ||
16 | 022Cr12Ni | ||
17 | 06Cr13 |
GB/T12770 Material 12Cr18Ni9 019Cr19Mo2NbTi Welded Stainless Steel Tubes for Mechanical Structures
