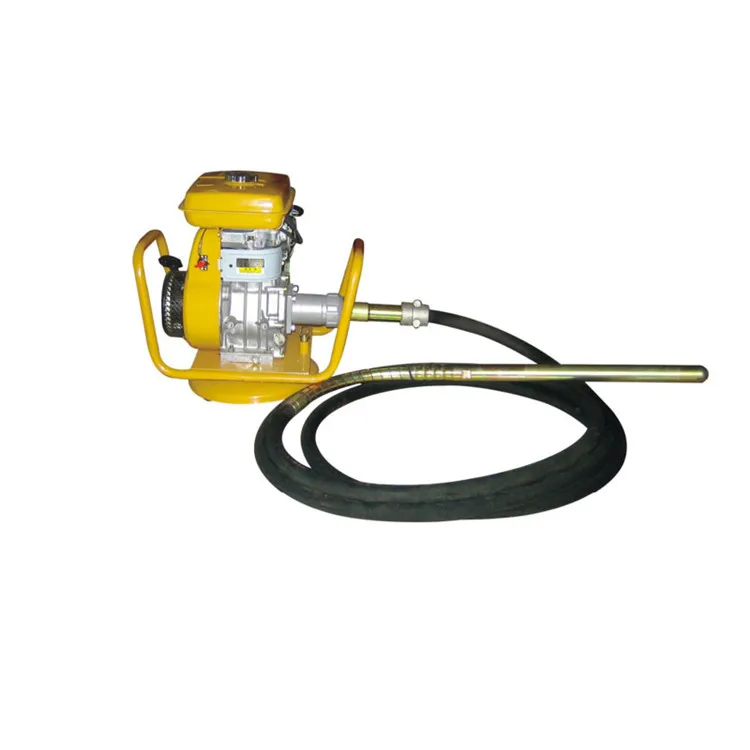

Concrete vibrator drive unit gasoline engine and poker
Description:
Internal concrete vibrators use the pendulum principle. 3,000rpm of the drive unit translates via the flexible shaft into 12, 000 vibrations per minute in the poker head. The low output speed ensures high reliability and extended service life. It can be used between two types of drive units (interchangeable): electrical motor and petrol or diesel engine drive unit series, with 7 standard poker diameters. The vibrator poker is top of the range poker head suitable for professional application.
JK serials vibrator poker 4~12m length, Bar diameter 28mm, 32mm, 38mm, 45mm, 50mm, 60mm, 70mm
Features:
Stable operation
Good mechanical performance
Band pressing design, easy to mend the poker
Good anti-wear performance

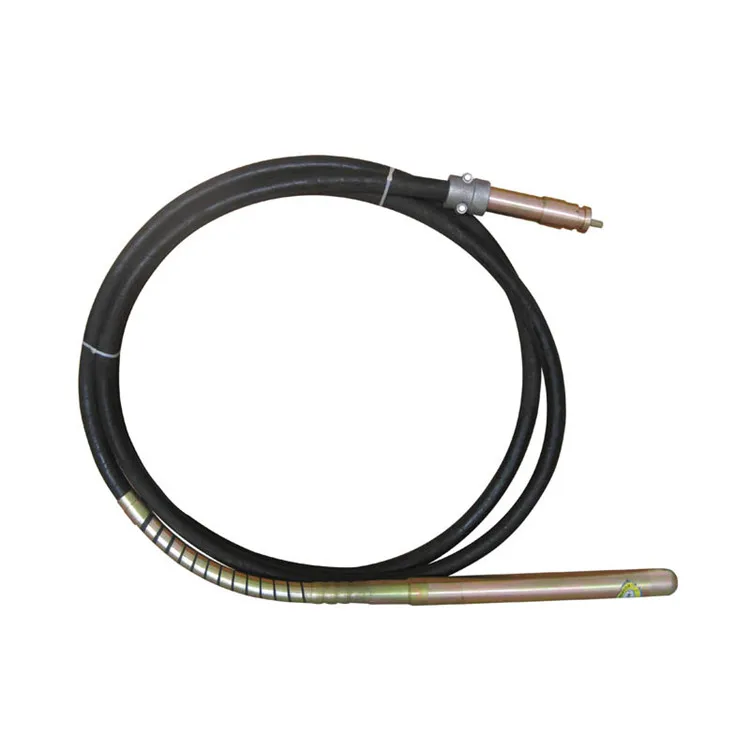

JK-SERIES Inserting Pendulum Vibrator Poker
| Model | Vibrating Head Size | Vibration (V.P.M) | Vibration Amplitude (mm) | Flexible Shaft Diameter | Rubber Hose Diameter and Length |
| APV-28 | 28mmx47cm | 10,000~15,000 | 0.9 | 8mm | |
| APV-32 | 32mmx47cm | 1.1 | 10mm | 30mmx4m~6m | |
| APV-38 | 38mmx47cm | 1.6 | 12mm | 32mmx4m~6m | |
| APV-45 | 45mmx47cm | 2 | 12mm | 32mmx4m~6m | |
| APV-50 | 50mmx47cm | 2.2 | 13mm | 32mmx4m~6m | |
| APV-60 | 60mmx47cm | 9,000~12,000 | 2.4 | 13mm | 32mmx4m~6m |
| APV-70 | 70mmx47cm | 2.6 | 14mm | 36mmx4m~6m |

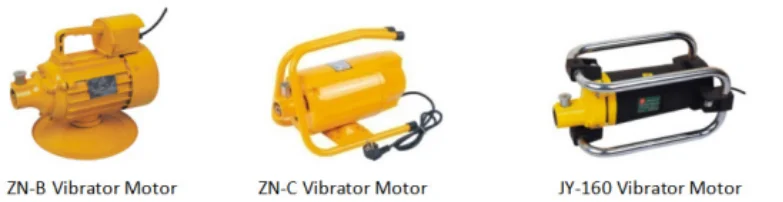

Concrete Vibrator Driven unit- electrical vibrator motor
Additional Specification
| Model | Motor type | Voltage | Power | Frequency | Speed | Weight | Dimension |
| ZN-B | Brushless | 110v/220v/380v | 1.5hp/2hp/3hp | 50/60hz | 2850rpm | 16kgs | 37x29x32cm |
| Motor | |||||||
| ZN-C | 110v/220v/380v | 1.5hp/2hp/3hp | 50/60hz | 2850rpm | 18kgs | 35x28x30cm | |
| JY160 | Brush motor | 110v/220v | 1.6kw | 50/60hz | 4000rpm, | 7kgs | 41x22x22cm |

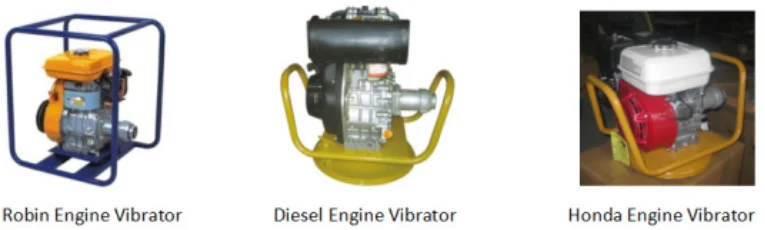

Concrete Vibrator Driven unit- gasoline engine/diesel engine
Additional Specification
| Model | Engine type | Power | Speed | Weight | Dimension |
| DVR20 | Robin Engine EY20 | 5hp | 3600rpm | 21kgs | 51x38x53cm |
| DVD170 | Diesel Engine 170F | 4hp | 3600rpm | 31kgs | 56x45x60cm |

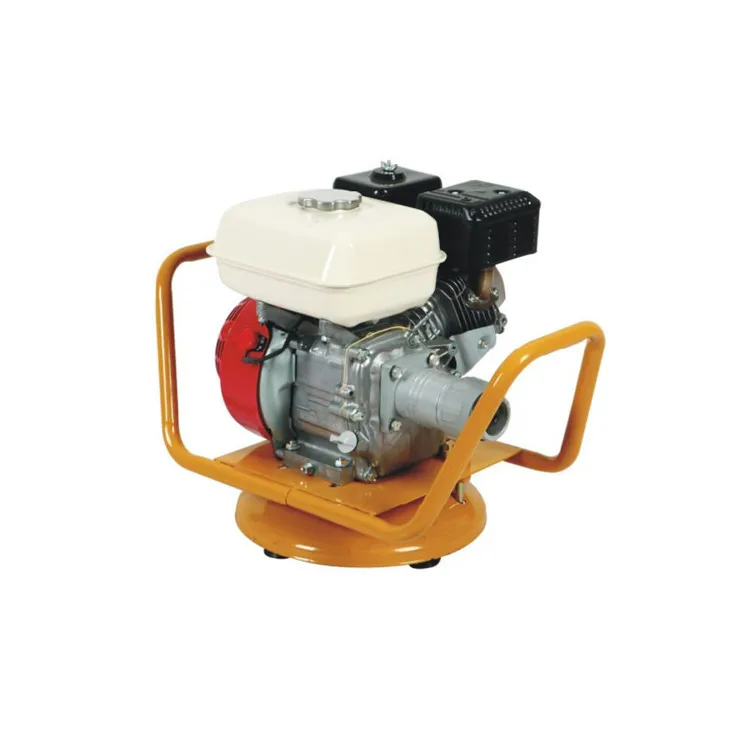

| DVH160 | Honda Engine GX160 | 5.5hp | 3600rpm, | 21kgs | 53x38x45cm |
| DVL168 | Lifan Engine 168F | 5.5hp | 3600rpm | 21kgs | 53x38x45cm |

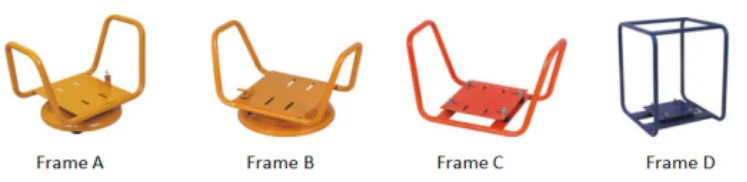

Engine Frame – typical frame
