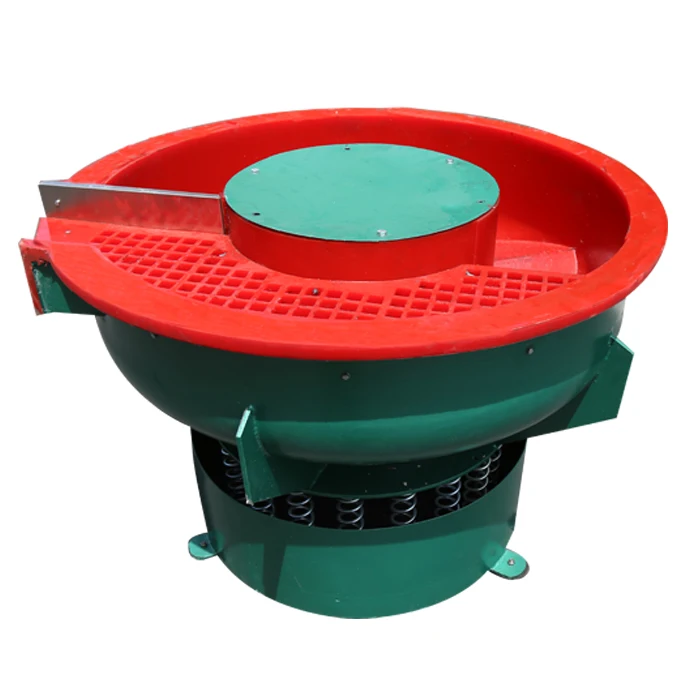

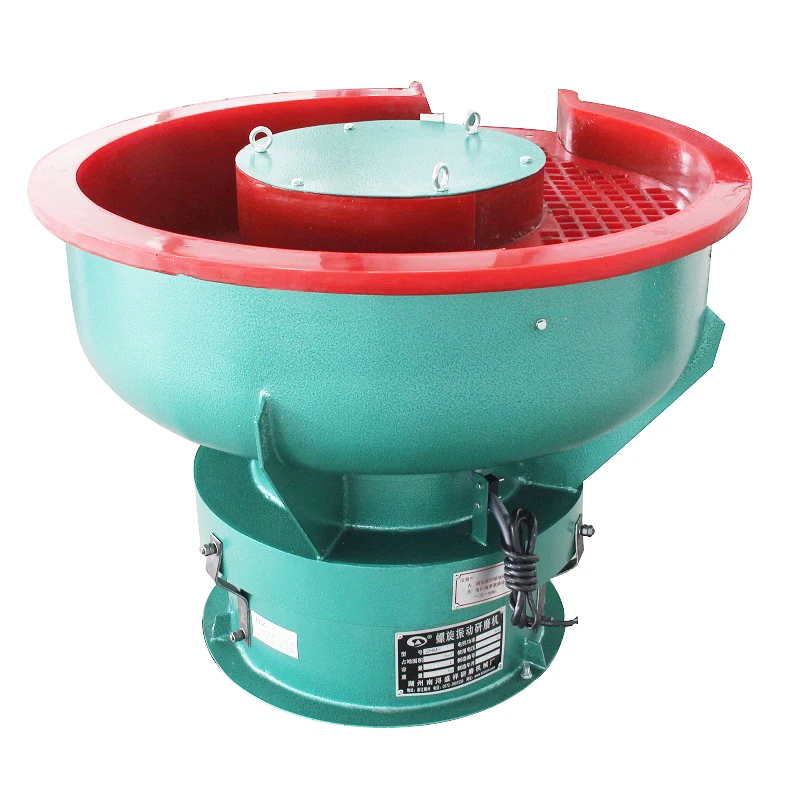

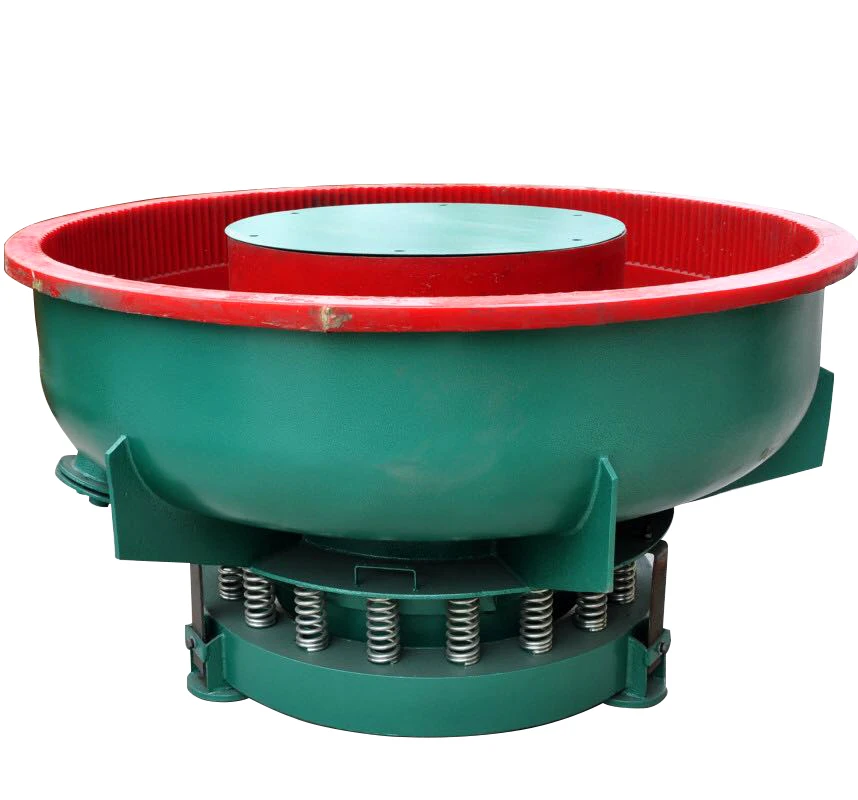

Small Parts Vibratory Deburring Machine
Vibratory polisher allows media periodically to contact and leave the parts, as well as enable their moving speed, direction
constantly to be changed so as to obtain a series of treatment: deburring, polishing, cleaning, rediusing, chamfering, etc.
constantly to be changed so as to obtain a series of treatment: deburring, polishing, cleaning, rediusing, chamfering, etc.
Product Details

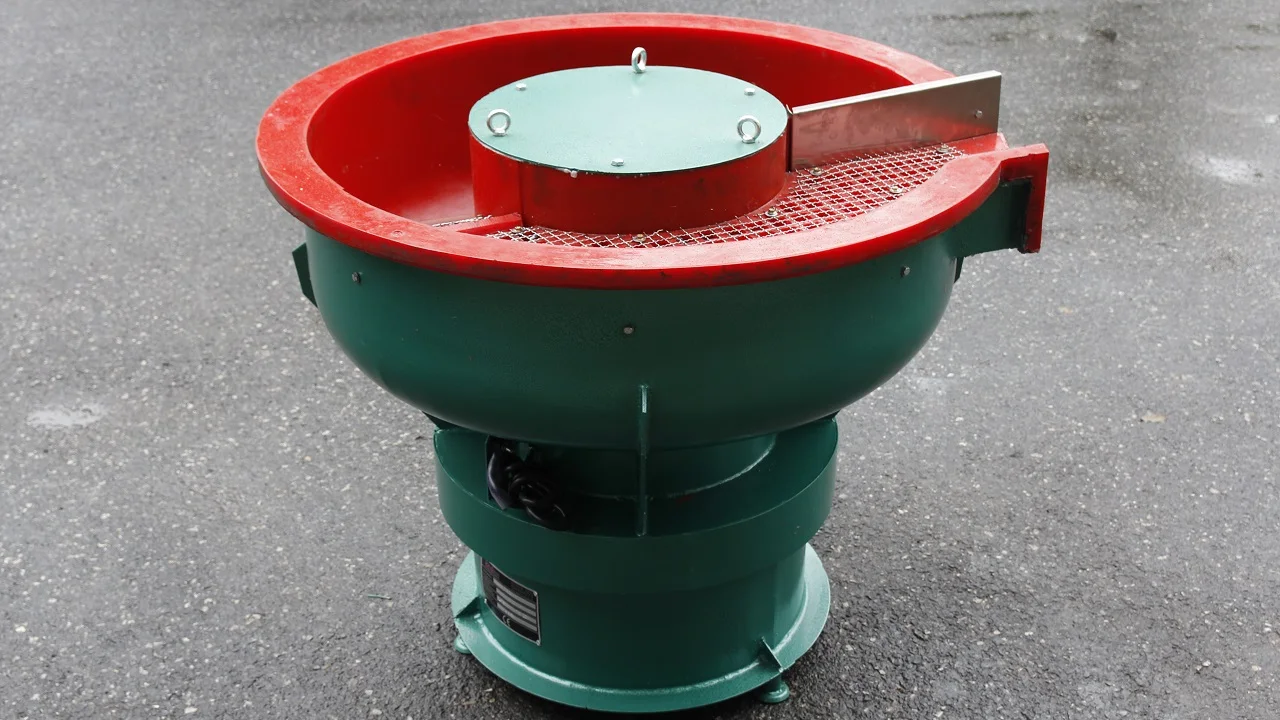

150L Industrial Vibratory Polisher, Metal Vibratory Polisher
Vibratory bowl polisher provides safe movement for contents even fragile materials because of the unique working principle, and can easily touch internal portions of the substrate, ensure corners, holes are perfectly treated. Vibratory polisher is an ideal and universal solution to get high brightness and smoothness for metal or non-metal objects.

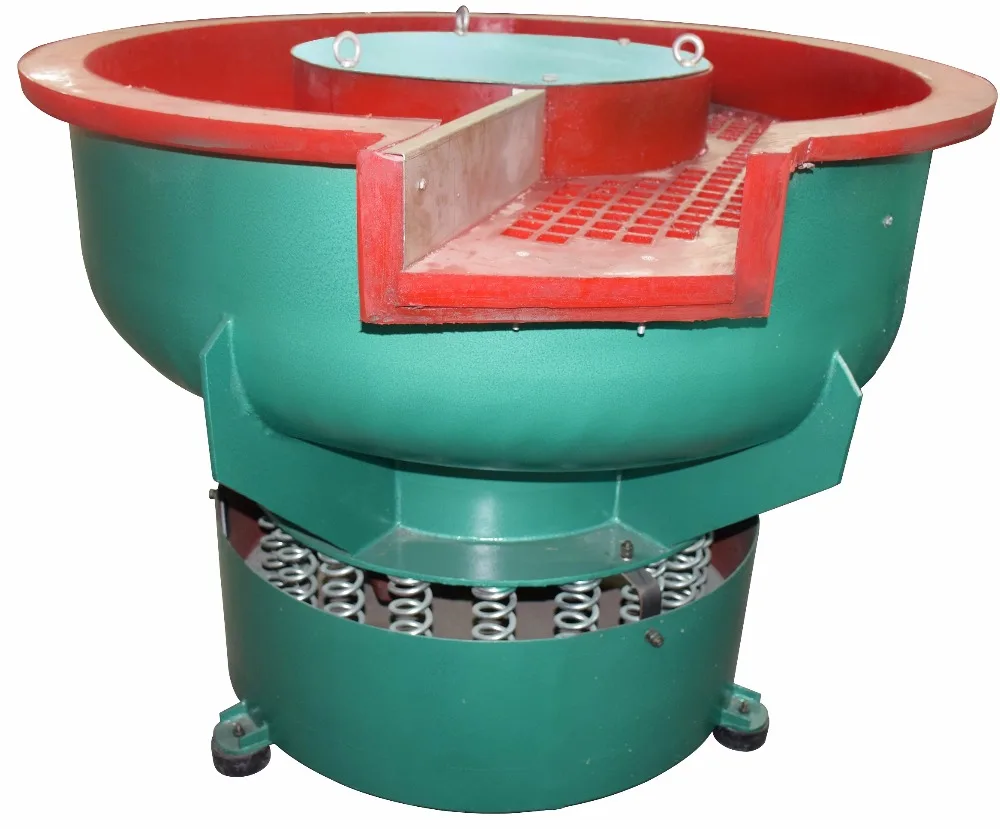

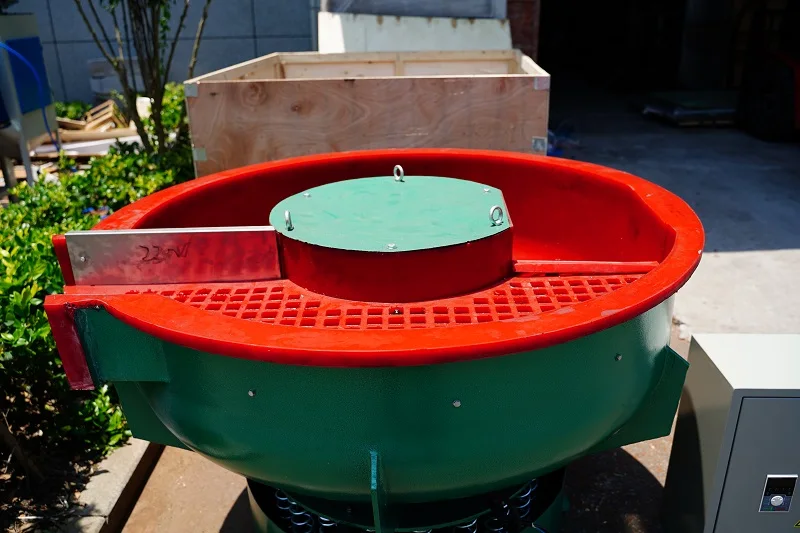

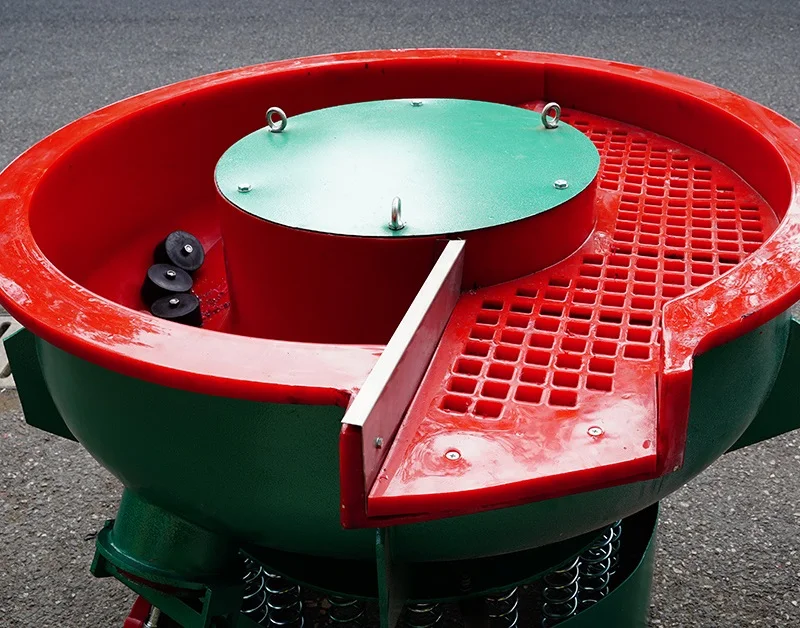

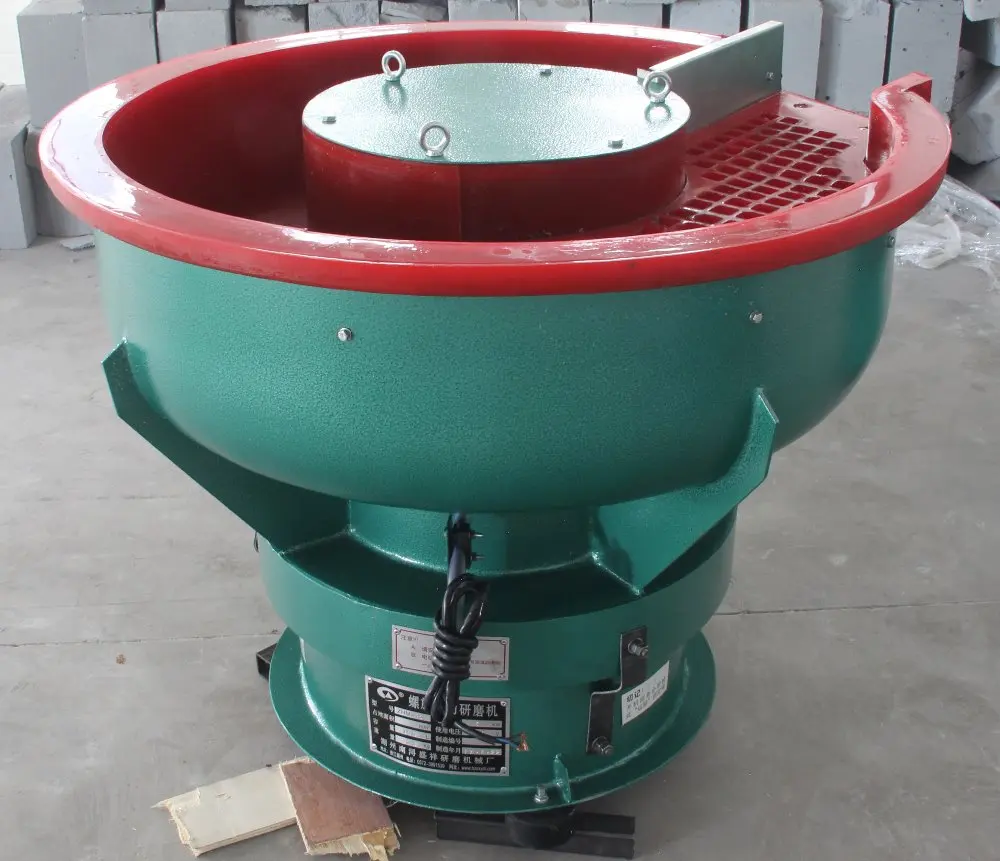

Vibratory Polisher with Media-Part-Separation
The heavy-duty vibratory bowl tumblers feature a heavy-duty motor and, an extended screen deck, These floor model
vibratory bowl tumblers deliver flexible operation with excellent overall machine performance, reliability and efficiency, all
within a compact, space-saving footprint.
* High Frequency/High Amplitude Vibratory Mass Finishing Bowl
* Engineering Heavy-Duty Motor
* AC Tech Inverter/Controller AVAIABLE
* Waterproof ON/OFF Switch
* Rugged Polyurethane Liner
* Convenient Discharge Door
* Unique Curved-Wall Construction
* Low-Profile Design
* Extended Screen Deck
* Integral Sound Cover AVAIABLE
* Easily Changeable Drain Plug
vibratory bowl tumblers deliver flexible operation with excellent overall machine performance, reliability and efficiency, all
within a compact, space-saving footprint.
* High Frequency/High Amplitude Vibratory Mass Finishing Bowl
* Engineering Heavy-Duty Motor
* AC Tech Inverter/Controller AVAIABLE
* Waterproof ON/OFF Switch
* Rugged Polyurethane Liner
* Convenient Discharge Door
* Unique Curved-Wall Construction
* Low-Profile Design
* Extended Screen Deck
* Integral Sound Cover AVAIABLE
* Easily Changeable Drain Plug
Vibro-Energy Vibratory Finishing Machine Features
LOW PROFILE DESIGN
The low-profile vibratory bowl design, together with variable speed control, supports fine-tuned operation along with efficient processing and part unloading.

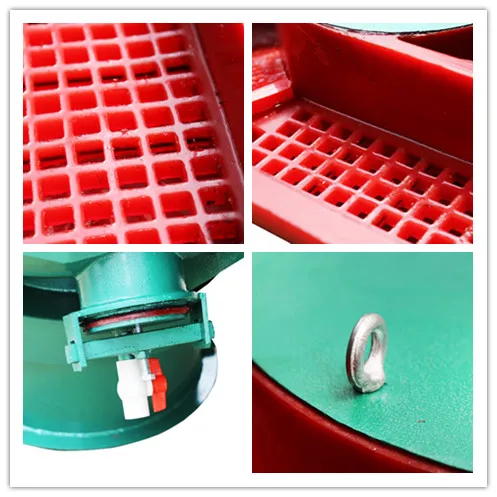

CURVED, POLYURETHANE-LINED BOWL
Maximizes machine channel utilization and offers higher cutting pressures while keeping parts in contact with media for more efficient processing and reduced impingement. High-quality, polyurethane construction for longer bowl life.

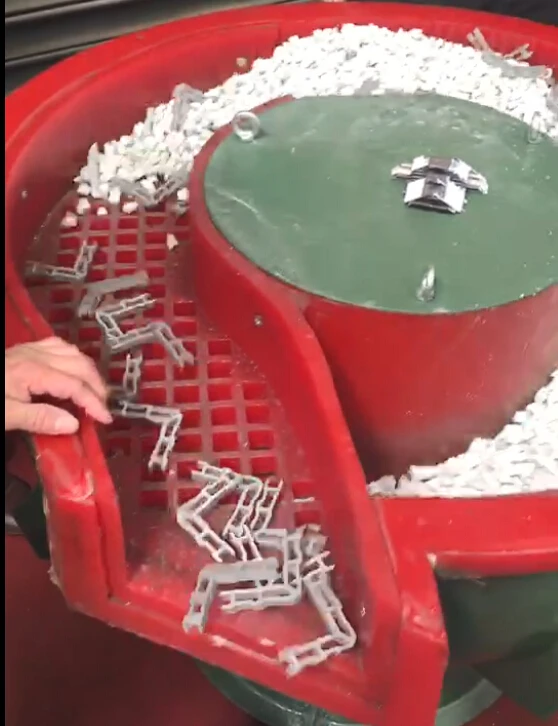

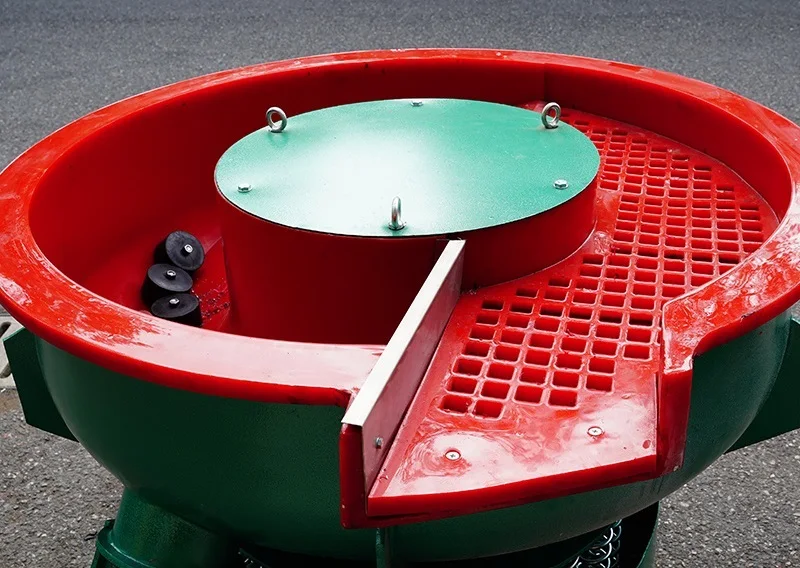

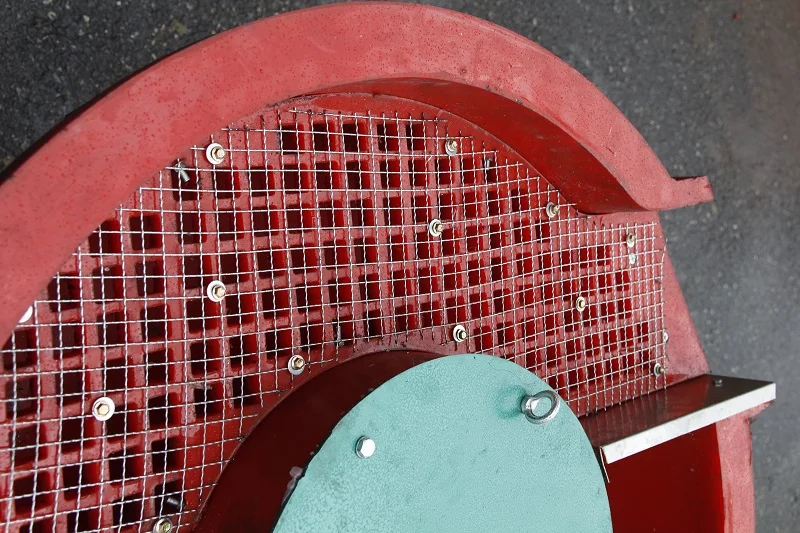

EXTENDED SCREEN DECK
Increases part separation time, and together with variable speed control and curved wall construction, assists in providing 100% parts separation under most operating conditions.
DIRECT DRIVE MOTOR - 1450 RPM
Rugged motor, heavy-duty springs, variable speed control, and low center of gravity produce high-frequency, high-amplitude action ideal for fast cutting and high intensity burnish.
The low-profile vibratory bowl design, together with variable speed control, supports fine-tuned operation along with efficient processing and part unloading.
CURVED, POLYURETHANE-LINED BOWL
Maximizes machine channel utilization and offers higher cutting pressures while keeping parts in contact with media for more efficient processing and reduced impingement. High-quality, polyurethane construction for longer bowl life.
EXTENDED SCREEN DECK
Increases part separation time, and together with variable speed control and curved wall construction, assists in providing 100% parts separation under most operating conditions.
DIRECT DRIVE MOTOR - 1450 RPM
Rugged motor, heavy-duty springs, variable speed control, and low center of gravity produce high-frequency, high-amplitude action ideal for fast cutting and high intensity burnish.

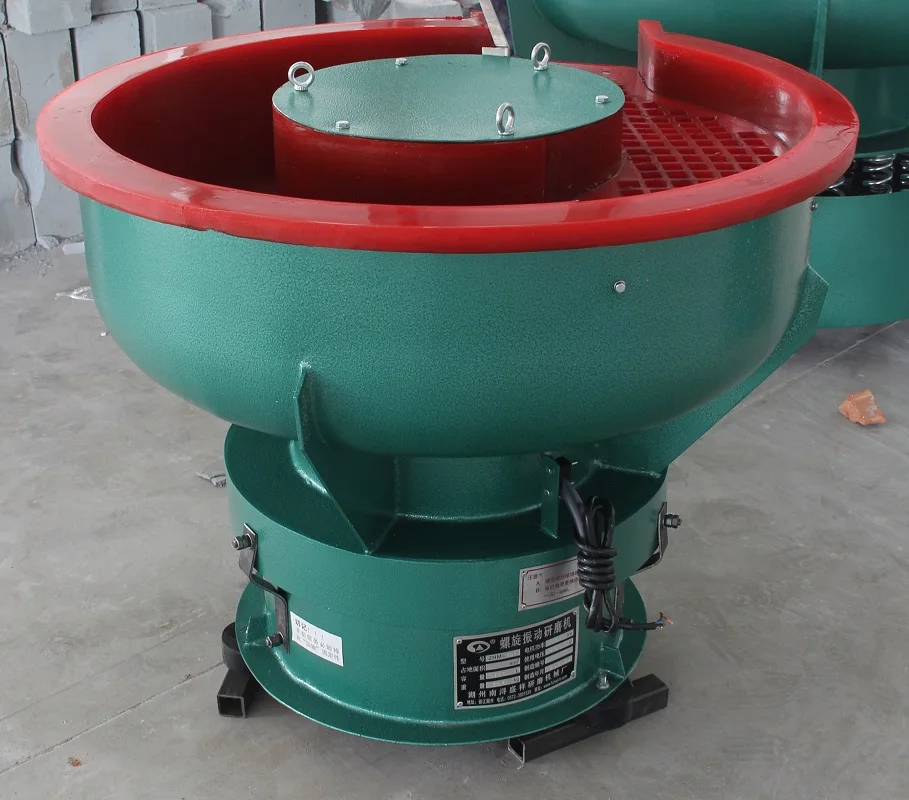

Model | KF-150AB |
Voltage | 230V/380V/440V, 50Hz/60Hz, 3 Phase |
Capacity: | 150 L |
Size : | 1150*1100*900mm |
Speed: | 1450 r/min |
Estimated weight: | 380KGS |
Equipped With: | All polyurethane linning Heavy-duty bowl and base Customized Screen Automatic separation |
Optional Items | Sound Enclosures Variable Frequency Amplitude Adjustable Tube Divider |
Application
Tumbler Polishing Equipment Bowl Finishing Machine

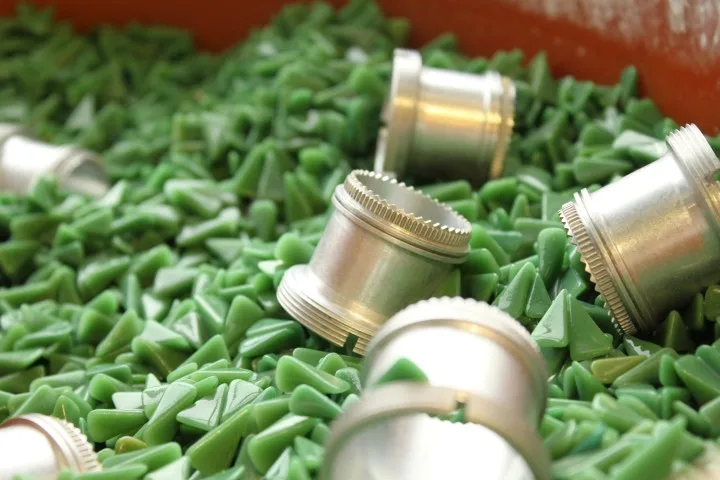

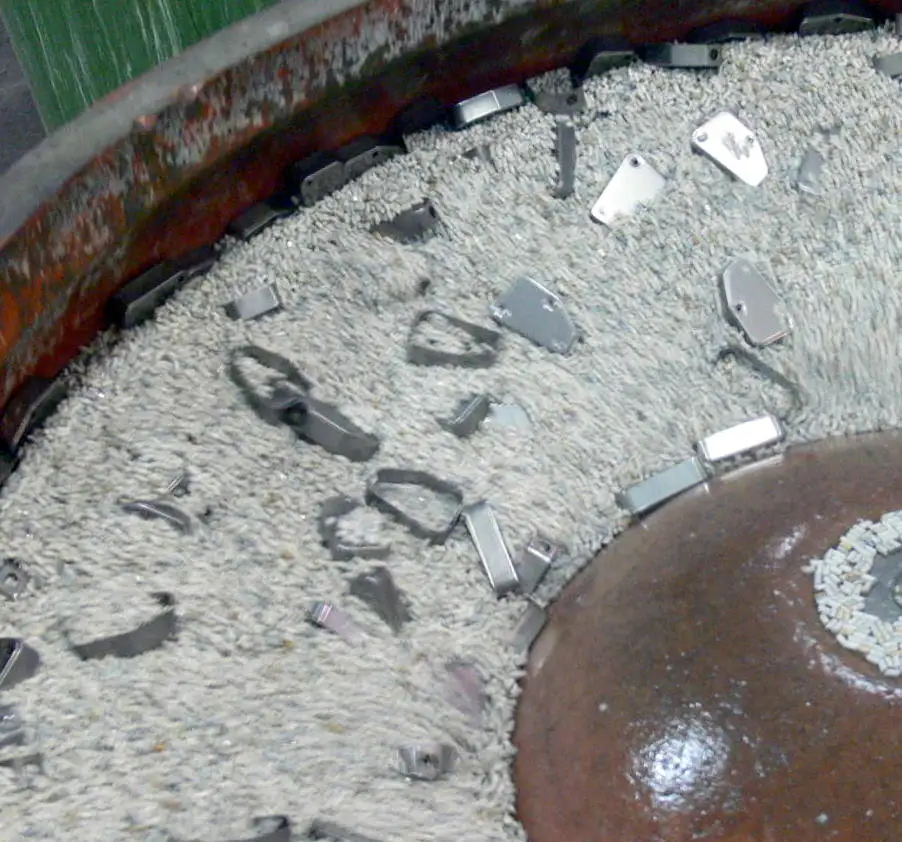

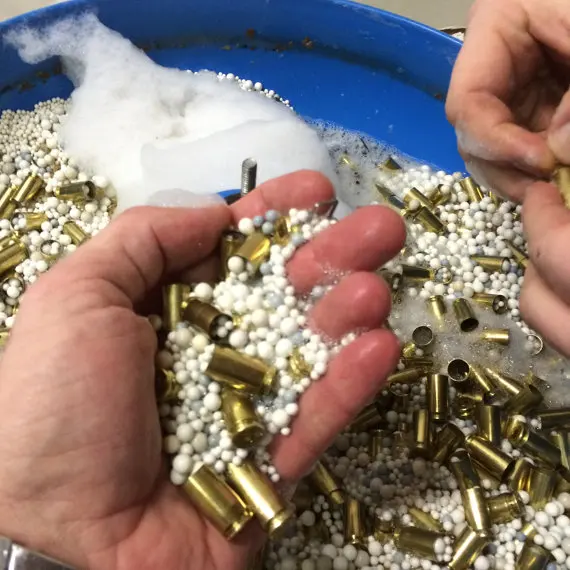

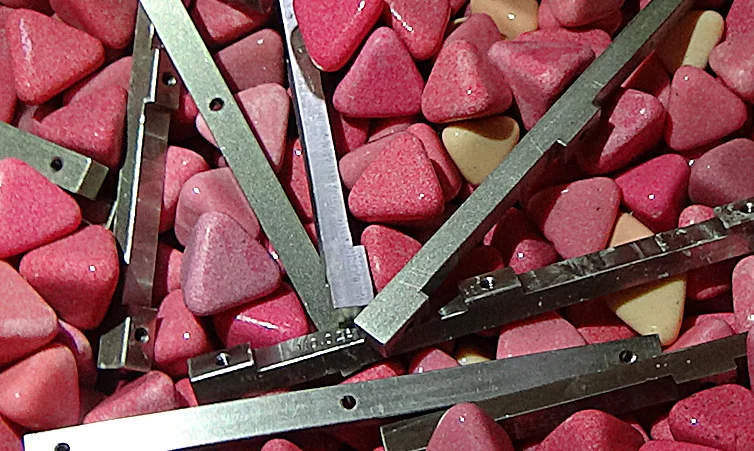

Tumbler polishing equipment driven by a vibration motor, the mixture of polishing media and compounds constantly contacts the part's surface, their mutual friction attain the purpose of deburring and polishing.

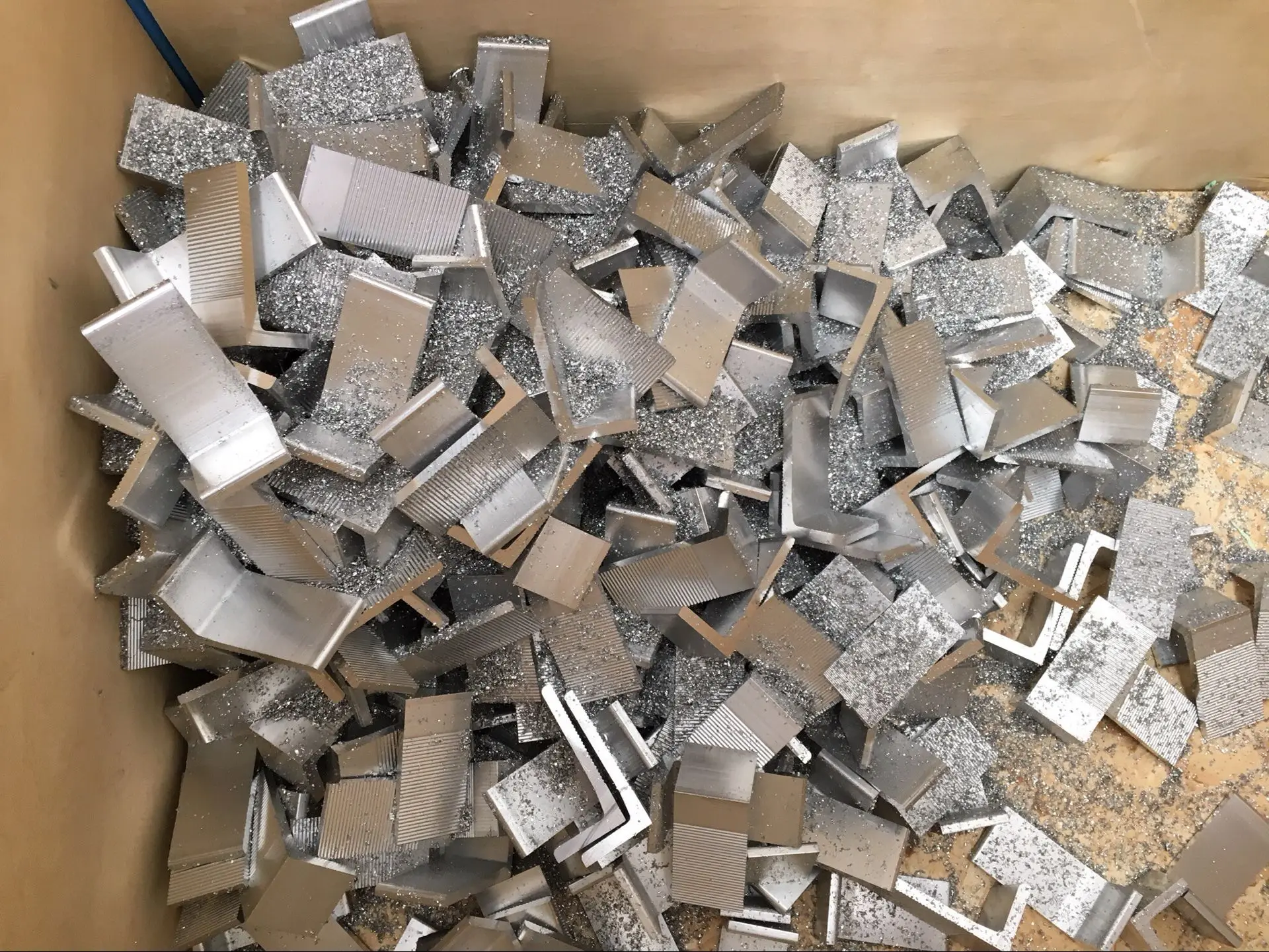

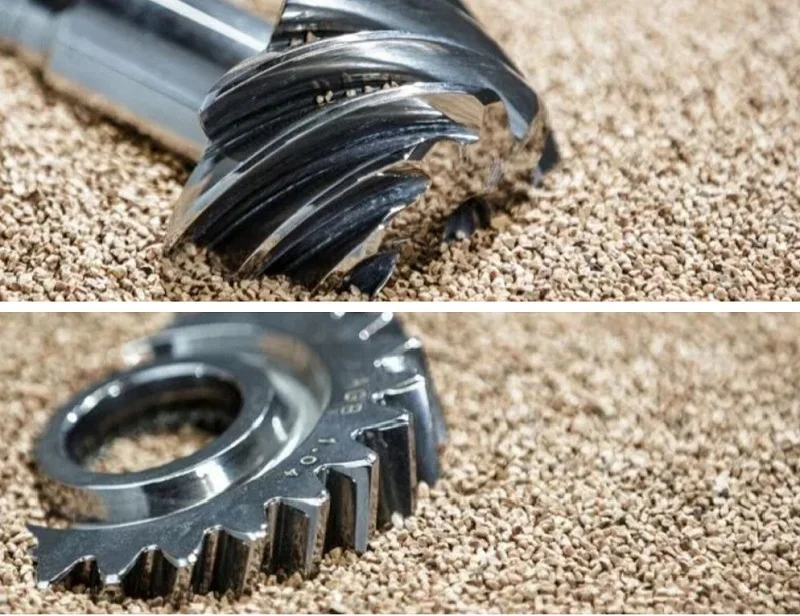

It is a economical choice for mass finishing of small parts, such as deburring metal and plastic parts; polishing brass, aluminum, stainless steel, ceramic; rediusing and chamfering industry parts, etc.
Recommend Products
Product packaging
All our polishing machines comply with international export standards and are available in wooden boxes and foam films
Certifications
Company Profile
Hangzhou Kafan Machinery & Equipment Co., Ltd
Kafan, is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
Located in Hangzhou, China, we have our own a manufacturing building base that owns professional staff and production equipment, our employees is divided into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.
FAQ
Q1: What is the regular packaging?
A: We use wooden package. Membrane packaging for large equipment.
Q2: How to proceed an order for our productds?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q3: Can you do the design for us?
A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.
Q4: Do you have any MOQ requirment.
A:Different products have different MOQ,please contact us for details.
Q5. How do you ensure the products delivered are in High Quality?
A: We use wooden package. Membrane packaging for large equipment.
Q2: How to proceed an order for our productds?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q3: Can you do the design for us?
A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.
Q4: Do you have any MOQ requirment.
A:Different products have different MOQ,please contact us for details.
Q5. How do you ensure the products delivered are in High Quality?
A: All the Products will be pass test before delivery.
