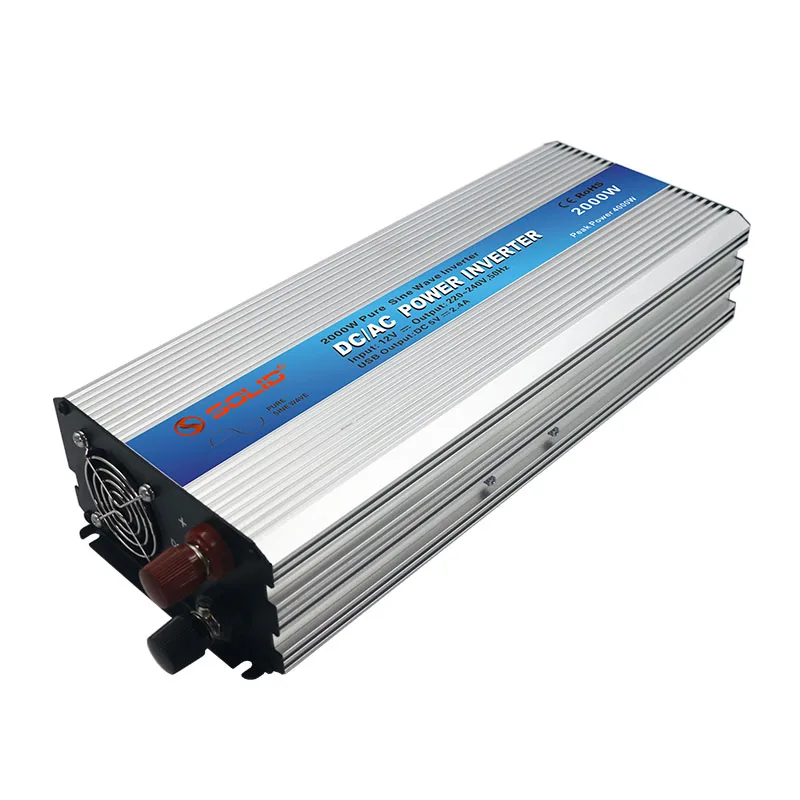

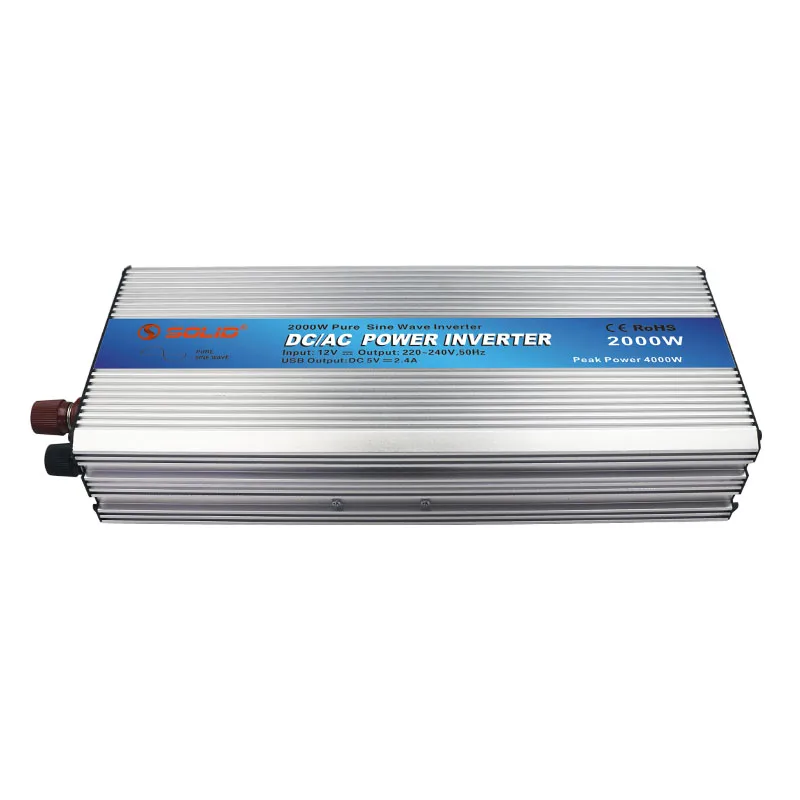

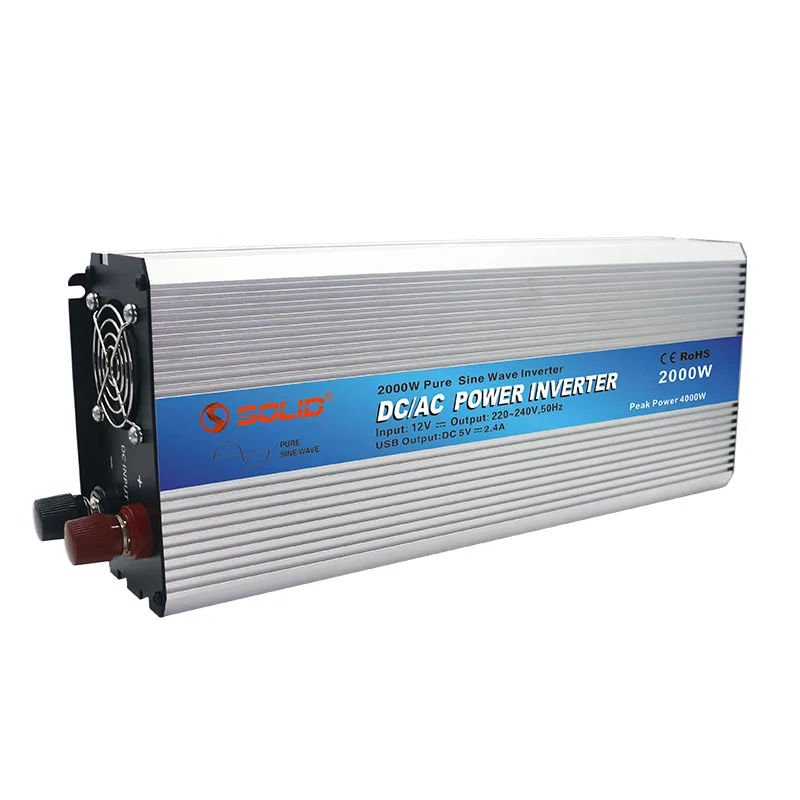

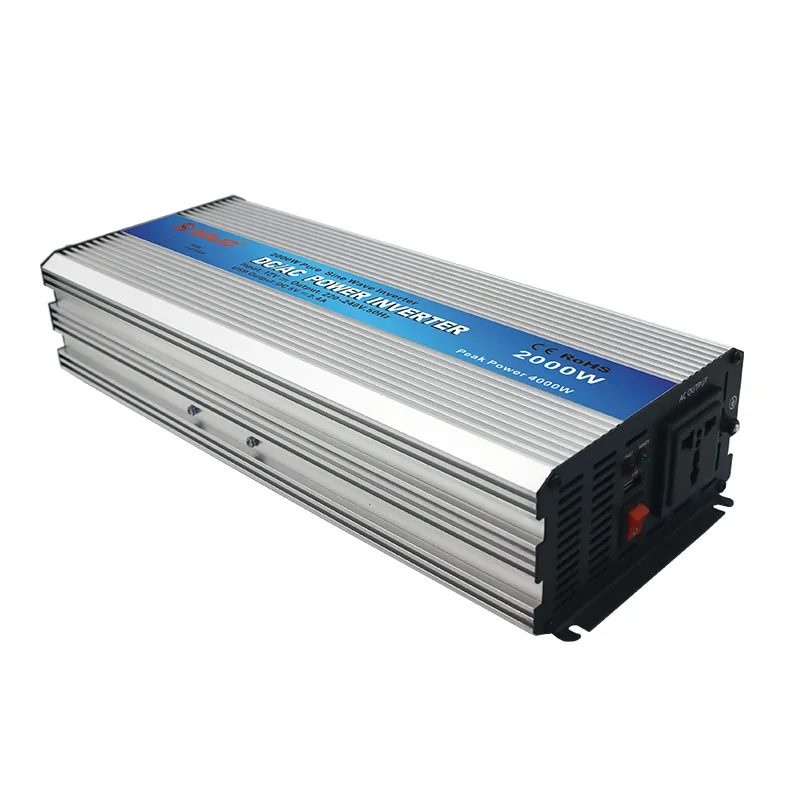

Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter
Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter
Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter
Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter
Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter
Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter
Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter

Off Grid Single Phase Pure Sine Wave Power Inverter Inversor 2000W DC 12 24 Volt To AC 110 220 Volt 2KW Power Inverter

Share on (60740976738):


Price:

Quantity:


Product Overview

Description











1. With Soft Start Function, It's Better for Inductive Loads.
2. Continuously Full Loaded Working.
3. Advanced Technology to Ensure Top Quality.
4. Efficiency: Above 90%.
5. USB output 5V, 2.1A
6. Compact and Stylish Design
7. Package: Gift Cartons
8. Warranty: 18 Months

Product Features:

·Anodized aluminum case provides durability and max heat dissipation.

·High quality DC cigarette lighter plug and heavy duty cable make sure the safety.

·Automatic restart function, a protection occurred, when the data come back normal, it will restart automatically or by man.
·There are two LED indicators show the working and failure states.
·ON/OFF switch to start or turn off the inverter by man.
·The inverters are very compact, light and easily for installing and operating.
·Loads can be powered directly from the AC outlets.
·The inverters are equipped with numerous protection features to guarantee safety and trouble-free.

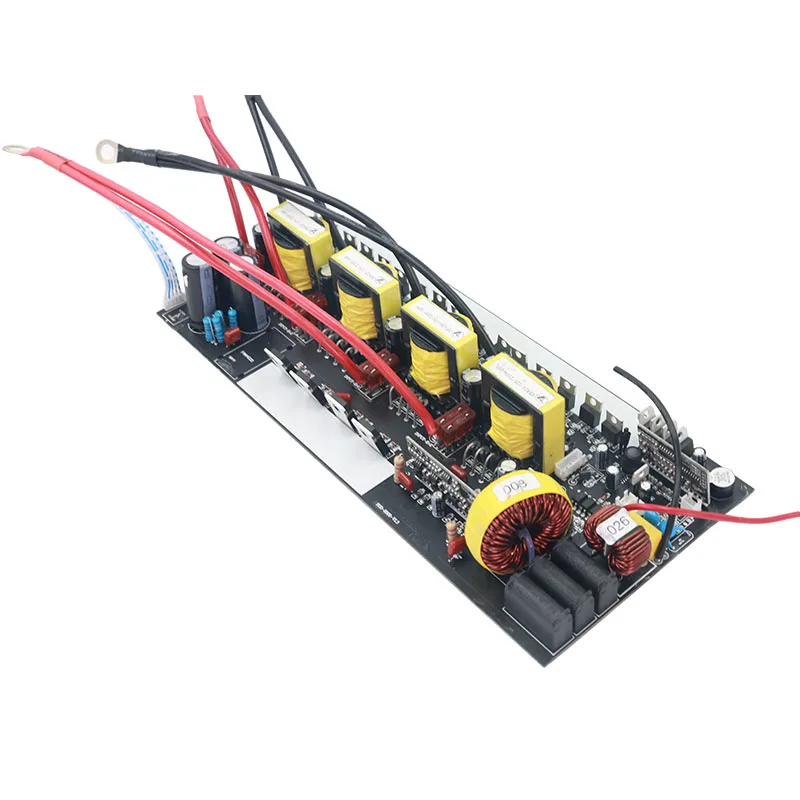

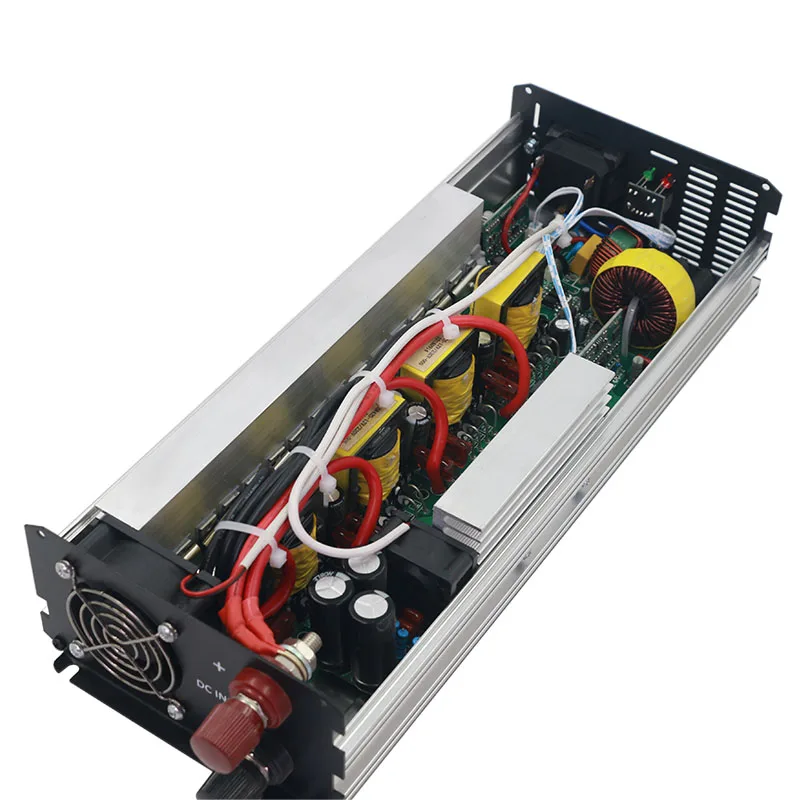

·Advanced PCB design and workmanship.


Model
SOD-2000-121
SOD-2000-241
SOD-2000-481
SOD-2000-122
SOD-2000-242
SOD-2000-482






Output
AC voltage
100V/110V/120V
220V/230V/240V
Rated power
2000W
Surge power
4000W
Waveform
Pure sine wave
Frequency
50Hz/60Hz±3Hz
AC regulation
5%
AC outlet
A,B,C,D,E,F,G,H,I etc.

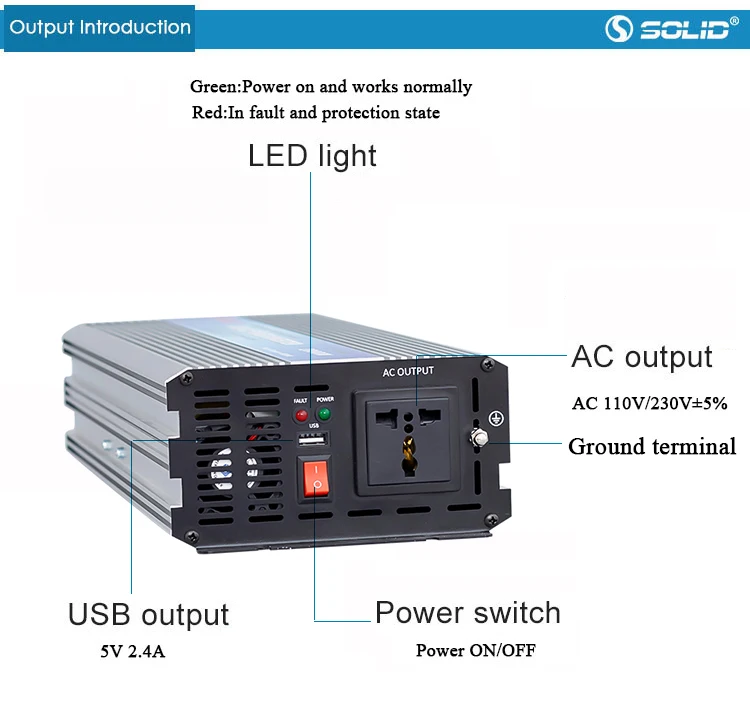

LED indicator
Green for power on;Red for fault or protection status
USB
5V 2.4A


Input
DC voltage
12V
24V
48V
12V
24V
48V
Voltage range
10.5-15.0V
21.0-30.0V
42.0-60.0V
10.5-15.0V
21.0-30.0V
42.0-60.0V
Efficiency
＞87%
＞90%
＞90%
＞90%
＞90%
＞90%
No load current
＜1.0A










Protection
Battery low voltage alarm
11±0.5V
22±1V
44±2V
11±0.5V
22±1V
44±2V
Battery low voltage shut down

10.5±0.5V

21.0±1V

 42.0±2V

10.5±0.5V

21.0±1V

 42.0±2V
Recovery voltage after LVS

11.8-12.8V

23.6-25.6V

47.2-51.2V

11.8-12.8V

23.6-25.6V

47.2-51.2V
Over voltage
14.8±0.5V
29.6±1V
59.2±2V
14.8±0.5V
29.6±1V
59.2±2V
Over load
Shut down
Over temperature
Shut off output voltage,recover automatically after temperature goes down
Short circuit
Shut off output voltage,restart to recover
Battery reverse polarity
Fuse burnt
Soft start
Yes,5-10s
Grounding
Yes


Other
Dimension
43.2*22.5*10cm
Net weight
6.3kg
Packing
4pcs/35kg/56.5*31.5*24.5cm/CTN

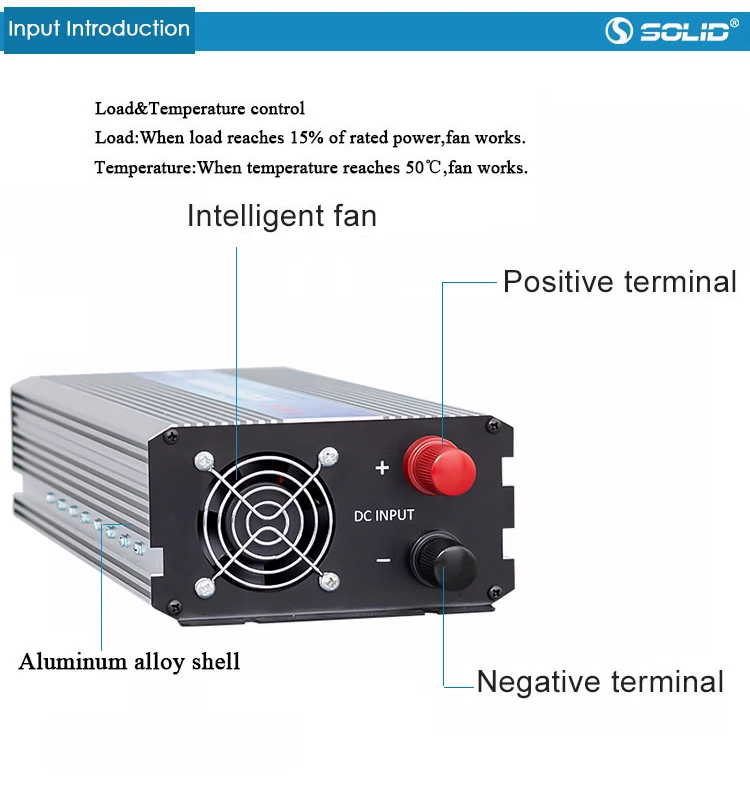

Cooling fan
Activated by load and temperature
Certification
CE-EMC/LVD,RoHS
Warranty
2 years
