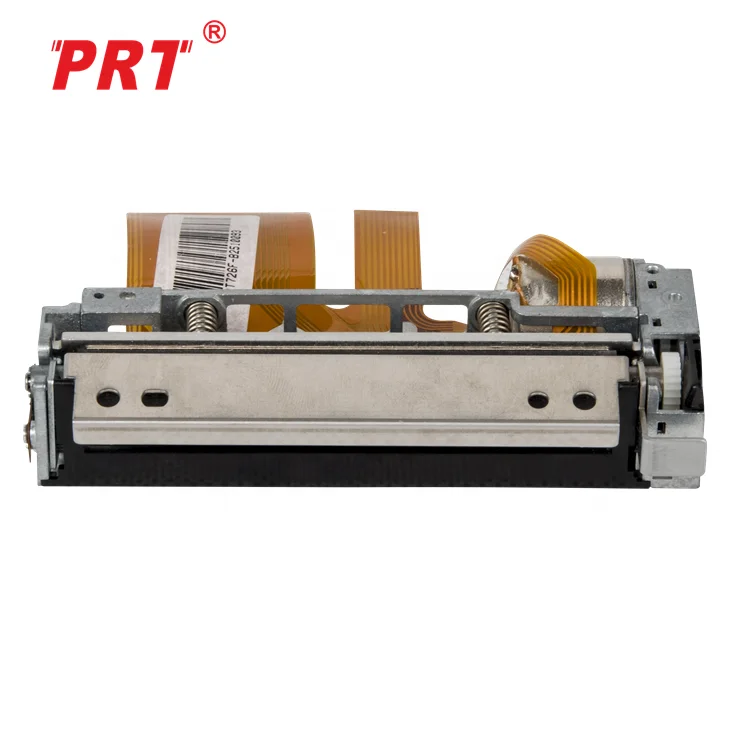

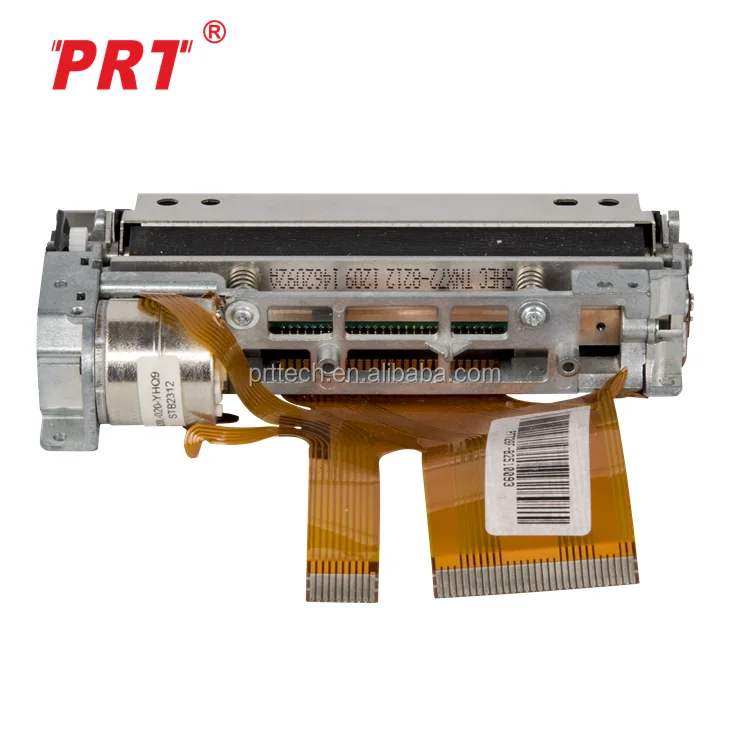

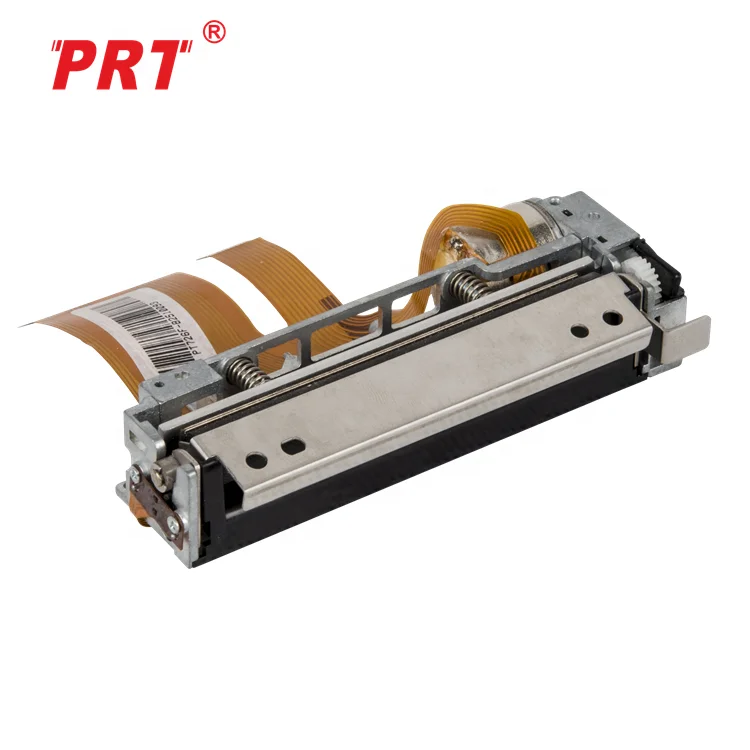

PT726 Low Noise 3 Inch Direct Thermal Printer Mechanism For Ticketing
- Category: >>>
- Supplier: Xiamen PRT Technology Co. Ltd.
Share on (60741018367):
Product Overview
Description
PT726
Features:
l Low noise, rugged and durable
l Easy paper loading
l Curved paper path
l Platen latch function
l Platen block support function
Specification:
Series Model | PT726 |
PRINTING CHARACTERISTICS | |
Print Method | Direct line thermal |
Resolution | 8 dots/mm |
Max. Printing Width | 72mm |
Number of Dots | 576 |
Paper Width | 79.5±0.5mm |
Max. Printing Speed | 200mm/s |
Paper Path | Curved |
DETECTION | |
Head Temperature | By thermistor |
Paper Out | By photo sensor |
Platen Open | By mechanical SW |
POWER SUPPLY | |
TPH Logic Voltage | 3.0V-5.5V |
Drive Voltage | 24V ± 10% |
PEAK CURRENT | |
Head(Max.) | 4.0A(24V/144dots) |
Motor | 1.0mA |
RELIABILITY | |
Pulse Activation | 100 million |
Abrasion Resistance | 100KM |
ENVIRONMENTAL | |
Operating Temperature | 0 - 50℃ |
PHYSICAL CHARACTERISTICS | |
Dimensions(W*D*H) | 104.3*40.5*20.3mm |
Mass | 125g |
Application:
l Ticketing
l Voting
l ECR/financial POS
l Weighing scale
l Fire control system
l Medical devices
l Measuring device
