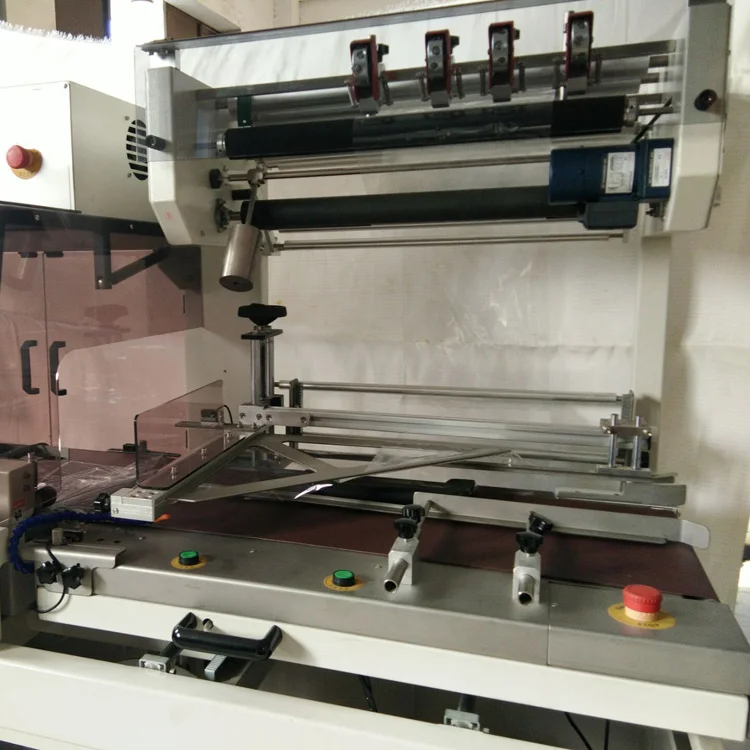

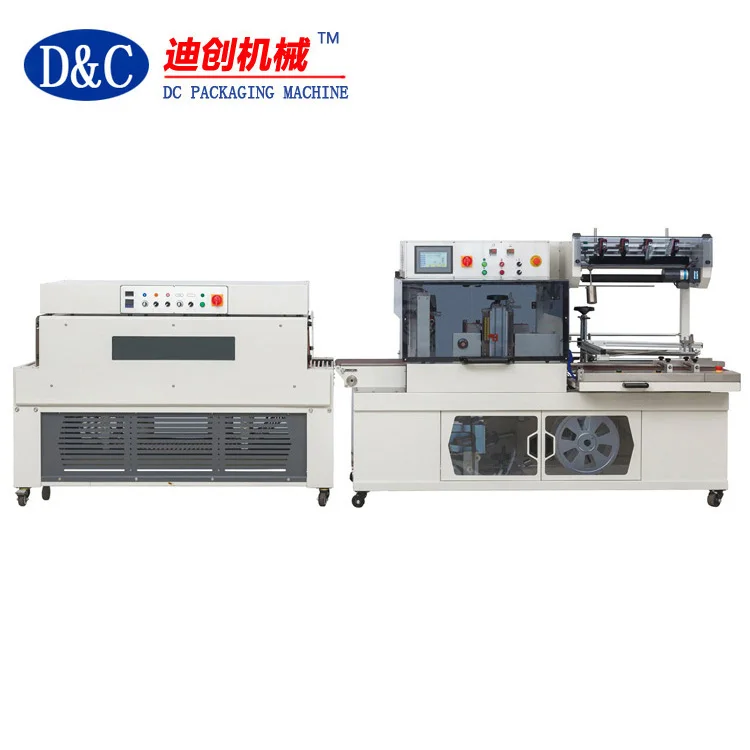

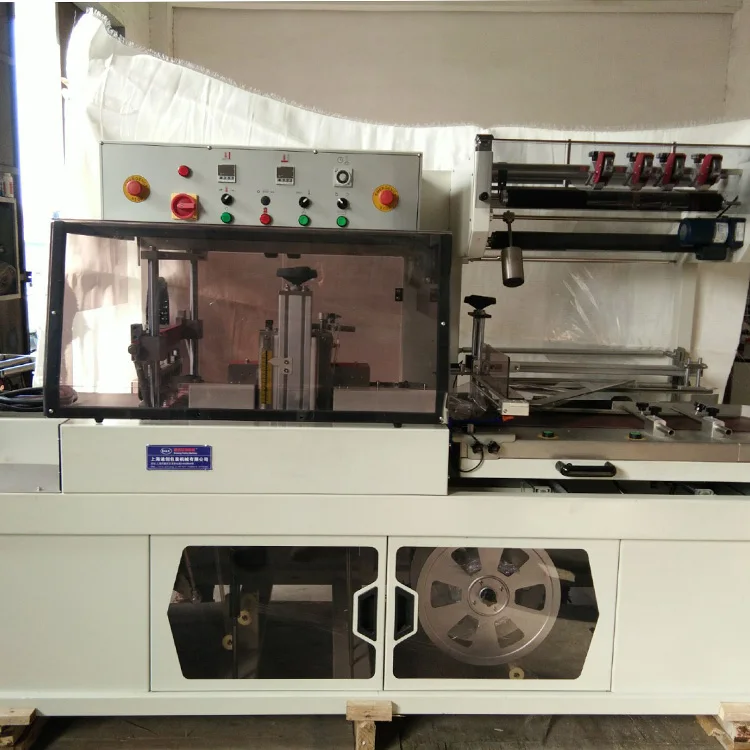

Top China supplier wooden stick POF film shrink wrapping machine
Product Description
Features
- Fully enclosed package. - Automatic feeding, filming, bag making, sealing and cutting, waste collection, leveling, shrinking, packaging products completed in one time. -Thermostat special aluminum sealing knife, anti-sticking, sealing line fine, not coking, no smoke, zero pollution. - Cutter will automatically rebound after it is cut into package. - Package size can be adjusted, without changing the mold. - Conveyor all sets of PTFE heat pipe, not hot, does not damage the film. - Shrink chamber with dual-loop hot air system, the temperature can be adjusted. - Promise motor with variable speed motor, long service life, low noise.
Main parameter
Model
QL4518
DC-4825
Dimension
L:1700×W:900×H:1400mm
L:1600×W:660×H:1700mm
maximum speed
60pcs/min
0-40m/min(adjustable)
Packaging height
≤180mm
≤250mm
Packaging width
≤450mm
≤480mm
packing measurement
Width≤400mm
height≤180mm
Length:No limited
Size of the furnace body:
L:1200 x W:480 x H:250mm
use the thin film
POF folding film
POF,PVC,PP
Maximum filmMaximum film
450mm(widewide)×180mm(external diameter )
--
power
2200V 1.3KW
380V 8.8KW
Air pressure
≤0.5MPa(5 bar)
--
Weight
260kg
200kg
The scope of application
pharmaceutical, food, stationery, cosmetics, electronic products, toys and so on.
