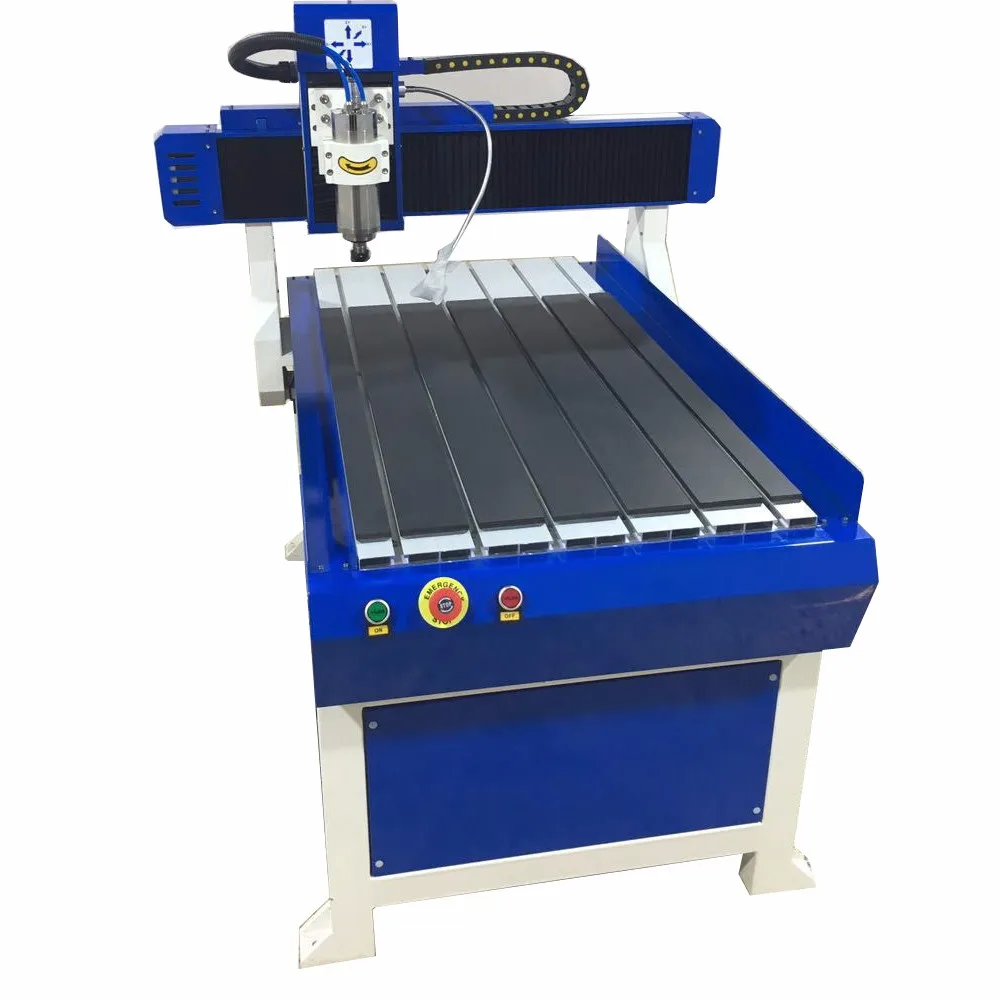

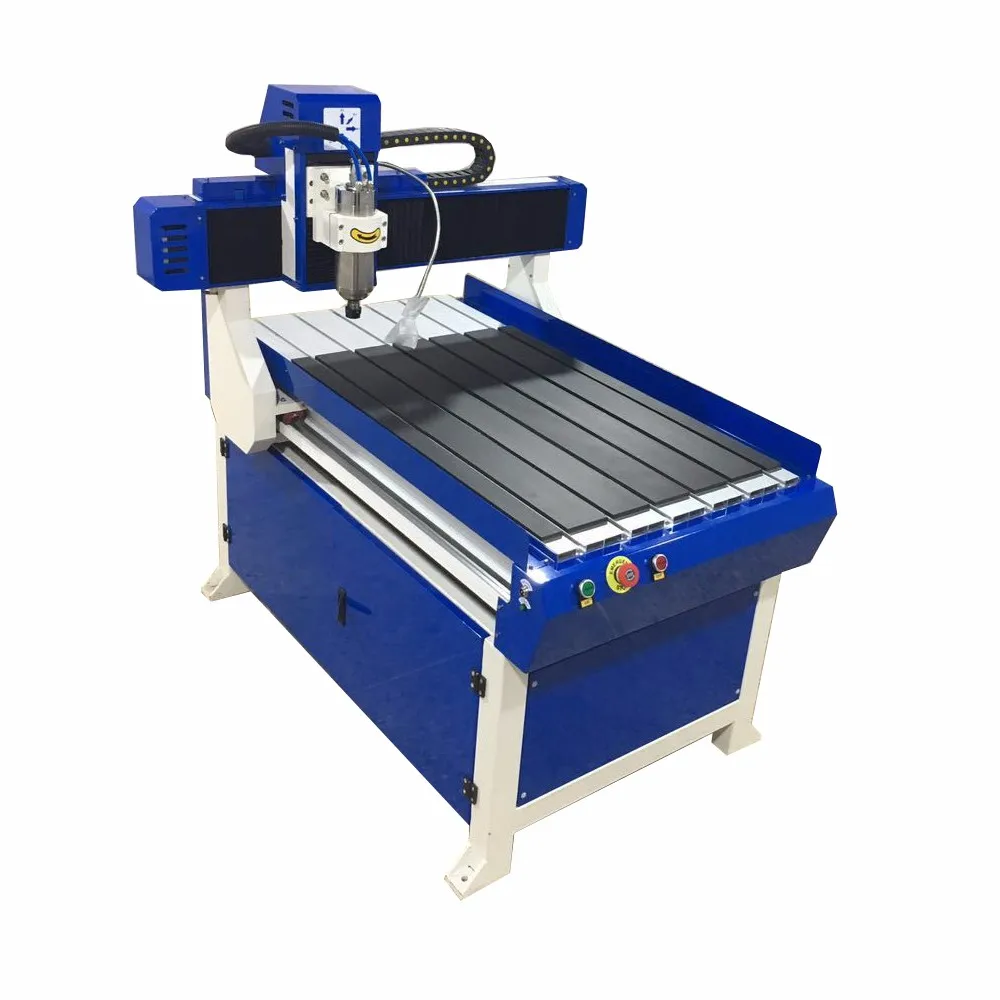

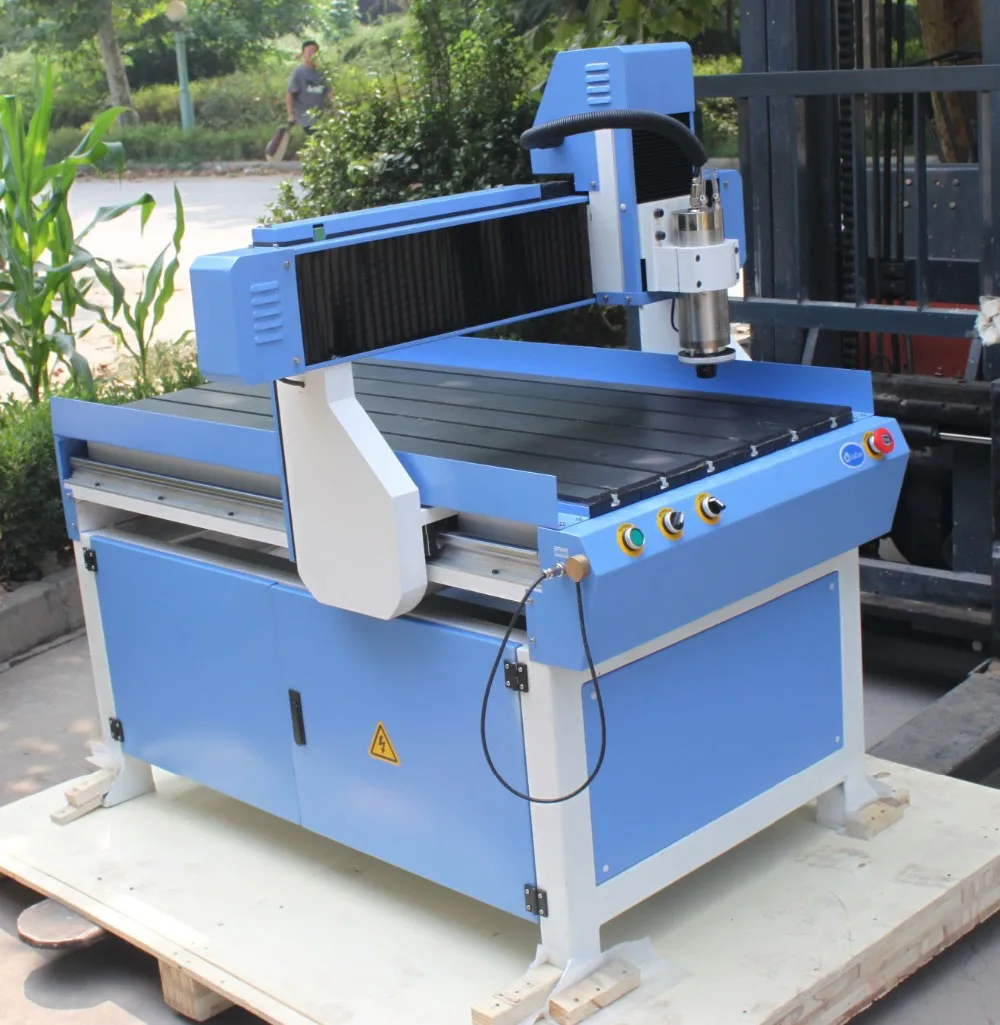

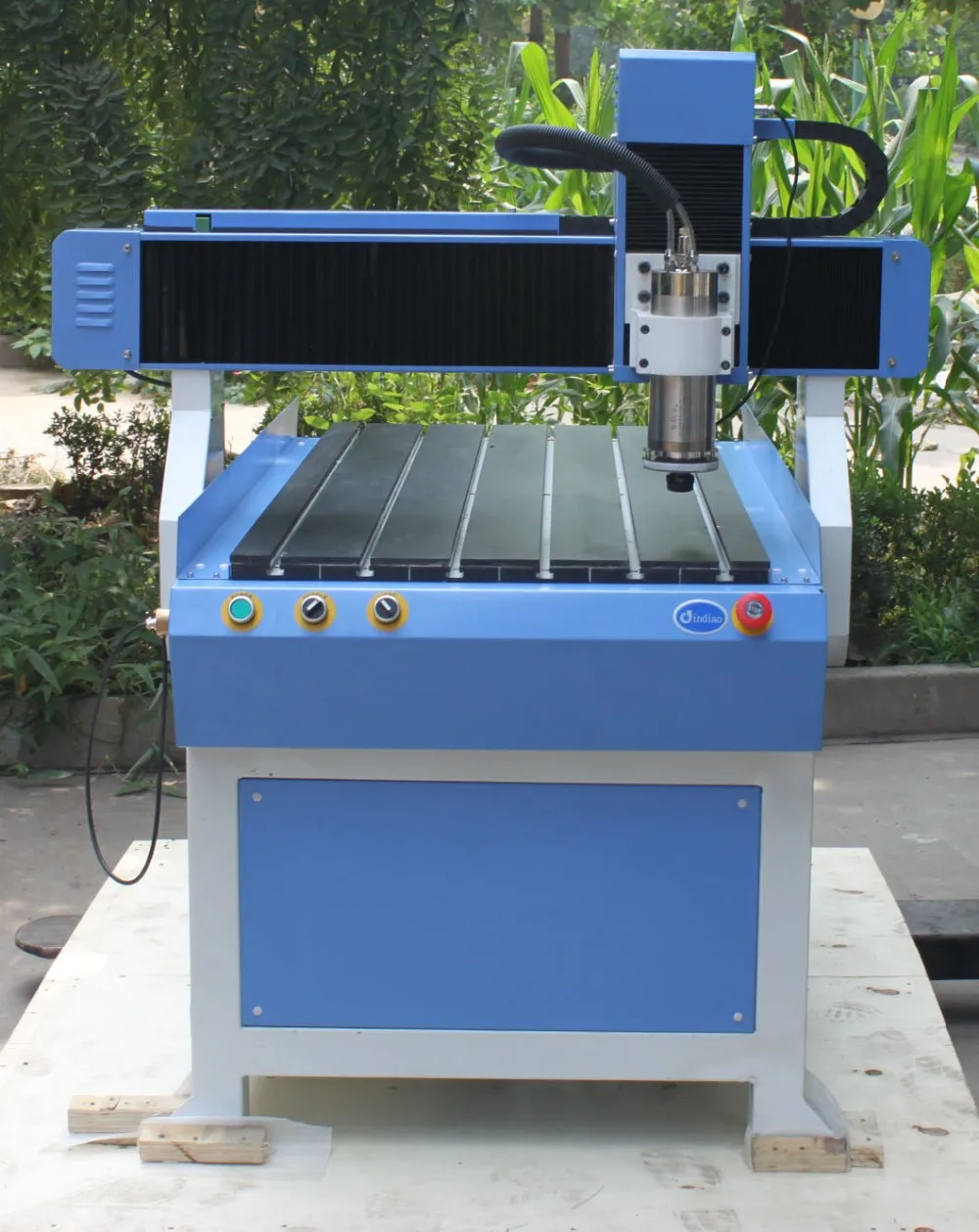

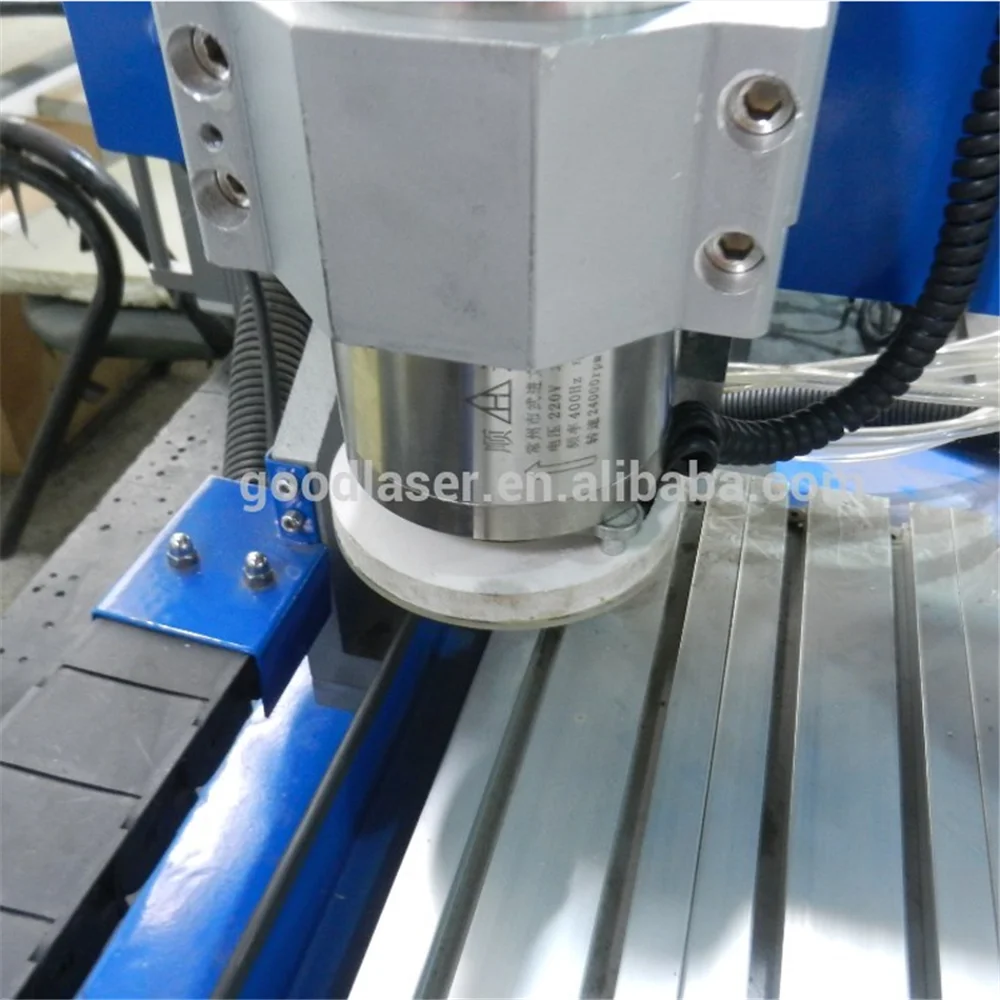

China 3D Woodworking Machine Z6090L CNC Router 600x900

JD1212 High Efficiency CNC Router

JD6090 High Precision CNC Engraver

Ø Our JD6090L adopts the mode of saving the intermittence. Memory to insure the processing point when the blade is broken or postpone situation.

Ø Matching Germany producing double ball screw nut and imported the bearing liner.

Ø Specific saving mode of different points. It is very convenient for various scutcheon processing.

Ø Gantry mode movement is more durable without distortion by long use and the positioning accuracy is much better.

Ø The large power cutting spindle does not only increase the fineness of engraving the breast card without screw and the under base is more flat and smooth.

Model

JD6090L

X,Y working area

600×900mm

Z Max working area

>100mm

Table size

720x1150mm

Working delicacy

0.001-0.025mm

X,Y,Z repositioning Positioning Accuracy

0.05mm

Frame

Steel structure

X,Y, Z Structure

Round orbit (Optional: change Y axis to square orbit), Ball screw(Y axis double nuts)

Max.Speed

4m~5.5m/min

Spindle Power Motor

1.5Kw water cooling spindle (optional: change to 2.2KW,3KW,4.5KW)

Power (not include the spindle)

300w

Spindle Speed

0-24000RPM

Drive Motors

Stepper system

Working Voltage

AC220V/50Hz

Command Language

G code

Operating System

Computer control (Optional: DSP with USB interface)

Running Environment

Temperature: 0 ~ 45
Relative humidity: 30% ~ 75%

Surrounding for software

Windows98/2000/xp

Packaging

plywood

Dimension of packing

1.65x1.34x1.81m ( L x W x H)

Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on acrylic, double-color board, PVC, ABS board, stone, imitation stone, metal, Aluminum Mold etc.

l Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.

l Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

l Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

l Mould industry: architecture, Gilt membrane, electric machinery, high frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould.

l Stamp industry: it is easy and convenient to seal on various materials such as ox horn, plastic, organic board, wood etc.

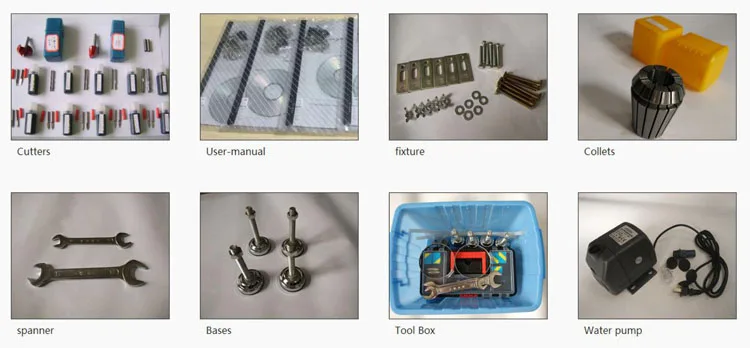

Accessories

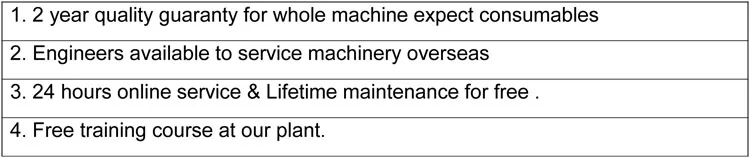

Our service
