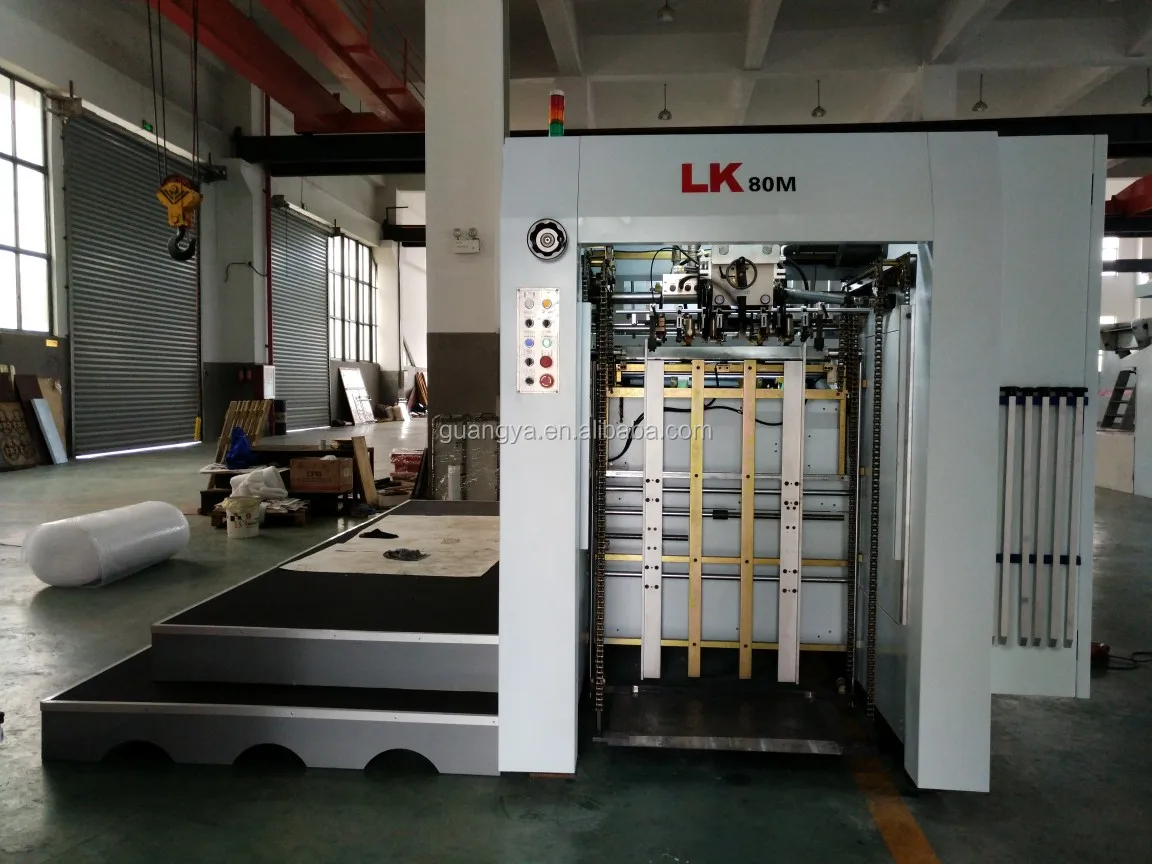

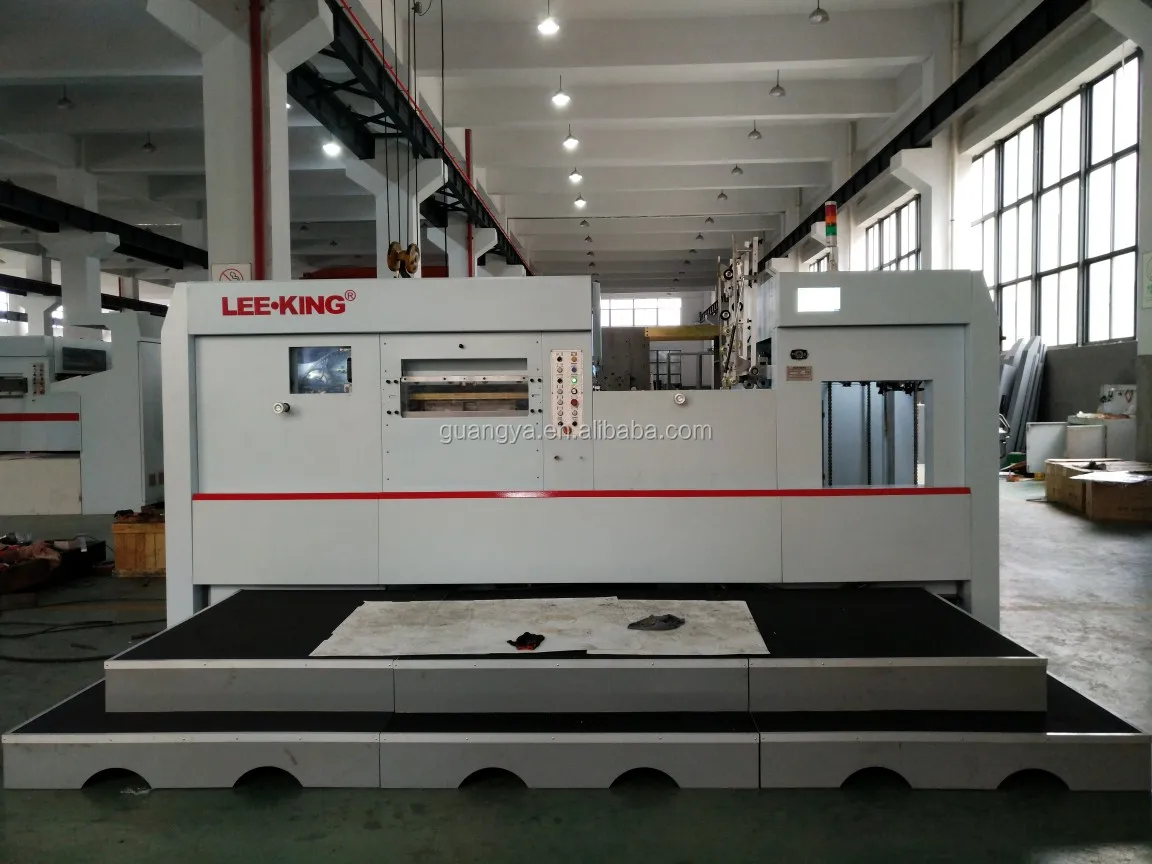

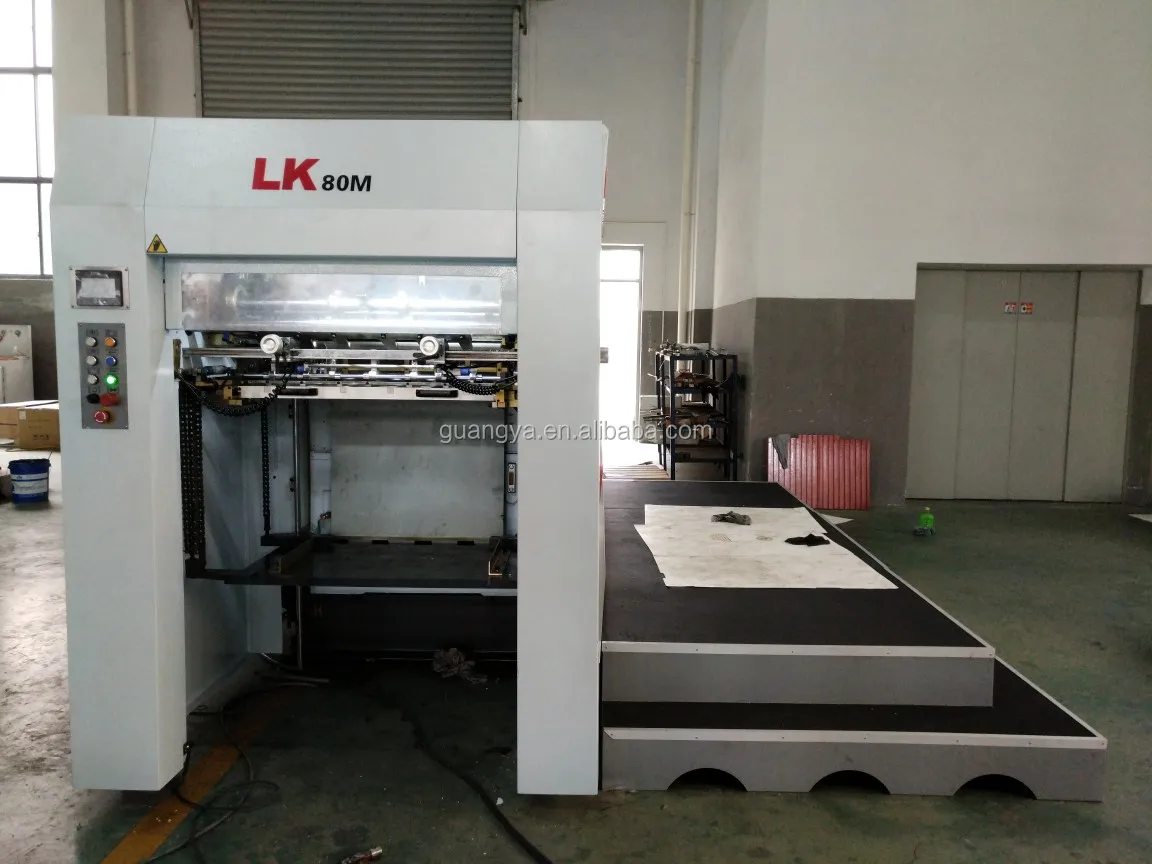

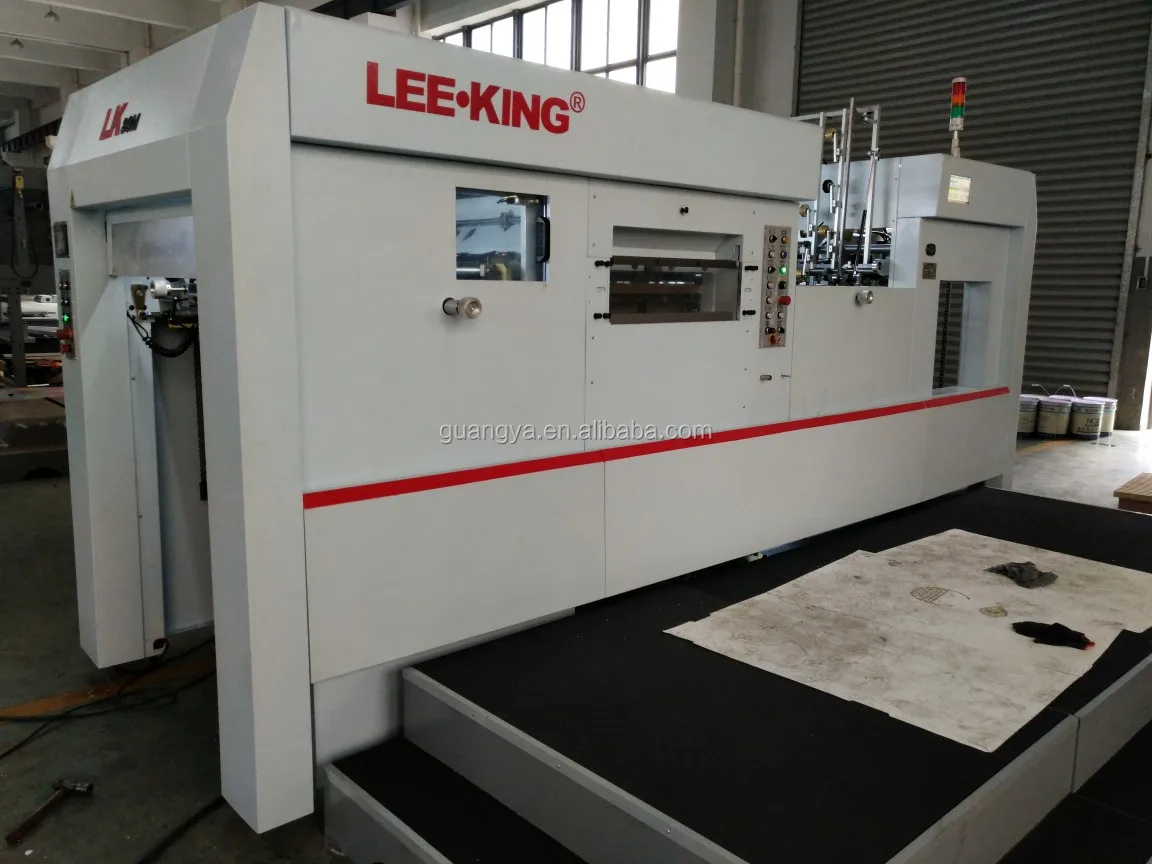

LK 800 Paper Cardboard Automatic Die Cutting Machine
The LK 800 die-cutting machine delivers precision in folding carton production.
With an output of 9,000 sheets per hour and short set-up times, it stands for productivity and cost-effectiveness up to the 800 format.
It processes materials from 90 to 2,000 g/m².
When it comes to die-cutting in industrial production, the LK 800 is a reliable machine.
With LK 800, you can offer customers the comprehensive service they expect.
Short make-ready time and straight forward operation deliver an unprecedented level of productivity.
The workflow is much more effective because automation largely eliminates errors resulting from manual intervention.
Technical Specifications.
______________________________________________________________________
Suitable material | ||||||
Cardboard | 90 - 2000 GSM | |||||
Performance | ||||||
Paper sheet ( max. ) | 800 X 620 MM | |||||
Paper sheet ( min. ) | 360 X 290 MM | |||||
Die cutting size ( max. ) | 790 X 610 MM | |||||
Inner chase size ( max. ) | 880 X 628 MM | |||||
Cutting accurary | ± 0.1 MM | |||||
Machine speed ( max. ) | 9000 S/H | |||||
Cutting pressure ( max. ) | 200 T | |||||
Dimension & Weight | ||||||
Overall machine dimension | 4545 X 3685 X 2245 MM | |||||
Weight | 12500 KG | |||||
Other | ||||||
Delivery pile height | 1070 MM | |||||
Feeding pile height | 1280 MM | |||||
Air supply | 0.6 Mpa, more than 0.37 M3/Min | |||||
Main motor power | 7.5 KW | |||||
Total power | 14 KW | |||||

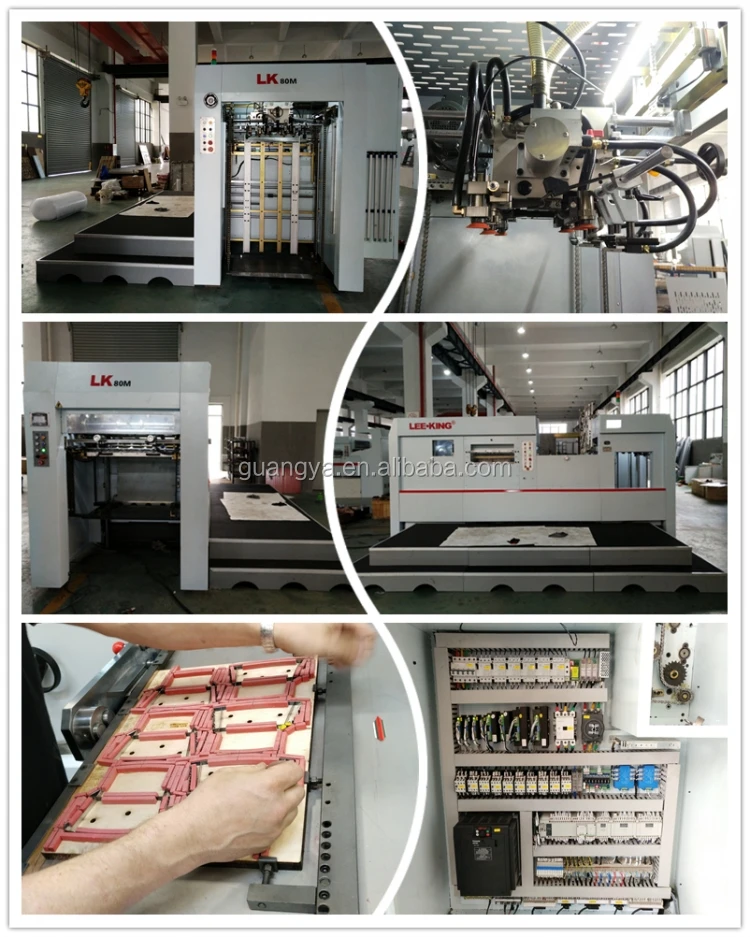

Detail photo
1. High speed feeder
2. Touch screen from Taiwai
3. Cutting pressure up to 200 T
4. Electric parts from OMRON, SIEMENS, PANASONIC ETC.
Company

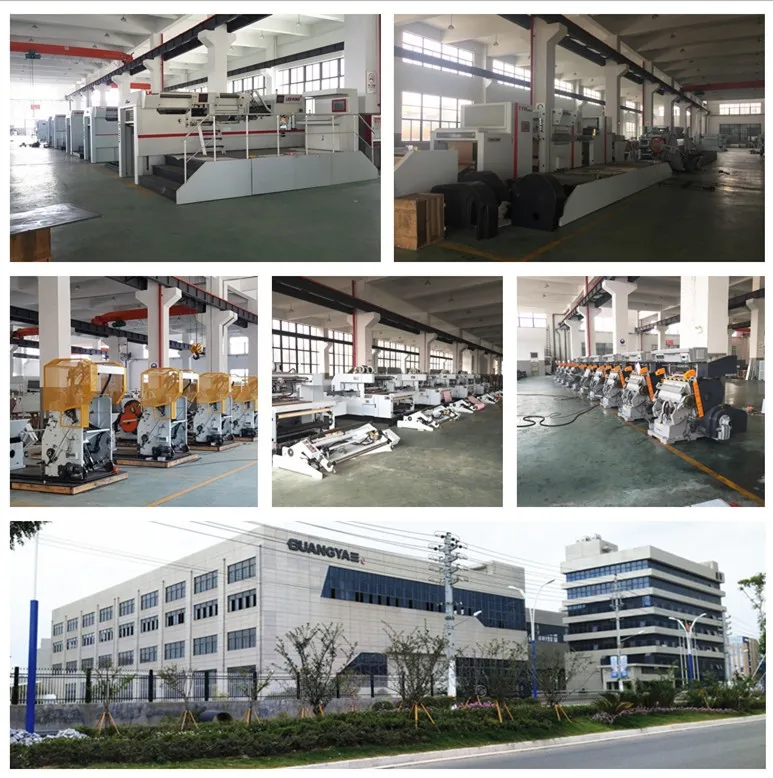

Manufacturer for die cutting machine and hot foil stamping machine since 1997 Now our machine running in more than 80 countries.
