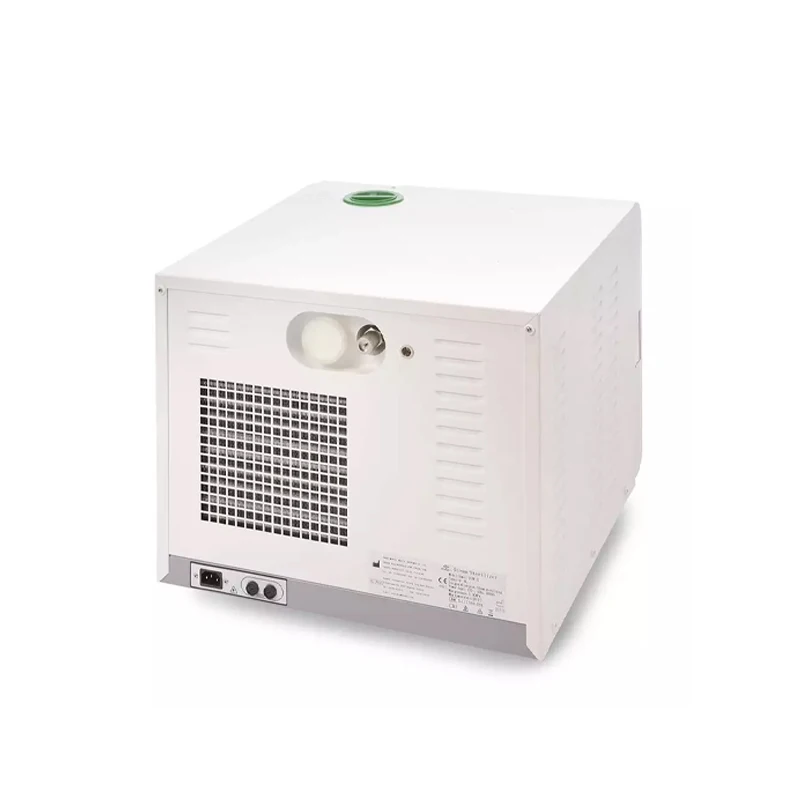

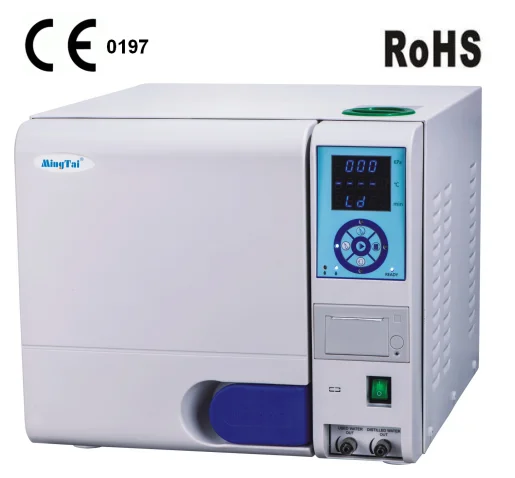

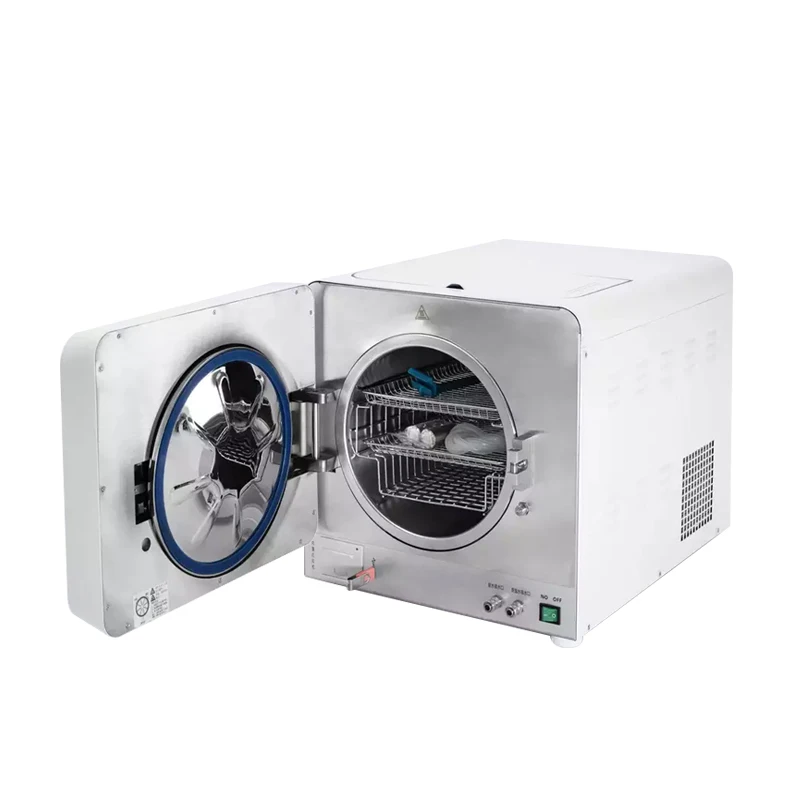

Comparable Innovative Dental Steam Sterilizer Class B with CE and ISO Medical Sterilizers
- Category: >>>
- Supplier: Ningbo Mingtai Medical Instrument Co. Ltd.
Share on (60741095617):
Product Overview
Description
Product Description
Product Application
This Steam Sterilizer machine can be applied in sterilizing for the tooth device, operation device, Sanitary Material and other heat-resisting articles existing in the Dept. of Stomatology, Ophthalmology and lab.
It is specially designed for the occasions in use of frequent sterilizations. It is equipped with the microprocessor for intelligent control and man-machine interface for convenient operation. With the distinctions in displaying parameter and condition actively, evaluating malfunction automatically, shutting off for self-protection automatically in case of excessive temperature and pressure, this type Steam Sterilizer is reliable product in sterilizing.
SUN-II TYPE STEAM STERILIZER | ||||||||||||
Model | Power | Capacity | Appearance size | Inside dimension | Packing | G.W | ||||||
SUN23-II | 2000W | 23L | 445*640*395mm | φ249*450mm | 720*520*500mm | 53kg | ||||||
SUN18-II | 1800W | 18L | 445*550*395mm | φ249*355mm | 670*550*500mm | 48kg | ||||||
SUN16-II | 1800W | 16L | 445*550*395mm | φ230*360mm | 670*550*500mm | 47kg | ||||||
SUN12-II | 1800W | 12L | 445*550*395mm | φ200*360mm | 670*550*500mm | 46kg | ||||||
Main Features
1: Power: 220V 50HZ
2:Sterilization:high temperature and pressure steam
3: Capacity: 12L,16L,18L,23L
4:Rated operating temperature: 134 ℃/121℃
5:Rated operating pressure: 210Kpa/110Kpa
6:Temperature and pressure control range: 105 ℃ ~ 134 ℃ / 50Kpa ~220Kpa
7:Sterilization time range: 4 ~ 60 minutes adjustable
8: liner and sealing the door: SUS304 stainless steel liner once entire cast
9: Pressure Control: control precision 1Kpa
10: Safety valve open and close range: 250Kpa ~ 270KMpa
11: Temperature uniformity: ≤ ± 0.5 ℃
12: Automatic over-temperature protection device: more than set temperature, the system automatically terminated procedures
13: Door interlocked: Only the door closed in place to start the work process, the pressure inside the chamber, the door can not open. Now use Hall sensor to increase shut the door precision.
14: overpressure safety valve automatically discouraging: more than the set pressure, the pressure release valve to open.
15: Input Power: 1800W-2000W
16: Operating temperature: 5 ℃ ~ 40 ℃
17: After the whole pulse vacuum drying ,the vacuum level : up to-0.8-0.9bar
18: Residual humidity of Instruments drying: not more than 0.2%
19: Jet steam generator, the chamber temperature uniformity
20:Full computer control, automatic operation, automatic fault diagnosis.

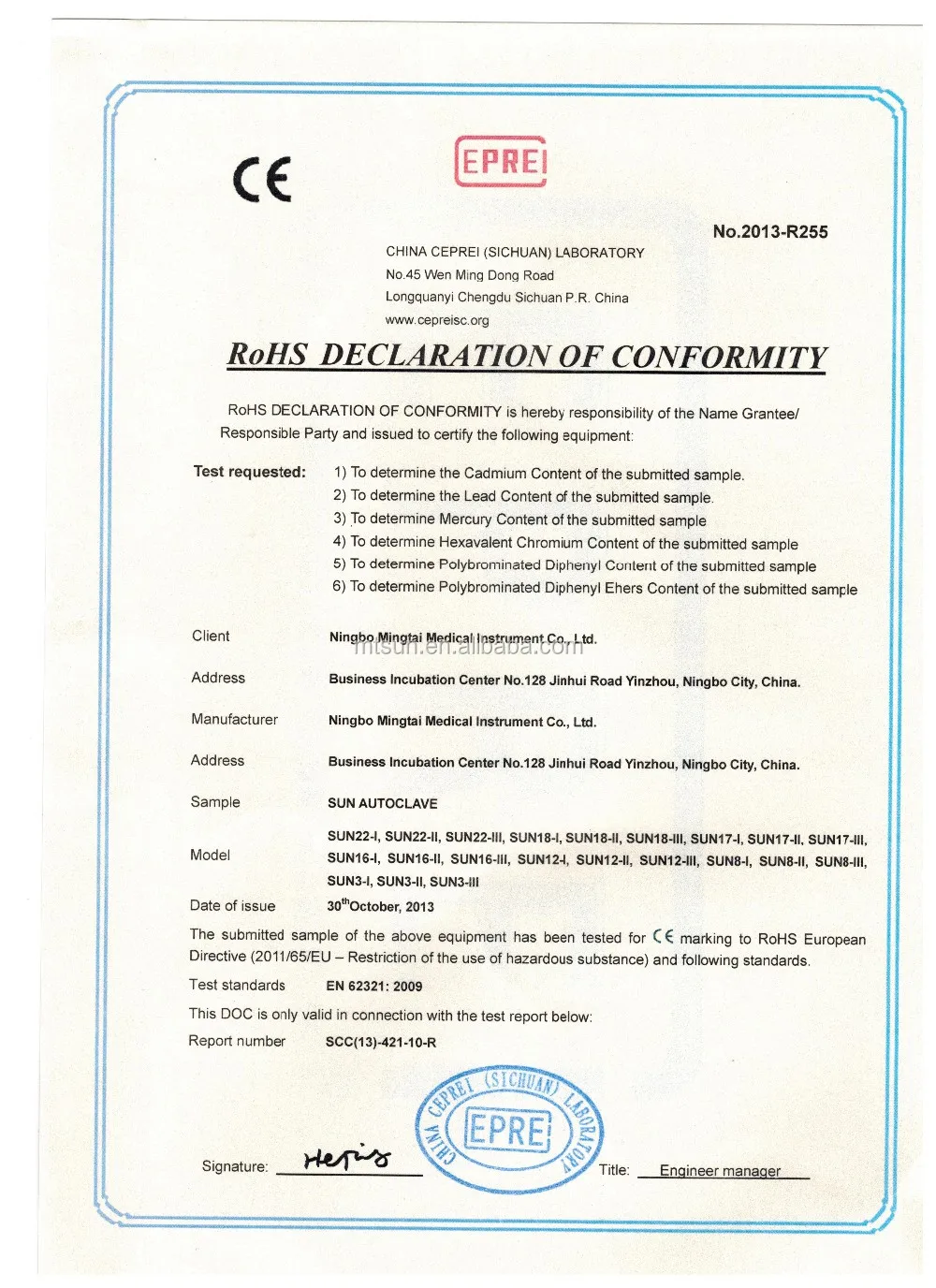

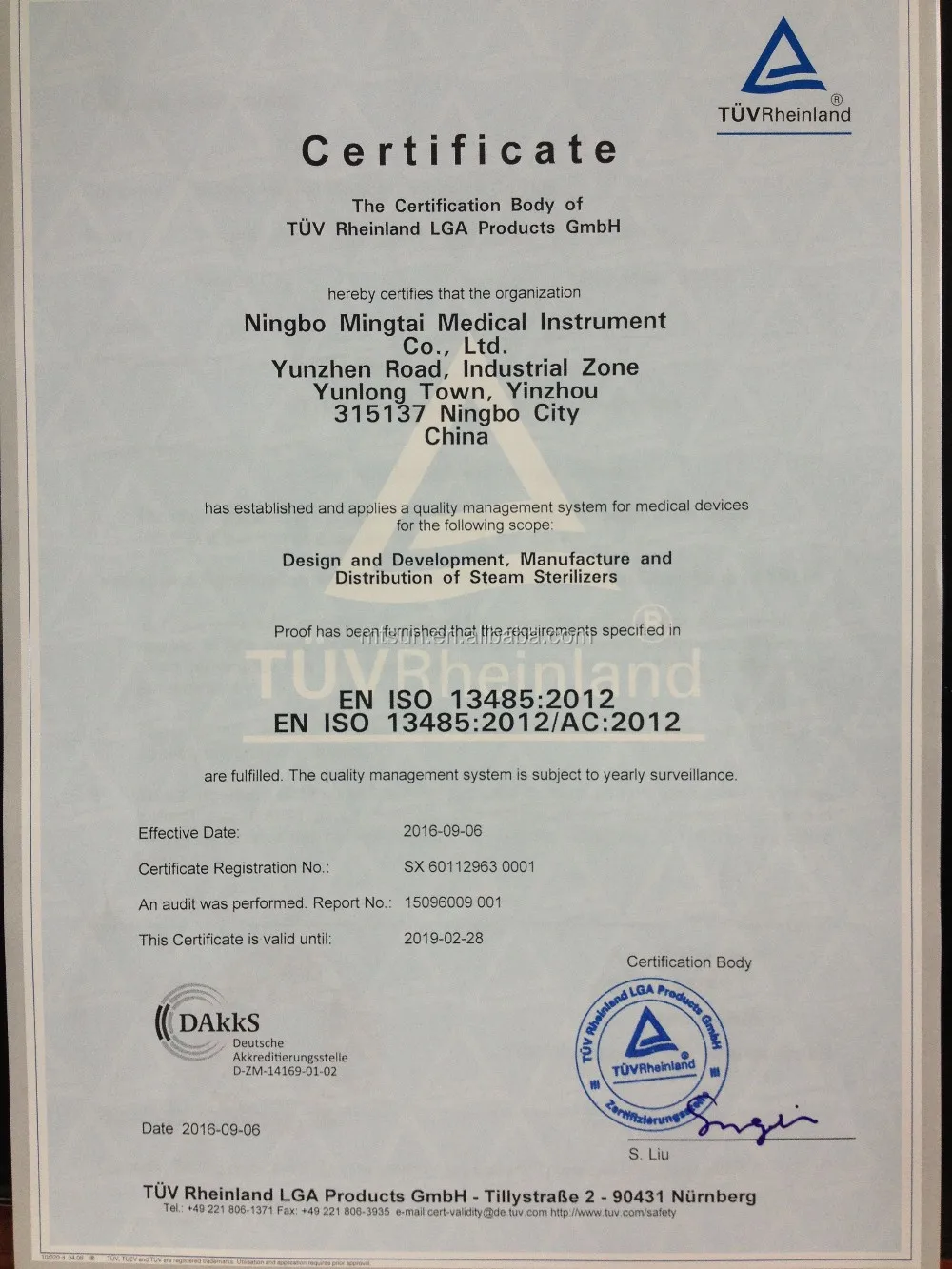

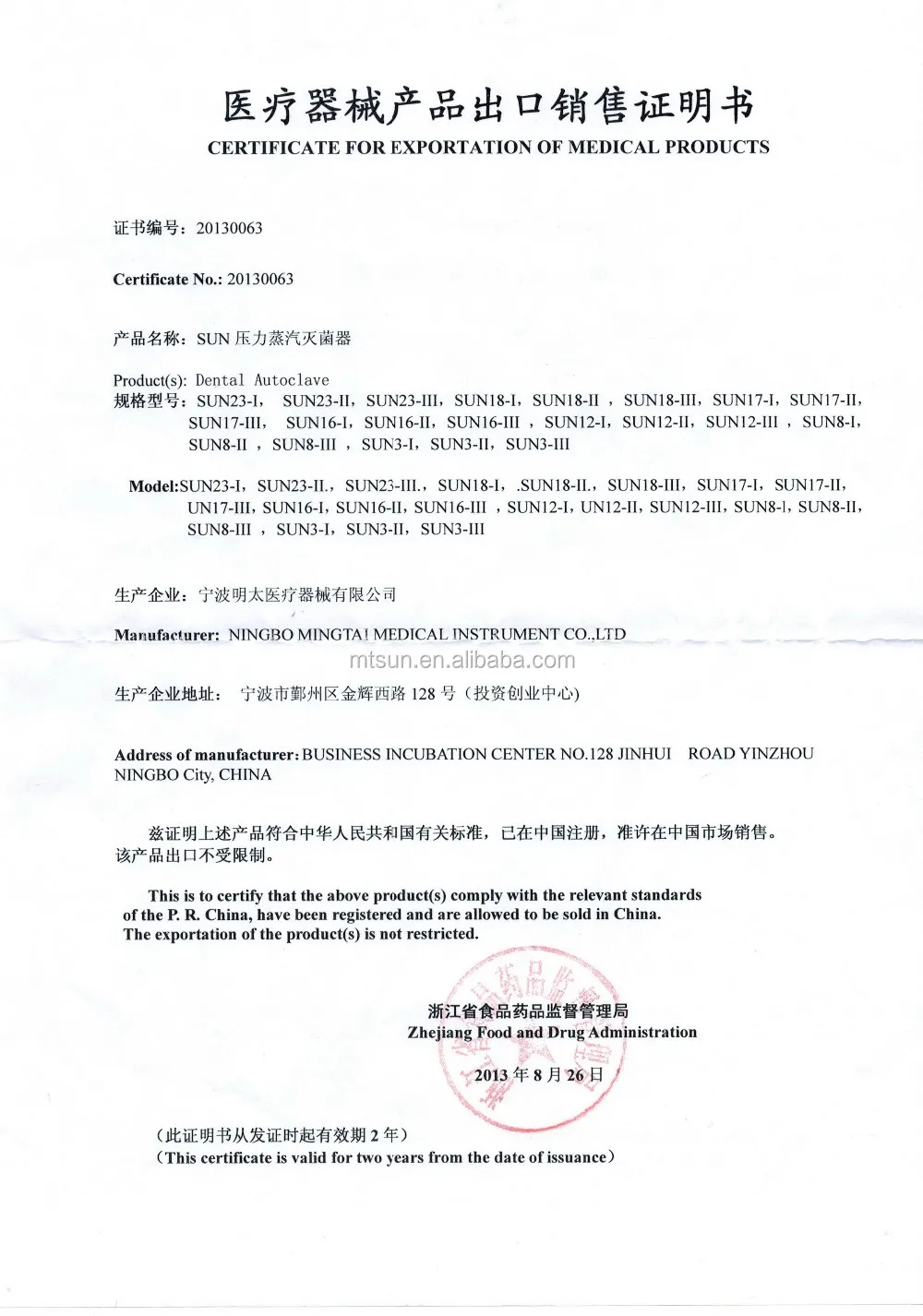

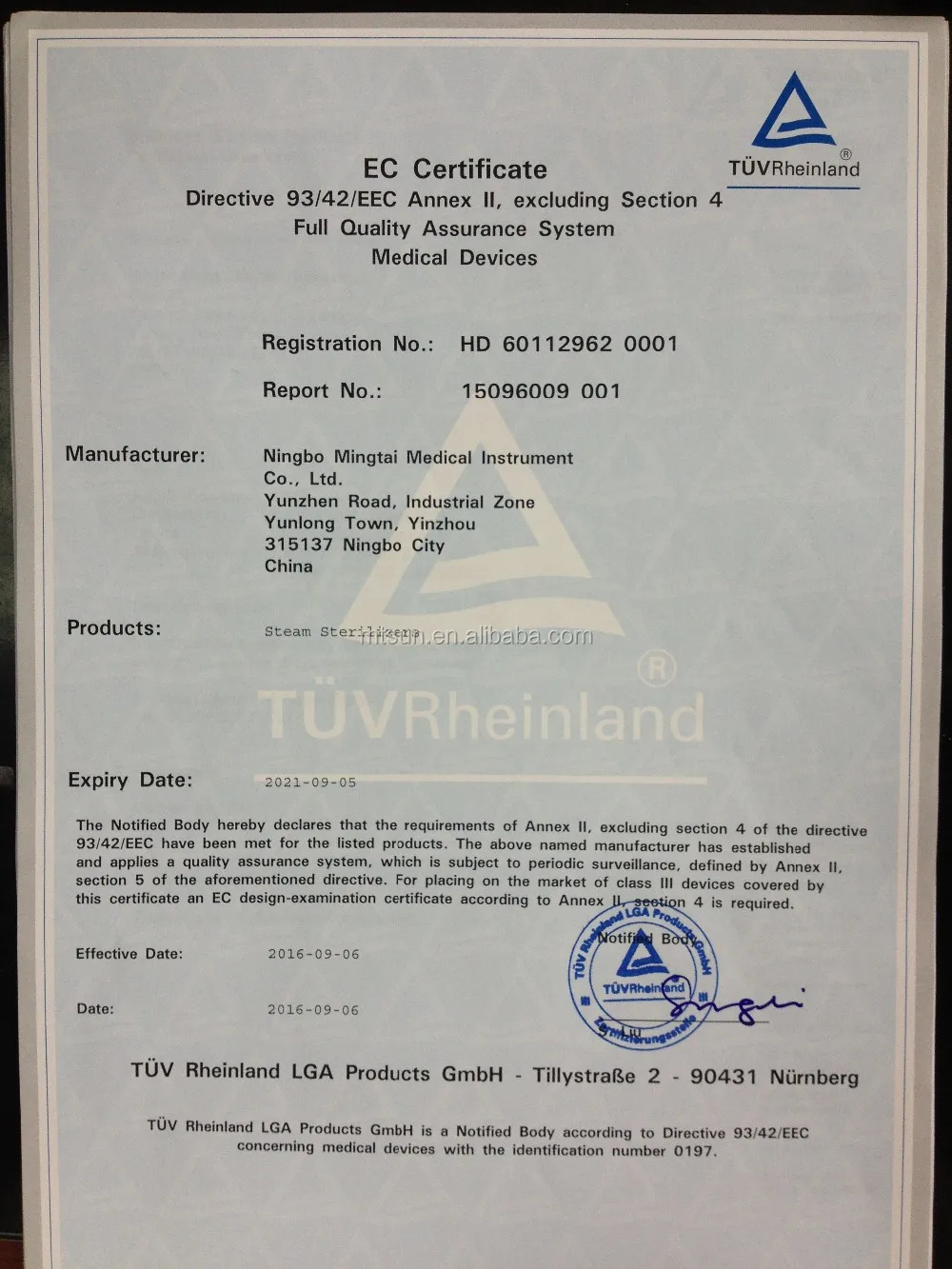

Certifications
Detailed Images
Machine Parts

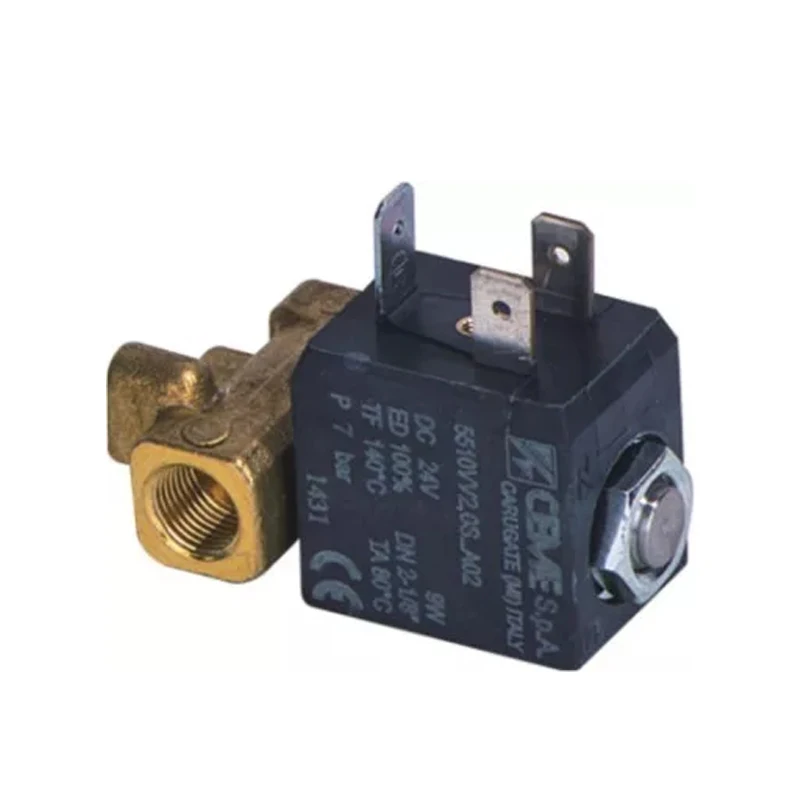

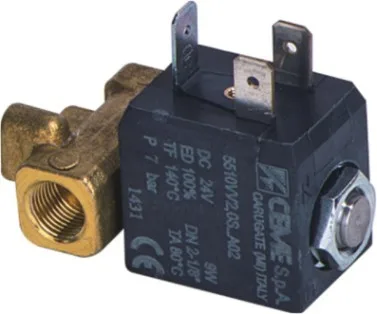

Name: Valve
Brand: CEME
Original: Italy
Italy CEME solenoid valve lots CEME Italian company was founded in 1974, electromagnetic valve has more than 30 years production experience, is a famous European solenoid valve manufacturer, is Europe's largest two-way copper body electromagnetic valve manufacturers.
Main Parts
Name: Water Pump
Brand: ULKA
Original: Italy
Machine Parts

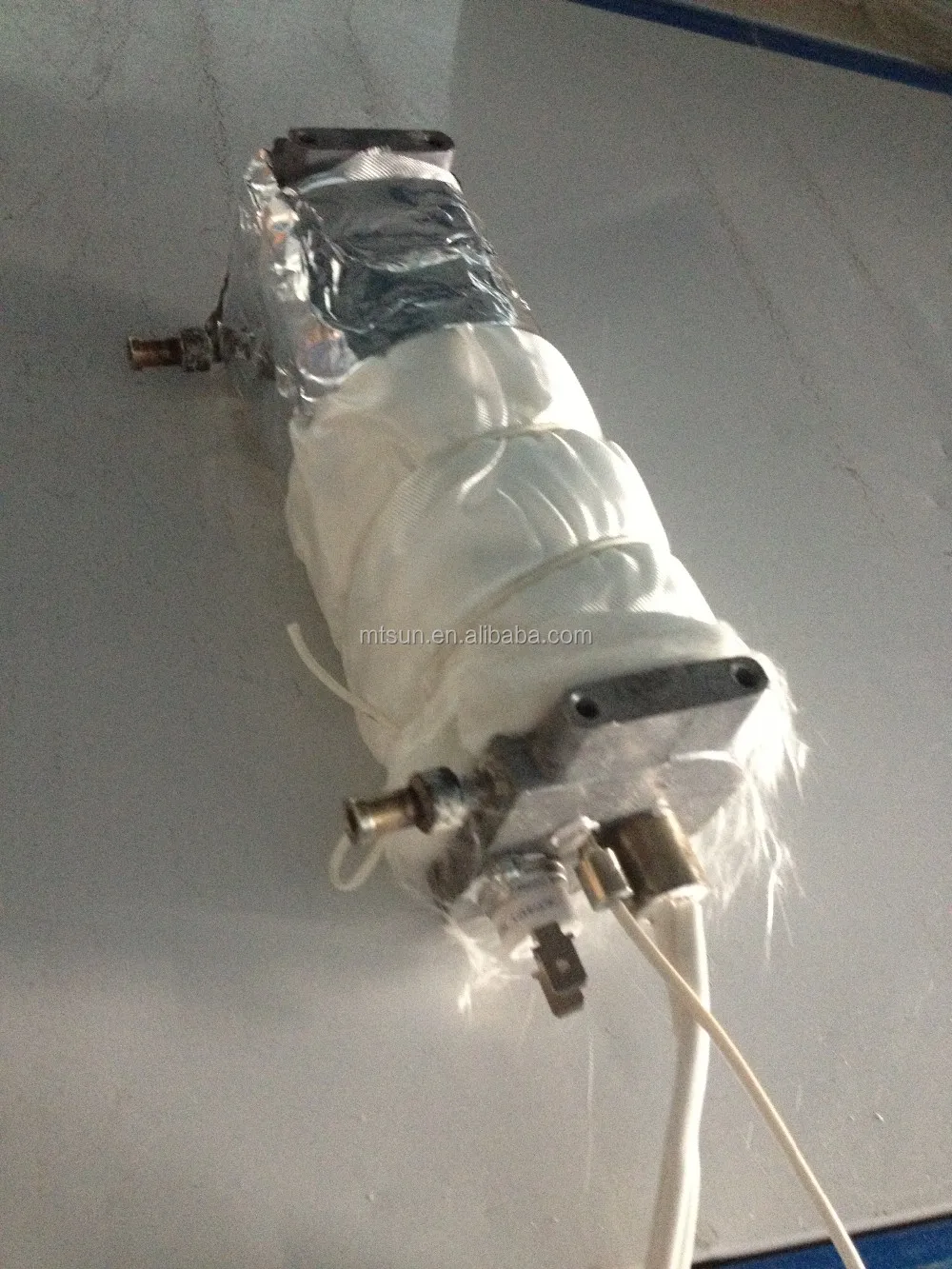

Name:Steam generator
Original: China
New jet type steam generator, forming an organic whole, with automatic cleaning function, is not easy to scale, faster and save time
Main Parts

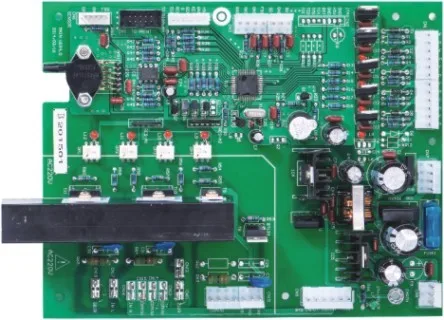

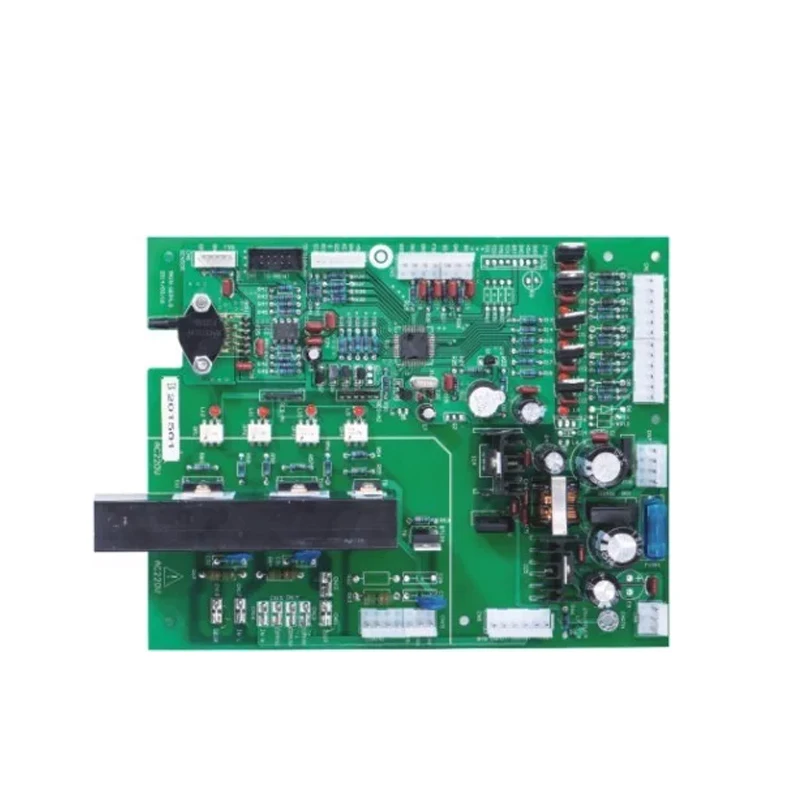

Name: PCB
With international famous brand parts of MOTOROLA,ST,ATMEL DALLAS,OMRON and so on. Using fuzzy state contal technology.Ensure the temperature correctly.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

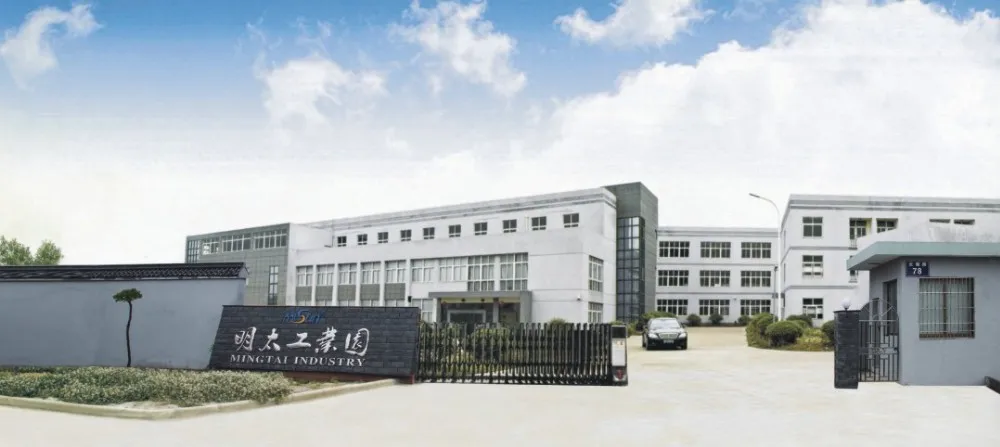

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 23L：720*520*500mm 18L：670*550*500mm 16L：670*550*500mm 12L：670*550*500mm | |
Weight | 23L:53kg 18L:48kg 16L:47kg 12L:46kg | |
Packaging Details | The normal package is carton(Size: L*W*H). We also can according to customers special request. | |
