Cortex A53 64 разрядный Восьмиядерный S5P6818 макетная плата 7 'MIPI дисплей с емкостным прикосновения

Product Overview

Description

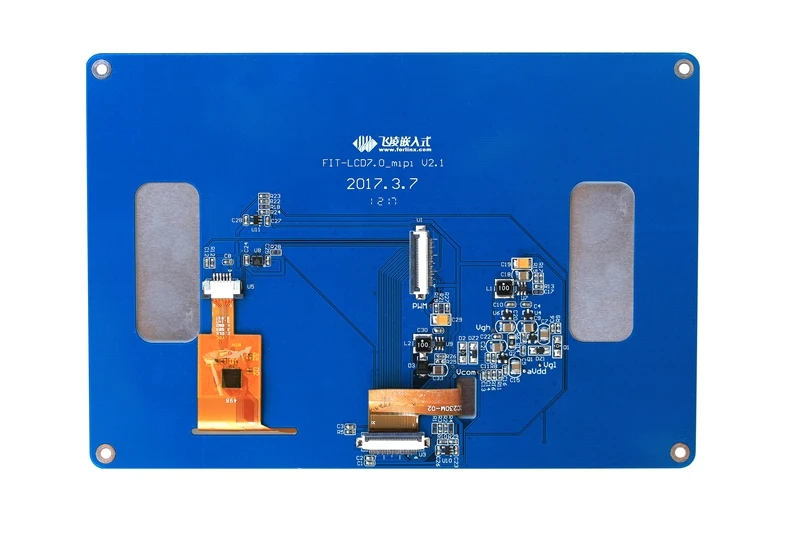

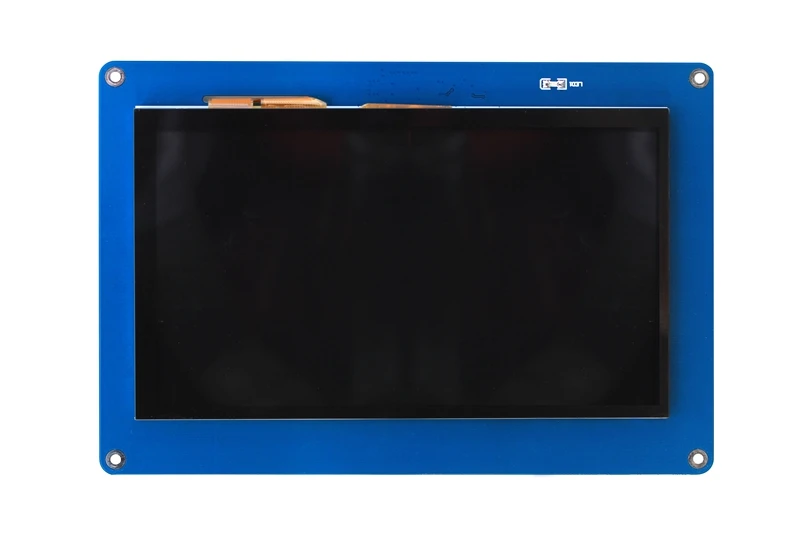

Cortex-A53 64-bit Octa Core S5P6818 Development Board + 7'' MIPI Display with Capacitive Touching

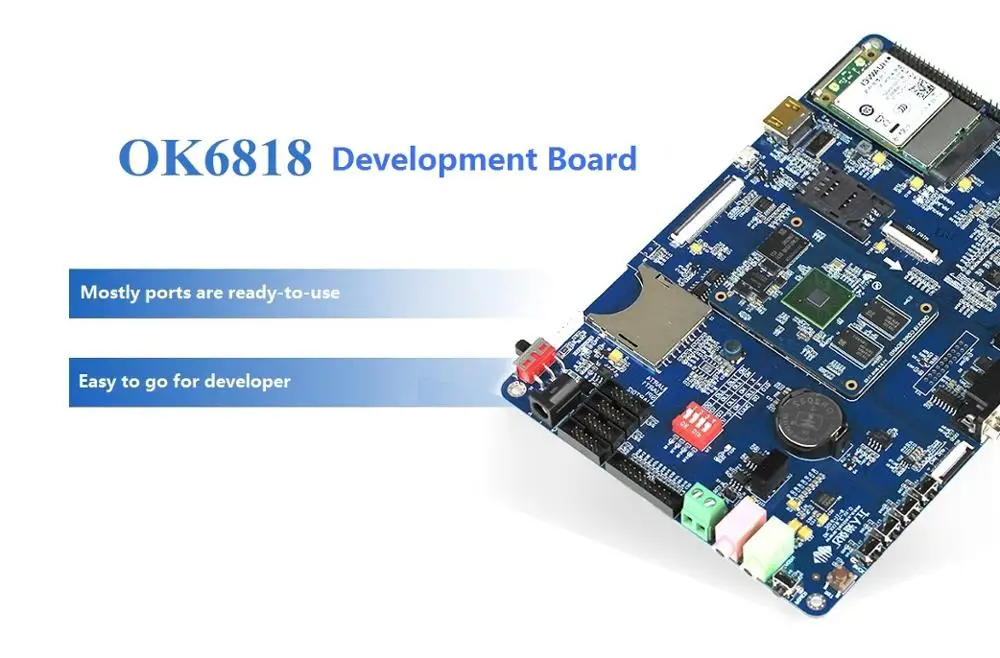

OK6818 is a Cortex-A53 featuring embedded system motherboard designed by Forlinx based on Samsung S5P6818 SoC which is an Octa core CPU with main frequency of 1.4GHz, 1G DDR3 and 8G eMMC, on-board SPI, RS485, CAN, UART, LVDS,HDMIv1.4, MIPI, Gigabit Ethernet are all ready-to-use for developers. What's more, expand modules like MIPI camera, DVP camera, WIFI&BT, 3G/4G are also available. Sleeping and waking up modes are more conveniently to users. This item is totally pin to pin compatible with S5P4418. They share a same PCB layout.



Below is a layout picture of this board, on this picture the CPU is S5P4418, All conponents and connectors of S5P6818 are totally the same with S5P6818



Applications:

Multi-media, digital signage, security, car electronics, financial, educational, power system, communicating, smart home, commercial electronics, intelligent transportation, portable device, etc.



At last, let's have a look at its product features both hardware and software

SoM FET6818 Features
CPU	S5P6818	Architecture	Cortex-A53
Main Frequency	1.4GHz	Core	Octa-core
Working Temp	0-70℃	Working Humidity	10%-90% none condensing



SoM Function Parameters
Function		Number		Parameters
Display	LCD	1		RGB 888, maximum resolution supporting: 2048*1280
	LVDS	1		supporting JEIDA and VESA output, 4x data channel, 1x clock channel, maximum resolution supporting: 2048*1280
	HDMIv1.4	1		HDMIv1.4, maximun resolution supporting: 1080*1920
	MIPI_DSI	1		MIPI DSI SPEC V1.01r11, up to 4x data channel, resolution up to 1920*1200
Camera	MPEG	2		8-bit parallel interface, pixel up to 5-Megapixel
	MIPI_CSI1	1		D-PHY spec V1.00, pixel up to 5-Megapixel
SD/MMC/SDIO		2		3-ch supported by CPU, and 2x SD/MMC drawn out by SoM, while the eMMC channel was not drawn out
USB Host		1		USB2.0 host (rate up to 480Mbps), integrated with HS USB Phy
USB OTG		1		USB2.0 OTG (rate up to 480Mbps), integrated with HS USB Phy
UART		6		each transferring rate up to 5.0Mbps
IIC		3		supporting 100kbit/s and 400kbit/s
IIS		3		supporting up to 3x IIS
SPI		3		supporting up to 2x SPI
Ethernet		1		10/100/1000Mbps adaptive
PWM		4		4x PWM output
SPDIF		1		SPDIF interface
ADC		7		12-bit resolution, maximum input frequency 100KHz, power input range: 0-1.8V
EBI		1		Maximum data bus width: 16-bit, maximum address bus: 14-bit
JTAG		1		standard JTAG port



OK6818 ARM Motherboard Features
Dimensions	130mm x 190mm	Thickness	1.6mm
PCB Layer	4-layer	Power Input	DC 5V/3A, with overvoltage protection
Working Temp	0-70℃	Working Humidity	10%-90% none condensing
OS	Android5.1.1, Linux3.4.39, QT4.8.6



Motherboard Function Parameters
Function		Number		Parameters
Display	LCD	1		RGB 888, maximum resolution supporting: 2048*1280
	LVDS	1		supporting JEIDA and VESA output, 4x data channel, 1x clock channel, maximum resolution supporting: 2048*1280
	HDMIv1.4	1		HDMIv1.4, maximun resolution supporting: 1080*1920
	MIPI_DSI	1		MIPI DSI SPEC V1.01r11, up to 4x data channel, resolution up to 1920*1200
Camera	DVP	1		8-bit parallel interface, pixel up to 5-Megapixel
	MIPI_CSI1	1		D-PHY spec V1.00, pixel up to 5-Megapixel
Audio		1		1* MIC, 1*Phone
SD/MMC		1		1x SD, compatible with SDHC, SDXC (UHS-I)
SDIO		1		pitch of 2mm and drawn out by dual-row pins(20pin)
USB Host		2		USB2.0 host (rate up to 480Mbps), integrated with HS USB Phy
USB OTG		1		USB2.0 OTG (rate up to 480Mbps), integrated with HS USB Phy
UART		5		4x TTL, 1x RS232 (UART5), 5.0Mbps, 4x 3-wire, 1x 5-wire
IIC		3		IIC1 and IIC2 are CPU native IIC, IIC3 is an IO analogy IIC
SPI		1
Ethernet		1		10/100/1000Mbps adaptive
WIFI		1		RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN
BT		1		RL-UM02WBS-8723BU-V1.2 IEEE 802.11b/g/n 1T1R WLAN
RS485		1		with isolation desgin
Mini-PCIE		1		for 3G, 4G modules
IrDA		1		empty solderred
User Key		6		1x power switch, 1x reset, 4x user key. sleeping/waking up and powering off modes are supported by power key. screen scraping is supported by volume (power)key in OS Android





OS Android 5.1.1
Cross-compiler	arm-eabi-gcc-4.8, OpenJDK 7.0
OS image flashing	flash OS image to eMMC via SD card
Uboot	booting mode selection (eMMC)
Kernel Version	Linux 3.4.39
Android Version	Android 5.1.1
Driver	eMMC	UART/ RS232
	SD card	RS485
	LVDS displaying driver	ADC
	LCD displaying driver	accelerator sensor
	MIPI displaying driver	IrDA
	HDMIv1.4 displaying driverf	RTC
	LCD/MIPI/LVDS capactive touching	IO
	PWM	KED
	LCD/MPI/LVDS backlight driver, 255-class adjustable	user key driver
	parallel camera OV5640	IIC
	MIPI camera OV5645	SPI
	Gigabit Ethernet	USB Host dirver for mouse and keyboard
	4G module	USB device
	BT module	WM8960
	WIFI module	sleeping mode waking up





 2. Top product quality and stable product supplying capability

3. we kindly provide all necessary technical files to users including datasheet, schematics, user manuals, driver source code

4. customize service
