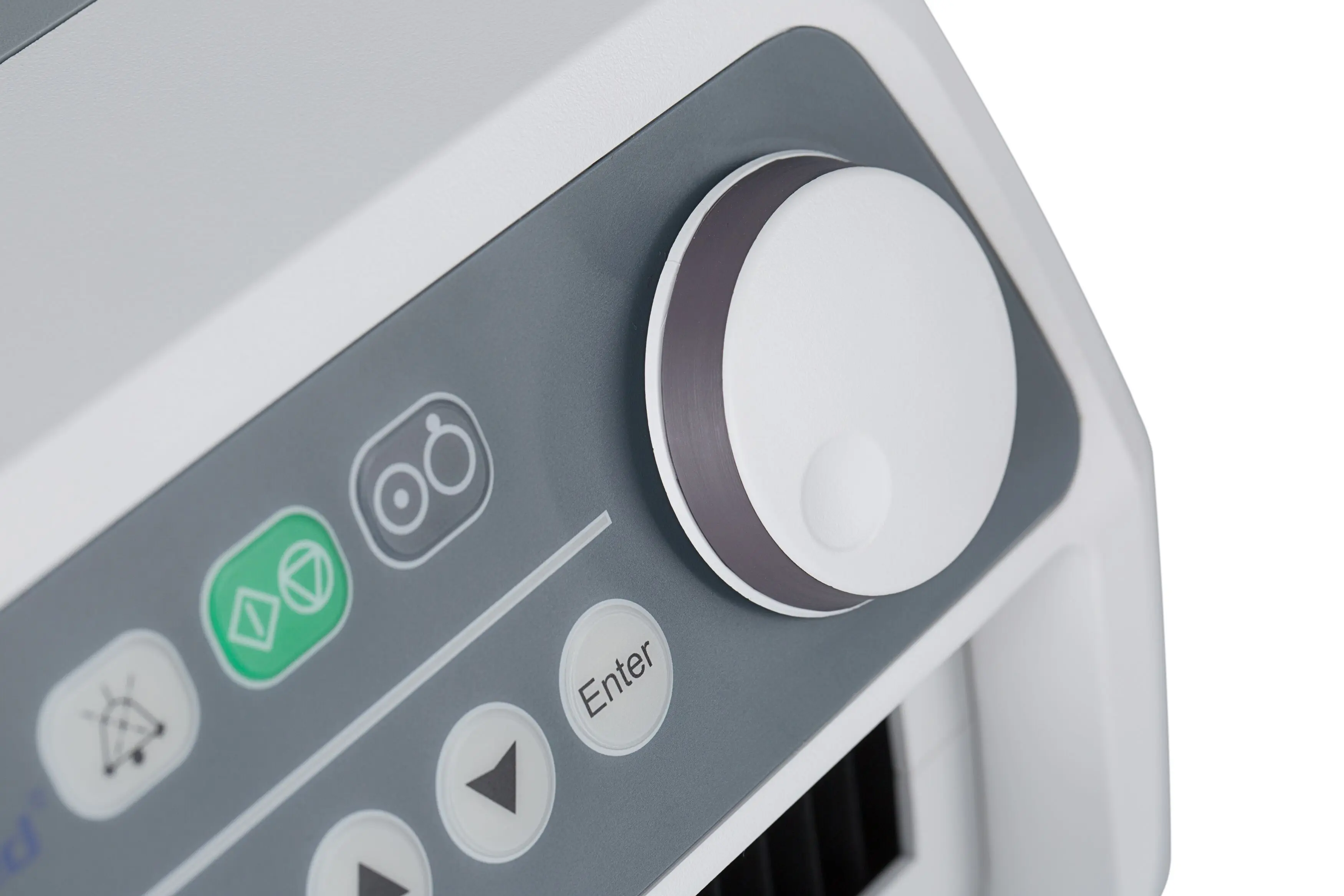

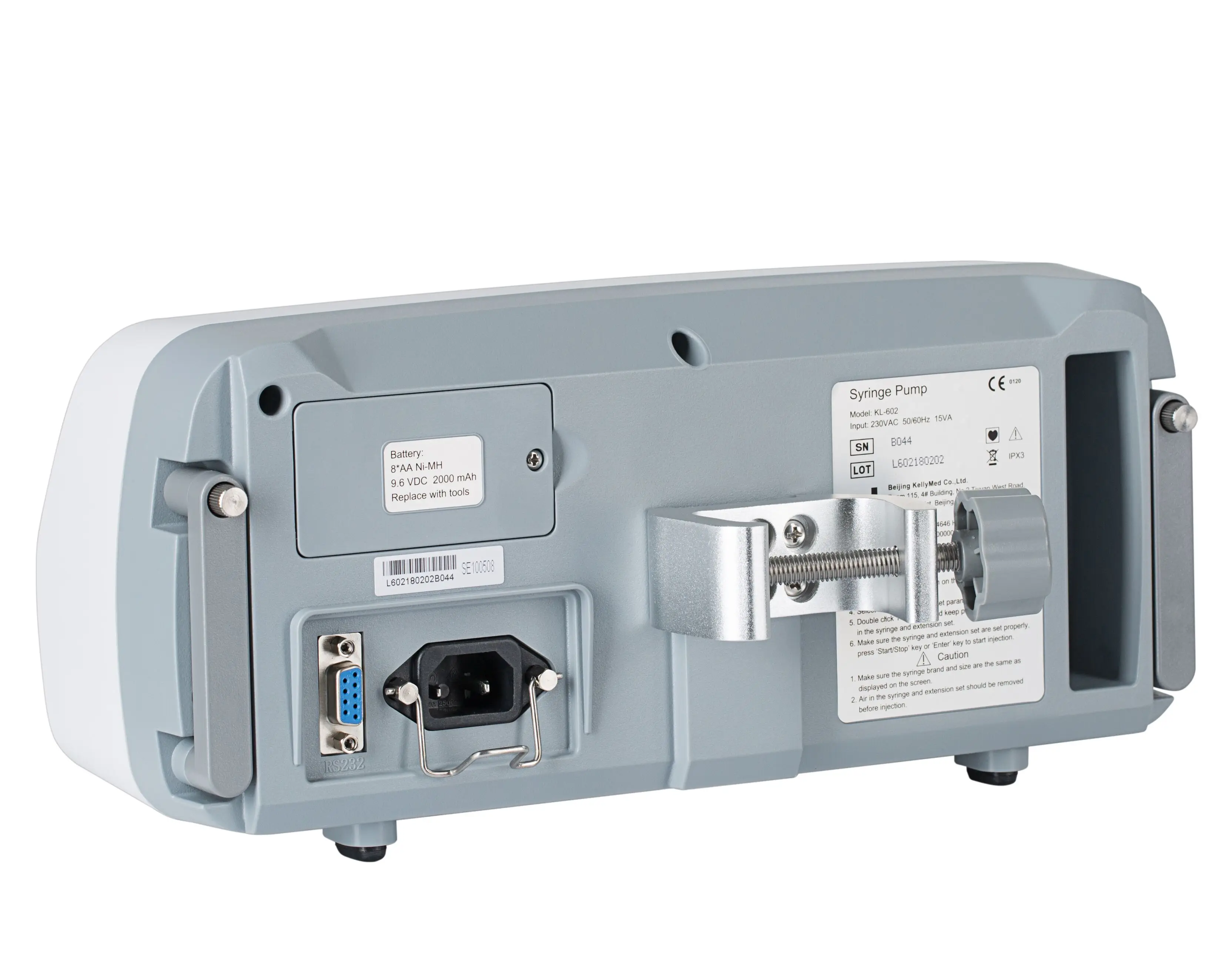

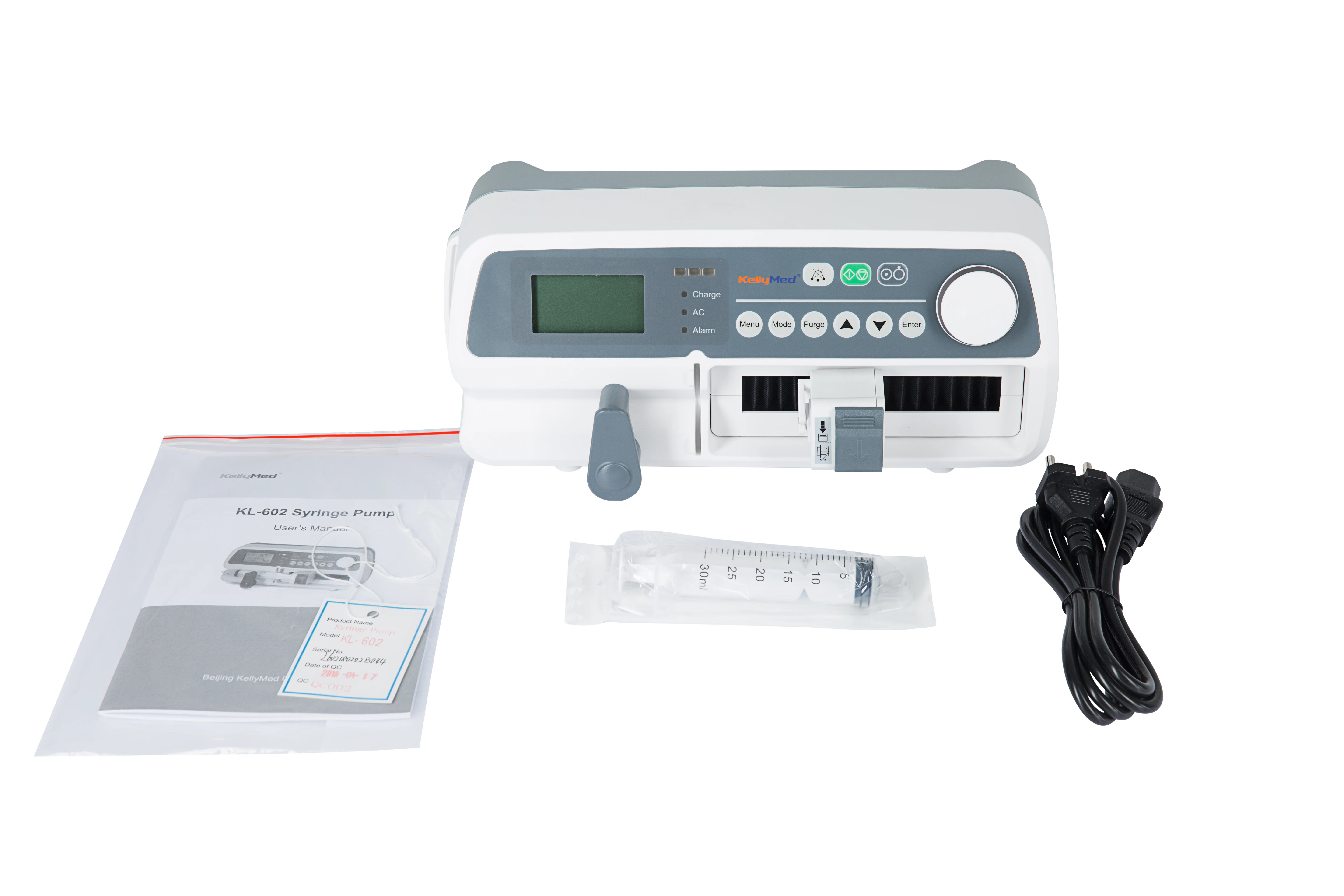

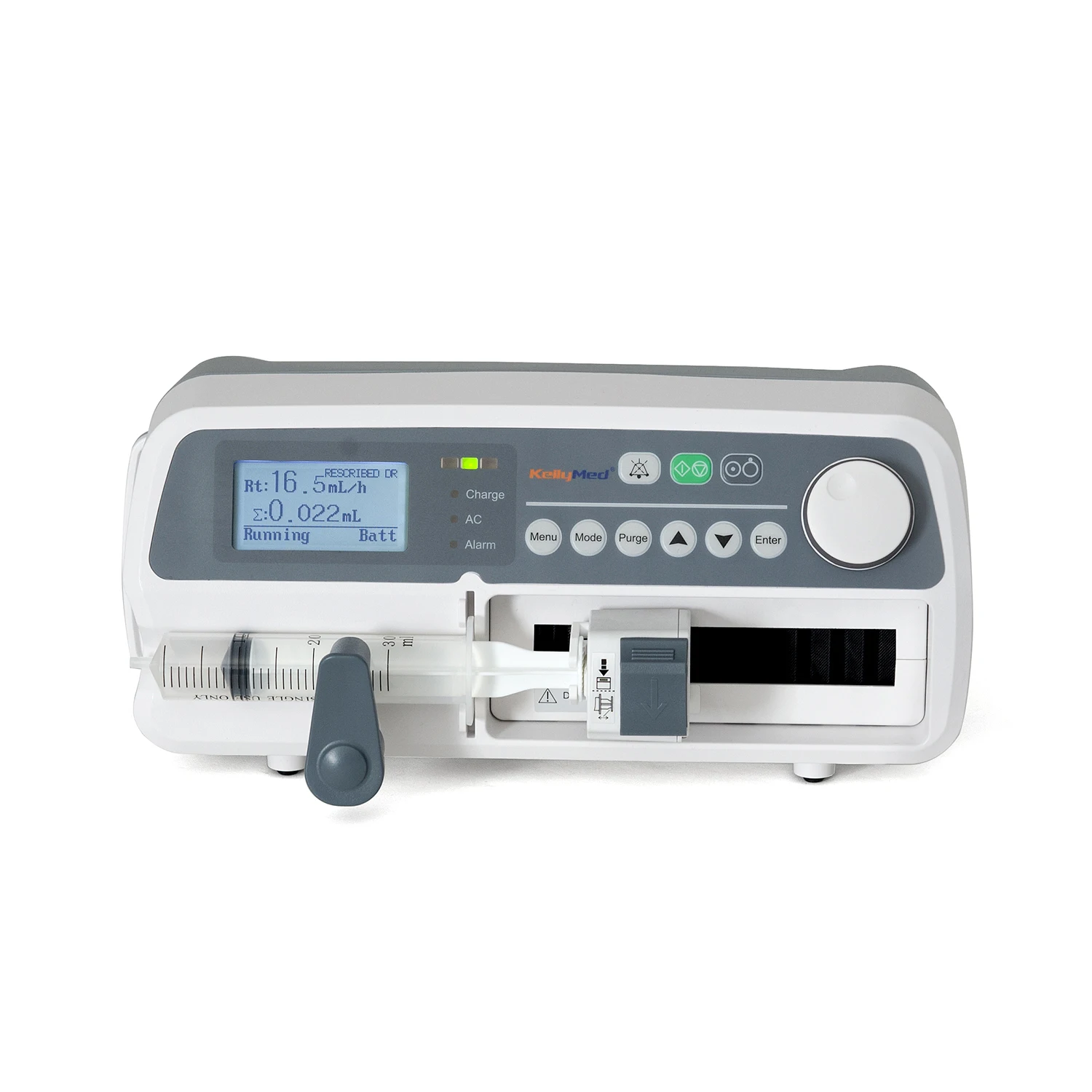

2022 new technology high quality CE marked Syringe pump

Model

KL-602

Syringe Size

10, 20, 30, 50/60 ml

Applicable Syringe

Compatible with syringe of any standard

VTBI

0.1-9999 ml

<1000 ml in 0.1 ml increments

≥1000 ml in 1 ml increments

Flow Rate

Syringe 10 ml: 0.1-400 ml/h

Syringe 20 ml: 0.1-600 ml/h

Syringe 30 ml: 0.1-900 ml/h

Syringe 50/60 ml: 0.1-1300 ml/h

<100 ml/h in 0.1 ml/h increments

≥100 ml/h in 1 ml/h increments

Bolus Rate

Syringe 10 ml: 400 ml/h

Syringe 20 ml: 600 ml/h

Syringe 30 ml: 900 ml/h

Syringe 50/60 ml: 1300 ml/h

Anti-Bolus

Automatic

Accuracy

±2% (mechanical accuracy ≤1%)

Infusion Mode

Memory mode

Flow rate: ml/min, ml/h

Time-based

Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc.

KVO Rate

0.1-1 ml/h (in 0.1 ml/h increments)

Alarms

Occlusion, near empty, end program, low battery, end battery,

AC power off, motor malfunction, system malfunction, reminder alarm,

pressure sensor error, syringe installation error, syringe drop off

Additional Features

Real-time infused volume, automatic power switching,

automatic syringe identification, mute key, purge, bolus, anti-bolus,

system memory

Drug Library

Available

Occlusion Sensitivity

High, medium, low

Power Supply, AC

110/230 V (optional), 50/60 Hz, 20 VA

Battery

9.6±1.6 V, rechargeable

Battery Life

7 hours at 5 ml/h

Working Temperature

5-40℃

Relative Humidity

20-90%

Atmospheric Pressure

860-1060 hpa

Size

314*167*140 mm

Weight

2.5 kg

Safety Classification

Class Ⅱ, type CF
