Гидравлическая машина для прокатки резьбы для изготовления галстуков

Product Overview

Description

Hydraulic Thread rolling machine

This model mainly is used for pressing precision standard parts of external thread and high strength, including regular thread, trapezoid thread and modulax thread. the objective material to be processed inchcde carbon  steel, alloy steel and nonferrous metl with elongation over 10% and tensile strength less than 100kgf/mm2.



Specification:

Pressure of roller max:	200KN	Rotary speed of main shaft:	20,25,41,51,64(r/min)
Max. working dia:	64mm	Dip angle of min shaft:	+ 10o
Max. roller outside diameter:	220mm	Cooling power:	90w
Roller inside diameter:	75mm	Main power:	11kw
Roller width max:	150mm	Hydraulic power:	5.5kw
Max.thread pitch:	8mm	Weight:	3000kg
Center distance of main shaft( stroke):	150-300mm	Size:	1790*1730*1430mm

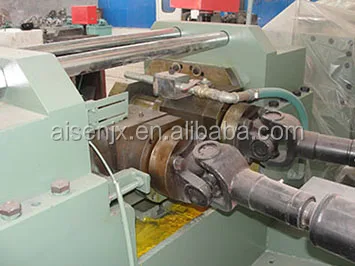

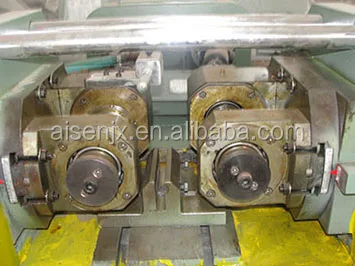

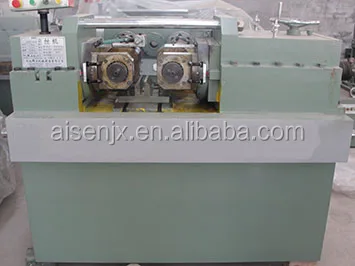

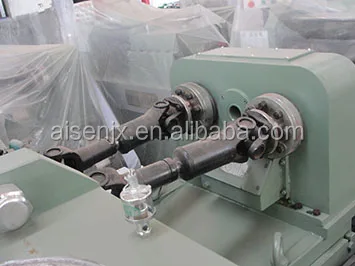

Equipment details show:
