KA series compressor high pressure check valve one way valve
- Category: >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.
Share on (60741175196):
Product Overview
Description

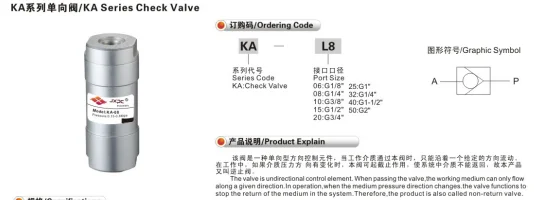

KA series check valve
| Model | KA-L3 | KA-L6 | KA-L8 | KA-L10 | KA-L15 | KA-L20 | KA-L25 | KA-L32 | KA-L40 | KA-L50 |
| Working-pressure | 0.05-0.8Mpa | |||||||||
| Environment etmperature | -10-55℃ | |||||||||
| Medium temperature | 0-55℃ | |||||||||
| Circulating ability | 4 | 10 | 20 | 40 | 60 | 110 | 190 | 300 | 400 | 650 |
| Startup ability | <=0.03Mpa | |||||||||
| Leak out flow | 30 | 50 | 50 | 120 | 120 | 250 | 250 | 500 | 500 | 500 |
| Respond time | 0.03 | |||||||||
| life | >=150 | |||||||||
