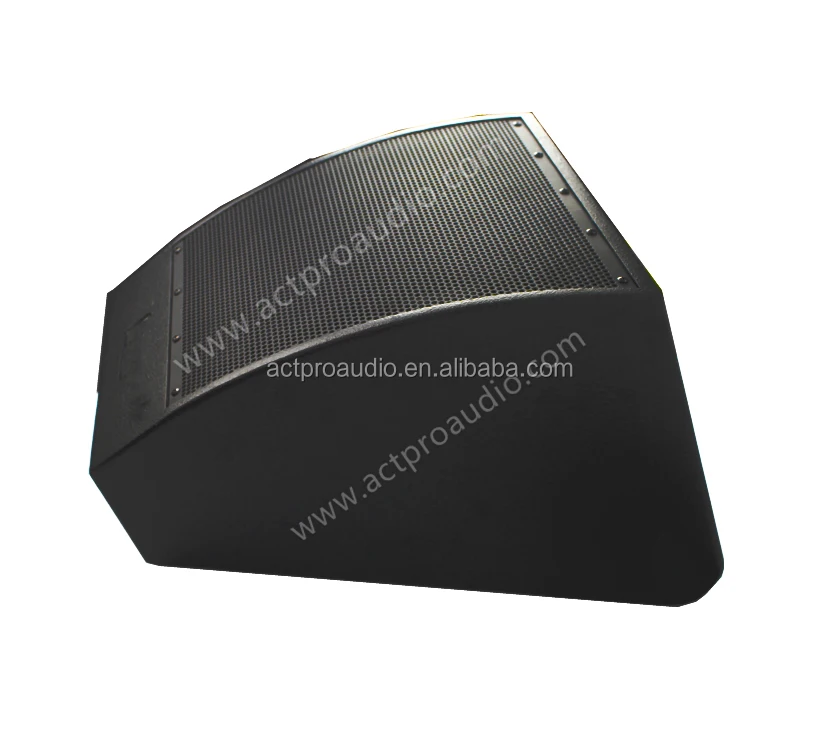

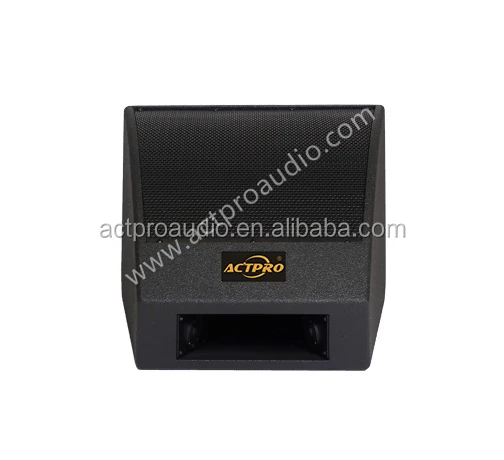

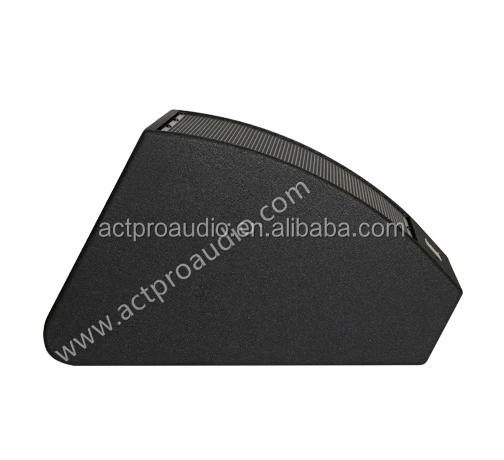

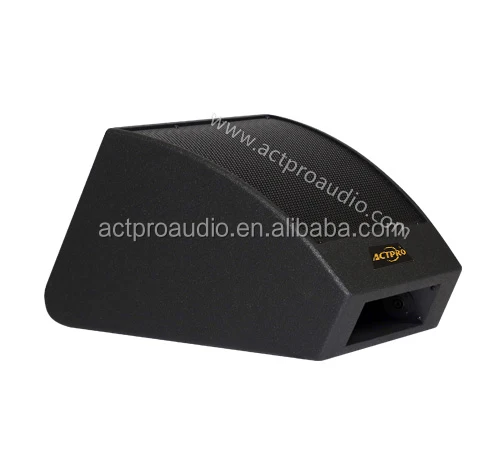

MW 12 stage monitor 12 inch active and passive coaxial monitor speaker sound system sound stage monitor full range speaker

Model : MW 12

Component:

LF: 12-in cone, vented, coaxial with HF

HF: 1x 1.4 in exit, 3 in. voice coil compression driver, Horn-loaded

Dispersion:

H90°×V90°

Frequency response:

64-20K Hz

RMS Power:

500W ASE

Peak Power:

2000W

Sensitivity:

Axial Sensitivity (1W @ 1m, dB SPL)

LF: 95 HF: 106

Full Range: 94

Maximum SPL:

LF: 121 HF: 126 Full Range: 121

Impedance:

8Ω

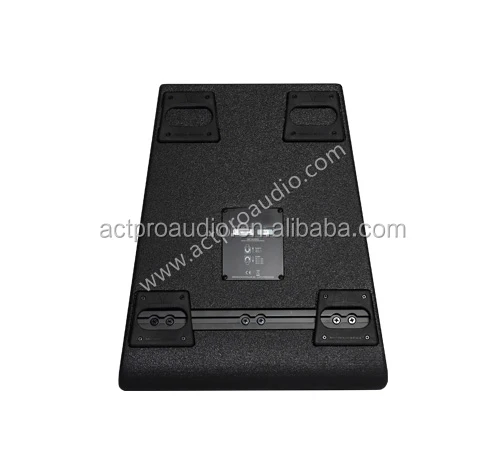

Connection:

2×Neutrik NL4

Product(HWD):

334× ( 500  ×  439 ) × 579 mm

Packing WHD:

575×475×505mm

Net Weight:

15KG/pcs

Gross Weight:

18KG/pcs
