SZGH high quality DSP PLC Cheap 990TD series lathe 2 axis CNC controller 2 axis cnc kit

Product Overview

Description

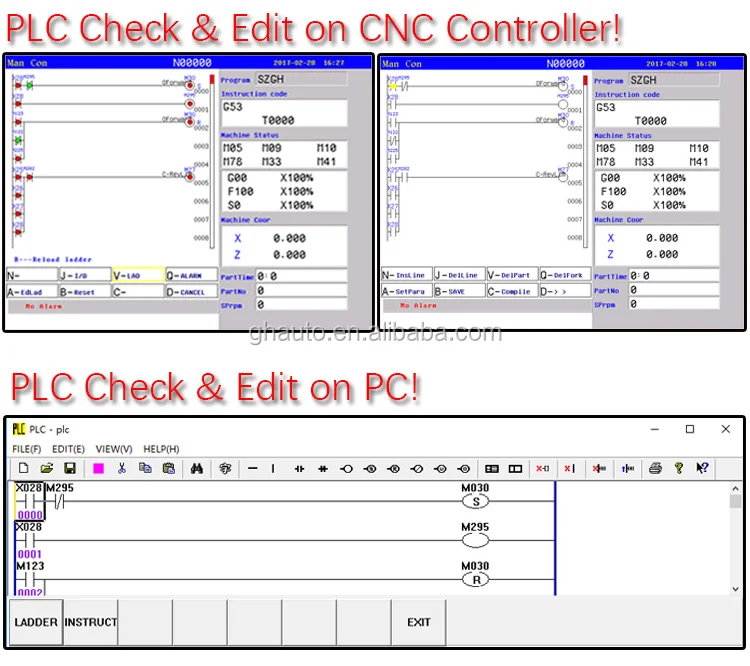

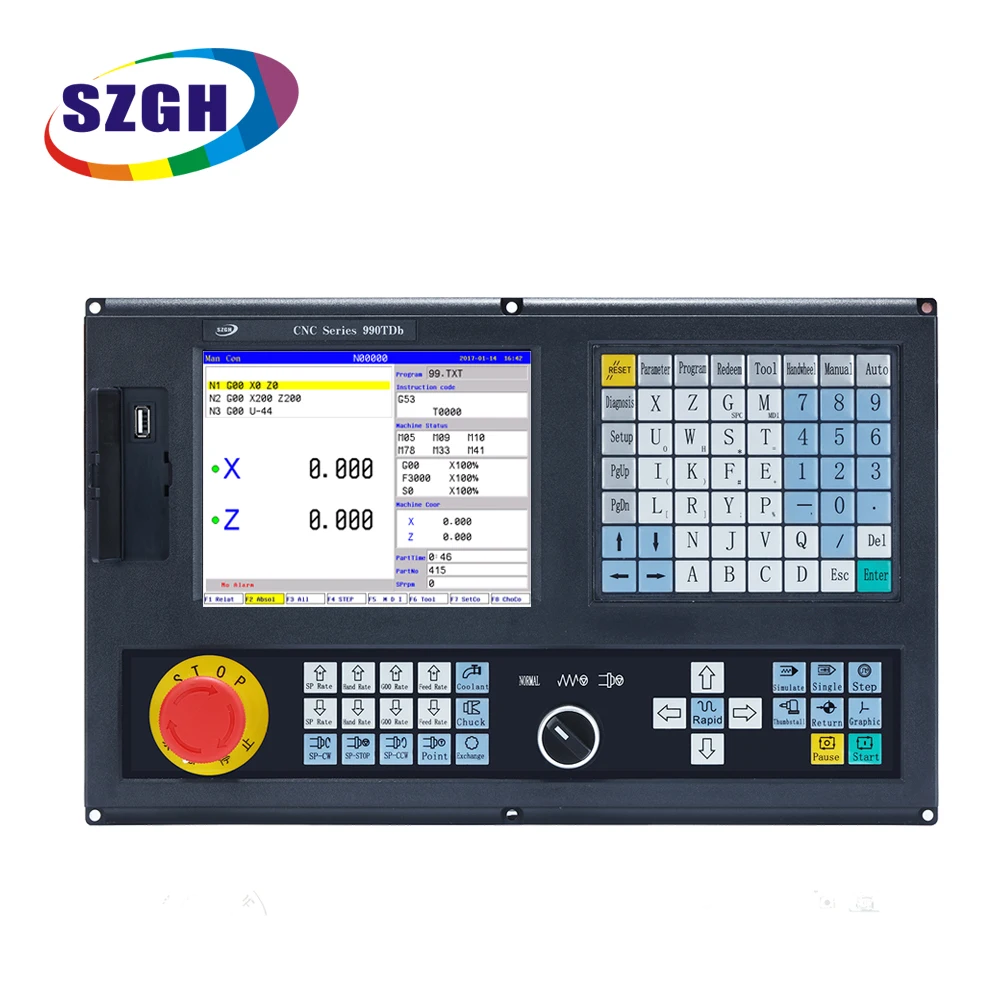

        SZGH-CNC990TDb-2 2 axis lathe CNC controller is 8 inch display(800x600) and 2-channel analog, with cutter offset,I/O 24X24, PLC and macro function. Matching with Servo motor and driver , total product solution can be provide by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ).



Features:



1)Adopt ARM and DSP, FPGA and hardware interpolation technology .



2)The max speed is 20 m/min, feeding speed is 10 m/min



3)32Mb user store room.



4)800x600 7.5 inch real color LCD displayer.



5)Touch screen main and sub panel.



6)High anti-jamming switch power.



7)USB movable U disc copy interface.



8)RS232 interface.



9)Spindle servo speed control/spindle frequency convenient speed control.



10)max screw processing thread pitch is 1000MM



Technical specification:



•X,Y ,Z three axis lathe



•liner, circular, spiral line interpolation instruction.



•min input unit:0.001mm.



•program size range:± 99999.999.



•Feeding speed:0.001-10m/min



•Max speed: is 20 m/min



• length Compensation



•tool radius automatic compensation



•RS232 and U flash connection port



•Spindle servo speed control/spindle frequency convenient speed control.



•max screw processing thread pitch is 1000MM



•I/O 24X24 input and output



System operation condition:

1) Power supplying

AC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.

Note:it must use isolation transform to supply power,first input:380V

2) Climate condition

operation condition:temperature 0~45°C,relative moisture 40-80%.

storage & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).

atmosphere pressure:86-106kpa.

3) operation environment :

No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.



Application:

   Mini-type special lathe machinery,CNC lathe machinery,hardware processing industry,and automatic equipment,etc.
