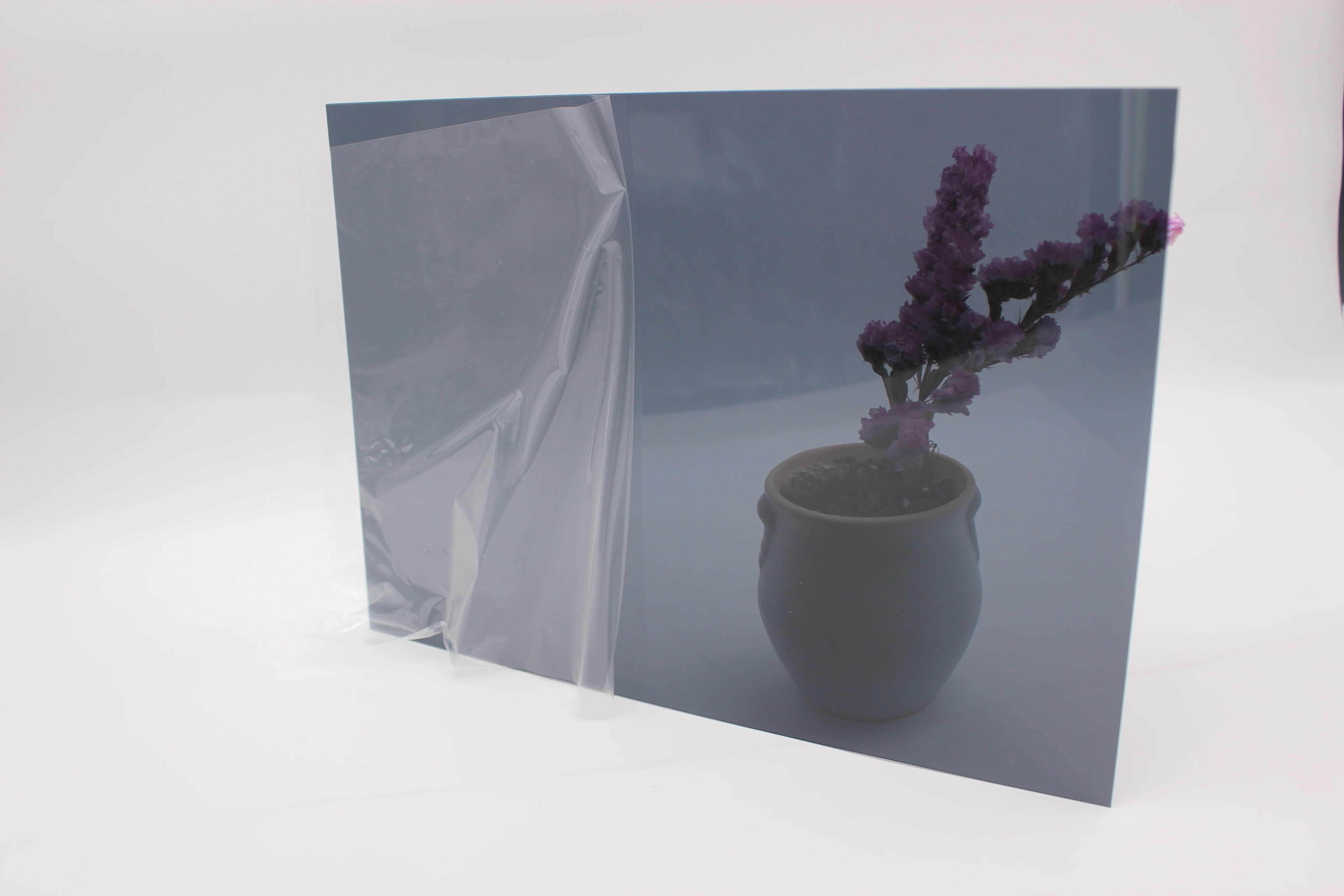

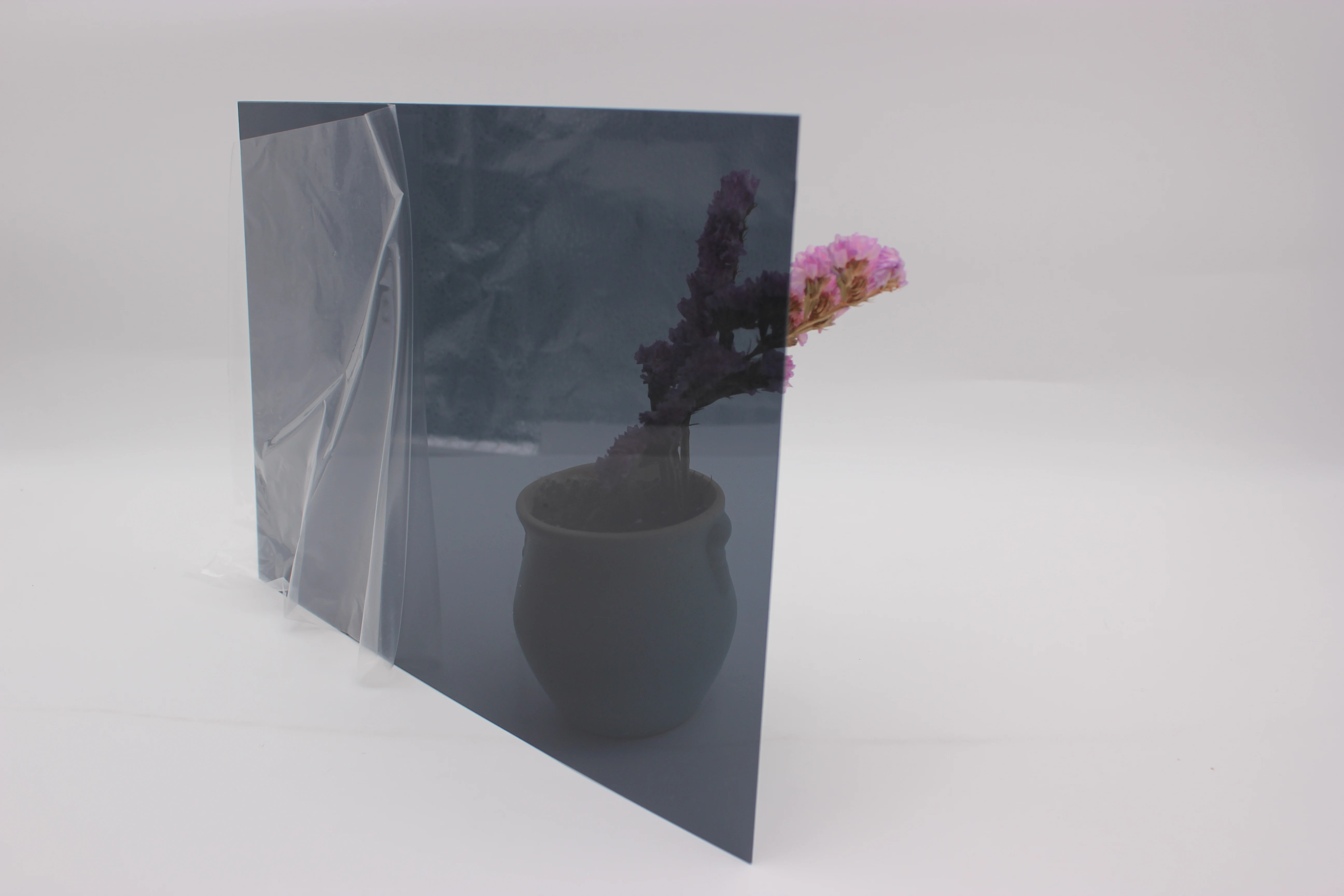

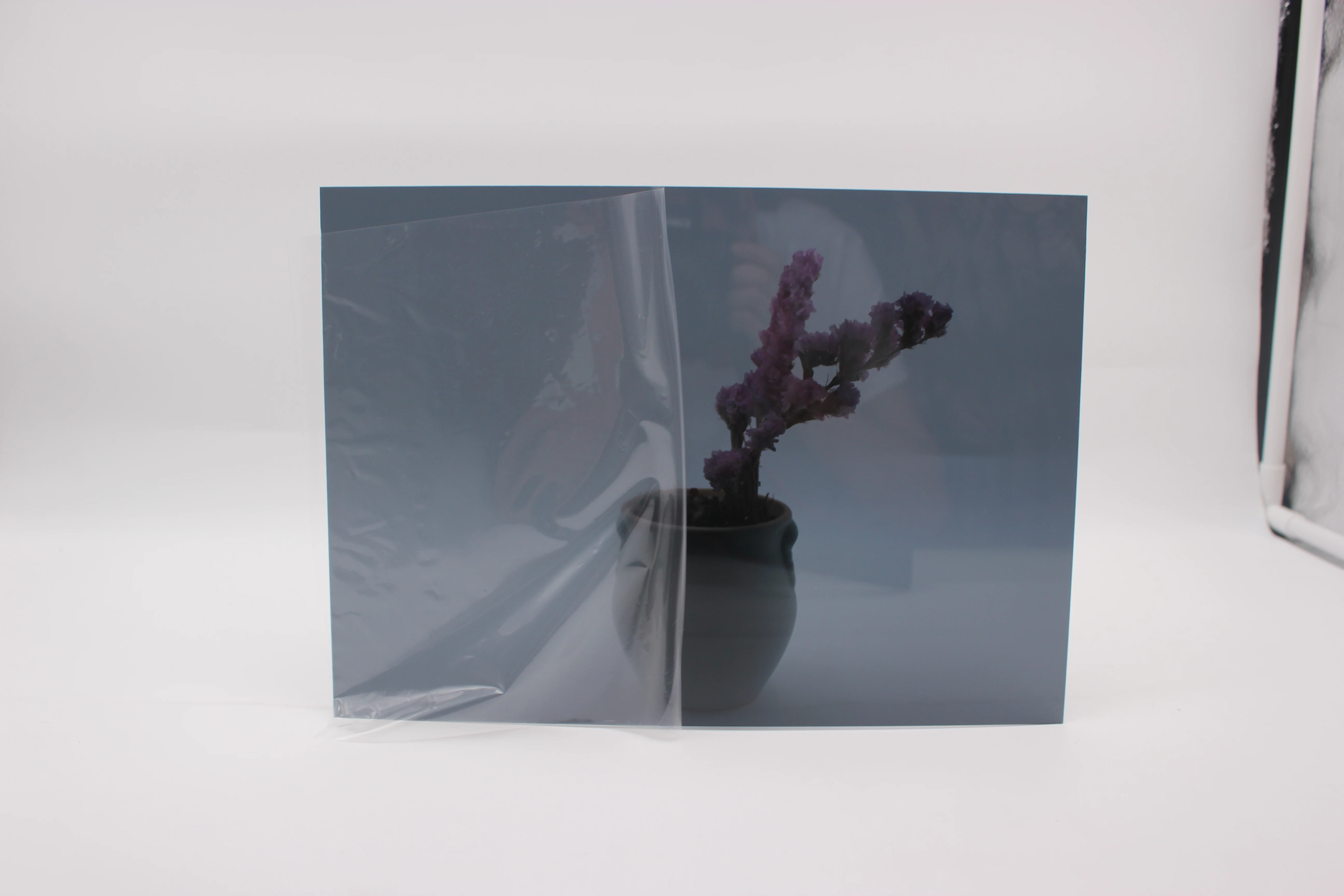

Курительный серый ударопрочный поликарбонатный лист для скайлера и кровли

Share on (60741237643):


Price:2,75 $ - 2,90 $

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

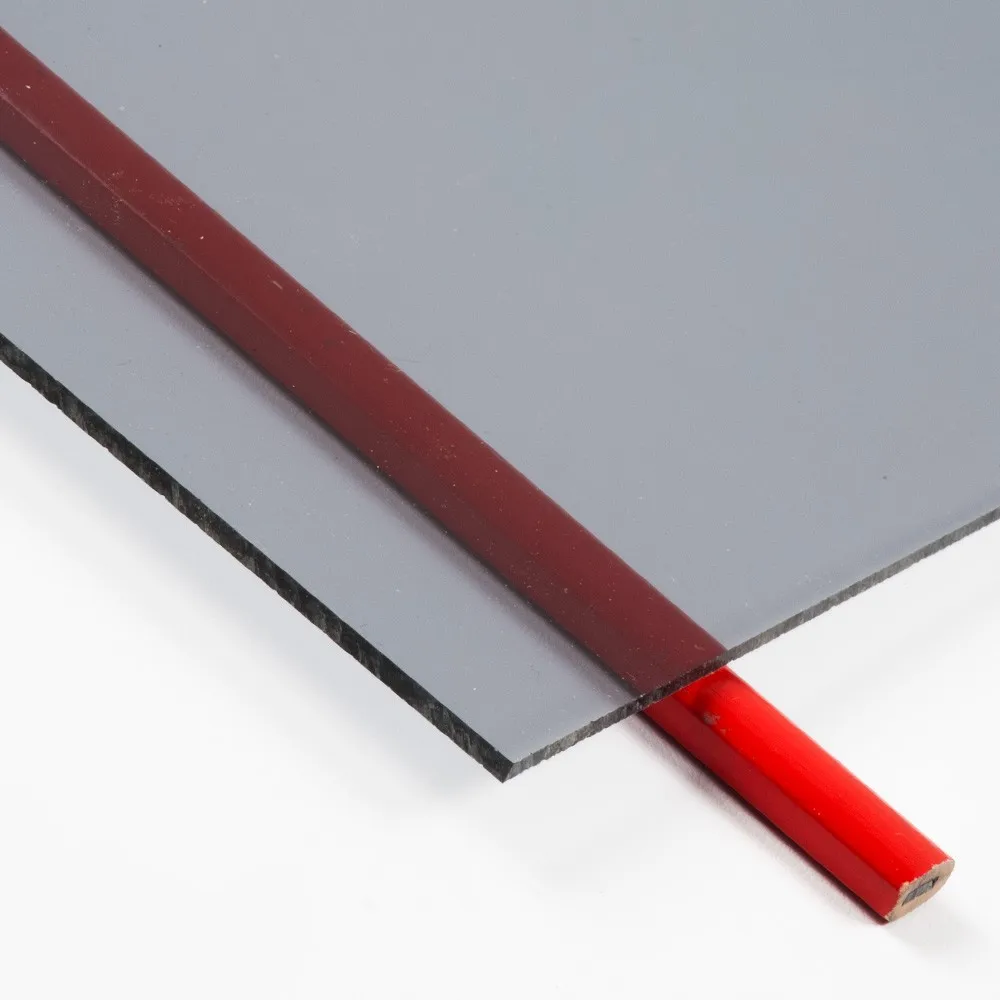

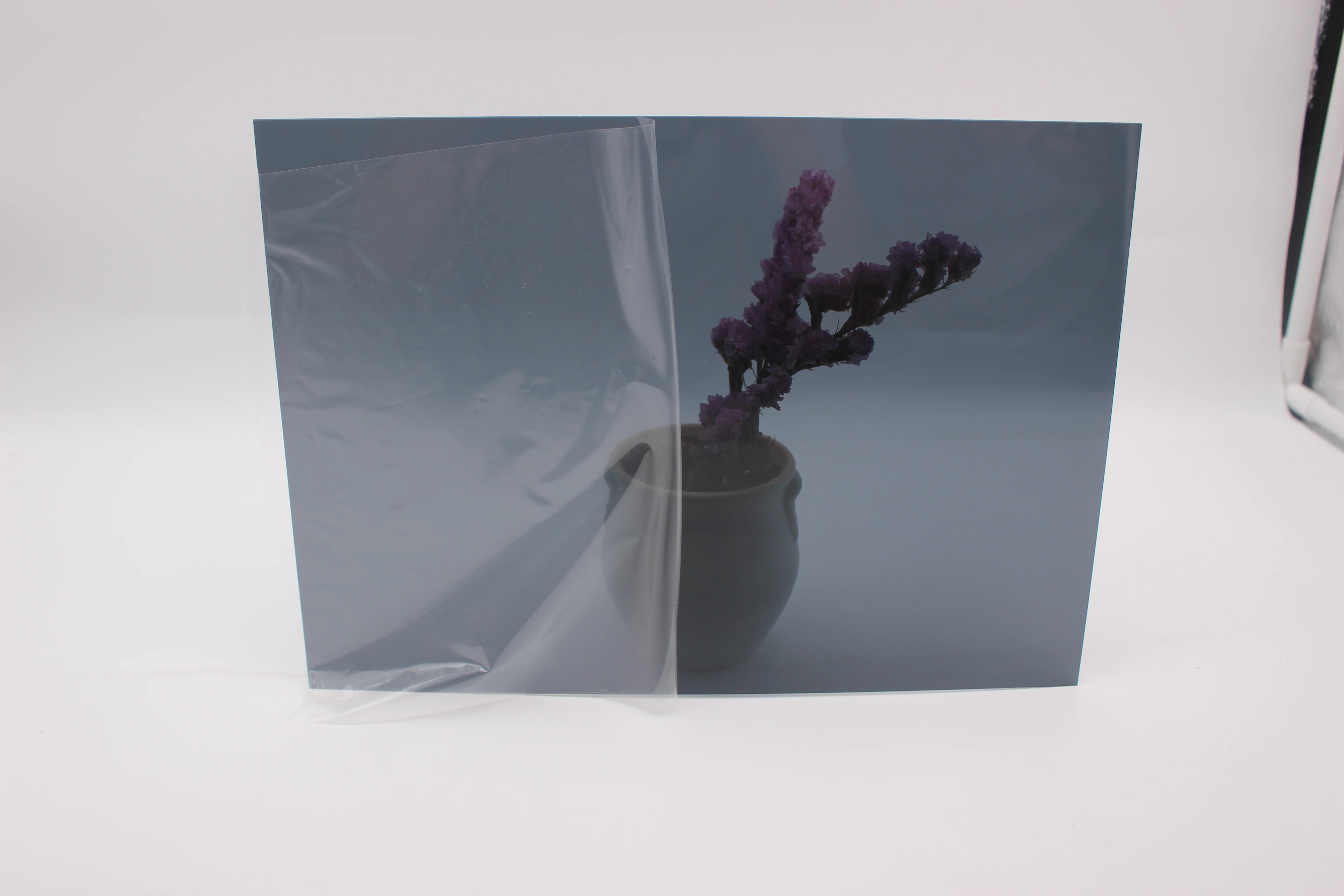

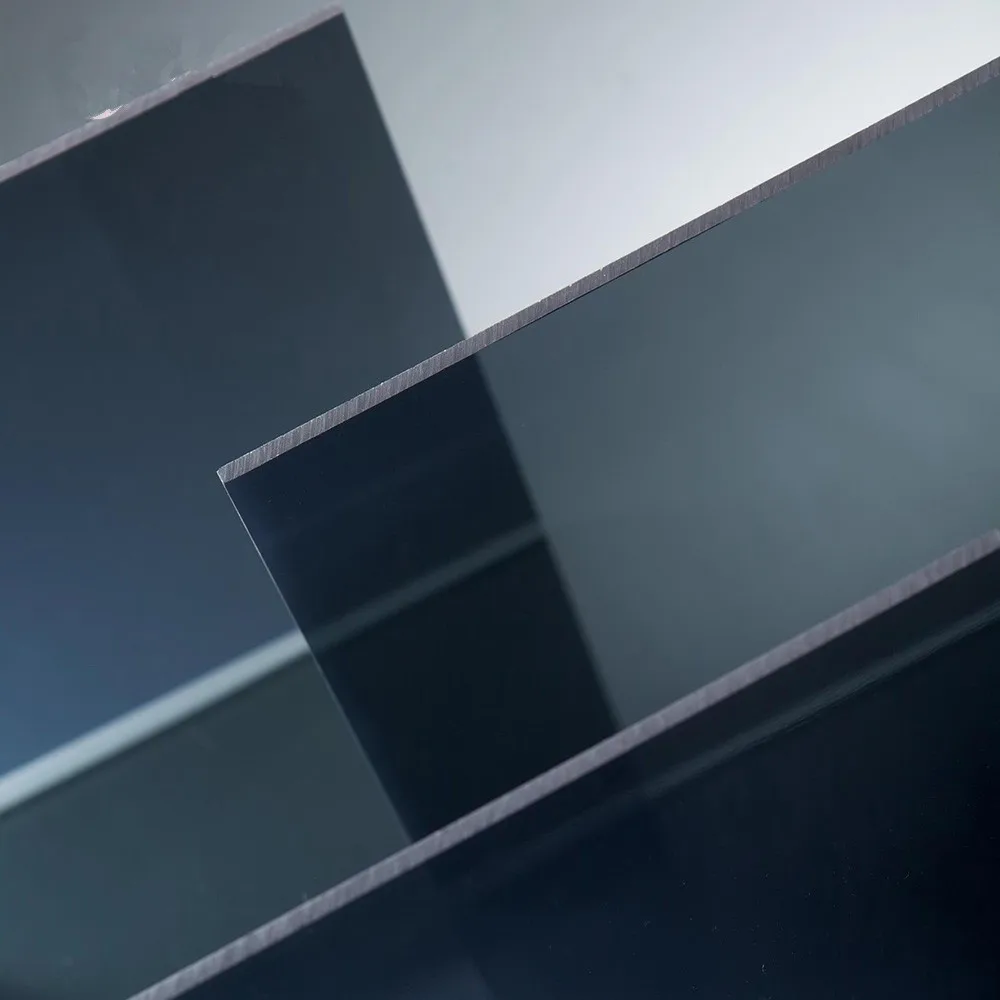

Polycarbonate solid sheet (Smoking grey Polycarbonate sheet)

Polycarbonate solid sheet is suitable in enviroments where safety is paramount. Polycarbonate sheet has a class 1 fire rating that is significantly better than acrylic,making it ideal for use in public areas.
Easily fabricated,polycarbonate solid sheet offer good UV protection,which is why it is often used for conservatories,greenhouses and protecting substances vulnerable to harmful UV rays.
Our polycarbonate solid sheets are availble in clear,translucent or opaque and come with a choice of tints and colours. With Up to 90% light transmittance,polycarbonate solid sheet can be used a lcaer protective material so you do not have to compromise on aesthe


Polycarbonate solid sheet combines ultra-high impact resistance with clarity, making it the material of choice for demanding applications. Polycarbonate solid sheet is virtually unbreakable, yet it is transparent as glass at less than half its weight. Polycarbonate solid sheet can be cold bent and easily fabricated and formed, making it ideal for barrel vault roofing, skylights, architectural roofing and glazing. Clear, translucent and opaque Polycarbonate solid sheets are also ideal as machine guards, sound barriers, anti-vandal and safety glazing. Polycarbonate solid sheets Diffuser and LB sheets are extensively used in durable light boxes.

Benefits

1)High impact resistance - virtually unbreakable
2)High clarity and light transmission
3)Weather and UV resistant
4)Wide service temperature range
5)Blocks harmful UV radiation
6)Good acoustical insulation
7)Lightweight
8)Easy to handle and install
9)Versatile, formable, and machinable

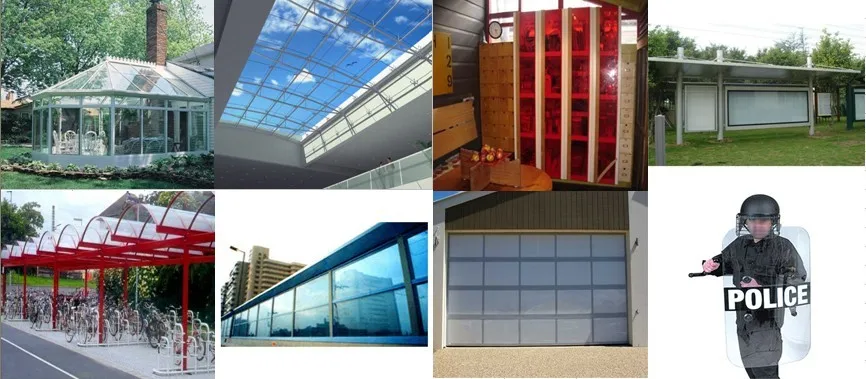

Applications

1)Architecture: Transparent acoustic barriers, Sport venues, Skylights, Shopping centers, Covered walkways
2)Construction: Sun rooms and conservatories, Pergolas and covered patios
3)Safety and Security Glazing: Safety glazing, machine guards, Bus stops and telephone booth
4)Shields for police and security forces, Glazing in public transportation, Safety windshields for cars, Eye protection visors for helmets
5)Sign & Display: Signs, public sign guards, Displays, P.O.P stands, Illuminated signs, light fixtures
6)Fabrication: Thermoformed, vacuum formed, bent and fabricated items

Polycarbonate Solid Sheet Physical data:


\t
Solid pc sheet Properties
\t
Test Method
\t
Average Index
\t
Specific Gravity
\t
ASTM D792
\t
1.20
\t
Tensile Strength
\t
JIS K6735;CNS11335
\t
551 kgf/cm²
\t
Elongation
\t
JIS K6735;CNS11335
\t
50%
\t
Compressive strength
\t
ASTM D695
\t
830 kgf/cm²
\t
Modulus of Elasticity
\t
ASTM D638
\t
345000PSI+/-10%
\t
Flexural Strength
\t
ASTM D790
\t
950 kgf/cm²
\t
Yellowing Index
(UV-Grade apply)
\t
ASTM D1925
(After exposure to sunlight for 3 years)
\t
Below 3.0
\t
Light Transmittance
\t
wave length 500nm(UV/VIS)
\t
88%
\t
UV-Ray Penetrability
(UV-Grade apply)
\t
wave length 500nm(UV/VIS)
\t
2.4%
\t
Weather Resistance
(UV-Grade app)
\t
(Continously exposed to sunlight for 3000 hours)
\t
yellowing index below5
\t
Impact Strength
\t
CNS11335
(1kg iron ball falls from 120cm height)
\t
Unbreakable
\t
Inflammability
\t
UL 94V2
(contact with flame for 10 seconds and move away)
\t
Self-extinguishing
\t
Deflection Temperature
\t
ASTM D648,18.6KG/cm²
\t
135℃(the highest temp is about 120℃ in continuous uses)
\t
Brittle Temperature
\t
ASTM D764
\t
(the lowest temp is about +30℃ in continuous uses)
\t
Coeffcient of Liner Expansion
\t
\t
Pertain to smaller coefficent of synthetic resin
\t
polycarbonate sheet
\t

Description
\t
Size
\t
Weight
\t
Mini-bending Radius
\t
thickness(mm)
\t
width(mm)
\t
length(mm)
\t
kg/m2
\t










Polycarbonate sheet
\t
1.5
\t
1220-2100
\t
As your requested
\t
1.8
\t
234
\t
2
\t
1220-2100
\t
As your requested
\t
2.4
\t
360
\t
3
\t
1220-2100
\t
As your requested
\t
3.6
\t
540
\t
4
\t
1220-2100
\t
As your requested
\t
4.8
\t
720
\t
5
\t
1220-2100
\t
As your requested
\t
6
\t
900
\t
6
\t
1220-2100
\t
As your requested
\t
7.2
\t
1080
\t
8
\t
1220-2100
\t
As your requested
\t
9.6
\t
1440
\t
10
\t
1220-2100
\t
As your requested
\t
12
\t
1800
\t
12
\t
1220-2100
\t
As your requested
\t
14.4
\t
2250
\t
15
\t
1220-2100
\t
As your requested
\t
18
\t
2700
\t

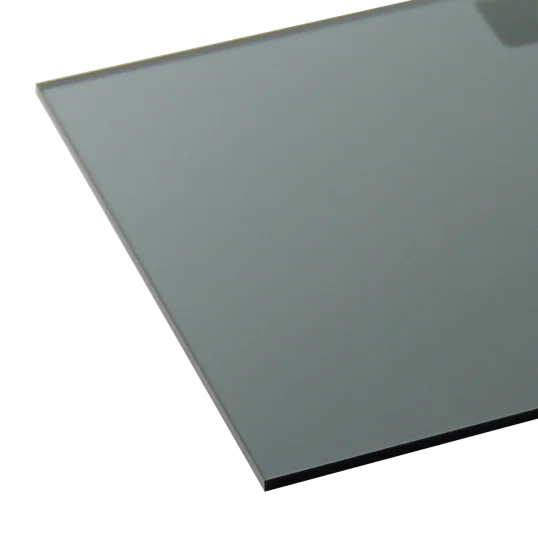

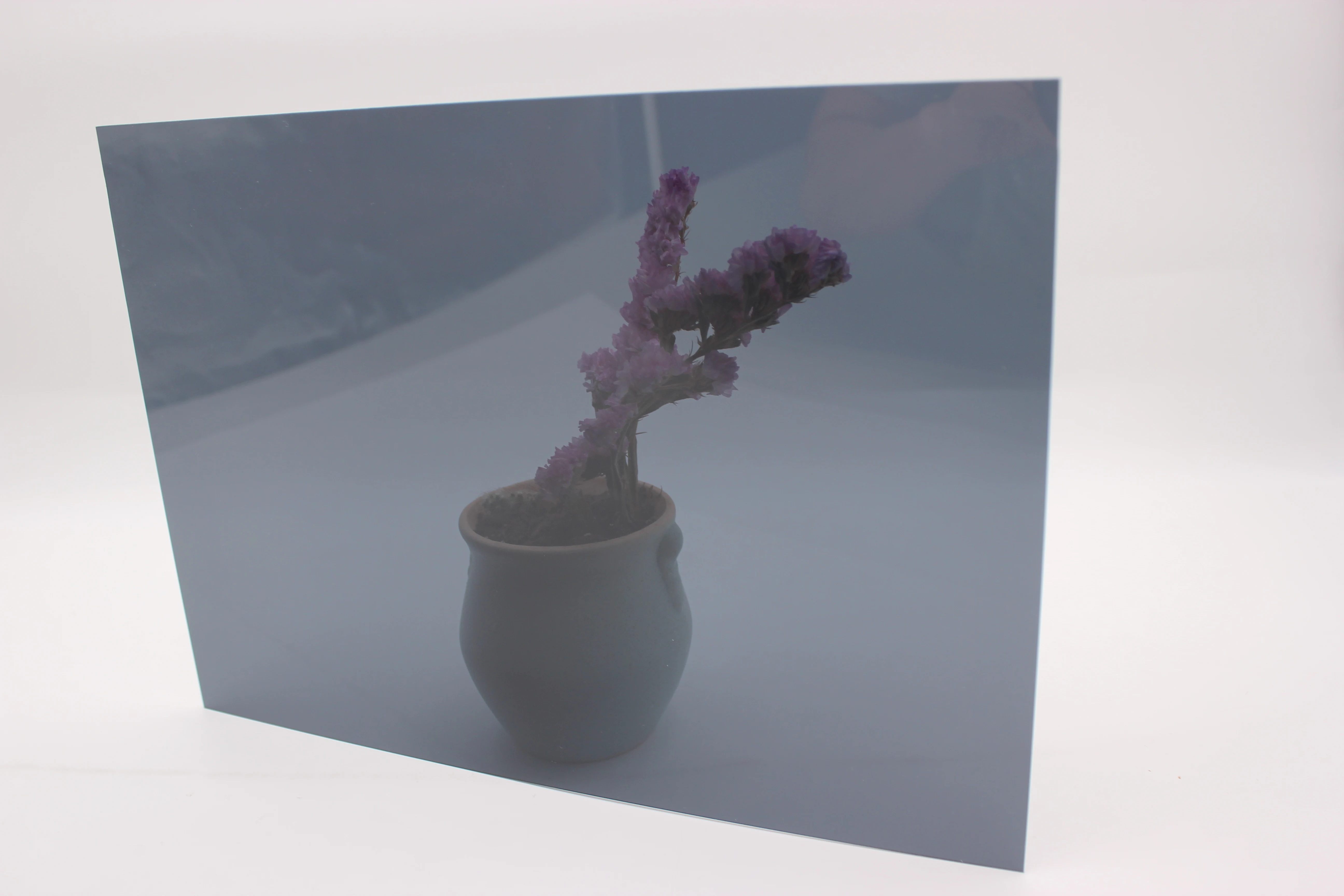

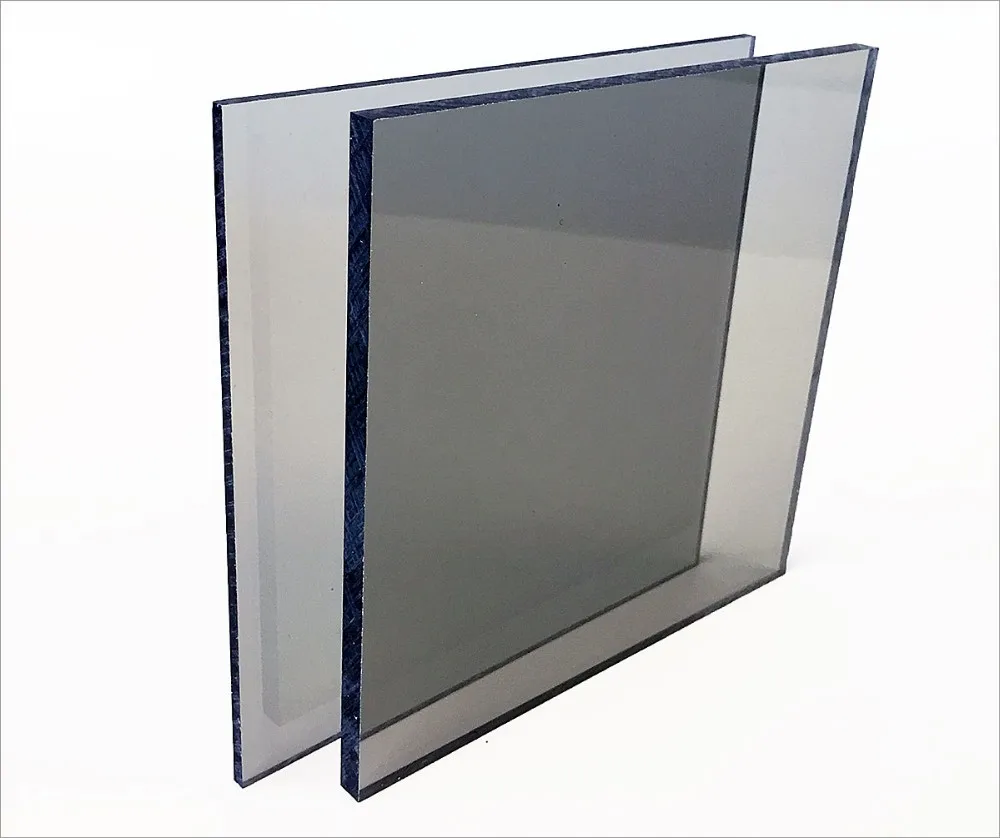

                                                                                                                                                                 Smoking grey Polycarbonate sheet
Related Products

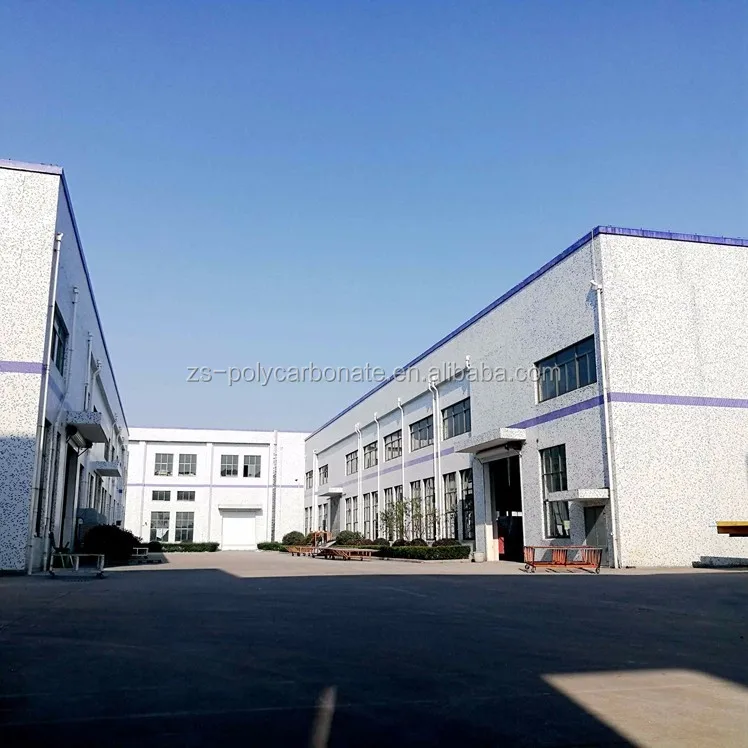

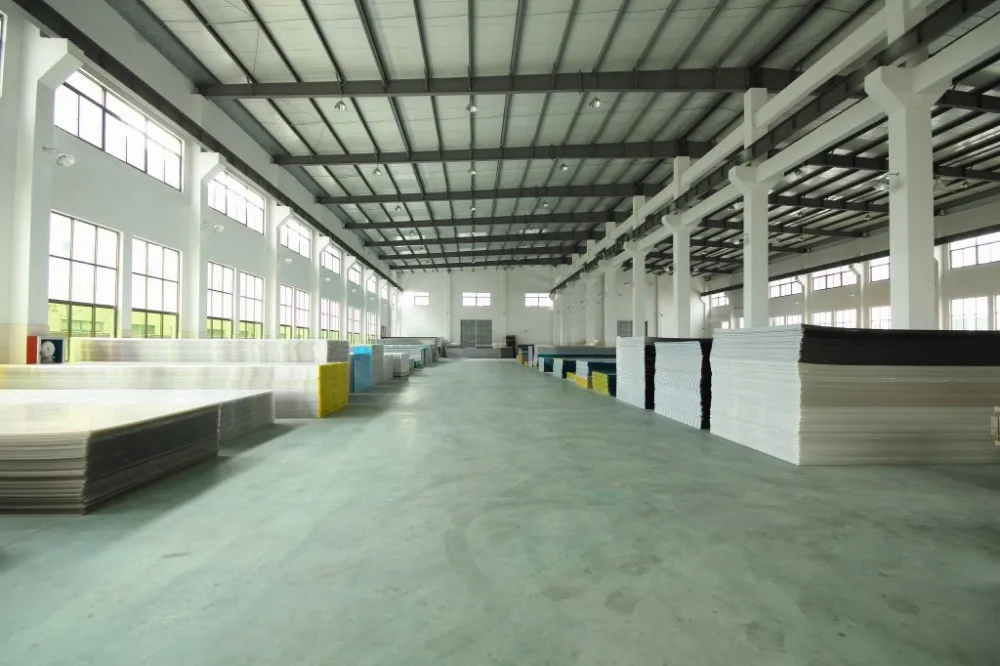

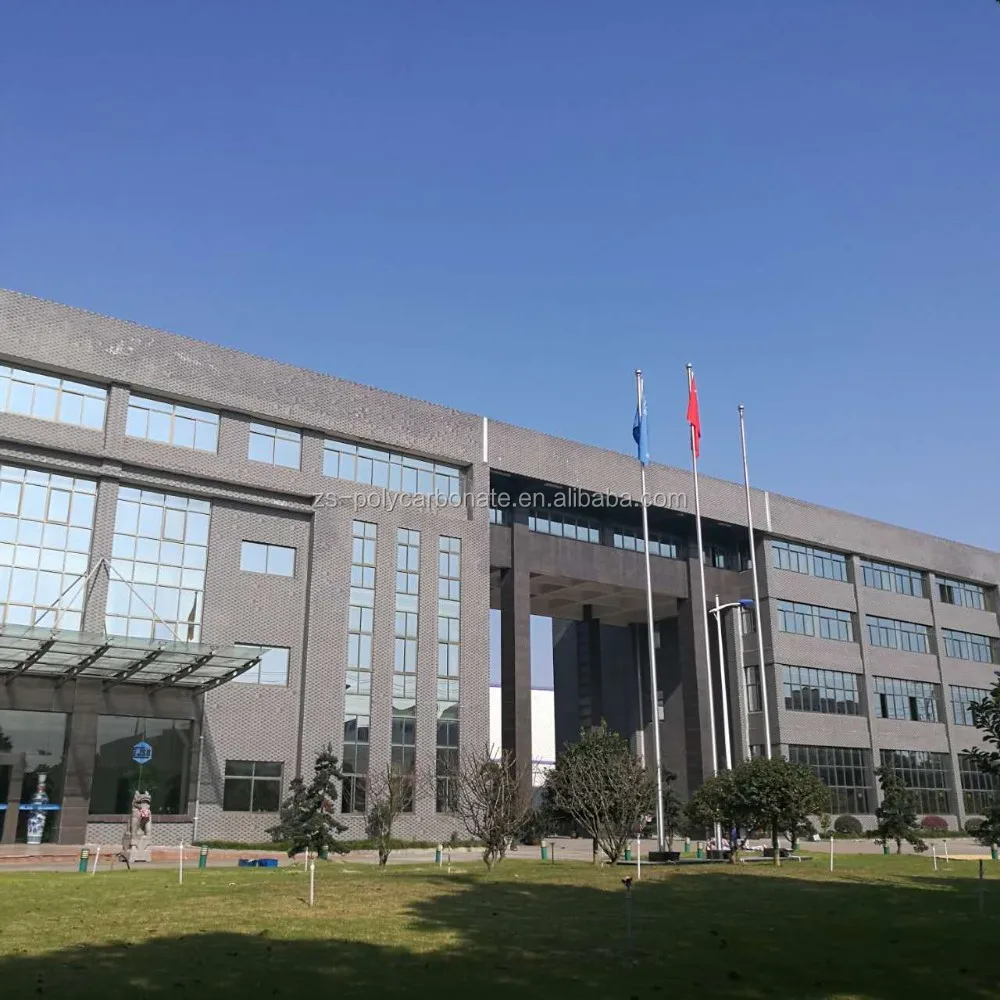

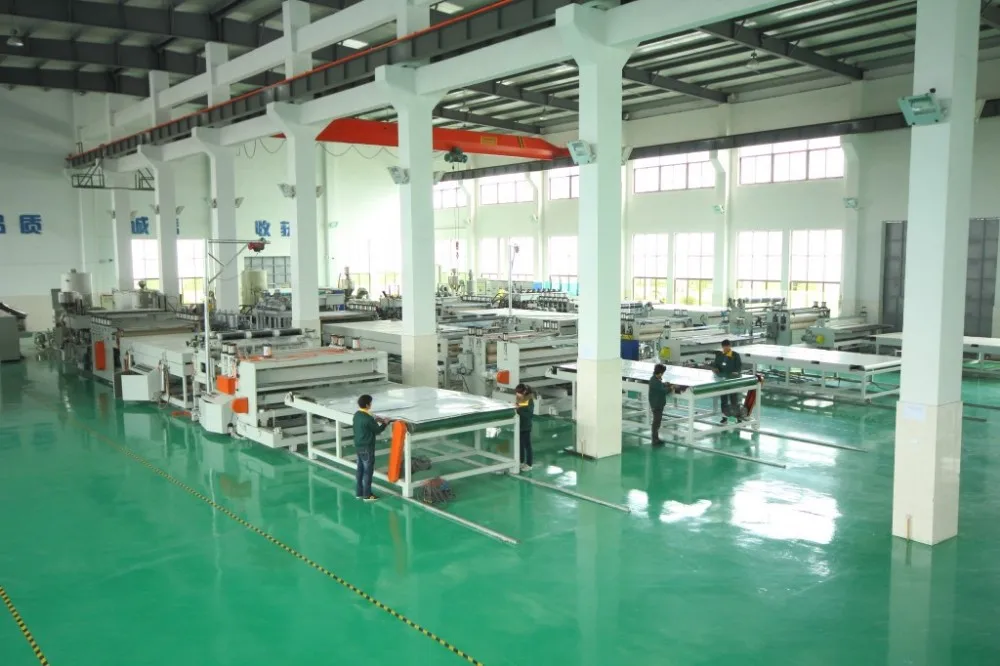

Our company
Our advantage

Certification


Panel Processing

Engraving

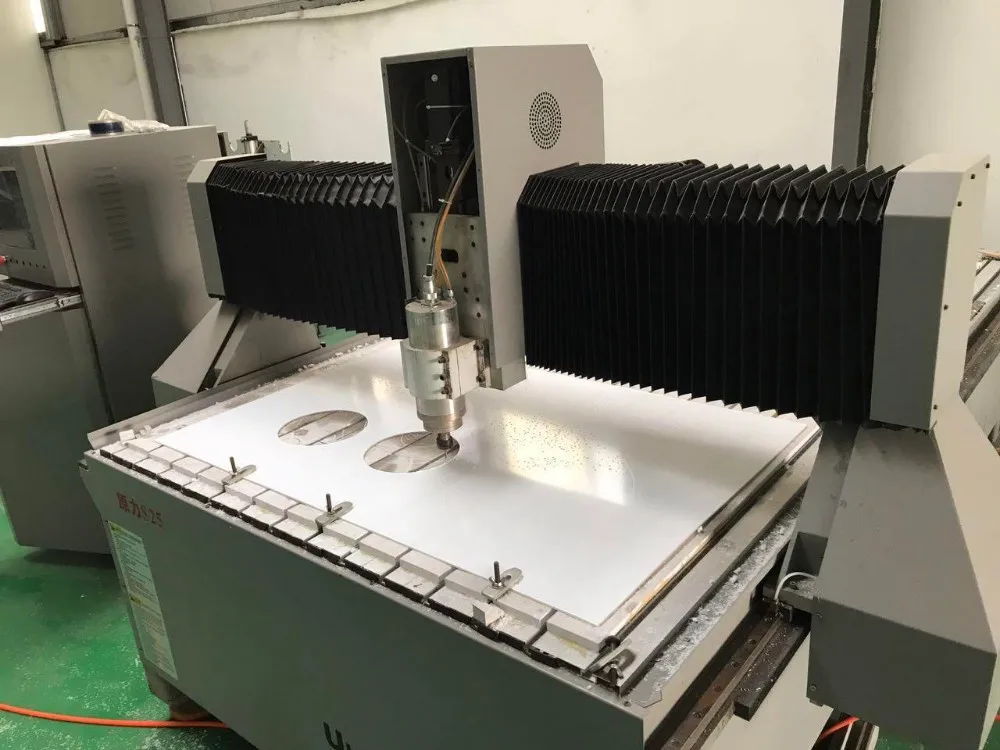

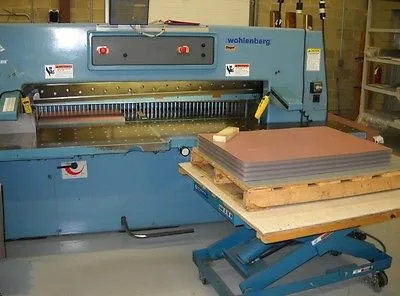

Cutting


Exhibition

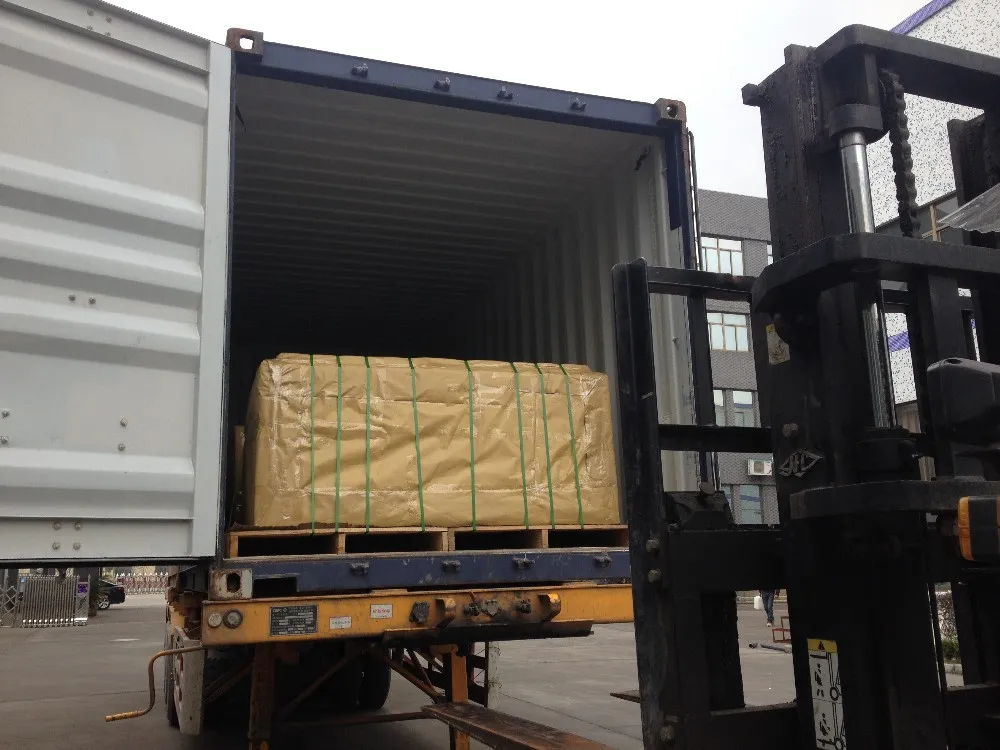

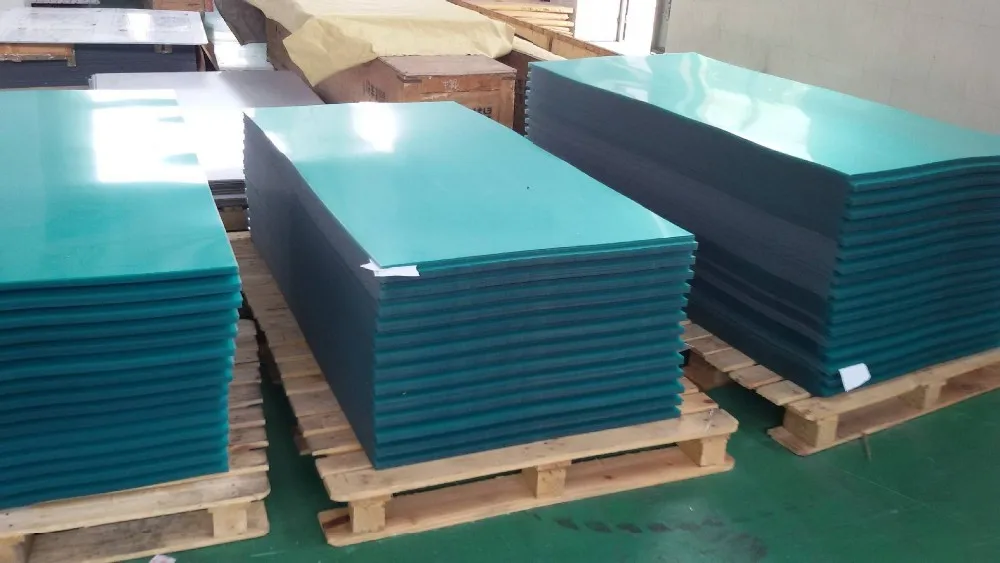

Packing & Delivery

Impact resistance Polycarbonate solid sheet
