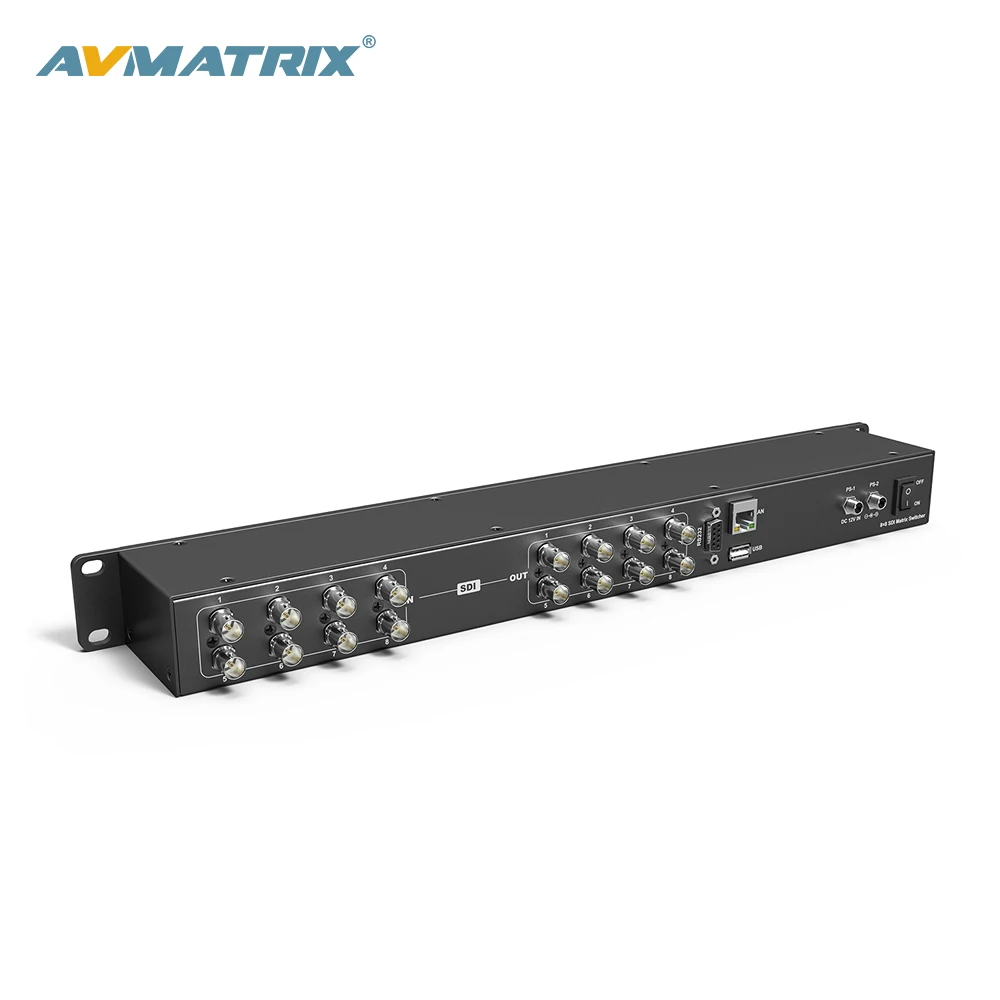

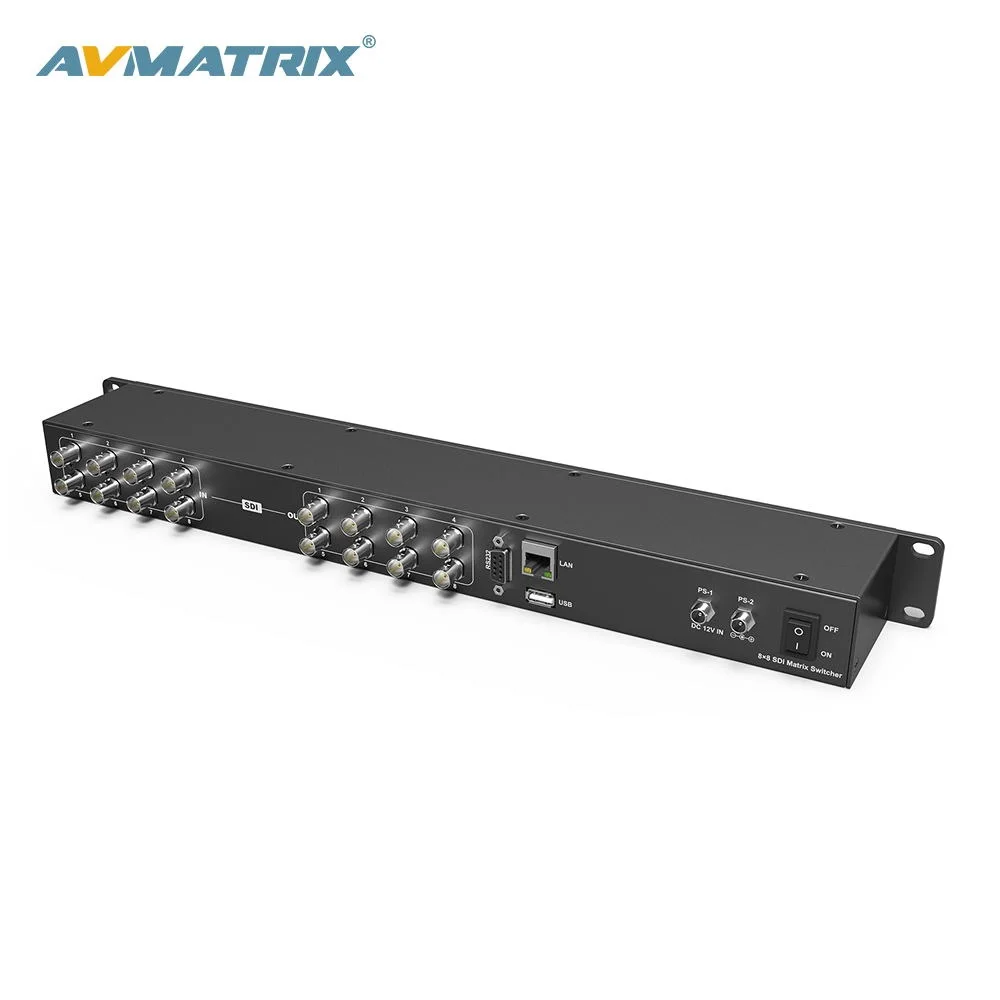

MSS0811 AVMATRIX 8x8 SDI video matrix switcher ASI switcher distribution
- Category: >>>
- Supplier: Zhangzhou Matrix Electronic Technology Co. Ltd.
Share on (60741259773):
Product Overview
Description
Brief Introduction
MSS0811
8x8 SDI Matrix Switcher / Router
The compact SDI matrix switcher MSS0811 has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. It’s conveniently control by front panel button, keyboard via USB and PC software via LAN/RS-232.
Main Features
1) 8×3G-SDI/ASI inputs, 8×3G-SDI /ASI outputs
2) SDI input signal auto detection & equalization
3) Level A and level B singal supported
4) Pass all ancillary data and embedded audio
5) Redundant power design
6) DVB-ASI interface compatible
7) Free PC software control: LAN, RS-232
8) Front panel buttons control & USB keyboard
2) SDI input signal auto detection & equalization
3) Level A and level B singal supported
4) Pass all ancillary data and embedded audio
5) Redundant power design
6) DVB-ASI interface compatible
7) Free PC software control: LAN, RS-232
8) Front panel buttons control & USB keyboard
Product Description
Powerful Signal Routing
This SDI matrix switcher includes multi format technology so it can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destination in NTSC and PAL SD, 720, 1080 at any frame rate.
Multiple Control Methods
Front Panel
SDI matrix switcher MSS0811 enables full control from the front panel. The current channel status can be viewed visually from the 2.2 inch LCD screen. Besides, the LOCK button perfect avoid accident.
PC Software
With a free PC control software, you can control the matrix switcher via Ethernet. Also you can use the software control via the serial port RS-232 connecting your PC.
USB Keyboard
There is another smart control method that connecting a USB keyboard from the USB port to realize a quick and easy configuration
Redundant Power
The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.
Compact Design
The super-compact 1RU format is just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.
Techniacl Parameter
Connection | Video Input | SD/HD/3G-SDI/ASI-DVB ×8 |
Video Output | SD/HD/3G-SDI/ASI-DVB ×8 | |
Standard | SDI Input Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50, 525i 59.94 |
SDI Video Rate | SD/HD/3G-SDI | |
SDI Compliance | SMPTE 259M / SMPTE 292M / SMPTE 296M SMPTE 372M / SMPTE 424M / SMPTE 425M | |
SDI Color Space and Precision | RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bit | |
SDI Auto Switching | Auto selects SD, HD and 3G-SDI on input | |
Controls | Control Method | Front panel buttons |
LAN (software control) | ||
RS-232 (software control) | ||
USB Type A (USB keyboard control) | ||

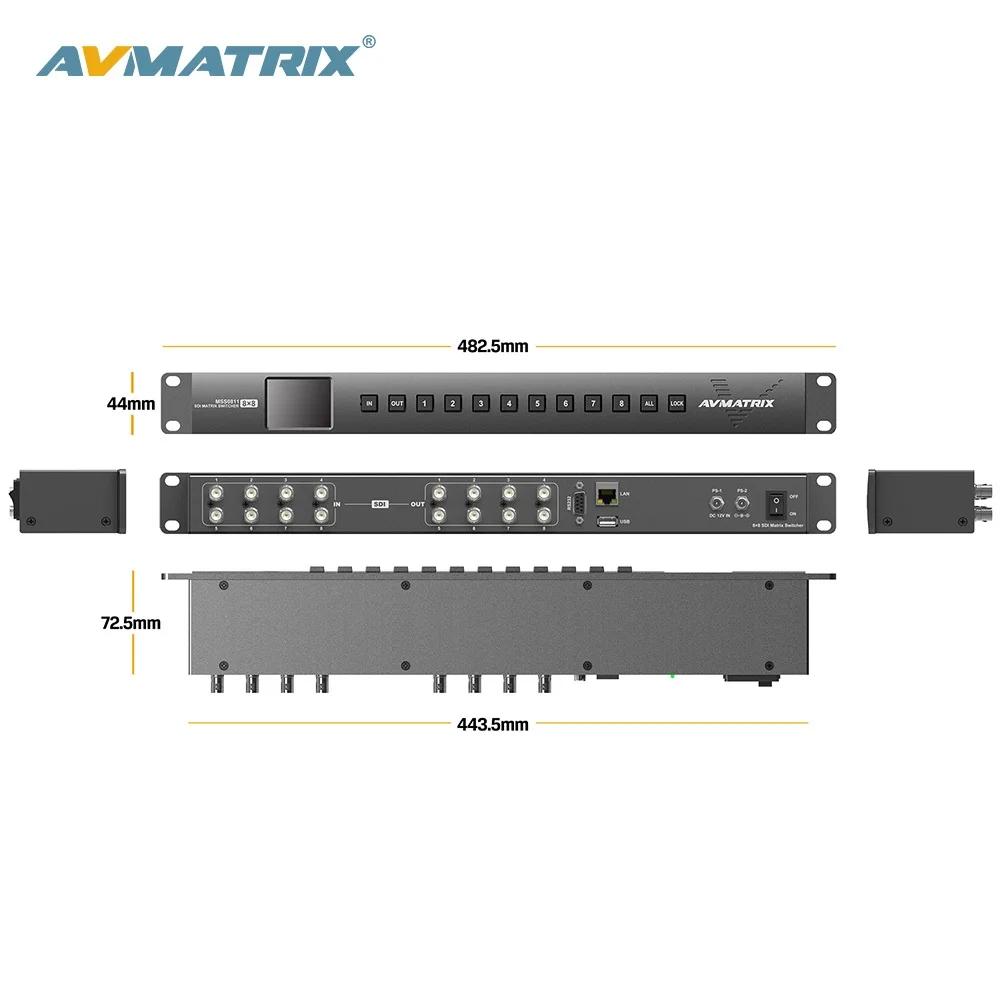

Size | Dimension(LWD) | Standard 19" 1 rack unit |
Weight | 1100g | |
Power | Power Connector | Threaded locking connector PS-1, PS-2, power redundancy |
Power Consumption | 7W | |
Voltage Range | 6~24V | |
Environment | Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
Relative Humidity | 0%~90% non-condensing | |
Warranty | Warranty | 3 years limited warranty |
About AVMATRIX
After-Sales Service
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
About AVMATRIX
AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
